Single-color LED module for signage - 2.8W - 220V AC - IP65 - 16º
SKU:BM1426BC
€2.49
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

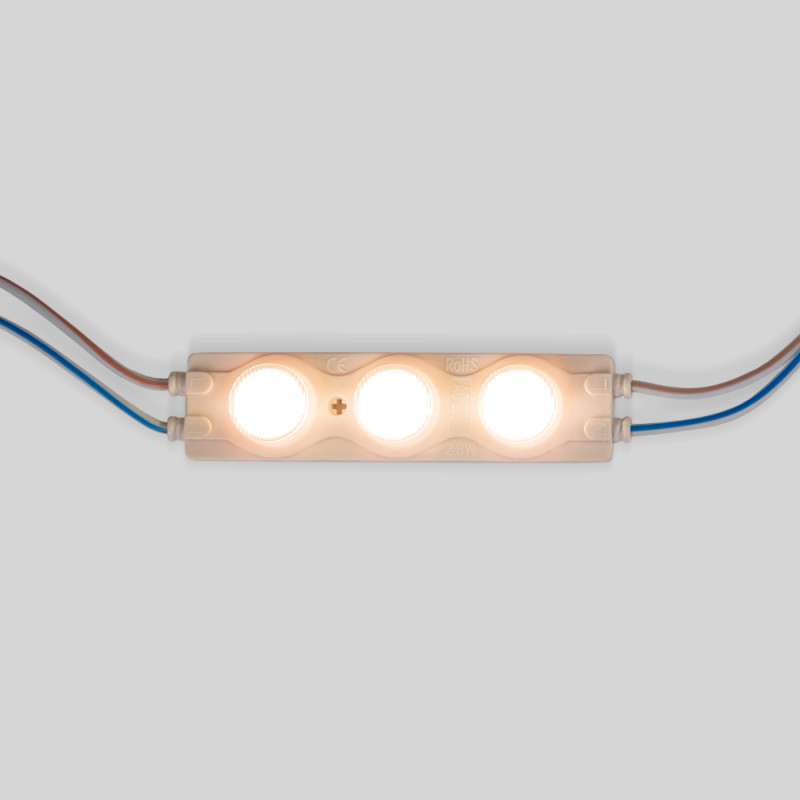

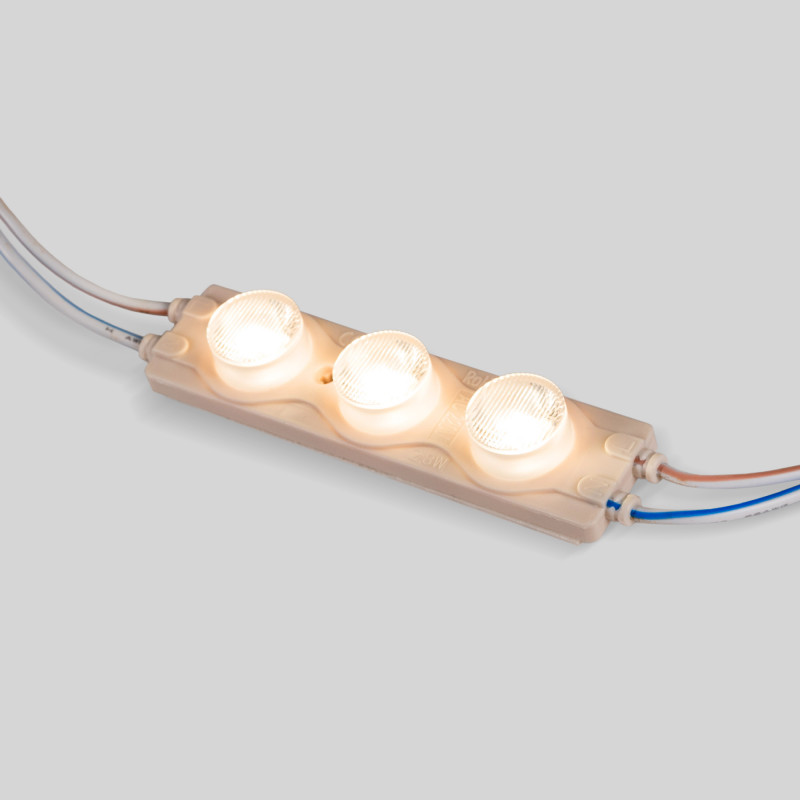

LED sign and signage lighting: maximum versatility - Closed Angle
LED modules designed to provide uniform and decorative illumination for billboards.
- High power: Each module has 3 integrated SMD 3030 LED chips, each with a power of 2.8W, ensuring bright and uniform illumination.
- Easy installation: Equipped with 3M self-adhesive on the base, mounting is quick and easy, without the need for additional tools.

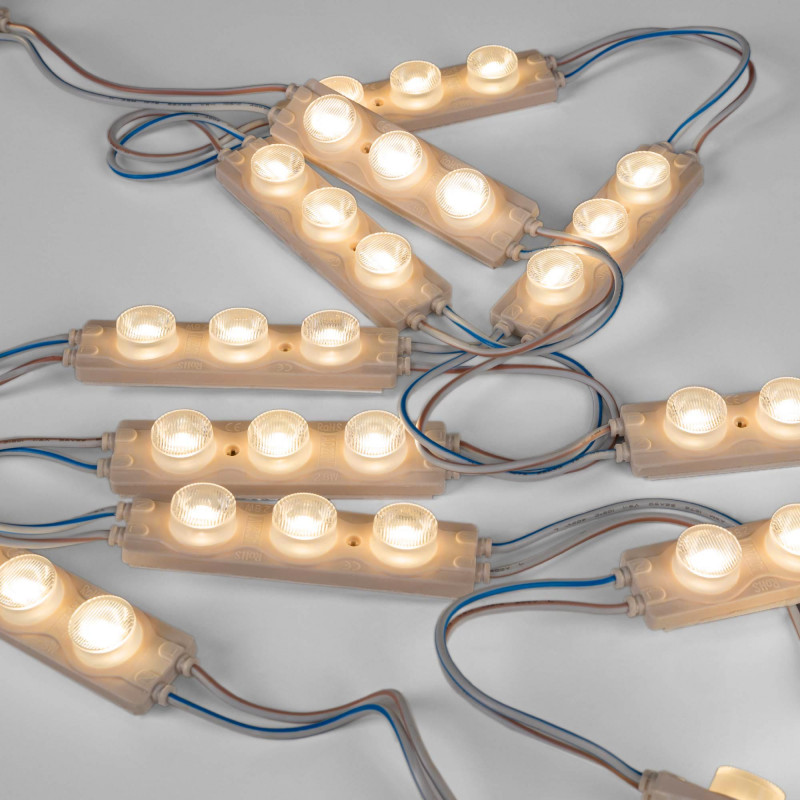

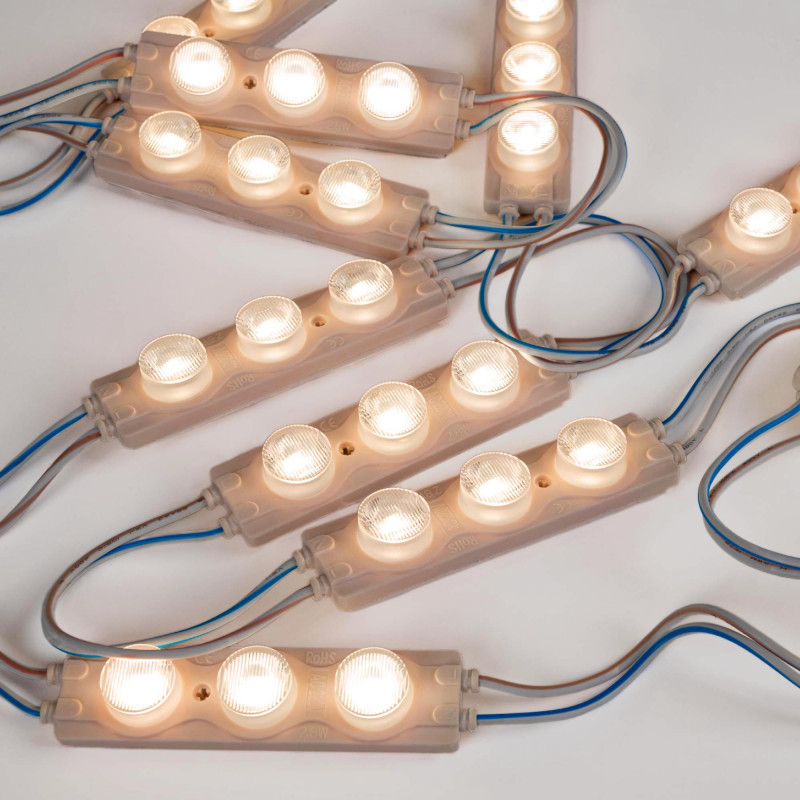

- Design flexibility: The modules are connected to each other by cables, allowing great flexibility in the design of signs and banners of various shapes and sizes.
- Shades: Available in 3 shades: warm white (3000K), neutral white (4000K) and cool white (6000K).
- Resistance and durability: Made of high-strength polycarbonate, these modules are suitable for outdoor use thanks to IP65 degree of protection.
- Direct connection to 220V: They operate directly at 220V, without the need for transformers or power supplies.
- Versatile applications: Ideal for signage, illuminated signage, decorative and signage projects, these modules offer multiple decorative possibilities.
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
2,5
Kelvin (K)
3000
4000
6000
4000
6000
Beam angle (º)
15º
Lifetime (h)
30000
IP
IP65
Dimensions (mm) Lxlxh
140x25x16
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Warm white
Neutral white
Warm white
CRI
80-85
LED Type
SMD 3030
Dimmable
No
Material
Plastic
Diffuser material
Plastic
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Adhesive
3M
Frequency of use
Intensive
Energy efficiency class
F
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: |
Hello, I want to transform a fluorescent light in led, it is T-shaped and the measures are: on the one hand, the measure is 1200mmx 370mm what would be the horizontal part and the vertical part measuring 2000mmx370mm, it would have to illuminate in both directions, that is, to be illuminated by the 2 sides. Can you tell me the necessary material with power supply and prices. Thank you very much Merry christmas |
|---|
| R: Answer: | These modules are 15º, for perimeter use. They can be placed in the interior profile of the sign for illumination on both sides. This model goes 220vac. For quotations and orders please contact comercial@barcelonaled.com |
|---|
| P: Question: |
Good afternoon. I would like to illuminate internally (currently I have fluorescent), the sign box of an indoor counter. The measures are 140cmx 50cm. I would like to know the product of your catalog and exact quantity. Thank you. |
|---|
| R: Answer: | The technical service will contact you.
Barcelona LED: Marc| 28/11/2019 |
|---|
