RGB LED modules for signage 0.72W 12V-DC IP65 140º.
SKU:BM1431RGB
€0.99
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

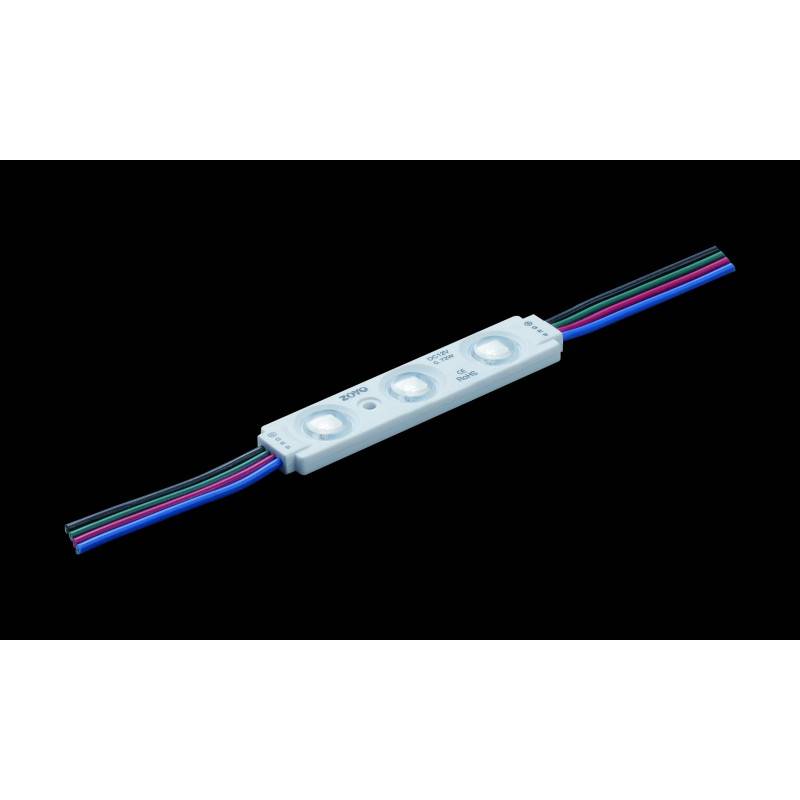

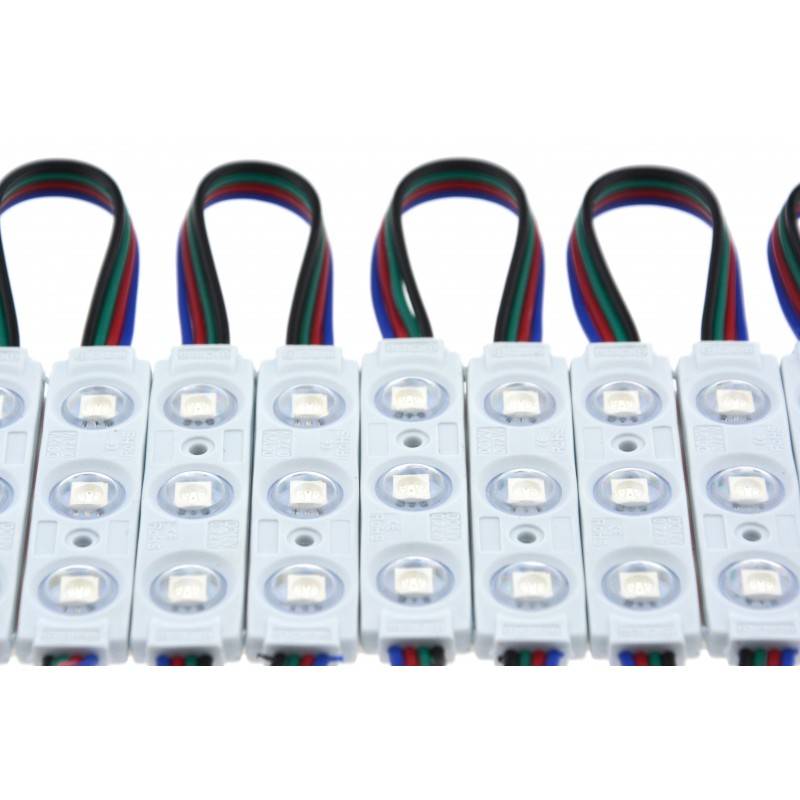

Easy to use, self-adhesive RGB LED modules.

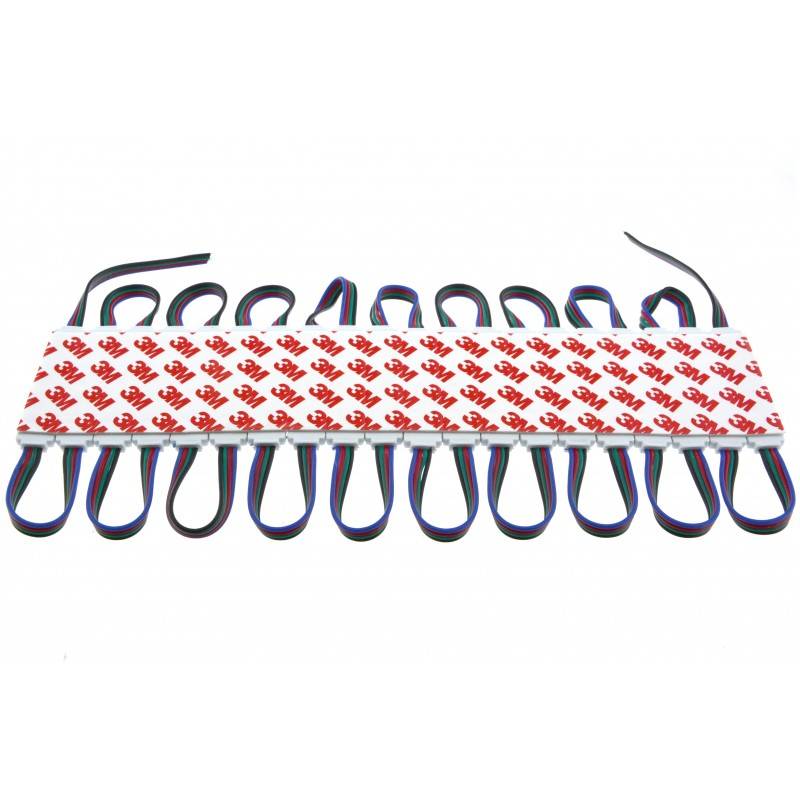

These small RGB LED modules are the perfect solution to illuminate an object or place. They contain LED diodes encapsulated in a plastic tablet. The pads are connected to each other by an RGB electric cable. They come with 3M self-adhesive to quickly and easily attach the pads. You peel off the plastic that covers the 3M and paste in the place where you want to install the modules, creating shapes or a line. They can be installed outdoors thanks to their IP 65 degree of protection.
High luminosity
Despite its small size, having 3 chips per chip, it has a power of 0.72W. For example, assembling a chain of 20 chips we would have a total power of 14.4W. Ideal for illuminating signs or labels. For its correct use it would be necessary to connect a 12V power supply with a power higher than 14.4W as well as an RGB Controller to be able to change the module colors.
- RGB
- 0.72W
- CHIP 5050
Applications of the LED chips:
- Outdoor decoration: fountains, swimming pools, trees, etc.
- It is mainly used in signage, illuminated signs, giant letters to illuminate them inside, logos, luminous advertising boxes...
- Illumination of objects inside such as computers or inside furniture or boxes.
- Widely used in automobiles.
- Illumination of fish tanks and aquariums.
- Backlighting in general.
Questions
| P: Question: |
Hello, I understand that the chain of 20 modules is already joined together, it is watertight and measures a total of 3.2 meters in a straight line, right? greetings, thank you |
|---|
| R: Answer: | Yes, it is watertight and attached |
|---|
| P: Question: | I have a timer controller led of 5 outputs (RGB and +) with which I can regulate intensity in several outputs. My question is: could I regulate the intensity of these led modules separating them by colors? different intensities in each of the colors? |
|---|
| R: Answer: | If your controller is (RGB and +) you can use it for RGB modules. Dimming is by PWM pulse width. |
|---|
| P: Question: | I would like to be able to control the leds with Philips Hue, eWelink (both have Zigbee protocol) or in the last case with Somfy Tahoma. What can you tell me about this? |
|---|
| R: Answer: | Our products with ewelink App are in Sonoff products but they work in wifi network and there are no RGB controllers. We do not work Zigbee protocol at the moment, given the low demand. |
|---|
| P: Question: | I am interested in this product to backlight a 30cm x 40cm steel sign outdoors. What power supply and controller do you recommend? |
|---|
| R: Answer: | It depends on the number of modules, for the 20 modules that is more than enough, with a B1581-60 12v source can serve you. Any RGB controller for 12vdc works with the modules, the controller if it is not watertight must be protected from the outside. The B2168 model is watertight by bluetooth. |
|---|
| P: Question: |
HOW LONG IS IT? CAN SEVERAL CHAINS BE INTERCONNECTED TO OBTAIN LONGER LENGTHS? WHAT ACCESSORIES ARE NECESSARY IN THIS CASE? WHAT IS THE RECOMMENDED FEEDER? |
|---|
| R: Answer: | Its length is 3,2mts. If more modules can be added. The power supply depends on the number of modules. |
|---|
