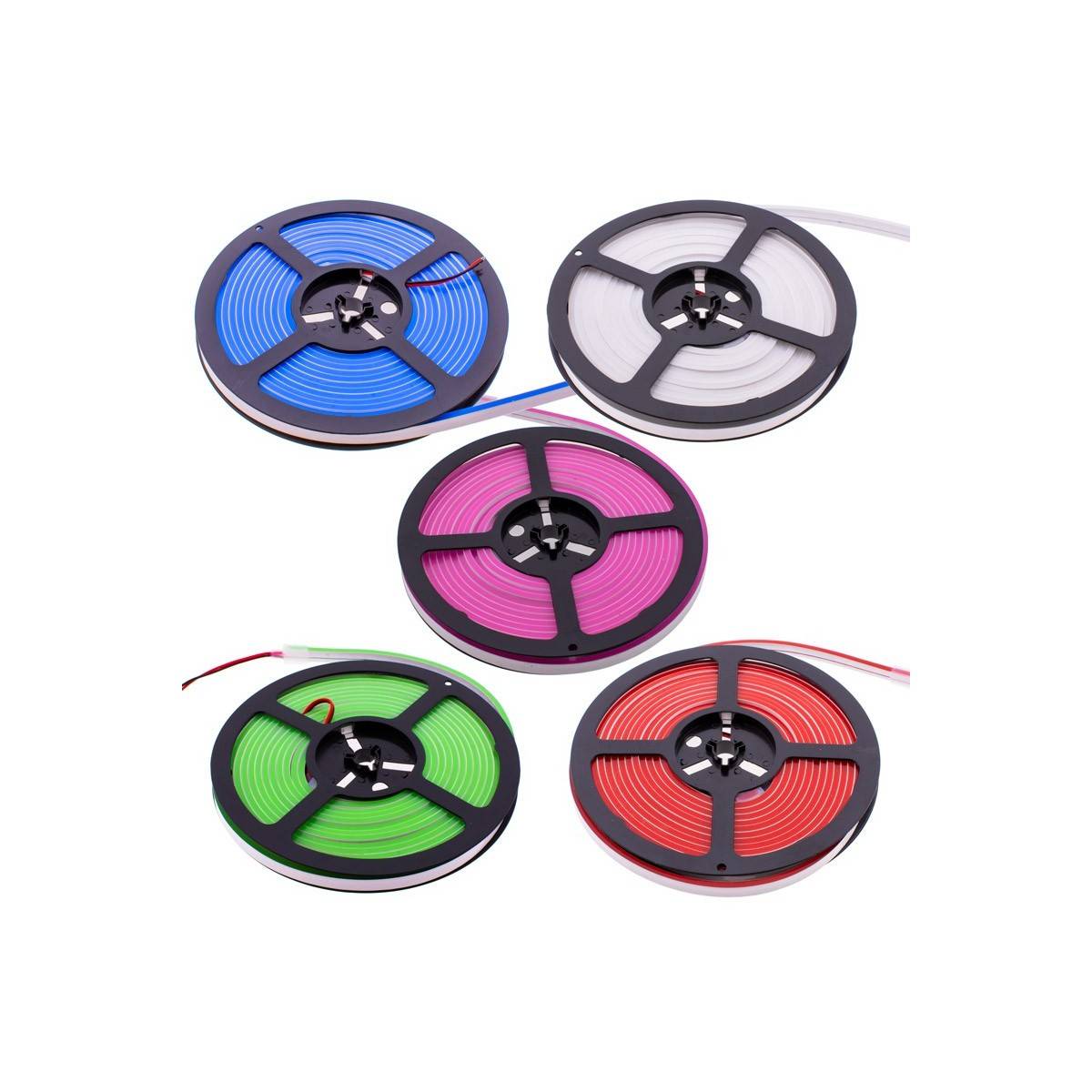

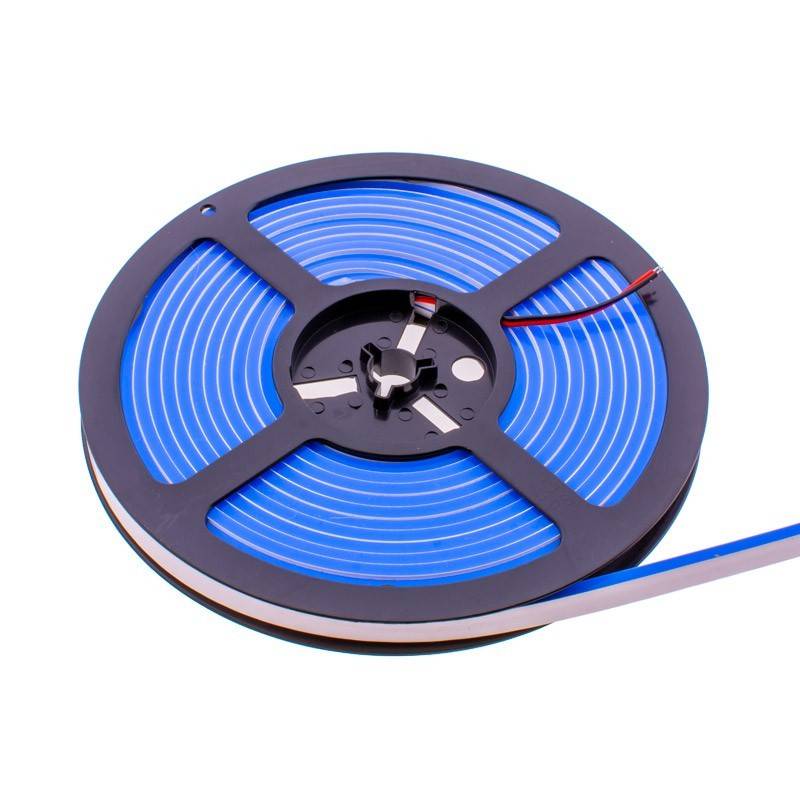

Flexible LED Neon 24V DC - 4x10mm - 5 meters - 13W/m - 120 LED/m - IP67 - Lateral curvature
SKU:B3380-AZ
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

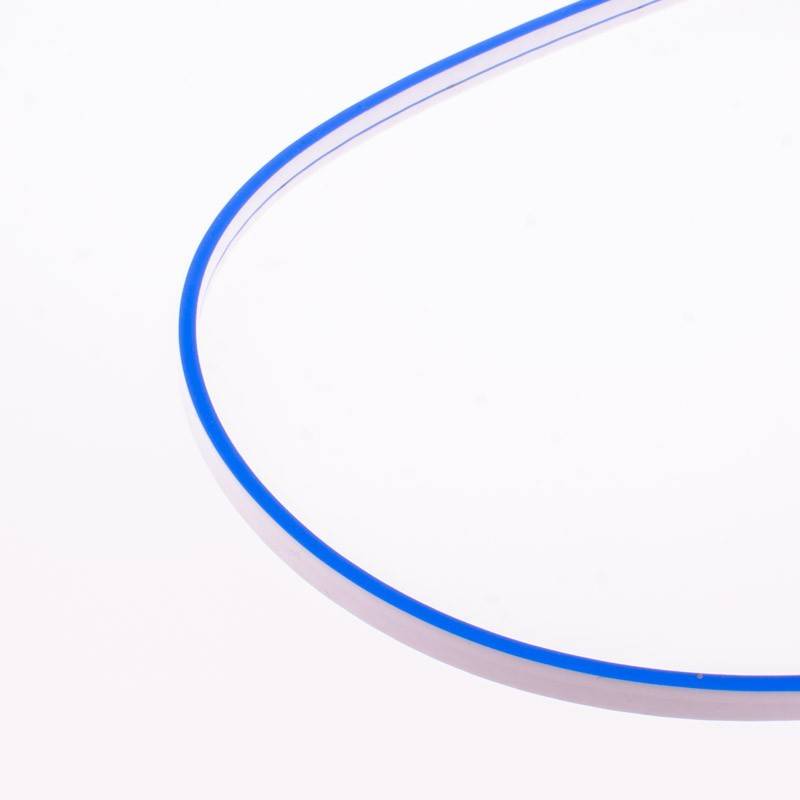

The LED Neon incorporates a silicone cover, with an opal finish, which disperses the light in a similar way to the old neon signs.
It has a size of 4 x 10mm, and incorporates SMD2835 LED chips, offering high luminosity and efficiency.
Its density of 120 chips/m ensures homogeneous illumination throughout the product.
It has a flexible design with the possibility of cutting at the marked points (every 5 cm), which gives it great versatility when assembling figures.
It is a resistant product made of neutral silicone, with UV protection and a high IP67 rating, allowing its use outdoors and guaranteeing its durability against adverse environmental conditions.
By incorporating LED technology, it allows significant energy savings compared to conventional neon lights, since it emits virtually no heat and also improves the optical effect by the use of silicone, thus resulting in greater luminous efficiency.
Our flexible LED neon can be applied in multiple projects that require a great visual impact, such as the creation of illuminated signs, signage, to decorate or highlight lines of structures of any building, restaurant, bar or commerce in general.

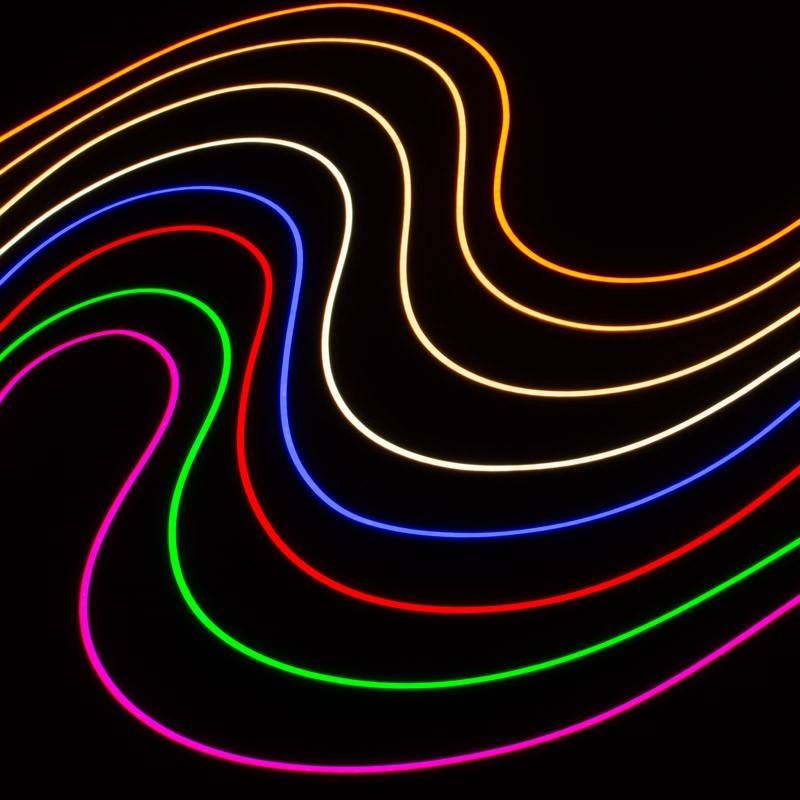

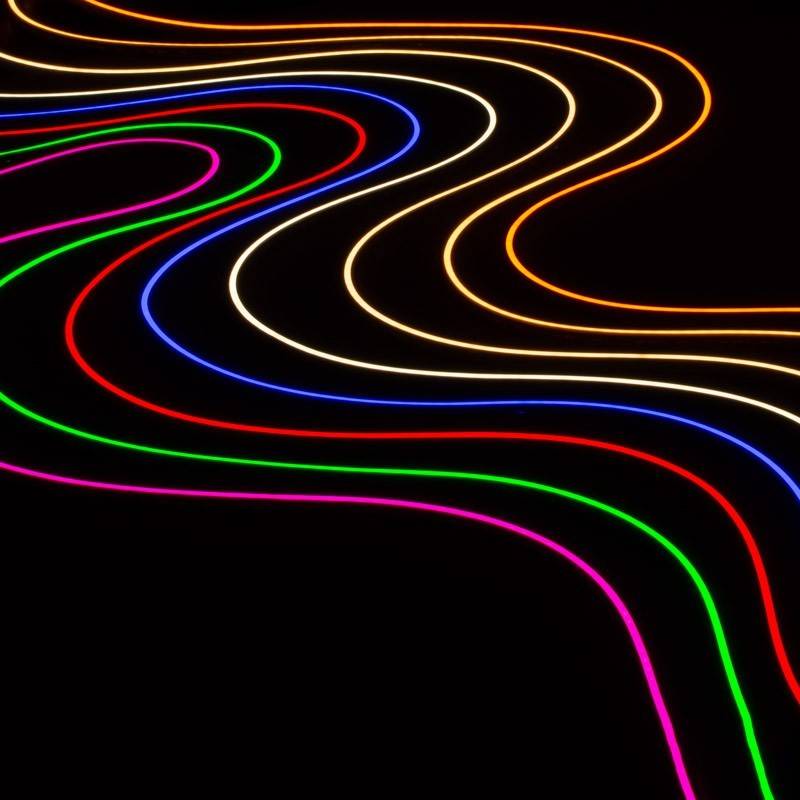

It should be noted that this neon emits light from one of its lateral faces. In this way, it allows bending laterally, and therefore, it is suitable for projects that adapt to this feature.
|
Main characteristics of the product:
|
Please note that certain technical characteristics such as power or CRI may vary according to the color/shade of the product. For further details, please consult the attached test reports in the "Downloads" section, or contact our sales advisors.
Nominal Voltage (V)
24V-DC
Power/m (W/m)
13
Beam angle (º)
120
Lifetime (h)
25000
IP
IP67
Dimensions (mm) Lxlxh
5000x4x10
Frequency (Hz)
50 - 60
Hue
Blue
Cool white
Extra warm white
Extra warm white plus
Green
Neutral white
Pink
Red
Warm white
Cool white
Extra warm white
Extra warm white plus
Green
Neutral white
Pink
Red
Warm white
LED Type
SMD 2835
Dimmable
Yes
No. of chips/metre
120
Cutting distance (mm)
50
Material
Silicone
Use Outdoor
Yes
Adhesive
No
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Discount
Professional lighting
Professional lighting up to 80% off
Professional lighting up to 80% off
Questions
| P: Question: |
Good afternoon, I need to know several things. 1. The LED neon can be bent 90 degrees? 2. I have a wall of 5.15 meters and I need to make a splice, I will be the splice perfectly together, do you sell something to make the splice and that is not noticeable? 3. I have seen that you sell a long profile to fit neon led, this neon is compatible with that profile? Greetings and thanks. |
|---|
| R: Answer: | This model allows bending at 90 degrees but forming a certain angle, if you want straight line you have to cut and weld the neon with wire. We do not have accessories of fast union, the neon must be manipulated by welding in the track. This neon has B3325 metal clamps. |
|---|
| P: Question: | In the publicity it says that it can be cut every 5cm. The problem we have is that it is not marked where it can be cut and we are afraid to cut where it is not correct. |
|---|
| R: Answer: | On the neon profile there are black marks indicating the cutting zone |
|---|
| P: Question: | It can be placed on the wall making form, there is some kind of fastening to secure the strip so that it does not fall or peel off with the heat emitted. |
|---|
| R: Answer: | There are fixing clips as accessories, but to make vertical curves it should be inserted in the wall or with some guiding surface. |
|---|
| P: Question: |
I have a corridor of 10 x 1 meters long ..., with powerful spotlights, but I want to put neon flex neutral white LEDs on one side of the ceiling with motion sensor, to not always use the spotlights.the question is, I will have enough lighting at night to walk down the hallway ? Maybe the neon strips are only for signs,deco,etz...? Greetings and thanks |
|---|
| R: Answer: | They are for decoration, even though the white models can illuminate a place of passage, but not for an activity use. |
|---|
| P: Question: | good afternoon, how many meters is the maximum that can be connected in series? 15 meters could be connected (3 rolls of 5mts) with a 200w source? |
|---|
| R: Answer: | For 24v strips and neons the maximum recommended is 10mts. You will need an amplifier at 10mts or put the source in the middle (10mts <> source <> 5mts). |
|---|
| P: Question: |
Good afternoon. What power supply is needed for this item. It is to be able to place the order. Thank you. |
|---|
| R: Answer: | It depends on the meters of neon installed for a 5mts coil greater than 65W, it is about 13W per meter. |
|---|
| P: Question: |
Hello, from which area does the light emit? From the sides or from the center. I understand that for it to be flexible it has to go on edge. If I buy two of 5 meters, I can only join them by welding? |
|---|
| R: Answer: | The light is bounced on one side and comes out at the top (making curves horizontally, the light comes out vertically, the thinnest part). If the LED strips can be soldered. |
|---|
| P: Question: | Can the neon be submerged in a swimming pool? |
|---|
| R: Answer: | We do not advise any LED or Neon strip to be permanently submerged without protection against continuous contact, as chlorine and other products can weaken the watertight connections over time. IP ratings are normally limited in time and under certain immersion characteristics. In the case of IP67 the object must withstand, without any leakage, complete immersion to 1 meter for 30 minutes. |
|---|
| P: Question: | I need to place this light in a bathroom, water can fall on it and another thing I need a transformer and what would it be? |
|---|
| R: Answer: | Hello Jordi, how are you? It can be used in a bathroom, it has the necessary protection in case of water falling on it. The switching power supply that could serve you for these LED strips can be found with the reference B1566-75. Greetings, |
|---|
