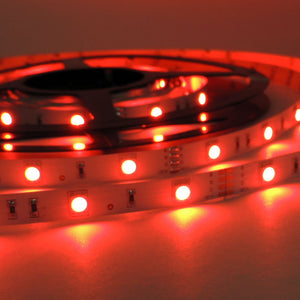

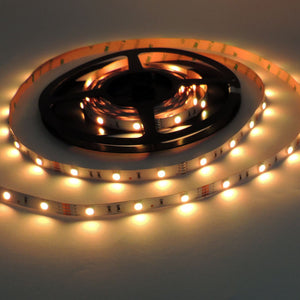

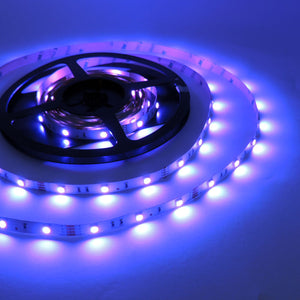

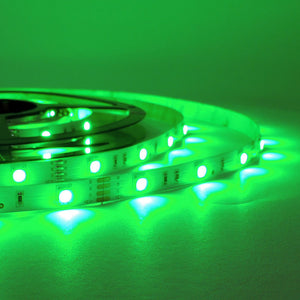

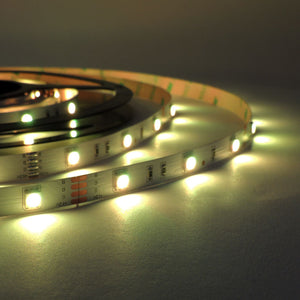

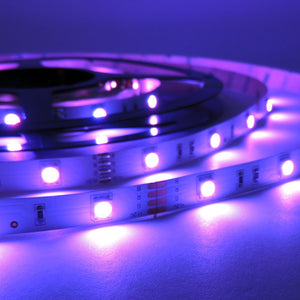

LED Strip 12V-DC 36W 10mm multicolor RGB IP20 (SMD505050 30ch/m) 5 meters Roll

SKU:B1545-IP20
Colour temperature
Has superado el límite de unidades
In stock 782 units
Data sheet

LED strip at 12V DC, supplied in a roll of 5 meters long, with a total power of 36W, width 10mm and luminous angle 120º. Includes 3M adhesive on the back side.

Final net price, no additional discounts or coupons allowed.

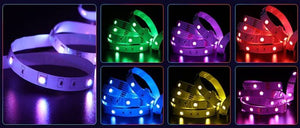

  • Multicolor RGB
  • 12V DC
  • 7.2W/m
  • 5 meters
  • Cut: 100mm
  • IP20
  • 150xSMD5050
Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

LED Strip 12V-DC 36W (150 SMD5050), 5m coil, IP20, 120º angle, RGB, Cut every 10cm

  • 36W 12V LED Strip

  • 5m reel

  • 30 chips/meter SMD5050

  • Cutting distance 100mm

  • Protection degree IP20

  • PCB width: 10mm

  • 3M self-adhesive

  • Flexible, high brightness and luminosity

  • Requires power supply (not included)

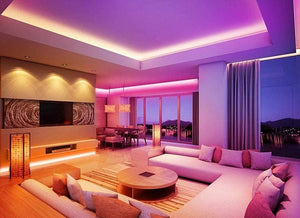

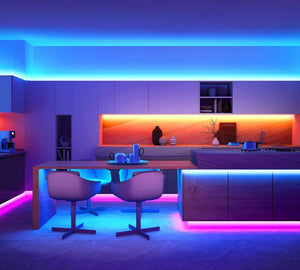

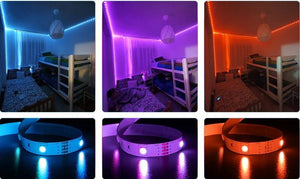

The LED strip is an element that integrates into your projects with minimal visual impact, creating indirect and diffuse lighting that highlights architectural elements.

SMD5050 LED strips are low power and low consumption. Average consumption is estimated at 7.2 W/m. They can be cut every 100mm, allowing them to be adapted and spliced according to the needs of each project.

Installation:

The LED strip comes supplied with 3M self-adhesive tape on the back. Place it on a smooth, non-porous surface and make sure to clean it beforehand. As a flexible strip, it can be used in tight bends. Mounting against the power supply can be done using connectors or by soldering the cable directly to the power supply.

For a complete LED strip installation you will need an RGB controller, a power supply and, optionally, aluminum profiles (surface or recessed). It is estimated that for 12V LED strips, if you want to make stretches longer than 5 meters, you will need to install additional power supplies and signal amplifiers, to avoid voltage drops.

Recommended uses:

  • Highlighting architectural contours.

  • Lighting under furniture and shelves, showcases, showcases

  • Aisles, shop windows, with indirect illumination.

2018-08-24
Certificates
CE
ROHS
Barcelona LED

Questions

P: Question: Hello
Could you help me , I wanted colored led strips , but I do not know what complement I need for its implementation , I would be interested in strips of 5 meters but with possibilities to make the connection longer I see many references but I am not very clear .
Thank you very much.
R: Answer: The RGB colored LED strips need a 12vdc or 24vdc power supply, depending on the model of LED strip and with enough power for the meters of strip to be installed. In addition to an RGB controller with its control to change the colors. For 12vdc strips of more than 5 meters you will need signal amplifiers.
A simple combination could be: B1563-60 + B1605N + B1545-IP20.
P: Question: Good afternoon
I want to know if the lights include remote control? And if not how would it work without remote ?
And also if it has a plug and if not how would it work?
Thank you very much, I hope you can answer these questions.
R: Answer: This item is only the coil of 5 mts of led strip. It has four wires, one common positive and 3 negative for the color channels (RGB). To use this color led strip, you need a 12v power supply according to the meters of strip and a rgb controller with its control. You can contact a dealer for clarification or to place an order.
P: Question: Is this product compatible with the Led music controller SP107E?
R: Answer: No, this is a RGB strip with 3 color channels and a common + cable, you need a RGB controller with all 4 outputs. The SP107E is only for smart strips, with a data signal.
