Hippo COB RGB Strip-to-strip connector - 10mm PCB - 4 pin - IP20 - Max 24V
Hippo COB RGB Strip-to-strip connector - 10mm PCB - 4 pin - IP20 - Max 24V
Hippo COB RGB Strip-to-strip connector - 10mm PCB - 4 pin - IP20 - Max 24V
Hippo COB RGB Strip-to-strip connector - 10mm PCB - 4 pin - IP20 - Max 24V
Hippo COB RGB Strip-to-strip connector - 10mm PCB - 4 pin - IP20 - Max 24V

Hippo COB RGB Strip-to-strip connector - 10mm PCB - 4 pin - IP20 - Max 24V

SKU:MN20-B10C-4P
Has superado el límite de unidades
In stock 348 units
Data sheet

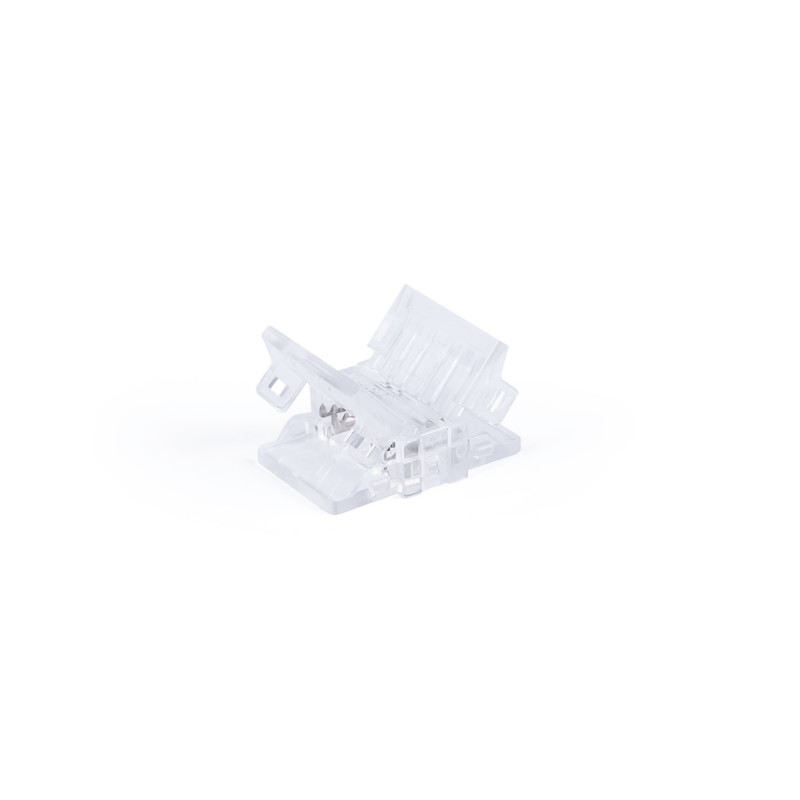

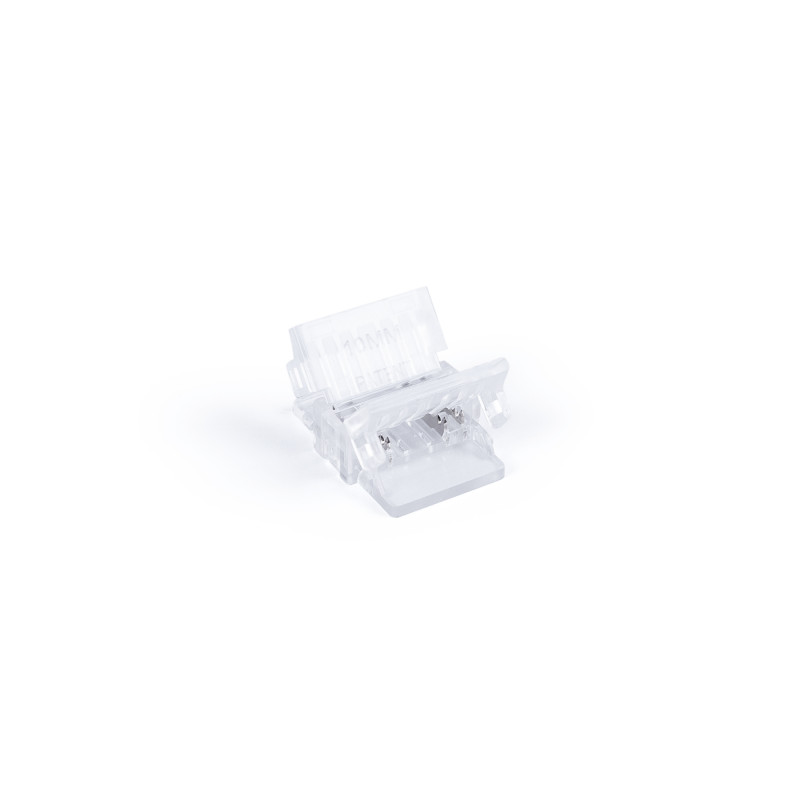

Hippo quick connector for LED strip to strip connection.

Suitable for COB RGB LED strips with 10mm PCB.

IP20 protection. Supports voltages between 3-24V.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Hippo 4-pin connector strip to strip - 10mm PCB - IP20 - Max 24V

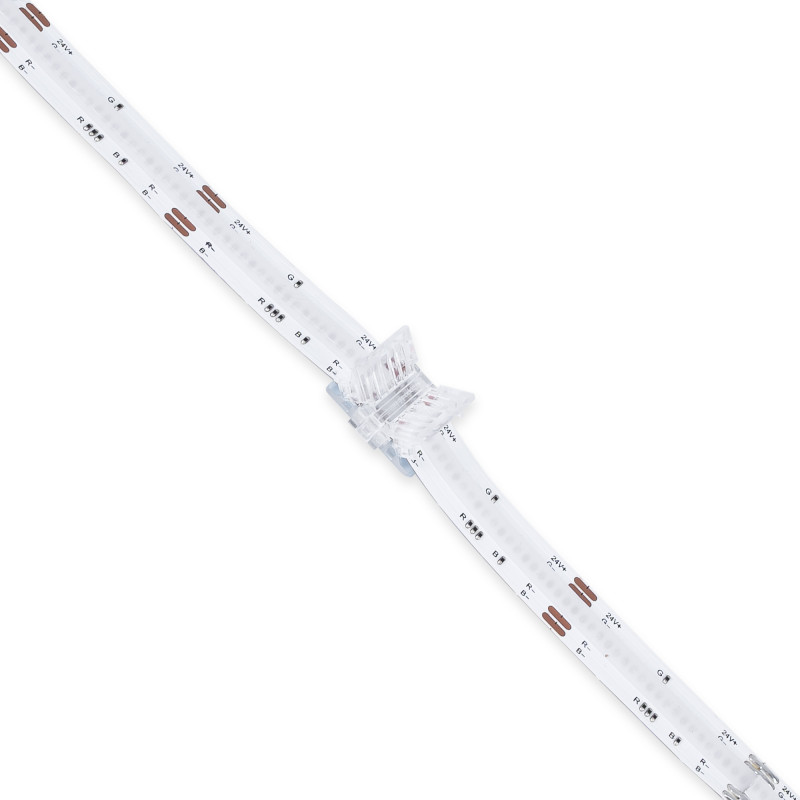

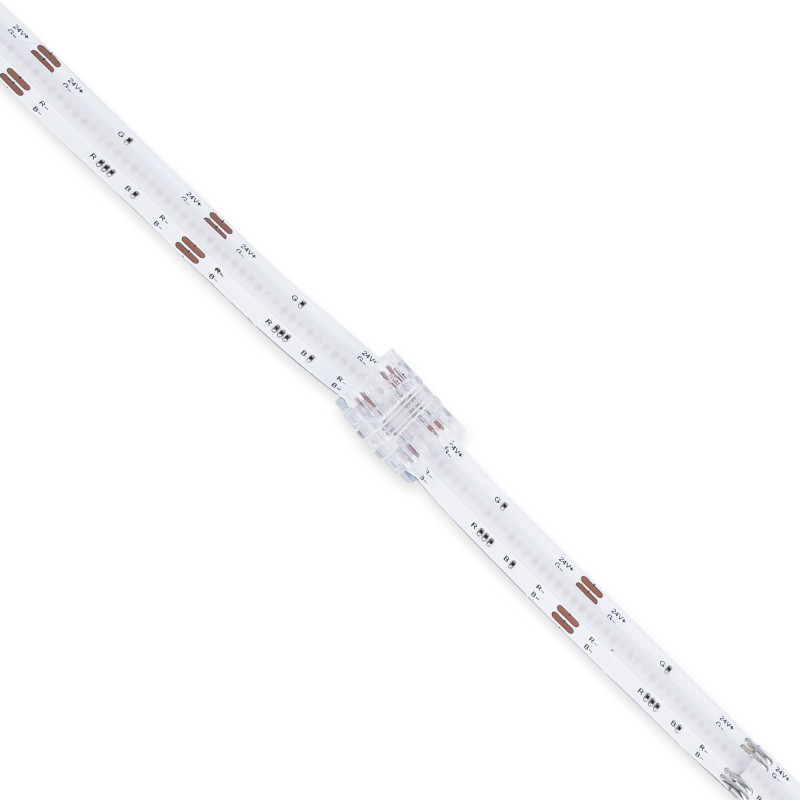

Hippo quick connector for connection of two LED strips.

It's valid for all COB RGB LED strips with a 10mm wide PCB and a maximum of 24V.

For installation, insert the strips into the terminals of the HIPPO connector. Then close the caps gently until you hear a click.

Due to its small dimensions, it can be used in tight spaces such as aluminium profiles, slots, and furniture gaps.

Product features:

  • Input voltage: 3-24V DC
  • Maximum intensity: 3.5A
  • LED strip type: COB
  • PCB width: 10mm
  • LED strip width: 0.25~0.35mm
  • Number of pins: 4

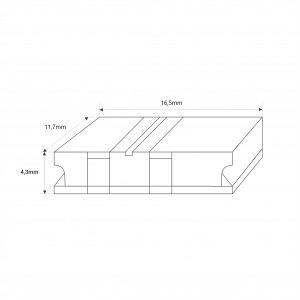

  • Dimensions: 16.5 x 11.7 x 4.3mm
  • Indoor use: IP20

Nominal Voltage (V)
12-24V
IP
IP20
LED Type
COB
Material
Polycarbonate
Use Outdoor
No
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
3.5
