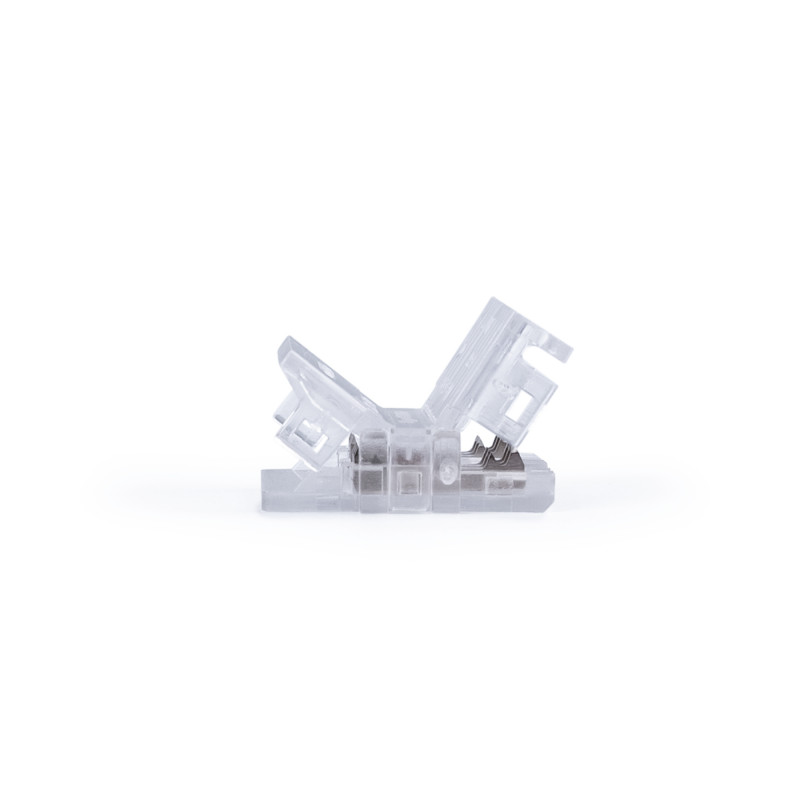

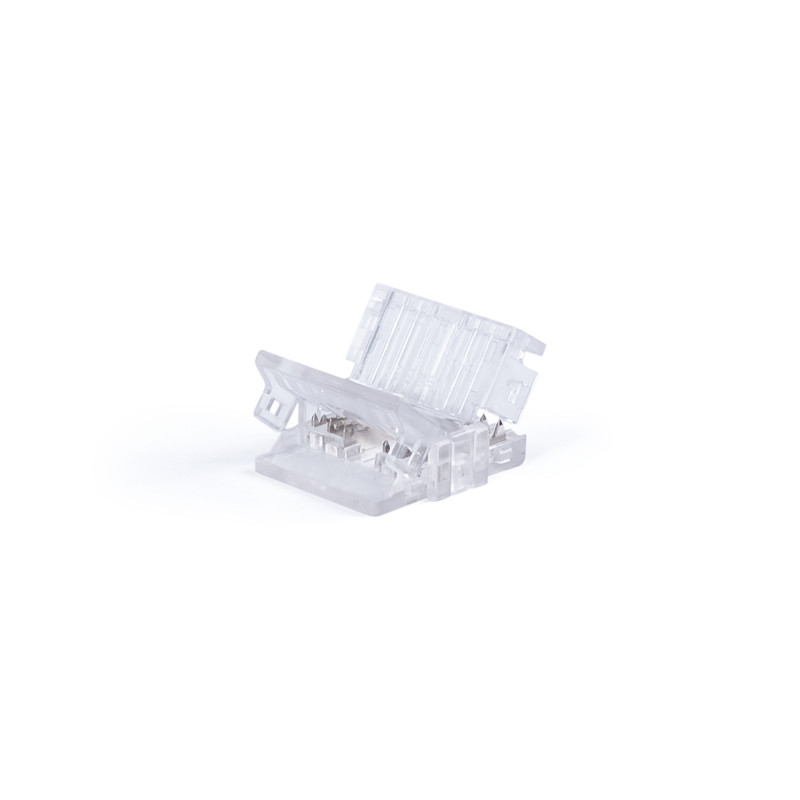

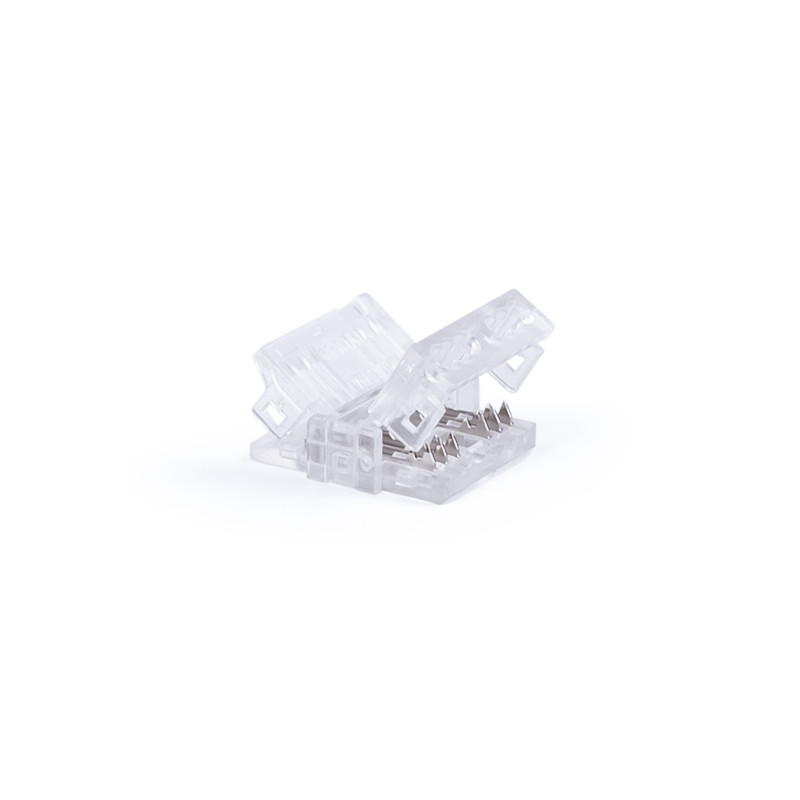

Hippo COB RGB+CCT strip connector - 12mm PCB - 6 pin - IP20 - Max 24V
Hippo COB RGB+CCT strip connector - 12mm PCB - 6 pin - IP20 - Max 24V
Hippo COB RGB+CCT strip connector - 12mm PCB - 6 pin - IP20 - Max 24V
Hippo COB RGB+CCT strip connector - 12mm PCB - 6 pin - IP20 - Max 24V
Hippo COB RGB+CCT strip connector - 12mm PCB - 6 pin - IP20 - Max 24V
Hippo COB RGB+CCT strip connector - 12mm PCB - 6 pin - IP20 - Max 24V

Hippo COB RGB+CCT strip connector - 12mm PCB - 6 pin - IP20 - Max 24V

SKU:MN20-X12C-6P
Has superado el límite de unidades
In stock 272 units
Data sheet

Hippo quick connector for LED strip to cable connection. Suitable for RGB+CCT COB LED strips with 12mm PCB.

IP20 protection. Supports voltages between 3-24V.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Hippo 6-pin connector strip to cable - 12mm PCB - IP20 - Max 24V

Hippo quick connector for connection of 12mm PCB LED COB strip to cable.

It supports 22AWG gauge cables.

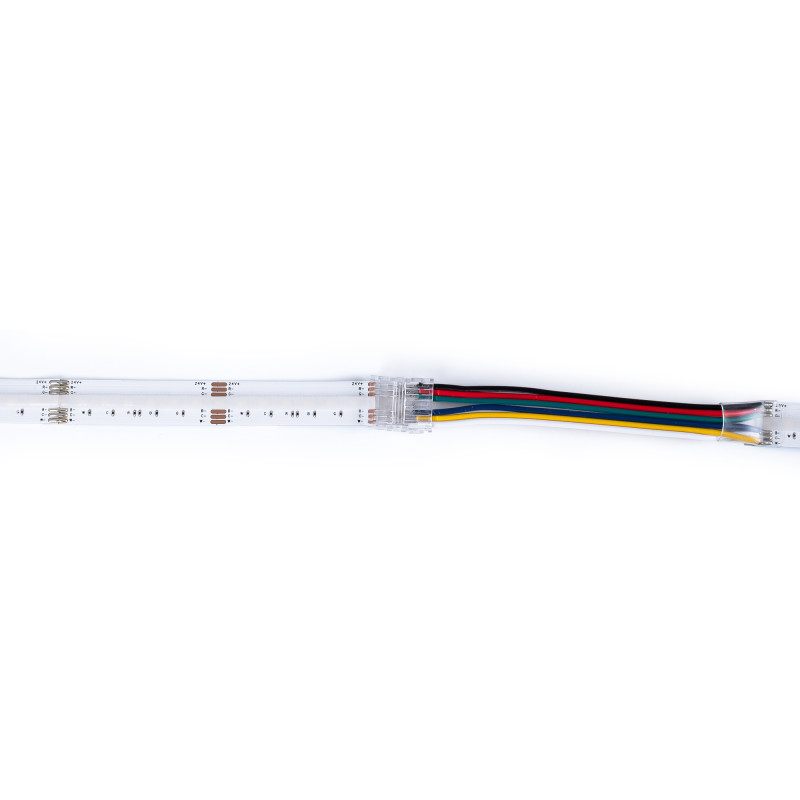

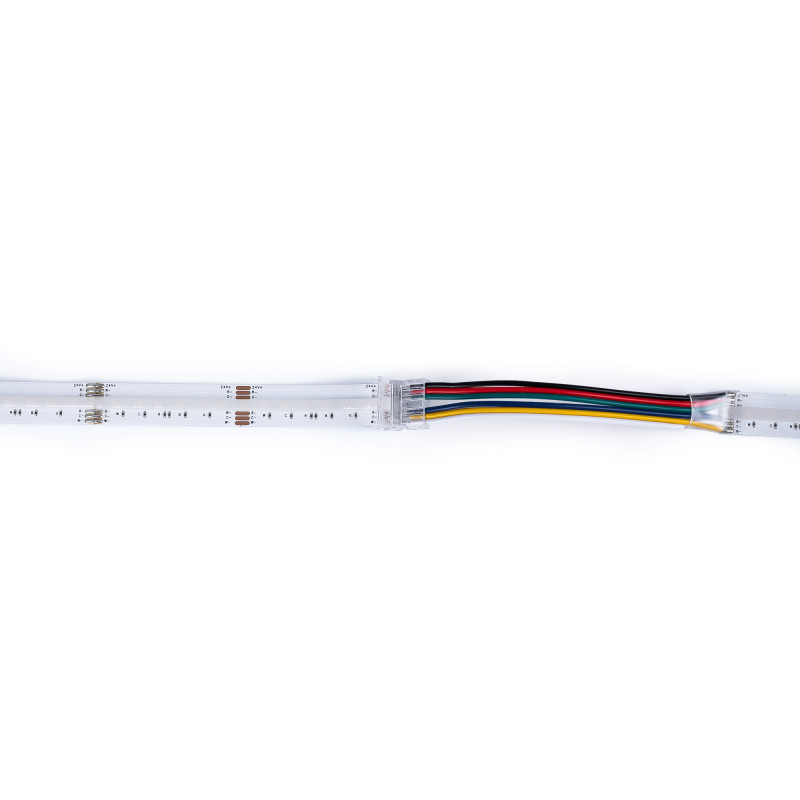

For installation, insert the strip into the terminals of the HIPPO connector. On the other end, connect the wires and then close the caps gently until you hear a click.

Due to its small dimensions, it can be used in tight spaces such as aluminium profiles, slots, and furniture gaps.

It's valid for all RGB+CCT COB LED strips with a 12mm wide PCB and a maximum of 24V.

Product features:

  • Input voltage: 3-24V DC
  • Maximum current: 3.5A
  • LED strip type: COB
  • PCB width: 12mm
  • LED strip width: 0.25~0.35mm
  • Number of pins: 6
  • Supported wire gauge: 22AWG (OD<1.70mm)
  • Dimensions: 16.5 x 13.7 x 4.3mm
  • Indoor use: IP20

Nominal Voltage (V)
12-24V
IP
IP20
LED Type
COB
Track width (mm)
12
Material
Polycarbonate
Use Outdoor
No
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
3.5
