SKU:MN20-X8C-2P
Has superado el límite de unidades
In stock 94 units
Data sheet

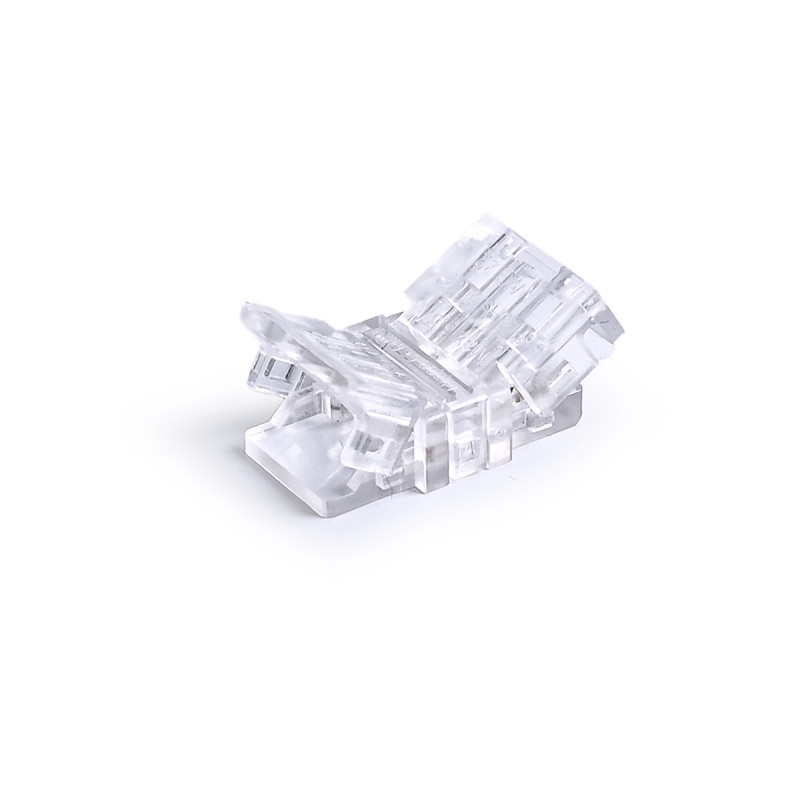

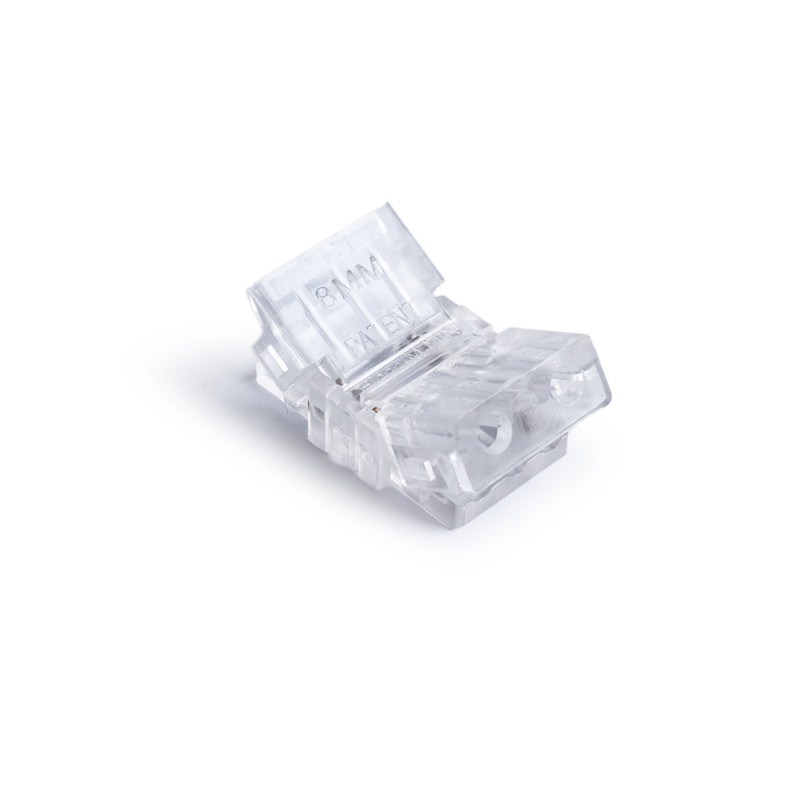

Hippo quick connector for LED strip to cable connection. Suitable for single-colour COB LED strips with 8mm PCB.

IP20 protection. Supports voltages between 3-24V.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Hippo 2-pin connector strip to cable - 8mm PCB - IP20 - Max 24V

Hippo quick connector for connection of 8mm PCB LED COB strip to cable.

It supports 22AWG gauge cables.

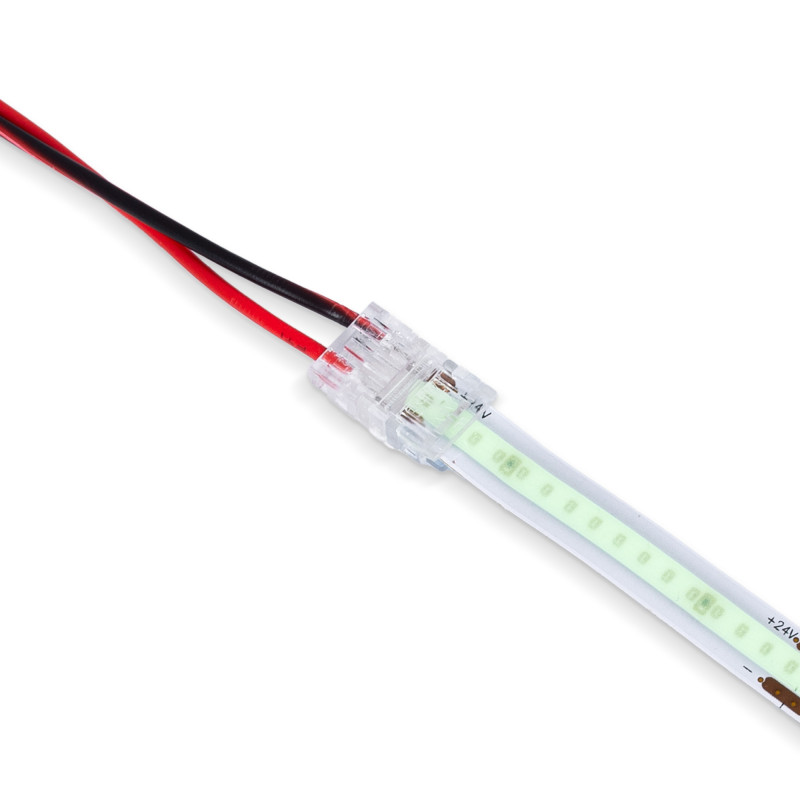

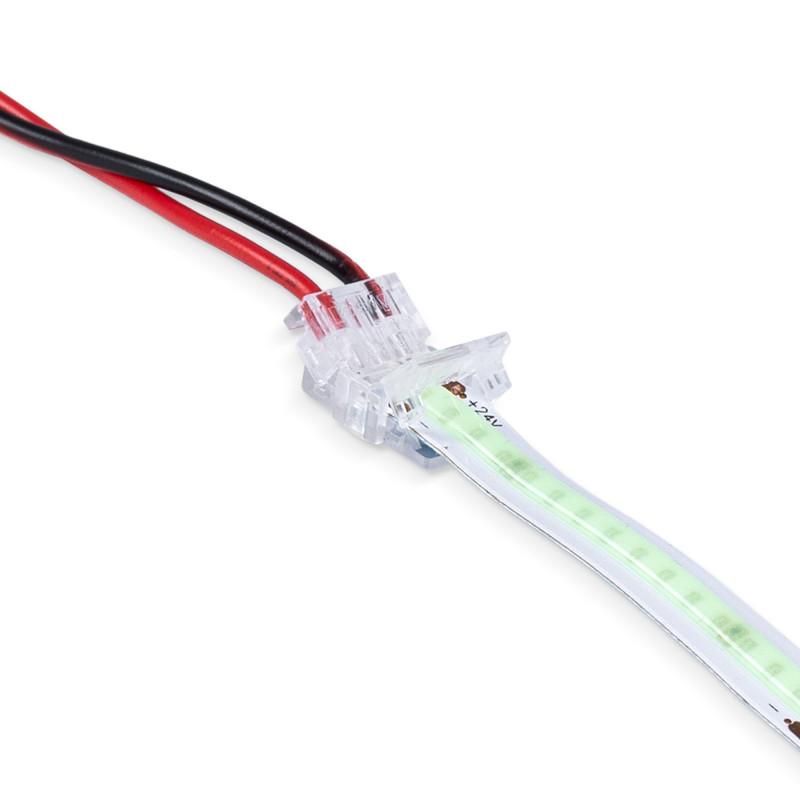

For installation, insert the strip into the terminals of the HIPPO connector. On the other end, connect the wires and then close the caps gently until you hear a click.

Due to its small dimensions, it can be used in tight spaces such as aluminium profiles, slots, and furniture gaps.

It's valid for all COB single colour LED strips with a 8mm wide PCB and a maximum of 24V.

Product features:

  • Input voltage: 3-24V DC
  • Maximum current: 3.5A
  • LED strip type: COB
  • PCB width: 8mm
  • LED strip width: 0.25~0.35mm
  • Number of pins: 2
  • Wire gauge supported: 22AWG (OD<1.70mm)

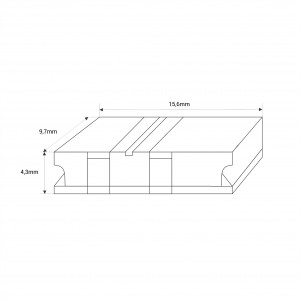

  • Dimensions: 15.6 x 9.7 x 4.3mm
  • Indoor use: IP20

Nominal Voltage (V)
3-24 V
IP
IP20
Dimensions (mm) Lxlxh
15.6 x 9.7 x 4.3
LED Type
COB
Track width (mm)
8
Material
Polycarbonate
Use Outdoor
No
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
3.5
