Hippo COB single colour Strip-to-Strip connector - 10mm PCB - 2 pin - IP20 - Max 24V
Hippo COB single colour Strip-to-Strip connector - 10mm PCB - 2 pin - IP20 - Max 24V
Hippo COB single colour Strip-to-Strip connector - 10mm PCB - 2 pin - IP20 - Max 24V
Hippo COB single colour Strip-to-Strip connector - 10mm PCB - 2 pin - IP20 - Max 24V
Hippo COB single colour Strip-to-Strip connector - 10mm PCB - 2 pin - IP20 - Max 24V

Hippo COB single colour Strip-to-Strip connector - 10mm PCB - 2 pin - IP20 - Max 24V

SKU:MN20-B10C-2P
Has superado el límite de unidades
In stock 394 units
Data sheet

Hippo quick connector for LED strip-to-strip connection.

Suitable for single colour COB LED strips with 10mm PCB.

IP20 protection. Supports voltages between 3-24V.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

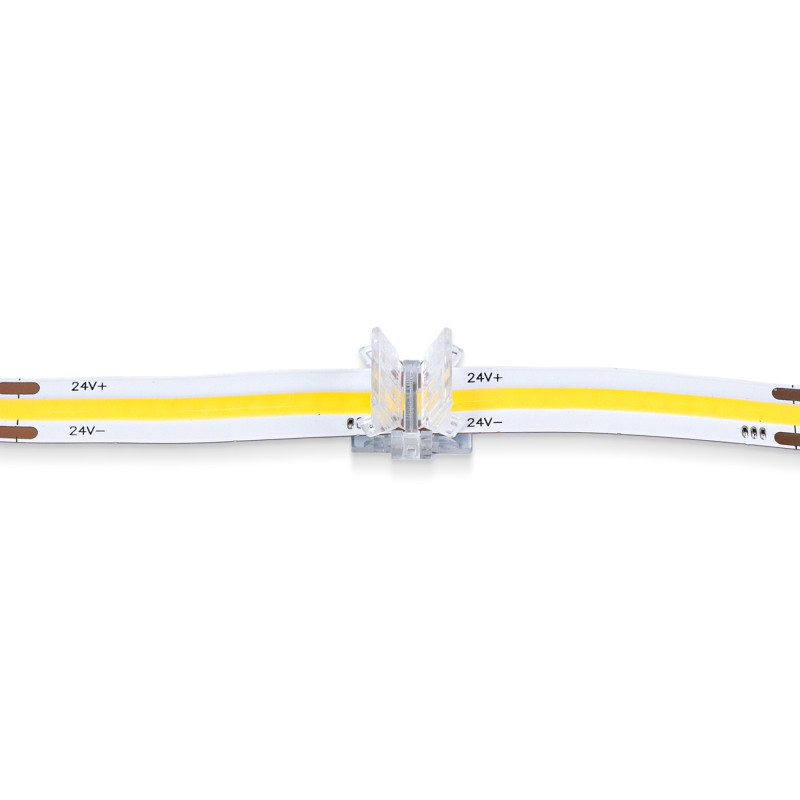

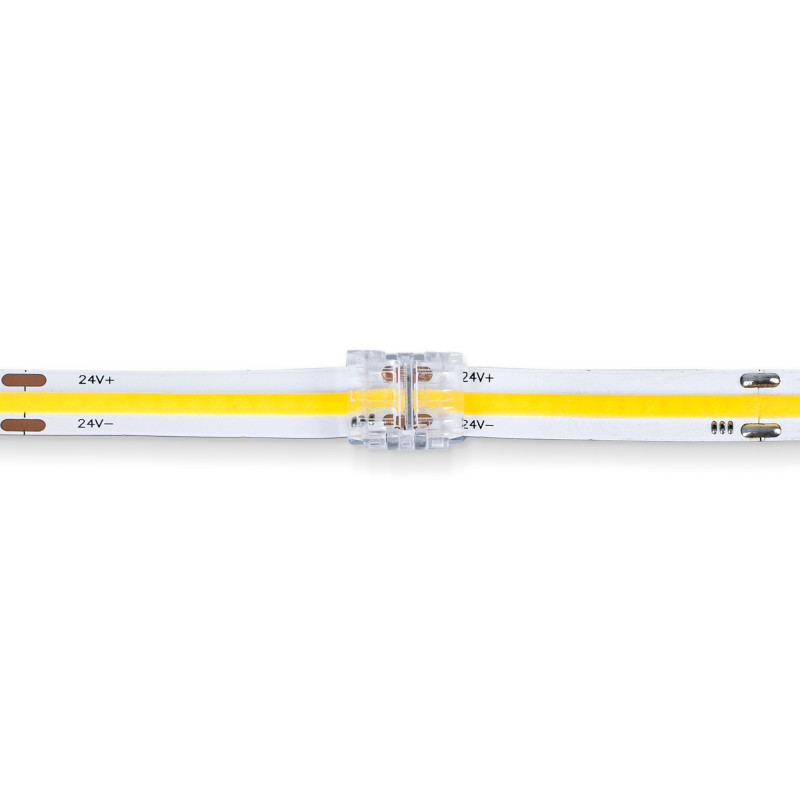

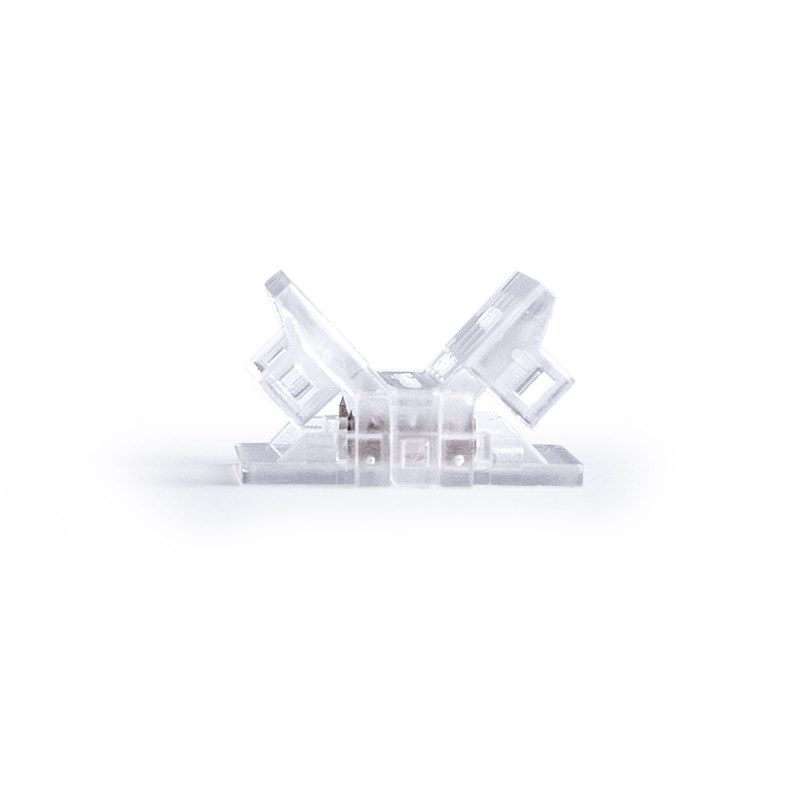

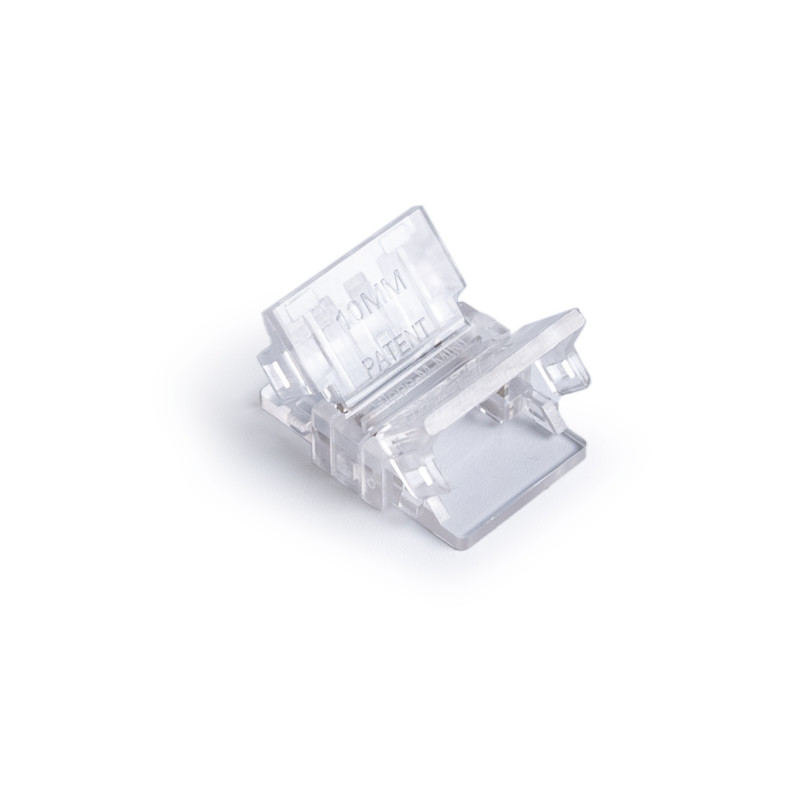

Hippo 2-pin connector strip to strip - 10mm PCB - IP20 - Max 24V

Hippo quick connector for connection of two LED strips.

It's valid for all single colour COB IP20 LED strips with a 10mm wide PCB and a maximum of 24V.

For installation, insert the strips into the terminals of the HIPPO connector. Then close the caps gently until you hear a click.

Due to its small dimensions, it can be used in tight spaces such as aluminium profiles, slots, and furniture gaps.

Product features:

  • Input voltage: 3-24V DC
  • Maximum intensity: 3.5A
  • LED strip type: COB
  • PCB width: 10mm
  • LED strip width: 0.25~0.35mm
  • Number of pins: 2
  • Dimensions: 16.5 x 11.7 x 4.3mm
  • Indoor use: IP20

Nominal Voltage (V)
12-24V
IP
IP20
LED Type
COB
Track width (mm)
10
Material
Polycarbonate
Use Outdoor
No
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
3.5
ONLUMI
