Hippo SMD CCT strip connector - 10mm PCB - 3 pin - IP20 - Max 24V
Hippo SMD CCT strip connector - 10mm PCB - 3 pin - IP20 - Max 24V
Hippo SMD CCT strip connector - 10mm PCB - 3 pin - IP20 - Max 24V
Hippo SMD CCT strip connector - 10mm PCB - 3 pin - IP20 - Max 24V
Hippo SMD CCT strip connector - 10mm PCB - 3 pin - IP20 - Max 24V
Hippo SMD CCT strip connector - 10mm PCB - 3 pin - IP20 - Max 24V

Hippo SMD CCT strip connector - 10mm PCB - 3 pin - IP20 - Max 24V

SKU:SEN10XB-3
Has superado el límite de unidades
In stock 282 units
Data sheet

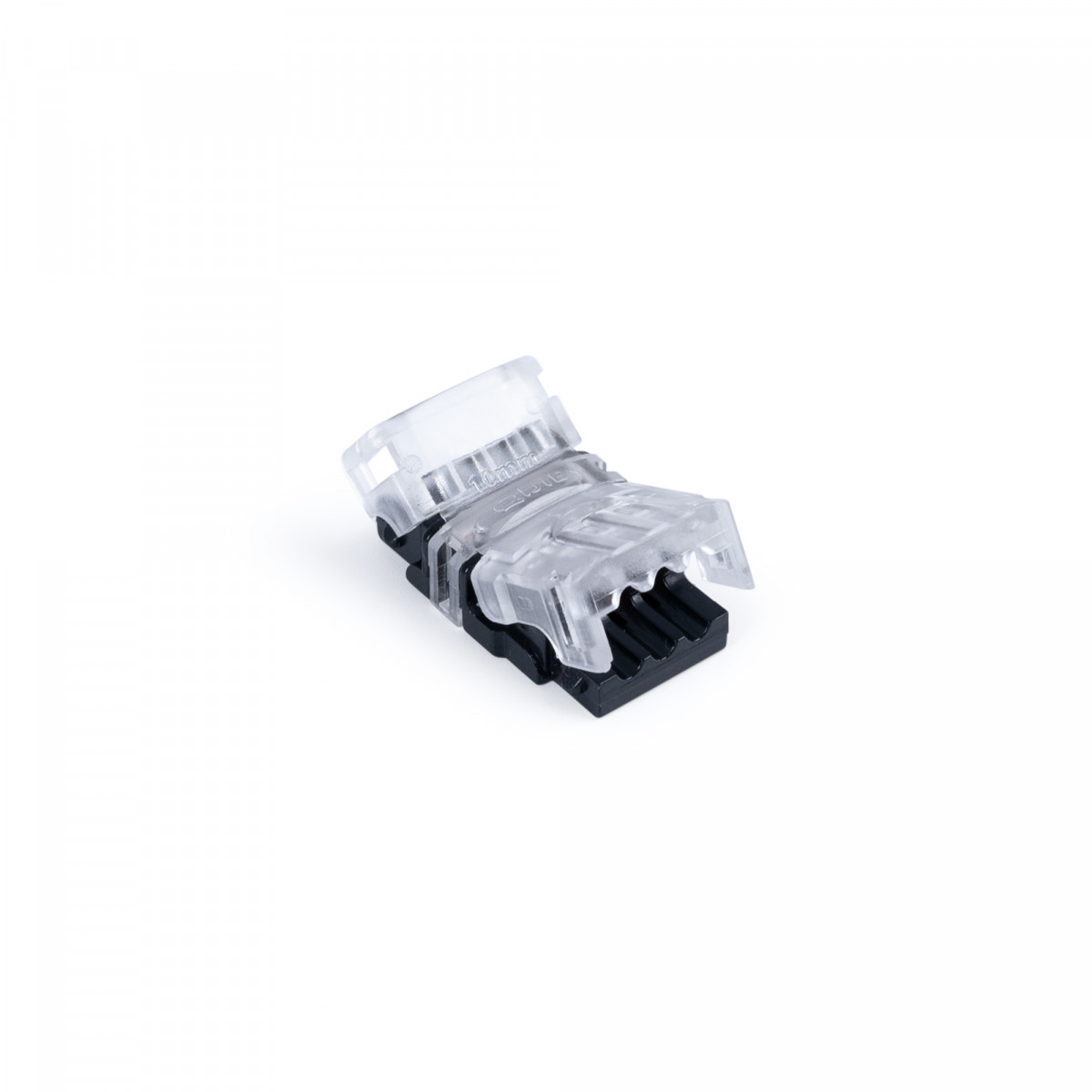

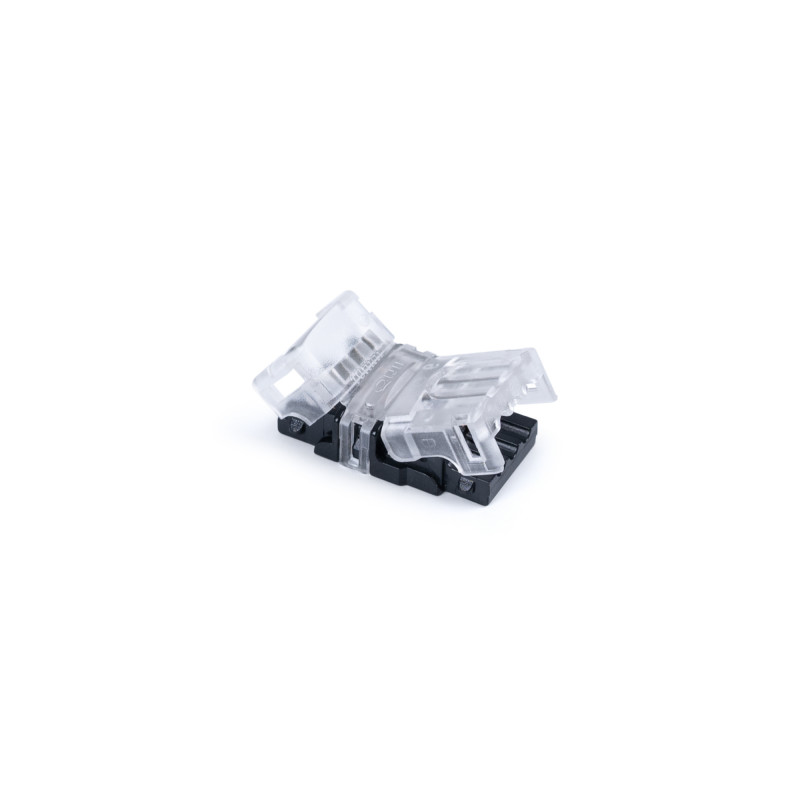

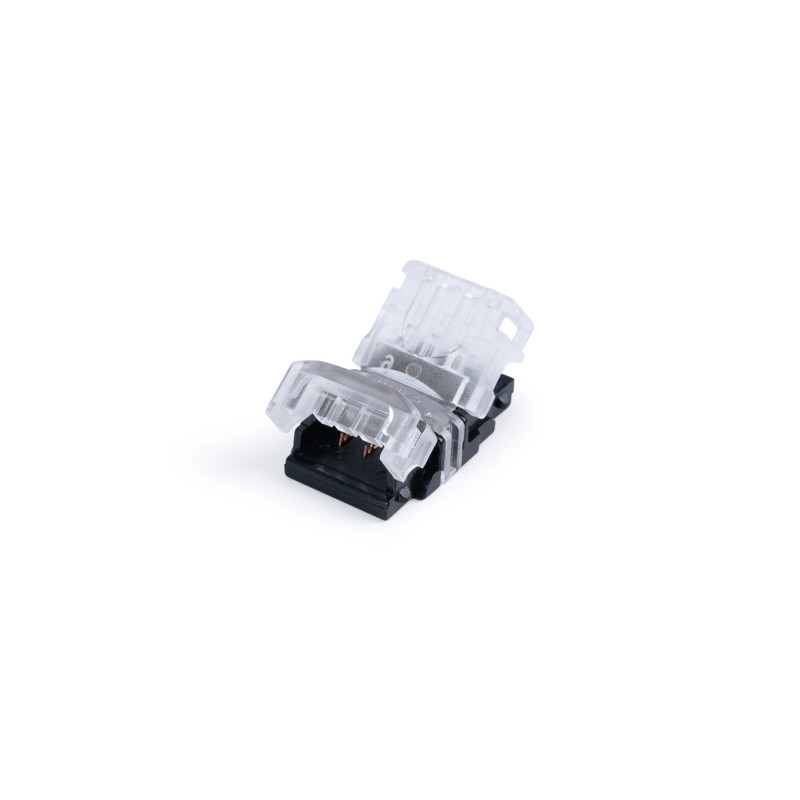

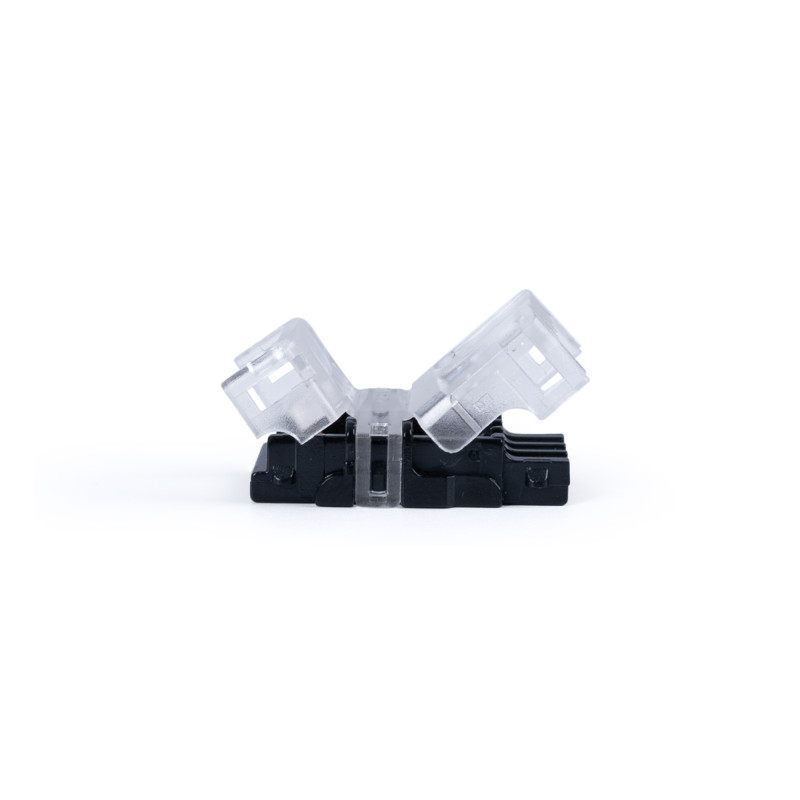

Hippo quick connector for LED strip to cable connection.

Suitable for CCT SMD LED strips with 10mm PCB.

IP20 protection. Supports voltages between 3-24V.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Hippo 3-pin connector strip to cable - 10mm PCB - IP20 - Max 24V

Hippo quick connector for connection of 10mm PCB LED strip to cable.

Accepts 22-20AWG/0.32-0.52mm2 gauge wire.

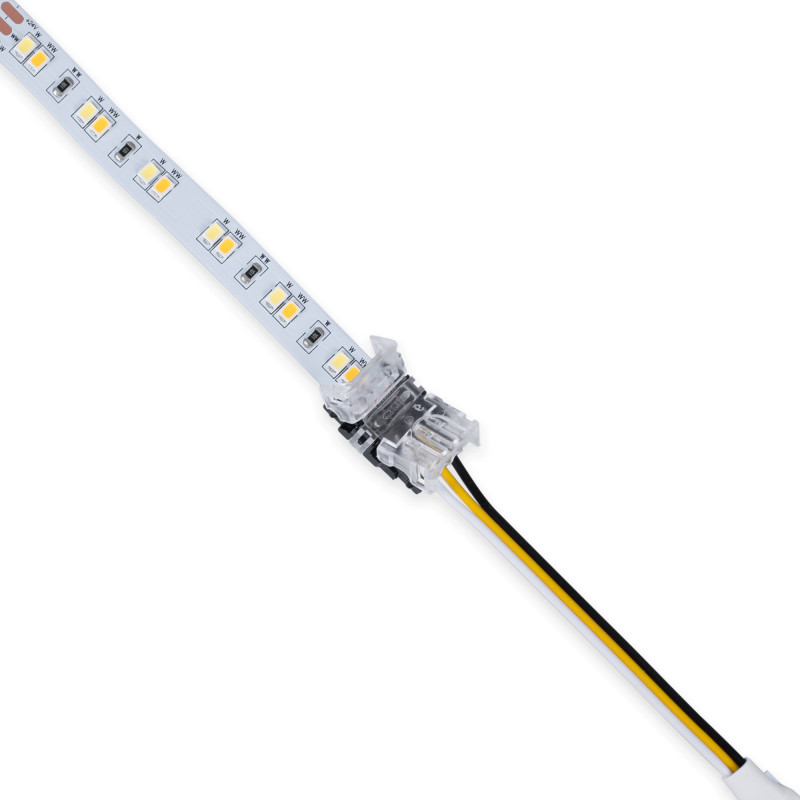

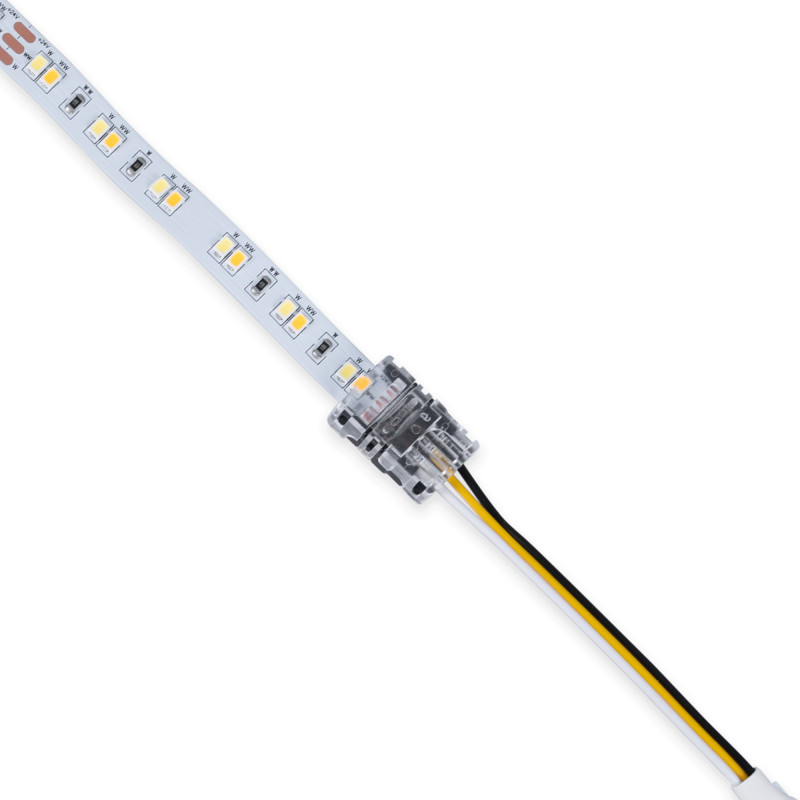

For installation, insert the strip into the terminals of the HIPPO connector. On the other end, connect the wires and then close the caps gently until you hear a click.

It's valid for all CCT LED strips with a 10mm wide PCB and a maximum of 24V.

Product features:

  • Input voltage: 3-24V DC
  • Maximum current: 3.5A
  • LED strip type: SMD
  • PCB width: 10mm
  • Number of pins: 3
  • Wire gauge supported: 22-20AWG/0.32-0.52mm2.
  • Dimension: 24.3 x 14.6 x 7.7mm
  • Indoor use: IP20

Nominal Voltage (V)
3-24 V
IP
IP20
Dimensions (mm) Lxlxh
24.3 x 14.6 x 7.7
Track width (mm)
10
Use Outdoor
No
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
3.5
