SKU:SEN12XB-6
Has superado el límite de unidades
In stock 361 units
Data sheet

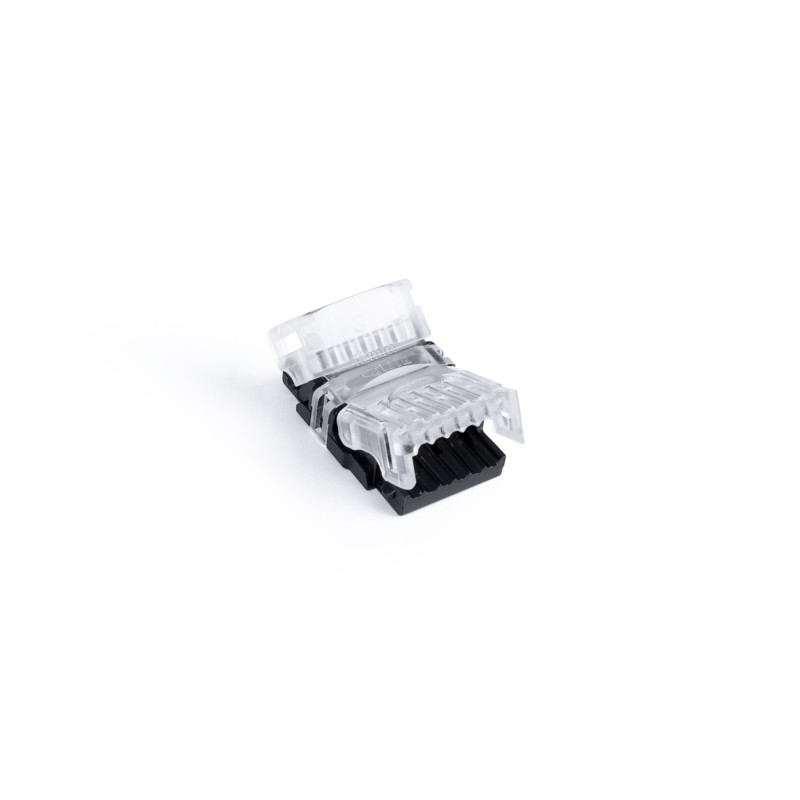

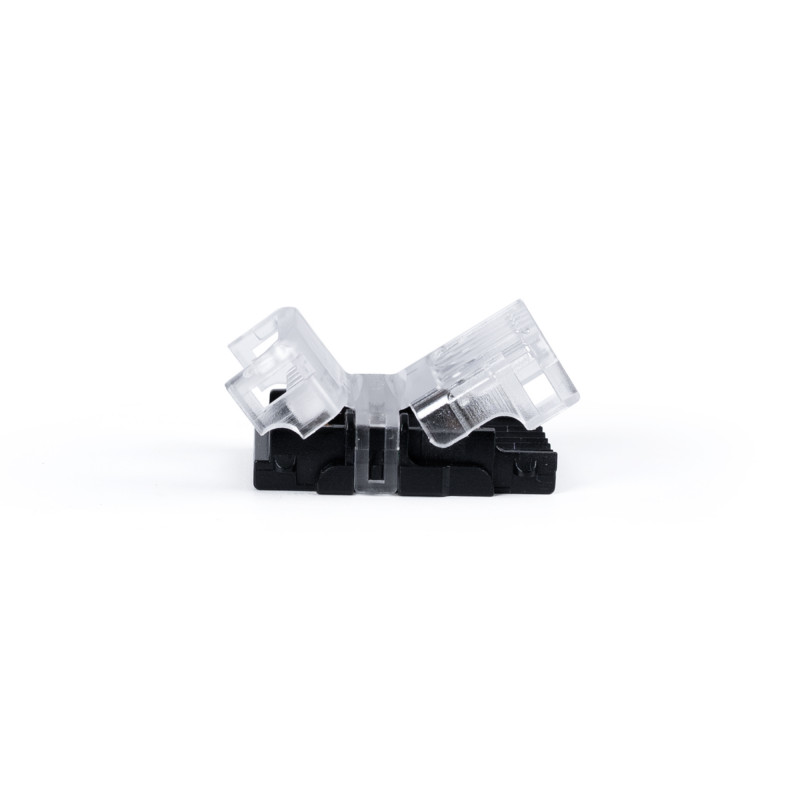

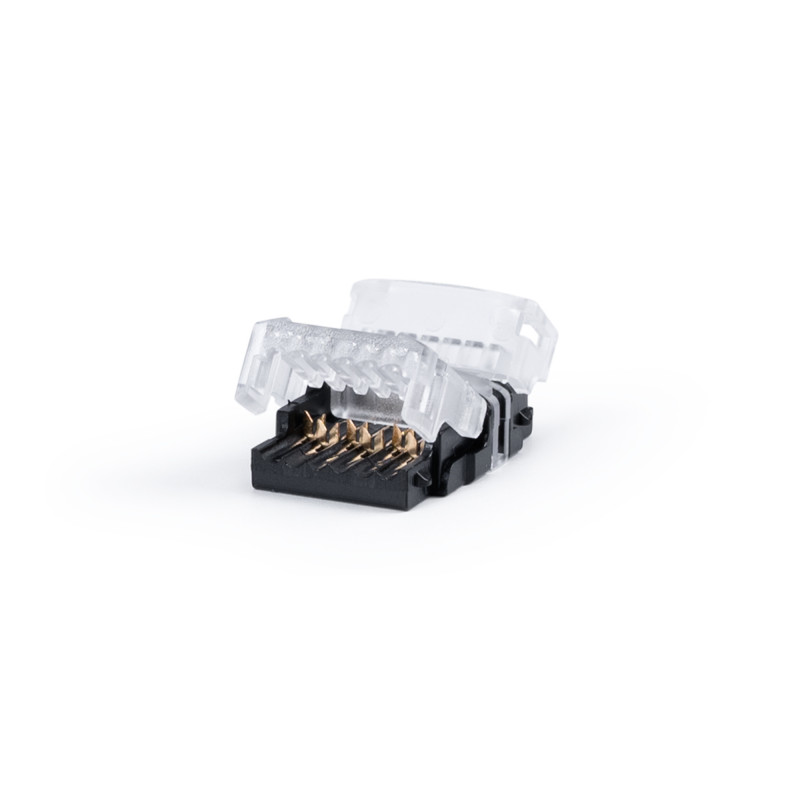

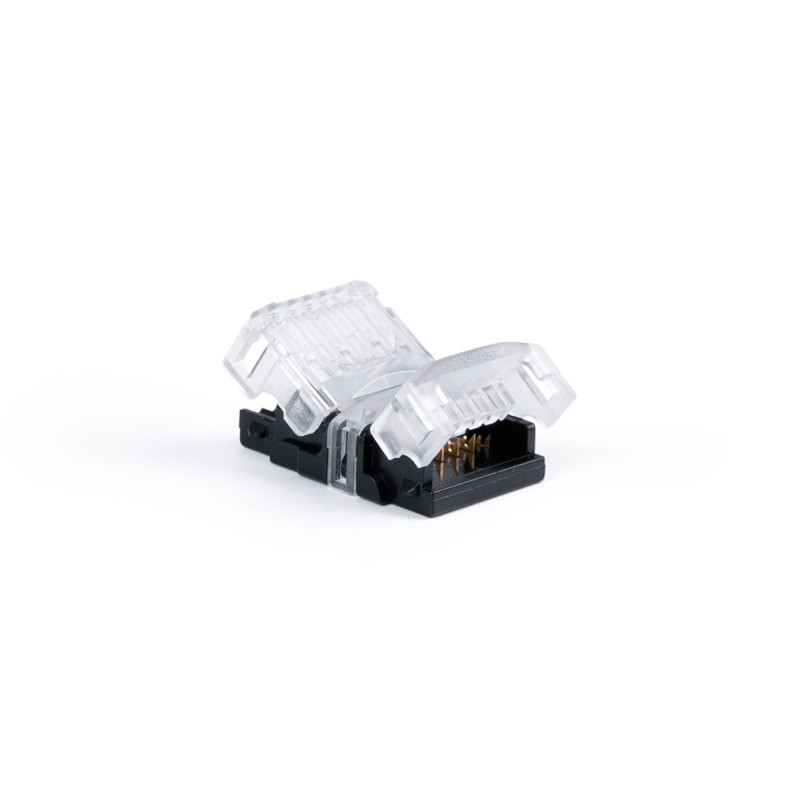

Hippo quick connector for LED strip to cable connection.

Suitable for RGB+CCT SMD LED strips with 12mm PCB.

IP20 protection. Supports voltages between 3-24V.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Hippo 6-pin connector strip to cable - 12mm PCB - IP20 - Max 24V

Hippo quick connector for connection of 12mm PCB LED strip to cable.

Accepts 22AWG/0.32mm2 gauge wire.

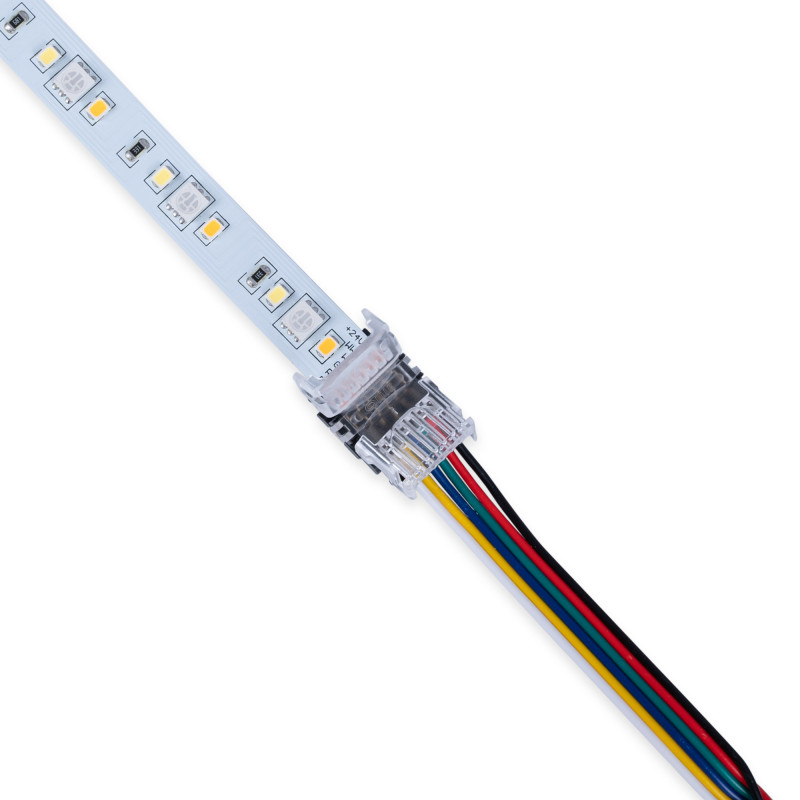

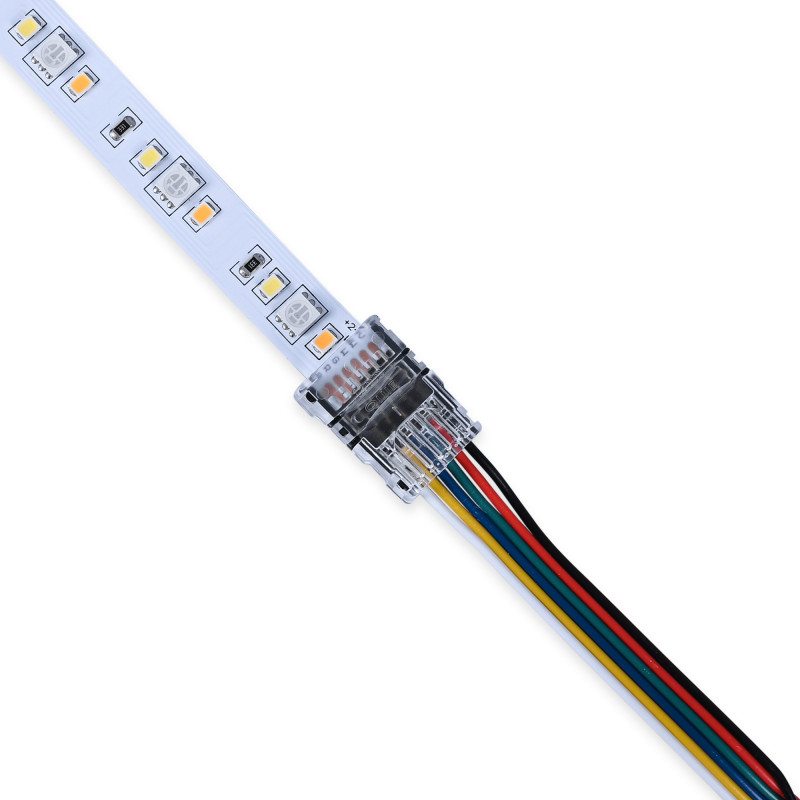

For installation, insert the strip into the terminals of the HIPPO connector. On the other end, connect the wires and then close the caps gently until you hear a click.

Valid for all RGB+CCT LED strips with a 12mm wide PCB and a maximum of 24V.

Product features:

  • Input voltage: 3-24V DC
  • Maximum current: 3.5A
  • LED strip type: SMD
  • PCB width: 12mm
  • Number of pins: 6
  • Supported wire gauge: 22AWG/0.32mm2
  • Dimensions: 24.3 X 17 X 7.7mm
  • Indoor use: IP20

Nominal Voltage (V)
3-24 V
IP
IP20
Dimensions (mm) Lxlxh
24.3 X 17 X 7.7
Track width (mm)
12
Material
Polycarbonate
Use Outdoor
No
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
3.5
