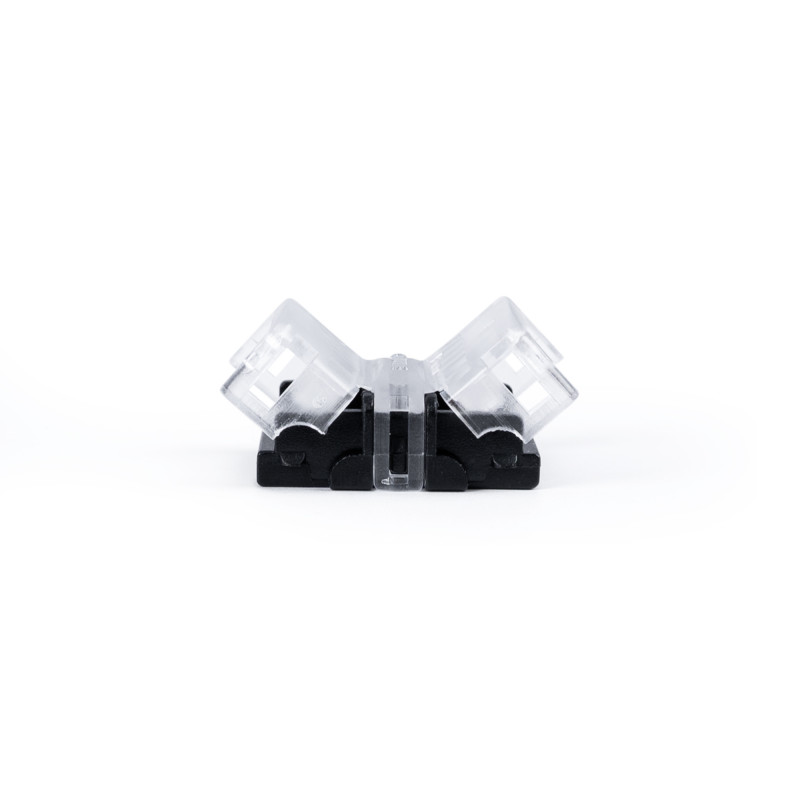

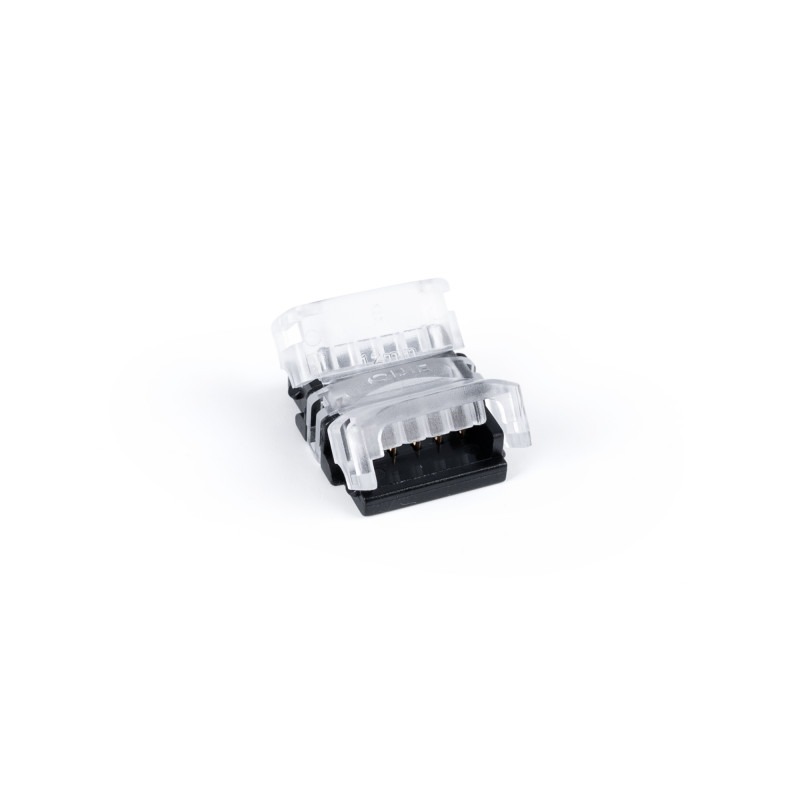

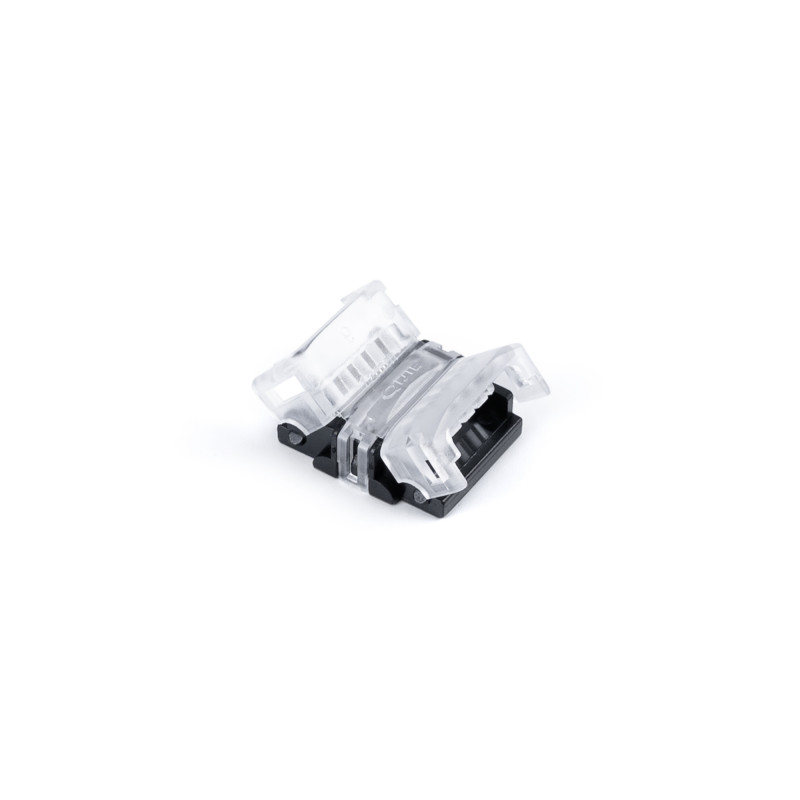

Hippo SMD RGBW Strip-to-strip connector - 12mm PCB - 5 pin - IP20 - Max 24V
Hippo SMD RGBW Strip-to-strip connector - 12mm PCB - 5 pin - IP20 - Max 24V
Hippo SMD RGBW Strip-to-strip connector - 12mm PCB - 5 pin - IP20 - Max 24V
Hippo SMD RGBW Strip-to-strip connector - 12mm PCB - 5 pin - IP20 - Max 24V
Hippo SMD RGBW Strip-to-strip connector - 12mm PCB - 5 pin - IP20 - Max 24V
Hippo SMD RGBW Strip-to-strip connector - 12mm PCB - 5 pin - IP20 - Max 24V

Hippo SMD RGBW Strip-to-strip connector - 12mm PCB - 5 pin - IP20 - Max 24V

SKU:SEN12BB-5
Has superado el límite de unidades
In stock 839 units
Data sheet

Hippo quick connector for LED strip to strip connection.

Suitable for RGBW SMD LED strips with 12mm PCB.

IP20 protection. Supports voltages between 3-24V.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Hippo 5-pin connector strip to strip - 12mm PCB - IP20 - Max 24V

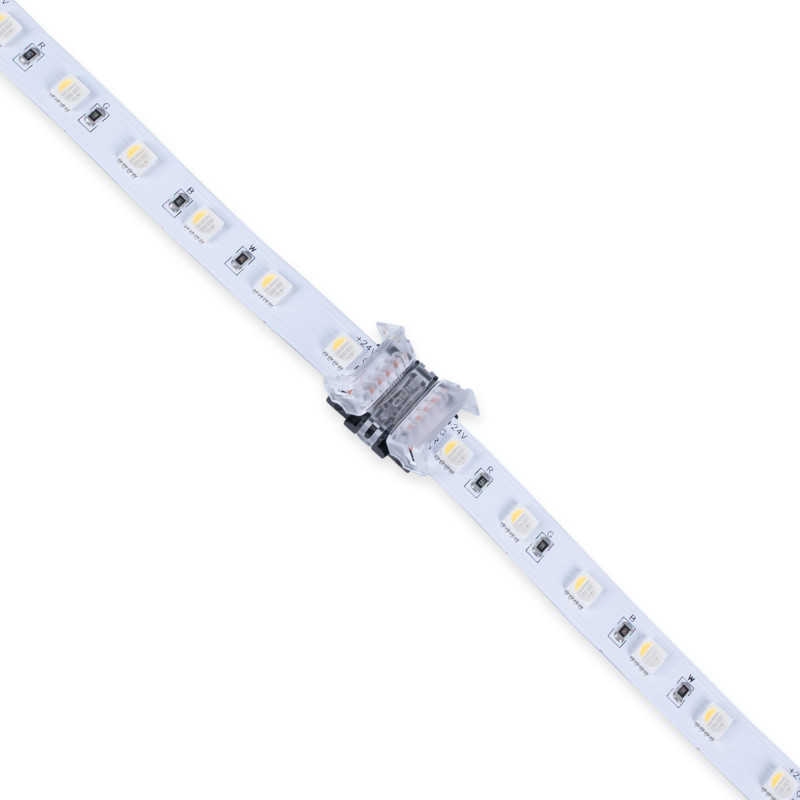

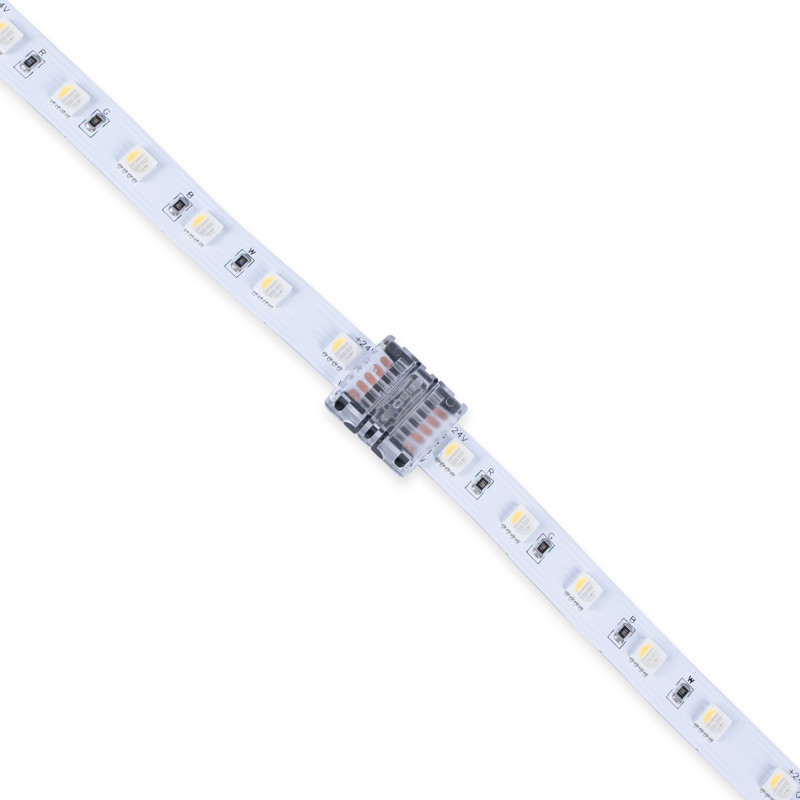

Hippo quick connector for connection of two 12mm PCB LED strips.

It's valid for all RGBW LED strips with a 12mm wide PCB and a maximum of 24V.

For installation, insert the strips into the terminals of the HIPPO connector. Then close the caps gently until you hear a click.

Product features:

  • Input voltage: 3-24V DC
  • Maximum current: 3.5A
  • LED strip type: SMD
  • PCB width: 12mm
  • Number of pins: 5
  • Dimensions: 19.6 x 17 x 7.7mm
  • Indoor use: IP20

Nominal Voltage (V)
3-24 V
IP
IP20
Dimensions (mm) Lxlxh
19.6 x 17 x 7.7
Material
Polycarbonate
Use Outdoor
No
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
3.5
