Hippo SMD single colour Strip-to-Strip connector - 5mm PCB - 2 pin - IP20 - Max 24V
Hippo SMD single colour Strip-to-Strip connector - 5mm PCB - 2 pin - IP20 - Max 24V
Hippo SMD single colour Strip-to-Strip connector - 5mm PCB - 2 pin - IP20 - Max 24V
Hippo SMD single colour Strip-to-Strip connector - 5mm PCB - 2 pin - IP20 - Max 24V

Hippo SMD single colour Strip-to-Strip connector - 5mm PCB - 2 pin - IP20 - Max 24V

SKU:SEN5BB-2
Has superado el límite de unidades
In stock 479 units
Data sheet

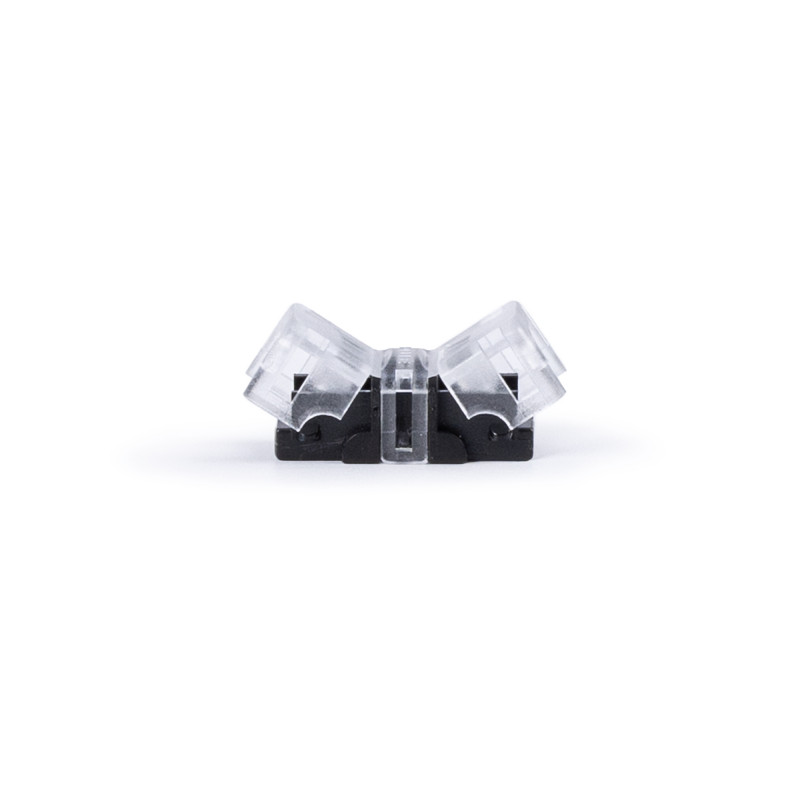

Hippo quick connector for LED strip-to-strip connection.

Suitable for single colour SMD LED strips with 5mm PCB.

IP20 protection. Supports voltages between 3-24V.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Hippo 2-pin connector strip to strip - 5mm PCB - IP20 - Max 24V

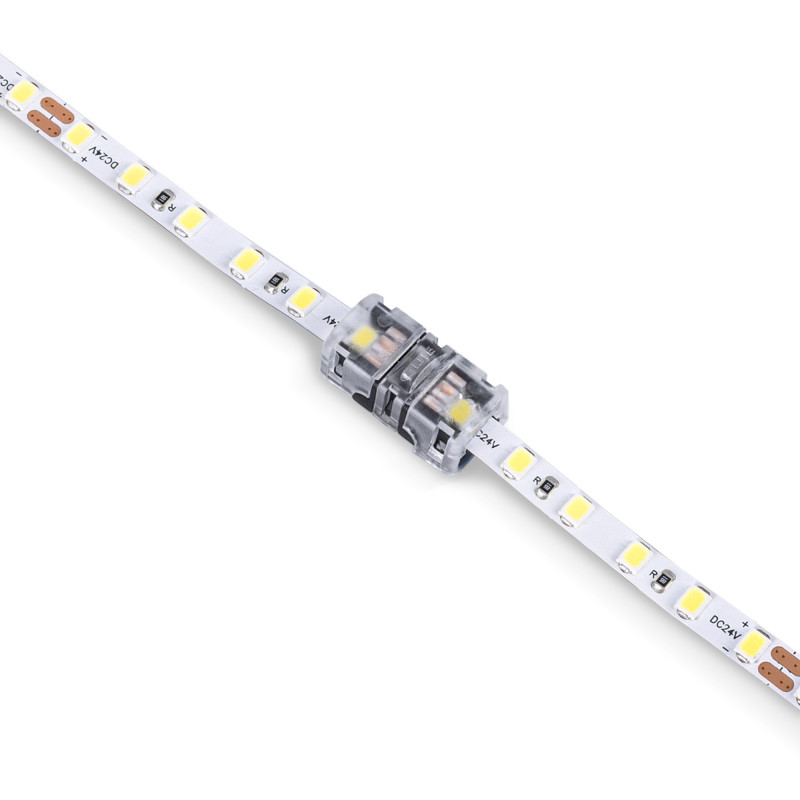

Hippo quick connector for connection of two 5mm PCB LED strips.

It's valid for all single colour SMD IP20 LED strips with a 5mm wide PCB and a maximum of 24V.

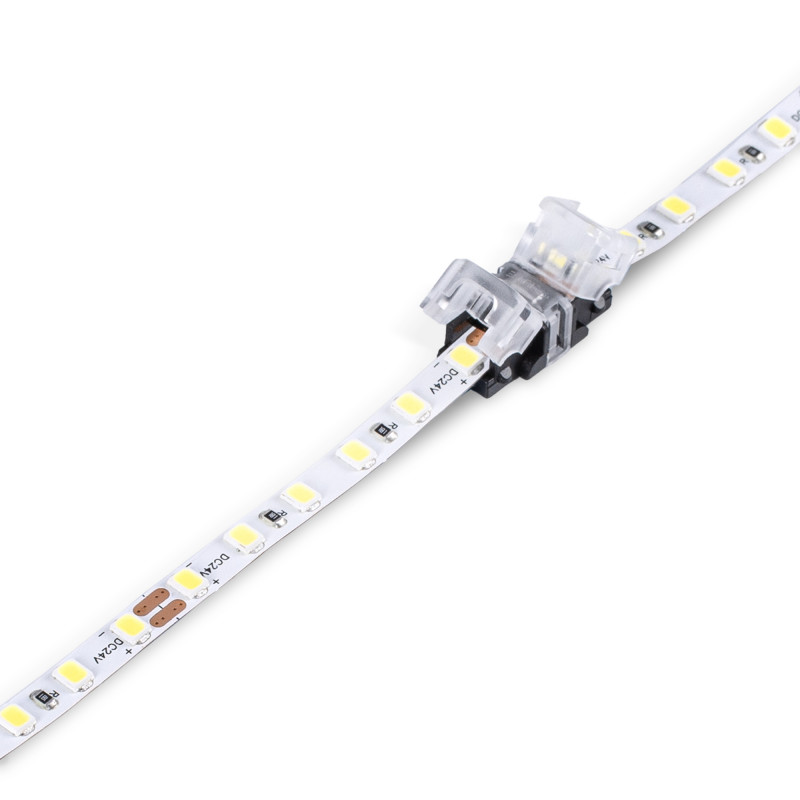

For installation, insert the strips into the terminals of the HIPPO connector. Then close the caps gently until you hear a click.

Product features:

  • Input voltage: 3-24V DC
  • Maximum current: 3.5A
  • LED strip type: SMD
  • PCB width: 5mm
  • Number of pins: 2
  • Dimensions: 19.6 x 9.6 x 7.7mm
  • Indoor use: IP20
Nominal Voltage (V)
3-24 V
IP
IP20
Dimensions (mm) Lxlxh
19.6 x 9.6 x 7.7
Track width (mm)
5
Material
Polycarbonate
Use Outdoor
No
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
5
ONLUMI
