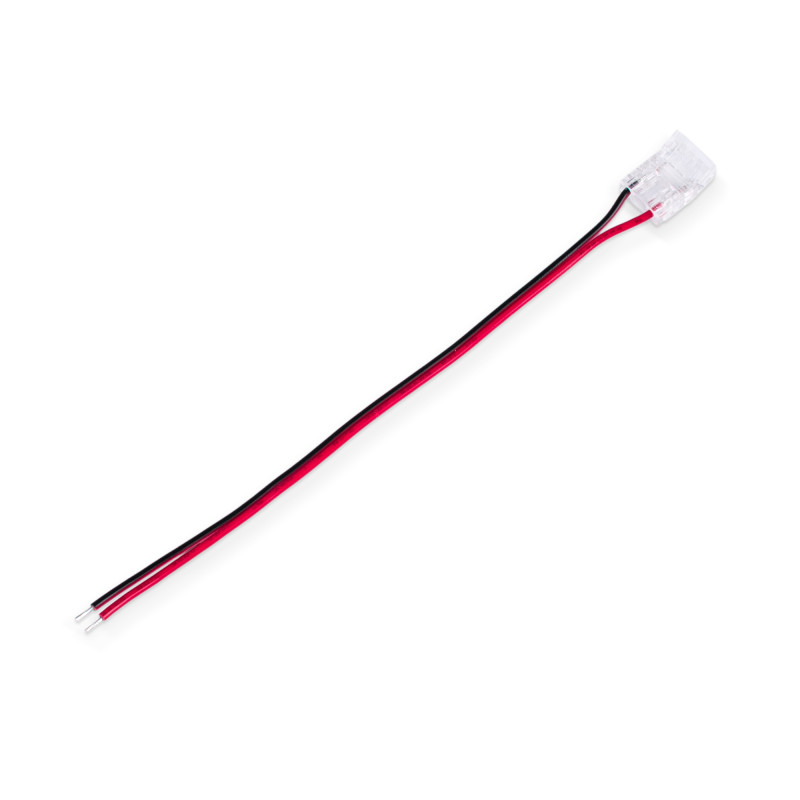

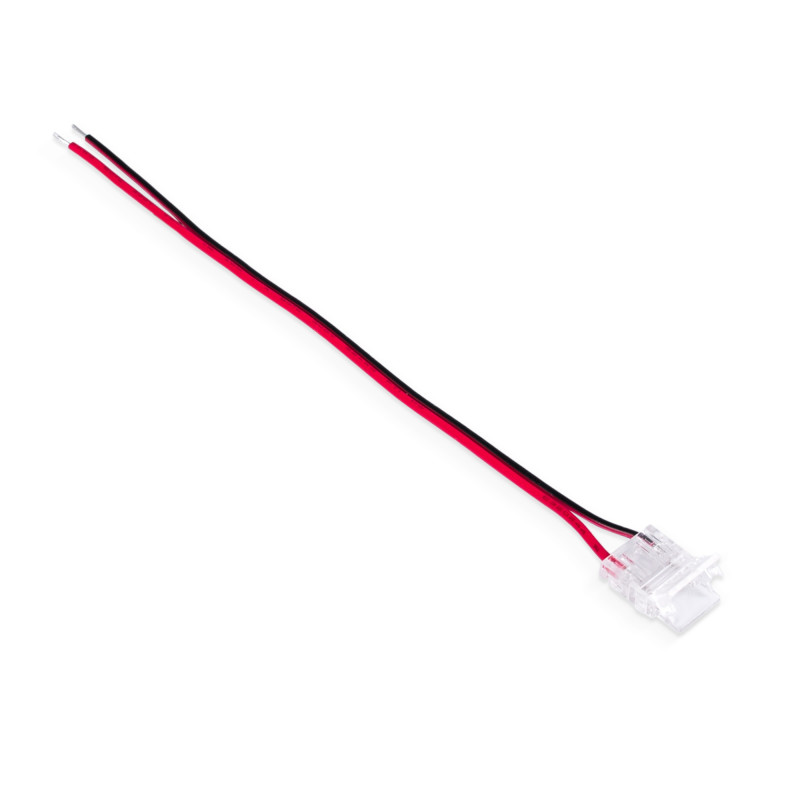

Strip to power supply Hippo COB single colour connector - 10mm PCB - 2 pin - IP20 - Max 24V
Strip to power supply Hippo COB single colour connector - 10mm PCB - 2 pin - IP20 - Max 24V
Strip to power supply Hippo COB single colour connector - 10mm PCB - 2 pin - IP20 - Max 24V
Strip to power supply Hippo COB single colour connector - 10mm PCB - 2 pin - IP20 - Max 24V
Strip to power supply Hippo COB single colour connector - 10mm PCB - 2 pin - IP20 - Max 24V

Strip to power supply Hippo COB single colour connector - 10mm PCB - 2 pin - IP20 - Max 24V

SKU:MN20-X10C-2PW
Has superado el límite de unidades
In stock 118 units
Data sheet

Hippo quick connector for LED strip to power supply connection. Suitable for single colour COB LED strips with 10mm PCB.

IP20 protection. Supports voltages between 3-24V.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Hippo 2-pin connector strip to power supply - 10mm PCB - IP20 - Max 24V

Hippo quick connector for connection of 10mm PCB LED strip to power supply.

It supports 22AWG gauge cables.

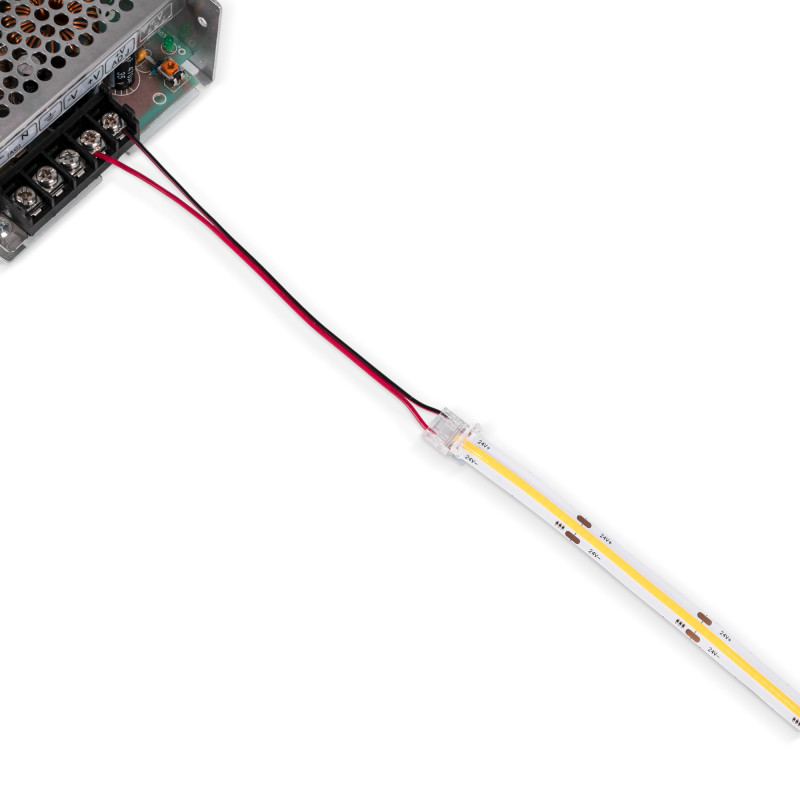

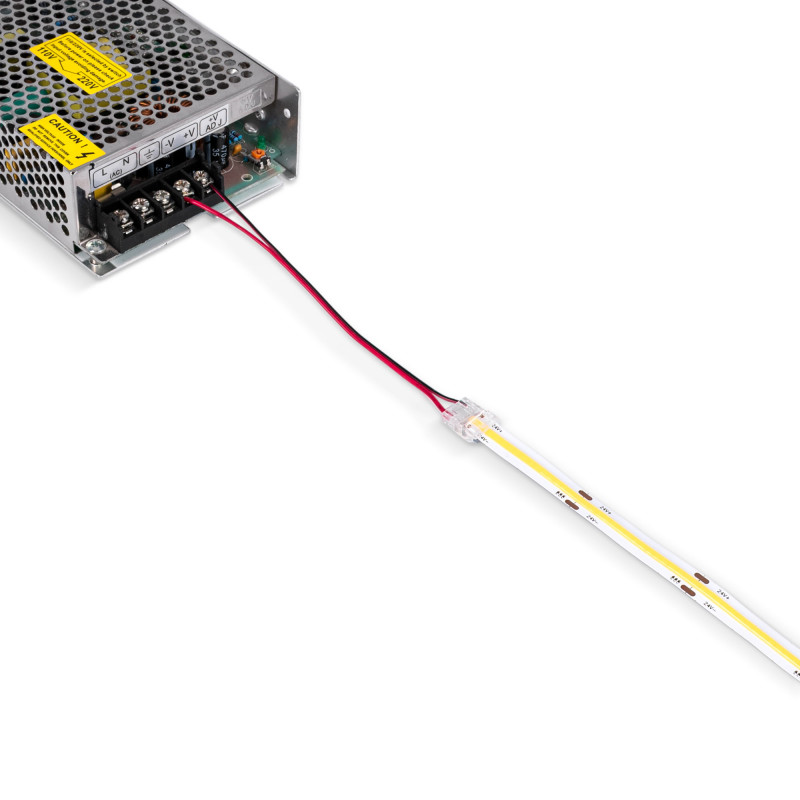

For installation, insert the strip into the terminals of the HIPPO connector. On the other end, connect the wires and then close the caps gently until you hear a click.

It includes a 150mm-long connection cable.

Due to its small dimensions, it can be used in tight spaces such as aluminium profiles, slots, and furniture gaps.

It's valid for all COB single colour LED strips with a 10mm wide PCB and a maximum of 24V.

Product features:

  • Input voltage: 3-24V DC
  • Maximum intensity: 3.5A
  • LED strip type: COB
  • PCB width: 10mm
  • LED strip width: 0.25~0.35mm
  • Number of pins: 2
  • Supported wire gauge: 22AWG (OD<1.70mm)
  • Cable length: 150mm
  • Connector dimensions: 16.5 x 11.7 x 4.3mm
  • Indoor use: IP20

Nominal Voltage (V)
3-24 V
IP
IP20
LED Type
COB
Track width (mm)
10
Material
Polycarbonate
Use Outdoor
No
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
3.5
