Extruded aluminum profile for embedding 23x8mm (Bar 2ml)
recessed aluminum profile

23x8mm recessed aluminum profile for LED Strip

SKU:BPERF23X8
Colour
Length
Has superado el límite de unidades
In stock 2257 units
Data sheet

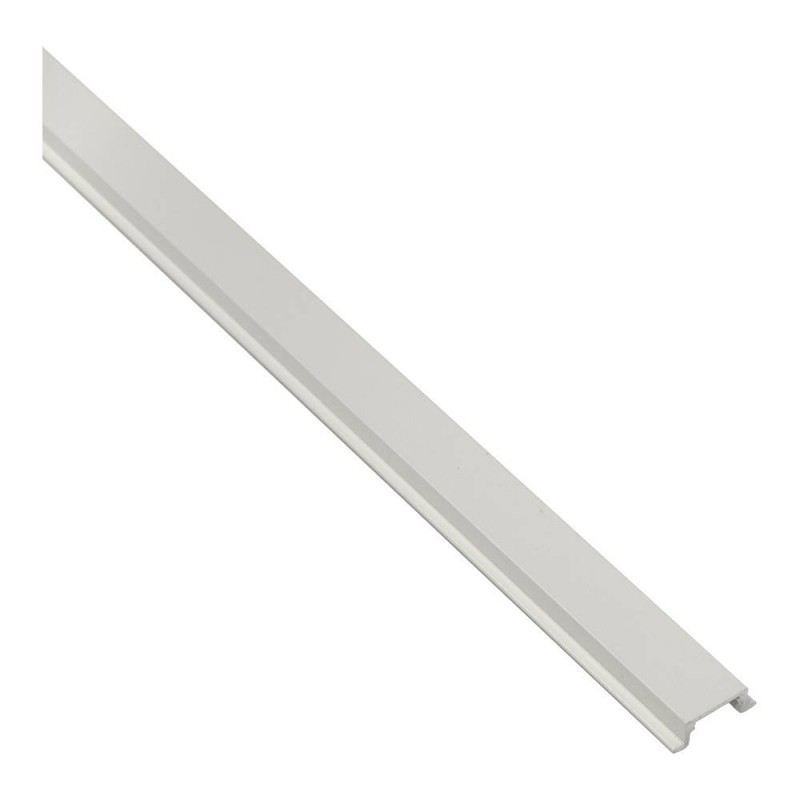

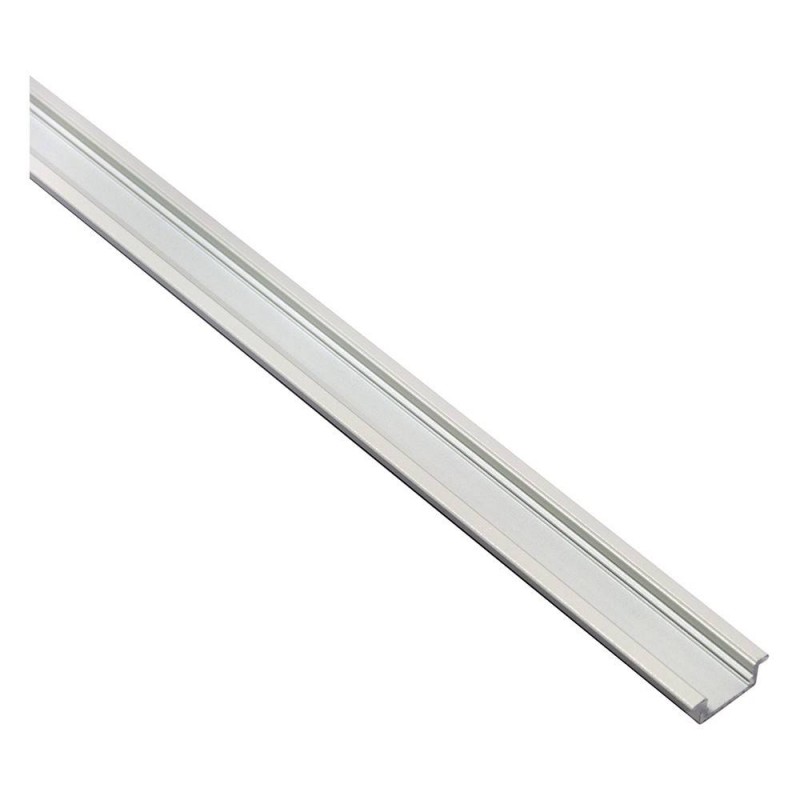

Aluminum profile for recessing 23x8mm for wall installation.

Available in silver aluminum, matt white lacquered and matt black.

- Available in 1m or 2m bars - Available in 1m or 2m bars - Available in 1m or 2m bars - Available in 1m or 2m bars.

Diffuser and covers not included.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

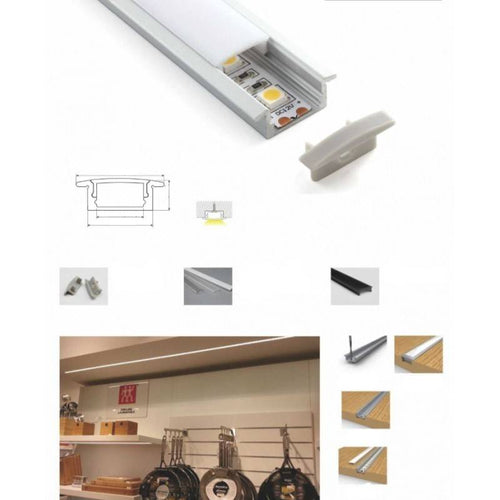

23x8mm recessed aluminum profile for LED strip.

You can choose the type of diffuser between transparent, glazed or opal.

Available in 1 meter or 2 meter bars.

For placement of LED strip.

We can make custom cuts.

Available in silver aluminum, matt white lacquered and matt black.

perfil aluminio tira led

perfil de aluminio

perfiles de aluminio

perfil para tira led

perfil tira led

perfiles de aluminio para muebles de oficina

perfil escaleras

perfiles de aluminio para muebles de melamina

IP
IP20
Dimensions (mm) Lxlxh
23x8
Material
Aluminium
Use Outdoor
No
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: What is the correct diffuser model for this profile (dimensions)? Thanks
R: Answer: El de 16mm BDBO16

Barcelona LED: Alejandro| 23/04/2023

P: Question: Hello, I want to put recessed profile in plasterboard bathroom ceiling and that enough light, to see if you can tell me that rail and led strip that suits me, thanks.
R: Answer: Depending on the area, a siliconized strip is recommended, for example B1553BN and a wider profile, for example BPERF36X28, but it depends on the area.
P: Question: What led strip do you recommend for this 23x8 profile?
12v? 24v?

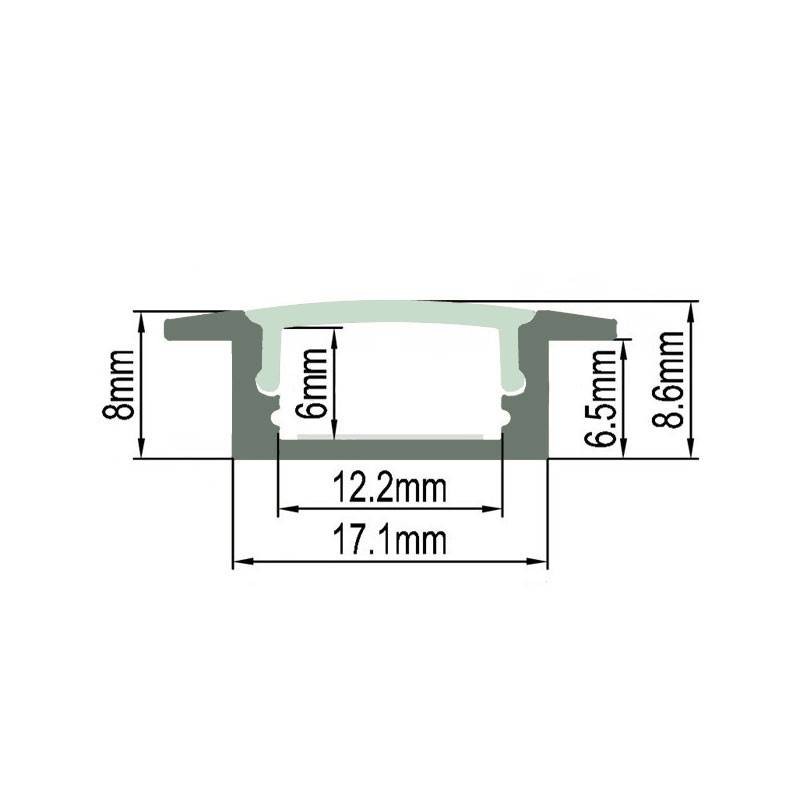

R: Answer: You can see the measurements of the profile in the pictures, any led strip smaller than 12mm fits in the profile (normally ip20 strips), the siliconized ones have to take into account that the beginning and end will not fit
P: Question: Good
Can I use 230v led strip with this profile?
Thanks
R: Answer: The profiles can be tight for siliconized strips such as 230v. In addition, the start and end that has a plug will not fit in the profile, maybe you can use a wider profile such as the BPERF36X28.
P: Question: Is it possible to put in this 23x8 profile a 5m 72w 24v ip67 strip?
R: Answer: The inside of the profile is about 12mm, the silicone strips measure 12mm, they fit tightly in the profile, but the beginning and end of the strip where the plugs are placed do not fit correctly. We recommend a wider profile such as ref. BPERF36X28.
P: Question: Does it come with a diffuser?
R: Answer: The wall profile does not come with diffuser, you can find it in accessories, in the same page of the profile.
P: Question: How to fasten in plasterboard ceiling already installed and taking advantage of how to make the regatta. the installation is for the whole house.
Thank you very much and best regards
R: Answer: The 23x8mm aluminum profile is designed to be recessed and not clamped.

Barcelona LED: Marc| 28/01/2020
