23x8mm recessed aluminum profile for LED Strip
SKU:BPERF23X8-B
€8.50
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

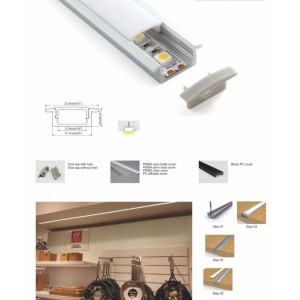

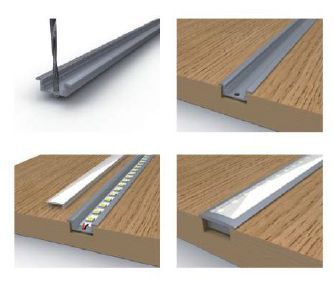

23x8mm recessed aluminum profile for LED strip.

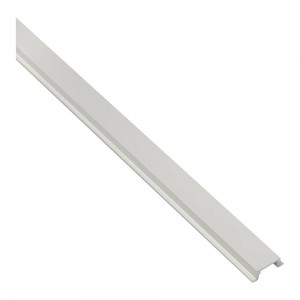

You can choose the type of diffuser between transparent, glazed or opal.
Available in 1 meter or 2 meter bars.
For placement of LED strip.
We can make custom cuts.
Available in silver aluminum, matt white lacquered and matt black.
IP
IP20
Dimensions (mm) Lxlxh
23x8
Material
Aluminium
Use Outdoor
No
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: | What is the correct diffuser model for this profile (dimensions)? Thanks |
|---|
| R: Answer: | El de 16mm BDBO16
Barcelona LED: Alejandro| 23/04/2023 |
|---|
| P: Question: | Hello, I want to put recessed profile in plasterboard bathroom ceiling and that enough light, to see if you can tell me that rail and led strip that suits me, thanks. |
|---|
| R: Answer: | Depending on the area, a siliconized strip is recommended, for example B1553BN and a wider profile, for example BPERF36X28, but it depends on the area. |
|---|
| P: Question: |
What led strip do you recommend for this 23x8 profile? 12v? 24v? |
|---|

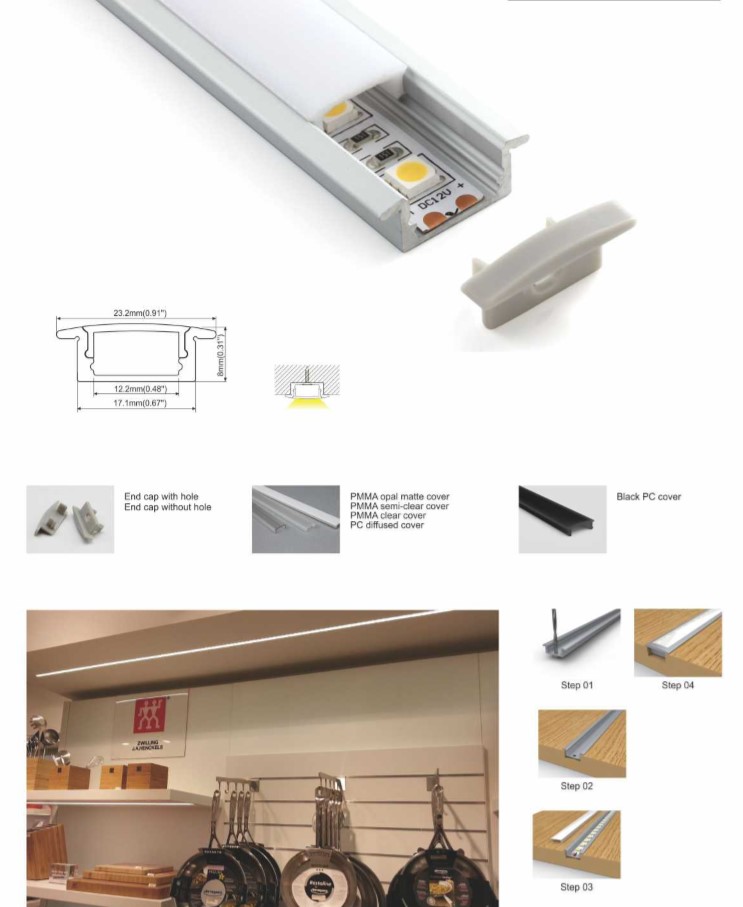

| R: Answer: | You can see the measurements of the profile in the pictures, any led strip smaller than 12mm fits in the profile (normally ip20 strips), the siliconized ones have to take into account that the beginning and end will not fit |
|---|
| P: Question: |
Good Can I use 230v led strip with this profile? Thanks |
|---|
| R: Answer: | The profiles can be tight for siliconized strips such as 230v. In addition, the start and end that has a plug will not fit in the profile, maybe you can use a wider profile such as the BPERF36X28. |
|---|
| P: Question: | Is it possible to put in this 23x8 profile a 5m 72w 24v ip67 strip? |
|---|
| R: Answer: | The inside of the profile is about 12mm, the silicone strips measure 12mm, they fit tightly in the profile, but the beginning and end of the strip where the plugs are placed do not fit correctly. We recommend a wider profile such as ref. BPERF36X28. |
|---|
| P: Question: | Does it come with a diffuser? |
|---|
| R: Answer: | The wall profile does not come with diffuser, you can find it in accessories, in the same page of the profile. |
|---|
| P: Question: |
How to fasten in plasterboard ceiling already installed and taking advantage of how to make the regatta. the installation is for the whole house. Thank you very much and best regards |
|---|
| R: Answer: | The 23x8mm aluminum profile is designed to be recessed and not clamped.
Barcelona LED: Marc| 28/01/2020 |
|---|
