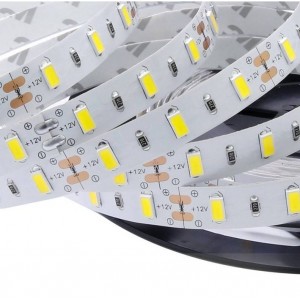

LED Strip 12V-DC 75W 10mm single color IP20 (SMD5630 60CH/M) 5 meter roll
SKU:B1541-5630BN
€9.99
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
12V-DC 75W LED Strip with 300 SMD 5630 Chips
-
60 chips/meter SMD5630
-
Cutting distance 50mm
-
IP20 protection degree
-
PCB width: 10mm
-
3M self-adhesive
-
Flexible, high brightness and luminosity
-
Requires power supply (not included)
This super bright color LED Strip is ideal for illuminating any interior. It is a unique LED strip with a very bright color temperature for multiple uses, achieving dynamic lighting effects in bedrooms, living rooms, kitchens, hallways, bars, restaurants or commercial spaces.
White led strip extra white led strip white led strip for ceiling For this type of LED strip, we recommend the installation of aluminum profiles to achieve a cleaner and more elegant installation and to prolong the lifetime of the LED strip. A power supply is required, and depending on the power supply used, a DC connector is also required (sold separately).
2018-06-02
Nominal Voltage (V)
12V-DC
Power (W)
75
Power/m (W/m)
15
Kelvin (K)
2400
2700
3000
4000
6000
10000
2700
3000
4000
6000
10000
Beam angle (º)
120
Lifetime (h)
35000
IP
IP20
Dimensions (mm) Lxlxh
5000x10
Frequency (Hz)
50 - 60
Hue
Extra warm white
Extra warm white plus
Neutral white
Extra warm white plus
Neutral white
CRI
80-85
LED Type
SMD 5630
Dimmable
Yes
No. of chips/metre
60
Track width (mm)
10
Cutting distance (mm)
50
Use Outdoor
No
Adhesive
3M
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: | Hello good morning, I would need 2-3 m of this model of strip I have seen in the rolls of 5m SMD5630, I do not think I would give me problem in cutting and then splice the connector to the current (it is to insert into aluminum trunking profile plasterboard ceiling to 2.40m in domestic housing in a specific area of the living room) What would I need apart? My idea is to buy a dimmable switch, and apart what you recommend me for the final installation ...: diffuser cover to cover leds in trunking? power supply? connectors ... etc... Thanks |
|---|
| R: Answer: | This model allows cutting every 5cm (by the cutting area). The strip is 15W/mt for 2.4mt you will need a 12Vdc power supply higher than 36W. A controller for Monocolor strips e.g.: RF86-01. The profile can be ref. BPERFALP068-R. For quotation, purchasing and customer support please contact comercial@barcelonaled.com |
|---|
| P: Question: | Hi. When will the 10000K be available? ???? |
|---|
| R: Answer: | This model is out of stock |
|---|
| P: Question: | Can it be installed in a car? |
|---|
| R: Answer: | If the strip receives 12vdc it works normally. Keep in mind that it is not for outdoor use and that it should be placed on a surface that dissipates heat, such as the body in this case. |
|---|
| P: Question: | hello, I would like to know if the led strip can be joined with another one, as well as cut to size. |
|---|
| R: Answer: | If they can be cut and spliced in the cut area where the copper track is visible, in the case of this strip model, every 5 cm. |
|---|
| P: Question: | I would like to know if this strip comes with the transformer, ready to work, and if not, what are the prices of white med strips t meters with the power supply/transformer ready to use? |
|---|
| R: Answer: | The strips are sold in 5mts reels without power supply, prices are available on web. |
|---|
| P: Question: | I see that there are 6 shades but I need to know the color temperatures of each one and I can't find it. |
|---|
| R: Answer: | They are available in the technical data section |
|---|
| P: Question: |
Good afternoon, two questions. Are they dimmable? How many lumens per meter, thank you? |
|---|
| R: Answer: | All LED strips are dimmable. It has about 1619 lumens per meter, about 107lm/w. The ratio per square meter is based on LUX and depends on height and other photometric factors. |
|---|
| P: Question: |
Good afternoon, if I had to splice 2 rolls (I need 7m of strip) I would have to buy a controller for 120w? Thanks |
|---|
| R: Answer: | This model of strip is 15w/m, for 7 meters of strip you would need a power supply of at least 105w, our closest model above is 120W. If you need a controller to regulate the intensity of the strip, it must support the power of the strip, in this case 105W. Note: We do not recommend more than 5 linear meters in 12v strips, and 10 linear meters in 24v strips, due to voltage drop loss. |
|---|
