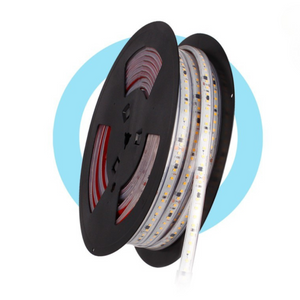

LED Strip 220V - 300W (2400xSMD2835) - 12mm - Outdoor use: IP67 - 20 meter roll
SKU:B1540-270
€99.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
LED strip 220V IP67 for indoor or outdoor use - Width 12 mm - 20 meters roll
This 220V LED strip does not require power supply for its operation. It is designed according to the highest quality standards, incorporating the latest generation LED technology that allows it to emit a very powerful and homogeneous light.
Its watertight connectors work perfectly outdoors without requiring watertight junction boxes or complex assemblies. It has a silicone cover that gives it great flexibility and protects the LED strip from any external factor that could damage it, giving it an IP67 degree of protection.
It has three color temperature variants, according to the needs of the space and the environment we want to create: warm white (2700° K), neutral white (4000° K) and cold white (6000° K).
High power and low consumption
Due to its high power of 300W (15W/meter), this LED strip is suitable for covering large spaces. It also has a luminous efficiency of 101 lm/W, with a total of 2400 SMD2835 LED chips and a density of 120 chips/meter.
It has a beam opening angle of 180° and a high color rendering index (CRI>90), which allows it to reproduce colors very similar to natural light.
Easy installation and handling
The LED strip comes in a 20-meter roll, with an initial connector to the electric current and an end connector with plug. Cuts can be made every 100mm, according to the indicated markings, and a silicone plug can be placed at the end. The width of the strip is 12mm and has a 3M self-adhesive backing to adhere to the desired surface.
It works directly at 220V, it does not require the installation of drivers or transformers of any kind.
Recommended use for LED strips

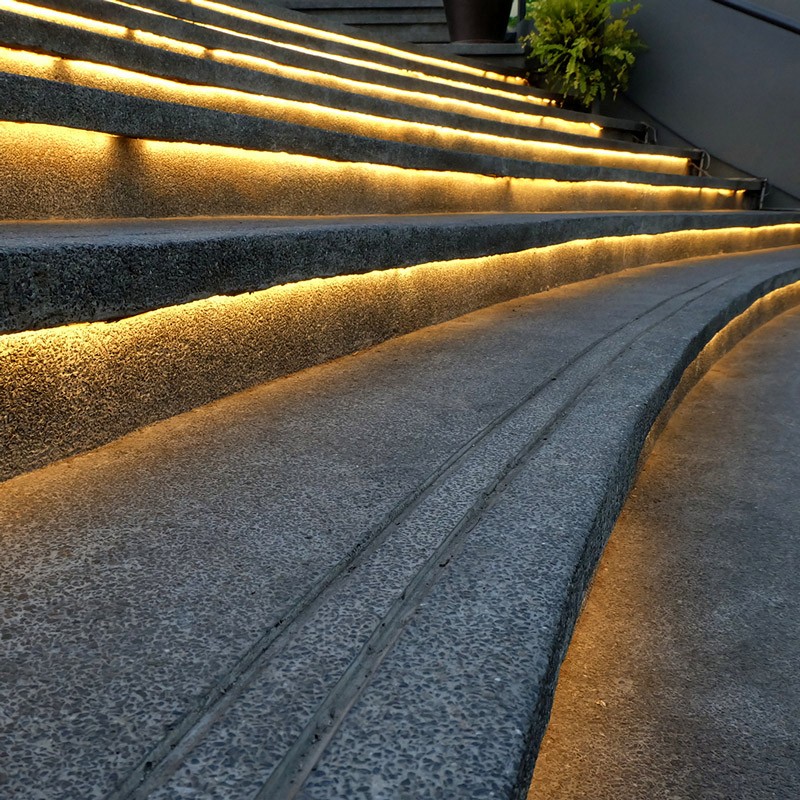

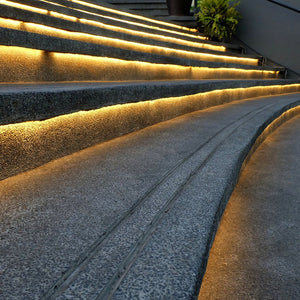

Outdoor lighting in general
Illumination of showcases, shelves and showcases

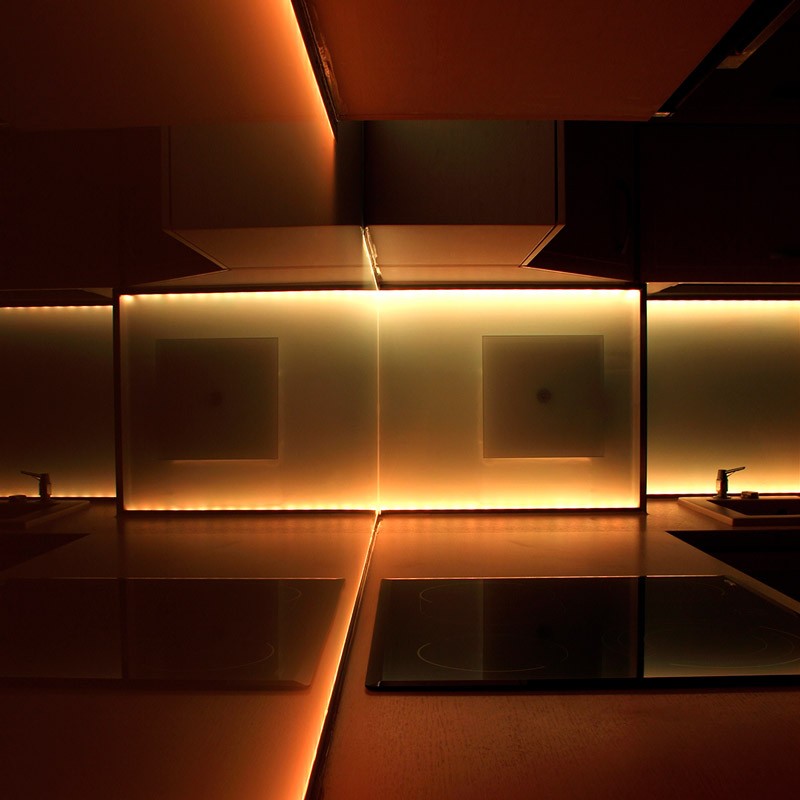

Indoor decorative lighting
Indoor and outdoor architectural lighting
Highlighting objects, contours or structures.
|
Main characteristics of the product:
|
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
380
Power/m (W/m)
19
Lumens (Lm)
32600
35720
35720
Kelvin (K)
2700
4000
6000
4000
6000
Beam angle (º)
180
IP
IP67
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Warm white
Neutral white
Warm white
Efficiency (Lm/w)
96
CRI
90-95
LED Type
SMD 2835
No. of chips/metre
120
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Adhesive
3M
Frequency of use
Normal
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Discount
Professional lighting
Professional lighting up to 80% off
Professional lighting up to 80% off
Questions
| P: Question: |
Hi. On offer at 50% is only the cool white led strip? Is it not possible to get the same price for the natural white light one? Thank you |
|---|
| R: Answer: | Hi Orlanda, the 50% off offers apply only to selected products such as the cool white LED strip. We remain available for further information or assistance.
Barcelona LED: Jhosimar| 02/12/2024 |
|---|
| P: Question: |
LED Strip 220V 300W (2400xSMD2835) 12mm IP67 Roll 20 meters Product reference:B1540-BF good buying these 20 meters of led strip, the only thing we need is to connect it to the power and it works? thanks or need any repeaters or accessory? |
|---|
| R: Answer: | By connecting to the 220v mains, it works. |
|---|
| P: Question: | Hello, I see that you advise not to regulate led strips 220V.... I'm going to put a Dali walkway, and I have a strip of led in a living room pit of 18 linear meters, and another in a corridor of approximately 13 linear meters.... the two are regulated and its length was thinking of using led strips 220 V.... what other option do you recommend? |
|---|
| R: Answer: | In 24Vdc strips it is not possible linear installations of more than 10mts. You have to put repeaters or put the controller in the middle to distribute 10mts for each side. |
|---|
| P: Question: | How many several is a 2.5 m strip? |
|---|
| R: Answer: | This coil is sold in rolls of 20mts. 20mts are 300w, each meter is 15W. So 2.5mts would be about 38W. |
|---|
| P: Question: |
LED strip 220V 300W (2400xSMD2835) 12mm IP67 Roll 20 meters, do these strips exist in rolls of 50 meters or more? If I install them in a suitable trunking, can I bend them 90º vertically, i.e. on the narrow side of 6mm? |
|---|
| R: Answer: | We have 5mts and 20mts. It can only be bent in the direction of the strip and always with some curve, it cannot be squared. |
|---|
| P: Question: | How to cut them into 140cm strips and join them together? How to fasten them to a glass profile? |
|---|
| R: Answer: | The cut is every 10mm, the 230 strip must be welded and insulated. It has a double strip each. Take into account the heat given off by the strip. |
|---|
| P: Question: |
Good morning, You need an aluminum profile to dissipate the heat. |
|---|
| R: Answer: | It can be mounted without a profile, but it is still advisable to fix it on a surface that dissipates part of the heat, such as an aluminum plate or other support. |
|---|
| P: Question: | hello! i need about 50 m of led strip to put in a 10 mm wide aluminum profile. do you have any? |
|---|
| R: Answer: | The 230vac siliconized strips are minimum 12mm (start and end cap 14mm). |
|---|
| P: Question: | I would like to know if the 220v led strip is suitable for an aluminum profile integration Plaster/Pladur 13x14mm. |
|---|
| R: Answer: | The 220v strip is 12mm wide and counting with the end cap and the beginning of the strip it is about 14mm. Some profiles are for 10mm strips. |
|---|
| P: Question: | Good evening, I am looking for led strips of 220 v in 2700 K that are to regulate and I do not find it in the characteristics, if possible please inform me. thanks. |
|---|
| R: Answer: | The 220v led strip, does not make the regulation by dimmer "triac" correctly because its frequency is low, as the intensity decreases the flickering sensation increases, with some TRIAC models as in D2501AC the flickering is minimized, but it can be annoying. |
|---|
