24V DC COB LED Strip - 12W/m - 10mm - IP20 - 10 meters roll - Cut every 5cm
SKU:B1559-10-BN
€39.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

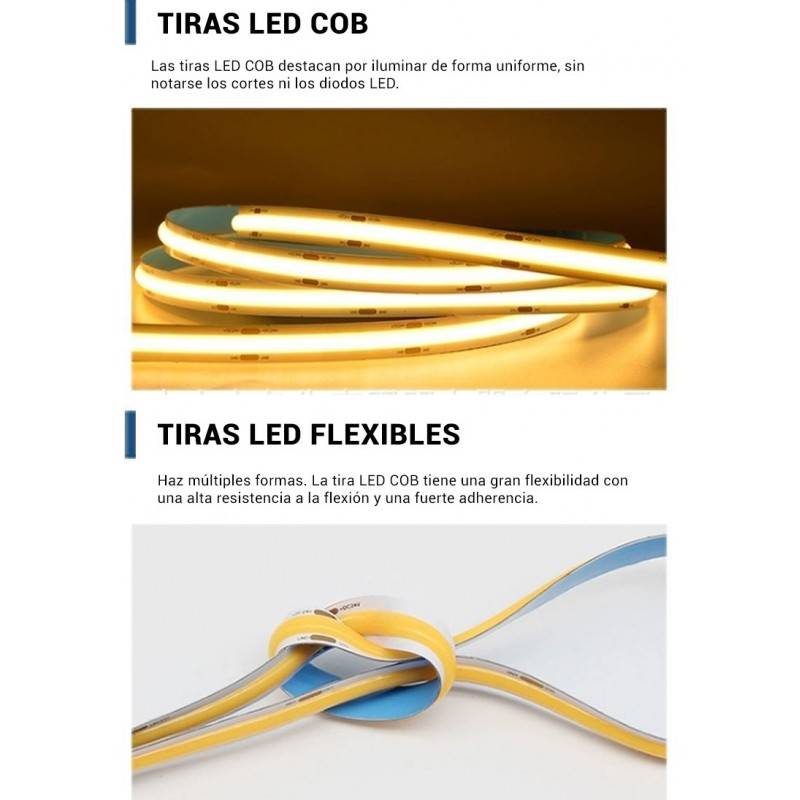

This LED strip incorporates COB technology, which allows it to emit a continuous light, without visible points. Especially recommended when a homogeneous illumination is desired, to work with reflective surfaces or to use transparent diffusers.
With a luminous intensity of 12W per meter, it provides exceptional brightness, superior to conventional LED strips.
The LED strip is presented in a 10 meter roll and allows cuts every 50mm, according to the indicated marks. It incorporates 3M self-adhesive backing to adhere to the desired surface.
Its slim 10mm design allows for easy installation in any corner of the home, office or store.
|
Product features:
|
Please note that some technical characteristics such as power or efficacy may vary depending on the colour temperature of light. For further details, please refer to the attached "Test Reports" in the "Downloads" section or contact our sales advisors.
Nominal Voltage (V)
24V-DC
Power/m (W/m)
12
Kelvin (K)
2700
4000
6000
4000
6000
Beam angle (º)
120
IP
IP20
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Warm white
Neutral white
Warm white
Efficiency (Lm/w)
123
CRI
90-95
LED Type
COB
Dimmable
Yes
No. of chips/metre
320
Track width (mm)
10
Cutting distance (mm)
50
Use Outdoor
No
Adhesive
3M
Frequency of use
Normal
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: | For the COB strip, is it recommended to install it with aluminum profile and diffuser as with the SMD? |
|---|
| R: Answer: | The profile is always recommended, the opal diffuser is optional, but it will increase the diffusion and will minimize even more the vision of leds points (with the COB strip almost imperceptible). |
|---|
| P: Question: | I want to make a 150/150 cm square ceiling, how do I make the 90º joints with COB LED strip and what accessories do I need, I already have the recessed profiles of 23 by 15 mm, thank you. |
|---|
| R: Answer: | You can use G-L-PCB2-10 or BCI10BXB-2W quick connectors. It is preferable to join cable by tin soldering. |
|---|
| P: Question: | What source do I need for 10m of strip? |
|---|
| R: Answer: | The strip is 12W per meter: It needs a 24v source greater than 120W. |
|---|
| P: Question: |
How many lumens is it? Because 123lm/w X 12w/m = 1.476lm? |
|---|
| R: Answer: | The most efficient model is the cool white 122lm/w, the meter will be in the 1400-1500lm, you have to take into account voltage losses and power as meters are added. |
|---|
| P: Question: |
Does it include the source? Greetings. |
|---|
| R: Answer: | The source is not included. The choice of source will depend on the meters of strip in the installation. |
|---|
