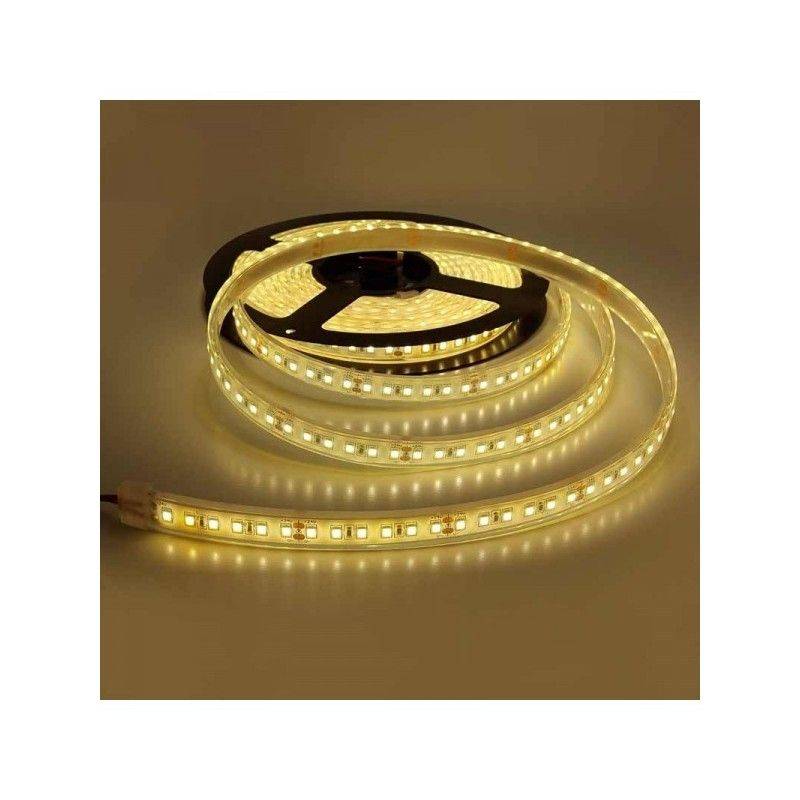

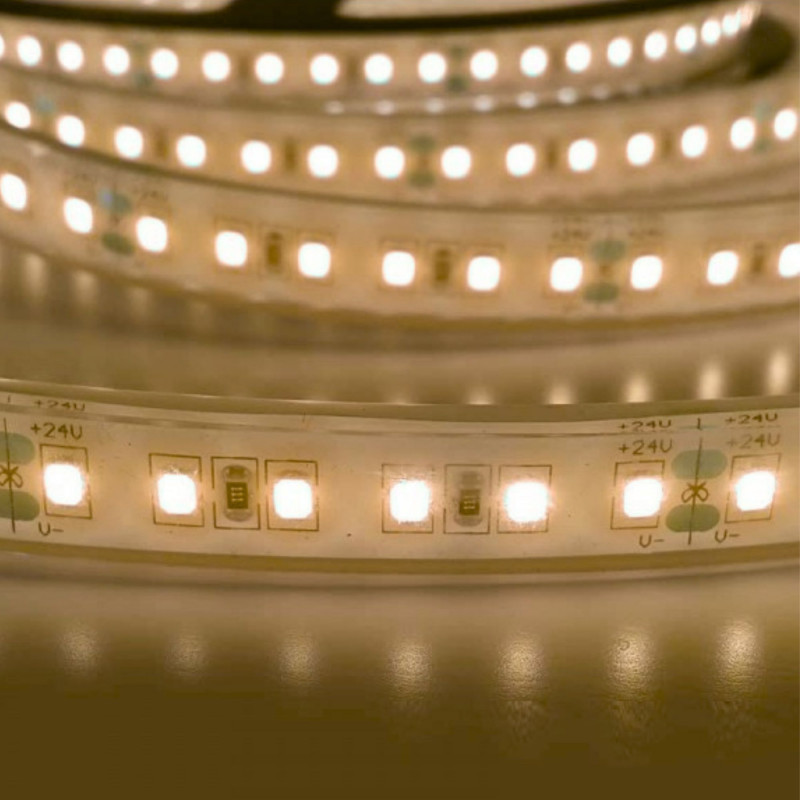

LED Strip 24V DC - Monochrome - 18W/m - 12mm - IP67 - 5 metres - 120LED/m
SKU:B1553BC
€19.94
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
LED Strip 24V DC - Monochrome - IP67 - 5 metres
- High brightness: Incorporates SMD2835 LED chips with a density of 120 LED/m, ensuring bright and homogeneous lighting. With a power of 18W/m and an efficiency of 100lm/W, this LED strip is not only powerful but also energy efficient.
-
Superior light quality: It has a high colour rendering index, CRI>85, ensuring faithful colour rendering, similar to natural light.
- Variety of shades: Available in 4 colour temperatures: extra warm white (2700K), warm white (3000K), neutral white (4000K) and cool white (6500K), it adapts to various lighting needs.
- Practical design: Allows cuts every 50mm, facilitating installation and adaptation to any space.
- Outdoor resistance: Manufactured with resistant and durable materials, it has an IP67 protection rating, which gives it resistance to external factors such as rain and dust, ensuring exceptional versatility for outdoor lighting projects.
It allows the installation of up to 10 linear meters with the same source and controller without voltage drop.
We have a large family of compatible controllers, remotes and power supplies (See related products).
Nominal Voltage (V)
24V-DC
Power (W)
90
Power/m (W/m)
18
Lumens (Lm)
1470lm (6500K)
Kelvin (K)
2700
3000
4000
6500
3000
4000
6500
Beam angle (º)
120
Lifetime (h)
25000
IP
IP67
Dimensions (mm) Lxlxh
5000x12x5
Frequency (Hz)
50 - 60
Hue
Cool white
Extra warm white
Neutral white
Warm white
Extra warm white
Neutral white
Warm white
LED Type
SMD 2835
Dimmable
Yes
No. of chips/metre
120
Track width (mm)
12
Cutting distance (mm)
50
Use Outdoor
Yes
Adhesive
No
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: | Hello, good afternoon, I need to make an installation of 60 mtrs of Led strip, 10w, Ip67, 24v or 220vac. The installation would be done on aluminum trunking. What do you advise me, thanks and greetings. |
|---|
| R: Answer: | It is an installation too long to do linearly, 24vdc led strips should not exceed 10mts linear. |
|---|
| P: Question: | Hello I have placed a profile of 2 cm wide inside, on a wall.I would like a strip of led 24v neutral light and that enough light. It would have to be double or that the led are larger, to occupy as much as possible of those 2 centimeters and that no shadows are seen when placing the diffuser. I NEED about 50m. It would be distributed in several spaces. One would be 11,05m. Another 10,35m. Another 4,65m. Another 5,15m |
|---|
| R: Answer: | This model is for outdoor use. Our strip sizes are 5mm, 8mm, 10mm and 12mm in reels of 5 meters. |
|---|
| P: Question: |
How could IP67 certification be maintained if 2 strips of 5 meters are spliced together? I want to use it to border the top of an 8 meter long pool and there would be a splice joining 2 5 meter coils quite exposed to water (it won't be submerged in water but it will get quite a bit of water at times when people jump into the pool or when there is active movement of people in the pool). Would there be coils of 10 / 20 / 30 or 50 meters IP-67 or IP-68? Thank you very much Isaac |
|---|
| R: Answer: | It must be siliconized and protected to keep it watertight and prevent the entry of water and humidity. |
|---|
| P: Question: | Does it come with 3m tape for gluing? |
|---|
| R: Answer: | No, this model does not have adhesive tape. |
|---|
| P: Question: |
Can two 24V 18W/m led strips be directly joined with the cables they come with in order to have 10 linear meters of led strips? If it is possible, what power supply would I need? |
|---|
| R: Answer: | If you can join two strips by means of the cable, respecting the polarity. If you want to join two rolls of 5mts, 10 linear meters are 180W, you will need a 24vdc power supply greater than 180W. |
|---|
| P: Question: | When will this model of neutral white LED strip be available? |
|---|
| R: Answer: | For availability, please contact comercial@barcelonaled.com. |
|---|
| P: Question: |
Good afternoon, I would like to install 2 independent dimmable led strips, one of 4.5m and the other of 1m, with pushbutton switches. Would this strip work for me and do I need accessories so that they can be dimmable? Thanks |
|---|
| R: Answer: | LED strips need their power supply and their specific regulator for LED strips. I do not know how are your regulators are probably for regulation of 220v bulbs "triac", do not serve for 24v LED strips unless you use an adjustable power supply. by triac from the same input of the source. maybe you can serve this model Ref. B4257 |
|---|
| P: Question: | Good morning, I would like to know how many lumens per meter. |
|---|
| R: Answer: | The 24v led strip gives about 1500 lumens per meter. |
|---|
| P: Question: | Hello, is the price and the units to order per meter or per roll of 5 meters? |
|---|
| R: Answer: | The 24v led strip is sold in a 5 mts. reel, the price is per unit of 5 mts. reel. |
|---|
