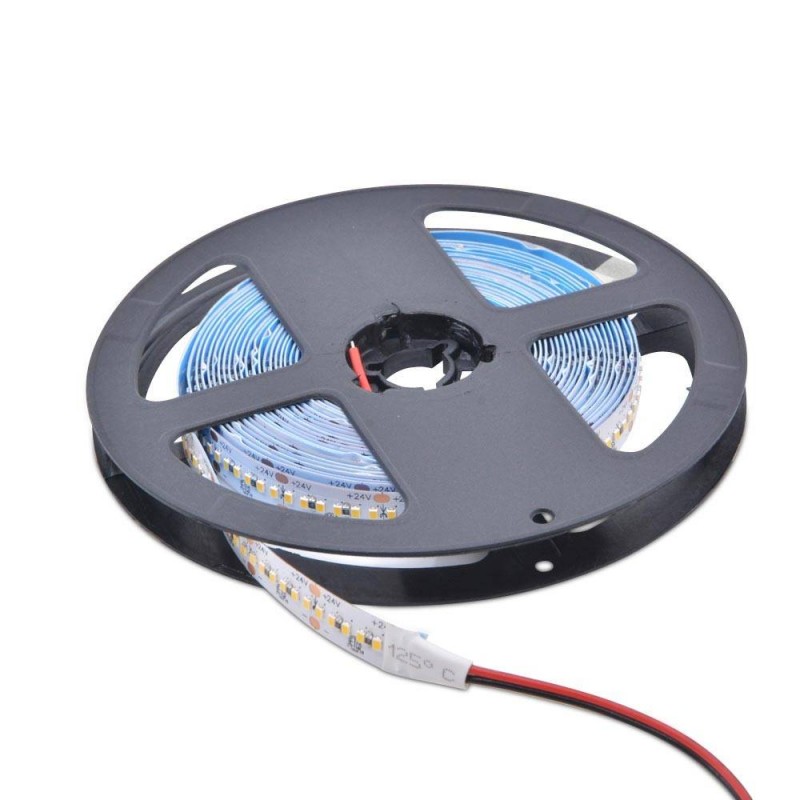

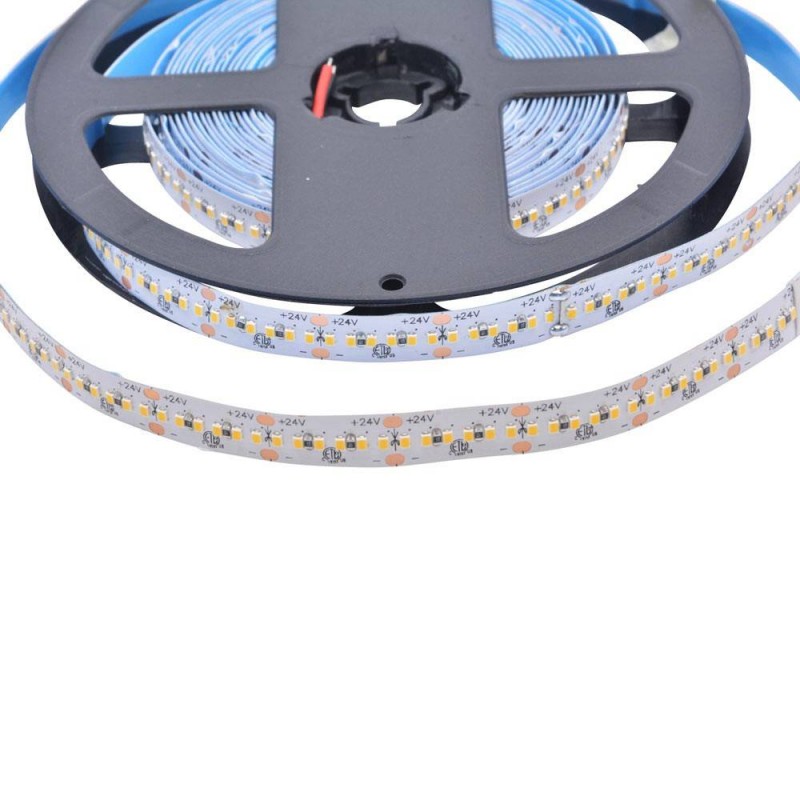

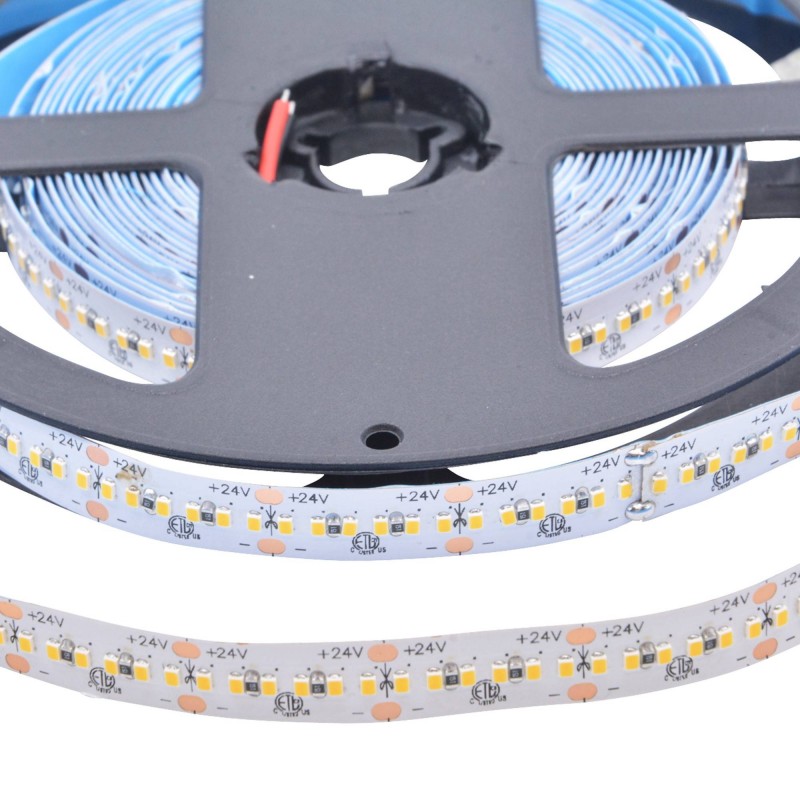

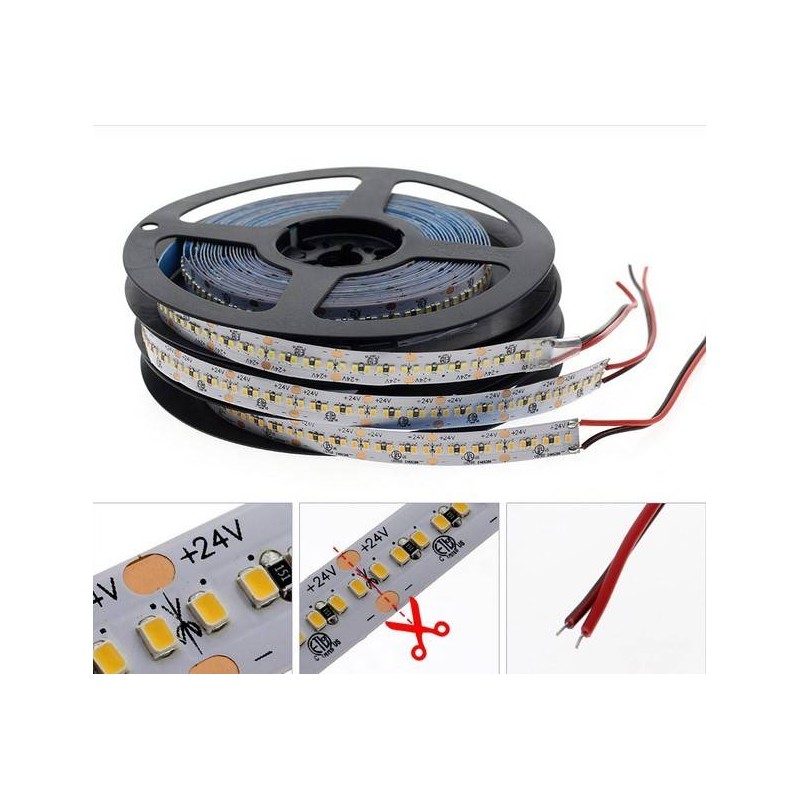

LED Strip 24V-DC 26W/m CRI90 single color IP20 5 meter roll
SKU:B1555BF
€39.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

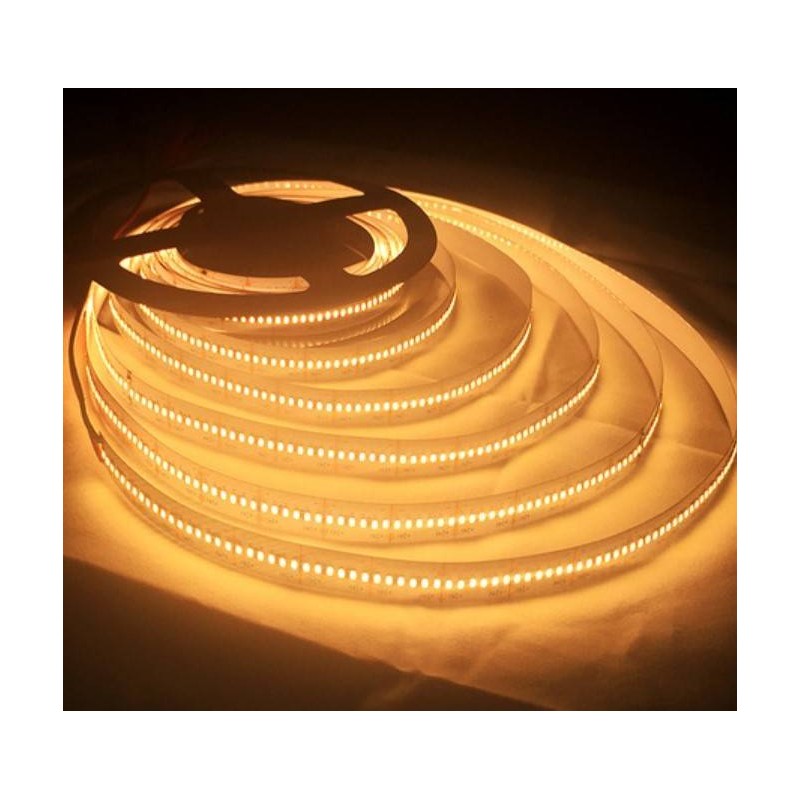

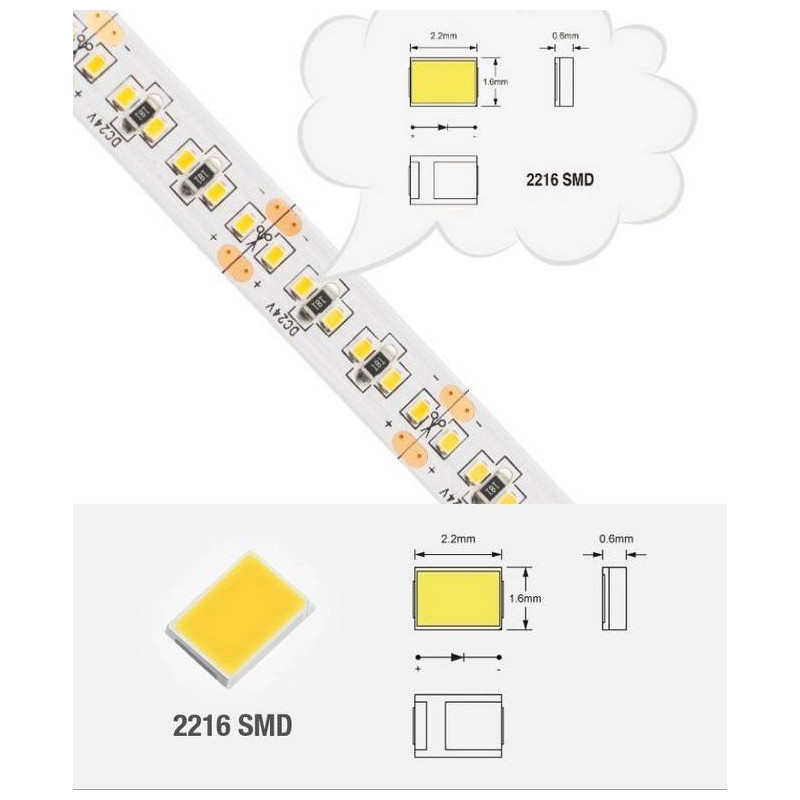

HIGH POWER LED STRIP WITH 1500 SMD2216 CHIPS
The LED strip is powerful with high brightness. It has 1500 Chips (SMD2216) which makes the light emitted is completely homogeneous along the entire strip. It is of high quality and ideal for creating lighting environments to your liking. The strip is flexible and easy to install because it has a 3M self-adhesive on the back that allows an ideal thermal conduction. Due to its power, the strip must be used with an ALUMINIUM PROFILE to dissipate heat and prolong its life. We recommend using the 17x8 profile.

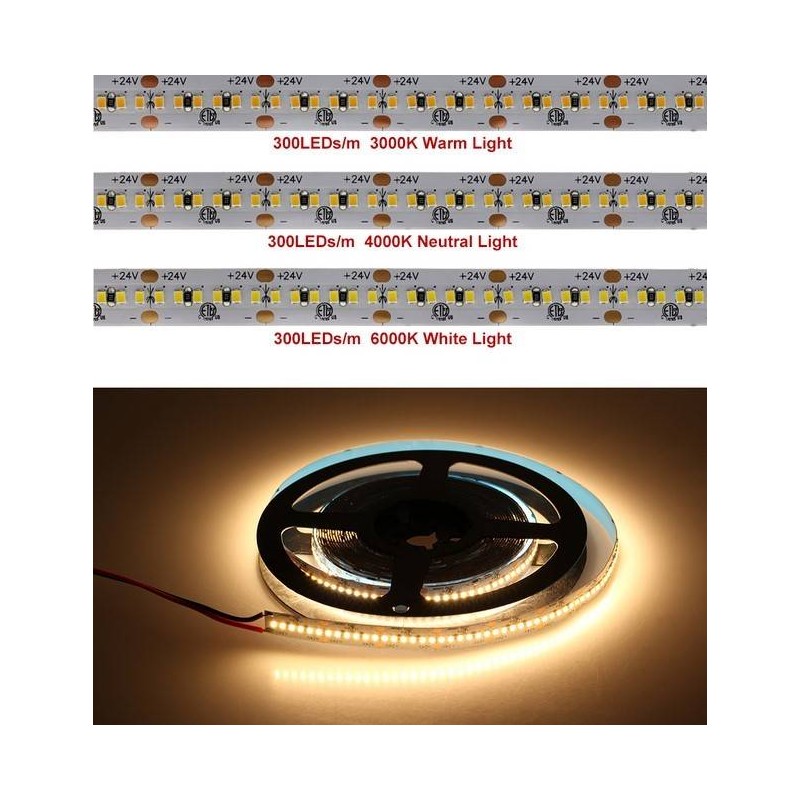

This LED strip requires a stable power supply of 24V, with a perfect calibration for proper operation, preferably installed with the help of a professional. The strip is available in neutral, warm and cool white. It also has a high color rendering index (CRI>90) that enhances the color of illuminated objects.

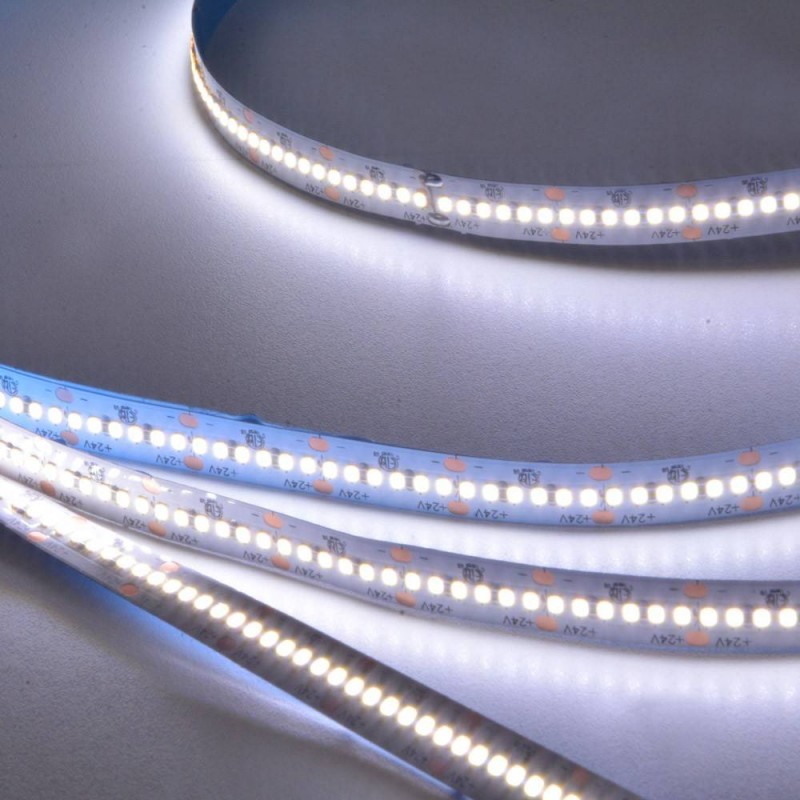

The brightness varies according to the color of the strip. The warm white strip has 14560LM and 112LM/W output. The cool white has 16900LM and 130LM/W output. And the neutral white strip has 15600LM and 120LM/W output.
Due to the power of the strip, linear circuit of more than 5 meters is not recommended.
Characteristics of LED strip:
- Number of chips: 1500
- CHIP: SMD2216
- Voltage: 24V-DC

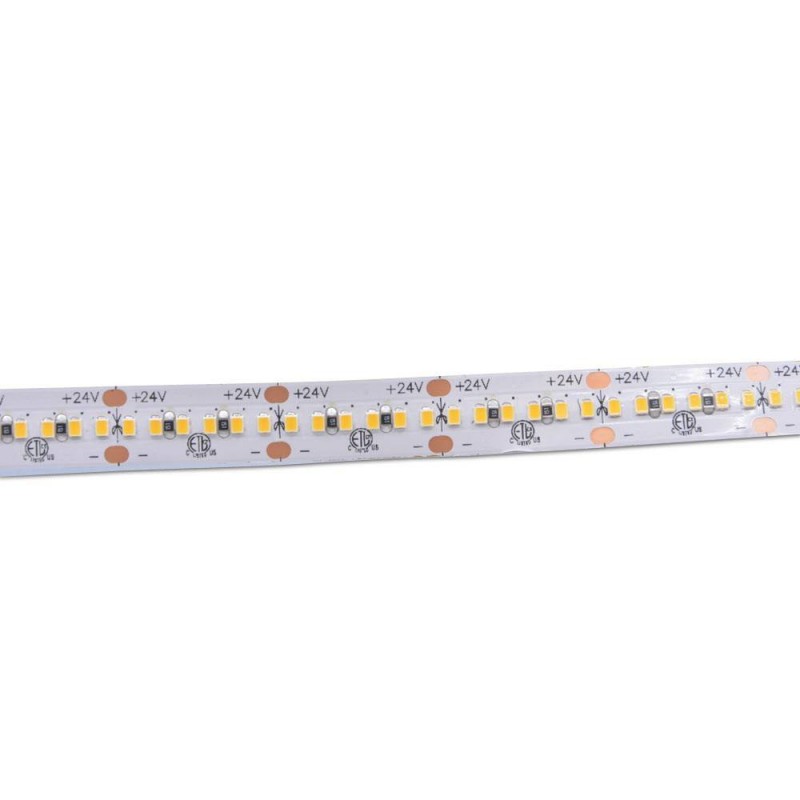

- Cutting distance: 20mm
- Thickness: 10mm
- Color rendering index: >90
- IP 20
- Use with aluminum profile
- Power: 130W
- Storage temperature: -40~+80oC
- Operating temperature: -20~+40oC
LED Strip Care:
- It has to be placed on an aluminum profile to dissipate heat.
- The installation surface should be smooth, clean and dry. Minimum turning radius 5mm.
- The strip must not be broken. It should only be cut along the indicated cutting lines.
- Due to the power of the strip, linear circuits of more than 5 meters are not recommended.
Applications of high power LED strip
- Indirect lighting.
- Creation of atmospheres in bars, musical places, discotheques, etc.
- Staircase lighting.
- Decorative lighting of facades.
- Lighting of showcases, shelves and shop windows.
- Installations of LED strips where long distances are necessary.
2018-07-08
Nominal Voltage (V)
24V-DC
Power (W)
130
Power/m (W/m)
26
Kelvin (K)
3000
4000
6000
4000
6000
Beam angle (º)
120
Lifetime (h)
35000
IP
IP20
Dimensions (mm) Lxlxh
5000x10
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Warm white
Neutral white
Warm white
CRI
90-95
LED Type
SMD 2216
Dimmable
Yes
No. of chips/metre
120
Track width (mm)
10
Cutting distance (mm)
20
Use Outdoor
No
Adhesive
3M
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: |
Good morning, Can you tell me if this LED strip works with DALI dimmable power supply and constant push voltage 24V 150W (Reference: PE-BL150DV24) ? Thanks |
|---|
| R: Answer: | It works with any 24vdc constant voltage source, dimmable or not. |
|---|
| P: Question: |
I wanted to put an aluminum profile of 1 meter as the main light in my bathroom, which led strip of maximum brightness do you recommend in IP65? This would give a lot of light, but it is IP20, do you have in IP65? Thank you. |
|---|
| R: Answer: | This model is only in IP20. Higher IP models are B1553 |
|---|
| P: Question: |
Hello Which driver can I use if I want to make the strip dimmable via RF? Thank you very much |
|---|
| R: Answer: | You need a source of the voltage and power of the installed strip and an RF controller with its strip controller (perhaps the D2501NS and D2828) or others. |
|---|
| P: Question: |
Hello, what other components would you need for the installation of this LED strip in neutral white? power supply, controller... etc. Can you recommend any of your products? Thank you. |
|---|
| R: Answer: | The powers vary depending on the installation and the meters mounted. You need a 24v source with power according to meters of strip. A controller with control of sufficient power for the meters mounted. You can contact a sales representative for more details. |
|---|
| P: Question: | Can this strip be mounted on a 23x8 recessed aluminum profile? |
|---|
| R: Answer: | Yes, this 24v led strip is 10mm wide can be mounted on profiles such as 23x8, the outer measures are 23mm wide by 8mm high, the inner measure is 12mm. |
|---|
| P: Question: |
Hello I wanted to mount this strip with an aluminum profile embedded in a wooden baseboard for a staircase. Can it be bent at 90 degree angle for corners? |
|---|
| R: Answer: | The 24v led strip can not bend at 90 degrees because it can break the solder or copper track, but can be left with a certain angle bend or make the 90 degrees by soldering wire. |
|---|
| P: Question: | Hello, in the first question you answer that has 200 lm x meter, that is 1000 lm in the whole strip?. I ask because the data sheet that you download in pdf says that it brings in total about 15,000 lm. Thank you. |
|---|
| R: Answer: | The strip has about 120Lm/w, 26w/mt 3100lm/mt |
|---|
| P: Question: |
good morning , please, how much is lm/m? I can't see it in the data sheets. product ref: LED strip 24V-DC 26W/m CRI90 single color IP20 Roll 5 meters Ref.:B1555BF Thank you very much |
|---|
| R: Answer: | Hello, the 24V-DC led strip has about 200 lumens per meter. |
|---|
| P: Question: |
Good morning, I would like to know how many years of warranty you give on the led strips. Thank you, |
|---|
| R: Answer: | All our LED strips have 2 years warranty.
Barcelona LED: Marc| 29/10/2019 |
|---|
