LED Strip 24V-DC 72W multicolor RGB IP20 5 meter roll
SKU:B1549-IP20
€14.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

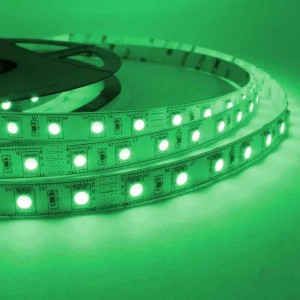

RGB LED Strip 24V-DC 72W - 300 SMD5050 - 5m - IP20
The 24V RGB LED Strip is the ideal model for those who want to create colorful environments.
The RGB LED strips at 24V with SMD 5050 chip produce a beautiful surrounding light in each of the colors they achieve. With 24V RGB LED strips you can connect up to a maximum of 10 linear meters to a single controller and a single power supply, twice as much as with 12V strips.
This range of professional RGB LED strips has 60 chips per meter, achieving a totally homogeneous beam. The LED or RGB strip can produce almost any color of light imaginable, the limitation is always set by the RGB controller to which it is connected (the controller is sold separately).
It is highly recommended to install the strips in specific aluminum profiles for proper heat dissipation and to prolong the life of the strip.
> Profiles for LED strips
- Self-adhesive (3M on the back).
- Very flexible to be able to make an installation that adapts to your needs.
- High brightness and luminosity.
- Requires power supply and RGB controller (sold separately).
2018-06-02
Nominal Voltage (V)
24V-DC
Power (W)
72
Power/m (W/m)
14,4
Beam angle (º)
120
Lifetime (h)
30000
IP
IP20
Dimensions (mm) Lxlxh
5000x12
Frequency (Hz)
50 - 60
Hue
RGB
LED Type
SMD 5050
Dimmable
Yes
No. of chips/metre
60
Track width (mm)
10
Cutting distance (mm)
83
Use Outdoor
No
Adhesive
3M
Frequency of use
Normal
Energy efficiency class
A++ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: | Does it have white light? |
|---|
| R: Answer: | No, it is an RGB model, it is only colored, although adding all the colors it gives white light (but with some color dominance). |
|---|
| P: Question: | I need to make a strip for a perimeter of about 20, is it possible to do it in one section? What do I need? |
|---|
| R: Answer: | It is not possible to run more than 10m in 24v strips in a row. Either put a repeater every 10mts or a controller in the middle with 10mts on each side. |
|---|
| P: Question: |
I have to connect two sections of 4m and 8m respectively, what kind of power supply do I need? What kind of controllers? Regards |
|---|
| R: Answer: | For the 4m LED strip you can use the minimum 75W power supply with reference B1566-75. For the 8m LED strips you can use a 200W power supply with reference B1566-200. |
|---|
