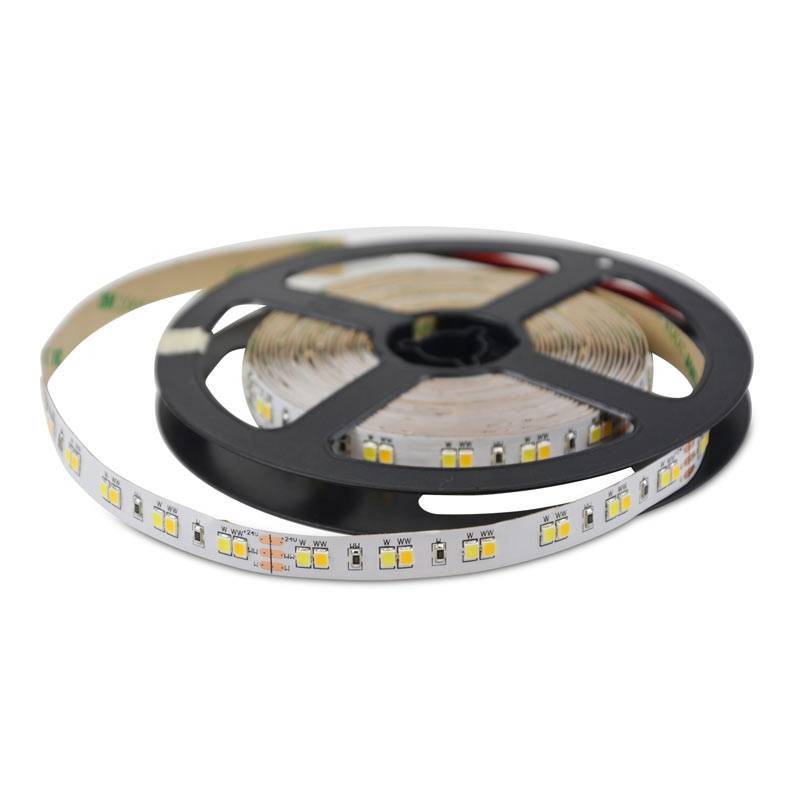

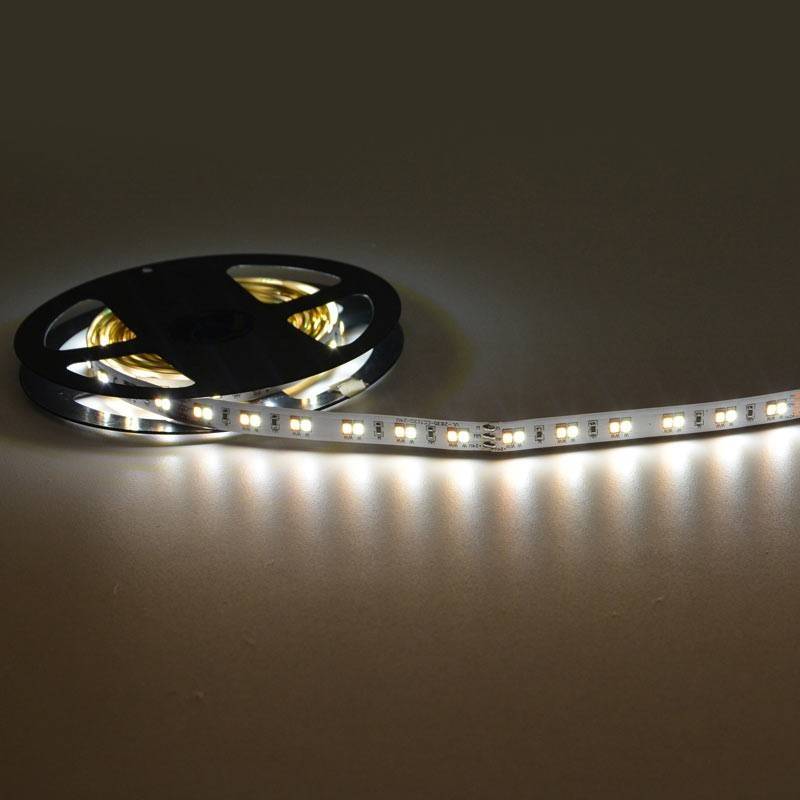

LED Strip 24V-DC 90W dimmable color temperature CCT 2700-6500K SMD2835 5 meters roll
SKU:B1514-D
€14.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
LED STRIP AT 24V-DC 90W (600 SMD2835) 5ML COIL IP20 2700-6500K TEMP. ADJUSTABLE COLOR (CCT)
With the DUAL LED Strip you can illuminate your home or business in a totally original way, thanks to its CCT option (warm to cool white) you will get the perfect tone for every moment. In addition, it has 90W that will give you an ideal light strength for the place you want to illuminate.
Combine the DUAL LED Strip with our controller and WiFi receiver to have more control over it and if you want to connect different sections of DUAL LED Strips, we recommend the CCT quick connector.
With the DUAL LED Strip you can choose between cool white to give a brighter and stronger tone or warm white to have a more homely atmosphere, choose the most suitable tone for every moment.
Applications:
- Stairs
- Hallways
- Corners
- Shelves
Functions:
- Defined illumination
- Bicolor
- Indoor use
- Easy installation and energy saving
2018-06-02
Nominal Voltage (V)
24V-DC
Power (W)
90
Power/m (W/m)
18
Lumens (Lm)
1200
Kelvin (K)
2700
6500
6500
Beam angle (º)
120
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
5000x10
Frequency (Hz)
50 - 60
Hue
Cool white
Warm white
Warm white
CRI
85-90
LED Type
SMD 2835
Dimmable
Yes
No. of chips/metre
120
Track width (mm)
10
Cutting distance (mm)
100
Use Outdoor
No
Adhesive
3M
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: |
Good morning. My idea was to put 3 strips in wooden ceiling of about 2m each. To bring the current to the led strips I have put a cable between wooden ceiling and floor with only 2 wires (that's where I made the big mistake of bringing only two wires to where the led strip begins) where now it is too late and I can not dismantle all the work done. My question is, can I put led strips that at least change temperature with only two wires? If it is possible, I would need a power supply + controller + LED strips, right? can you advise me please? From the controller you can take out several wires so that each wire goes to its led strip or you need a controller for each led strip? thanks in advance, best regards. |
|---|
| R: Answer: | CCT strips require a 3-output CCT controller; for 3 wires, one positive common and 2 negative (BF and BC). |
|---|
| P: Question: |
good afternoon. to feed 16 strips of 0.8 mts each fed in parallel, what transformer do I need? I understand that it would be at least 15 mt x 18w/m =270 w. I am also interested in the controller for the described assembly. thanks for your help |
|---|
| R: Answer: | The strip is 18w/m, 14.4W every 80cm: for 16 strips you need minimum 24vdc 230W. You can use the B1626-2 controller. |
|---|
| P: Question: |
Is some kind of transformer needed to connect it? |
|---|
| R: Answer: | Yes, a 24vdc power supply and power according to the meters of strip and a controller for CCT strips + command and control. |
|---|
| P: Question: | What would I need to place an LED strip in the entire line of wall units of a kitchen that is L-shaped with a total length of about 5 meters? |
|---|
| R: Answer: | It would be necessary to cut the strip and join it with welded cable in the angle. And place a BU90-17X8 joint between the profiles. You can also put the power supply in the corner and put the two sections of strips one on each side (parallel to the output of the power supply). |
|---|
| P: Question: |
Do you have this strip in ip 65 as well? What controller via radio can I use for dual strip? |
|---|
| R: Answer: | No, as indicated in the Technical Data tab, it is IP20 rated for indoor use. The IP65 has a silicone cover. The controller D1009FA + controller SR-2833TS-CCT can be used. |
|---|
| P: Question: |
Good morning. Do you have self-dissipating LEDs? Thank you very much. |
|---|
| R: Answer: | These models incorporate the LED in the flexible PCB track of the strip and require an aluminum profile for proper heat dissipation. |
|---|
| P: Question: |
How many LEDs per meter does this product have? Thank you |
|---|
| R: Answer: | As indicated on the website 120chip/m , note that it is a dual LED strip. |
|---|
| P: Question: |
Can it be cut to sizes less than 5m? Thank you |
|---|
| R: Answer: | Yes, the minimum cut for this led strip is 10cm, so every 10cm there is a cutting area. It can be cut along the line marked on the visible copper track. |
|---|
| P: Question: |
Hello, I would like to put 8.5 meters of led strip 24V-DC 90W COLOR REGULABLE CCT, my question is what kind of transformer I have to put. According to my accounts I would need a power supply of 200w 24v ie 18w/m for the 8.5 meters I want to put 153 w and I apply 20% more would be 183.6 W this would be correct? Would have the same intensity at the beginning and end of the strip without having q place amplifiers? if so advise me a power supply and a controller. On the other hand I would like to know if I have accessories in corner for this led strip and when I have a meeting type ceiling - wall could bend 90 ° strip or tahabria accessories? thank you very much in advance |
|---|
| R: Answer: | The consumption calculations are correct for a 24v 200W source, for example ref. B1585-200. You should not have outstanding orders with 8.5 mts in 24v strip. You may be interested in the controller for dual CCT strips ref. B1626-2. |
|---|
| P: Question: | Hello, is the 1,200 lm per meter or per 5m? |
|---|
| R: Answer: | The dimmable 90w led strip is 1200lm per meter, there may be variation depending on the selected light, cool white, neutral or warm. |
|---|
