LED Strip 24V-DC 90W IP20 Monocolor
LED Strip 24V-DC 90W IP20 Monocolor

LED strip 24V DC special for butchers - 18W/m - IP20 - Roll 5 meters - 120ch/m

SKU:B1552-CAR
Has superado el límite de unidades
In stock 603 units
Data sheet

The 24V DC LED strip light is specially designed for butcher shop lighting.

It has a power of 18 W/m and incorporates SMD2835 LED chips (120chips/m) that emit a high quality light, specially designed to highlight the red tone of the meat.

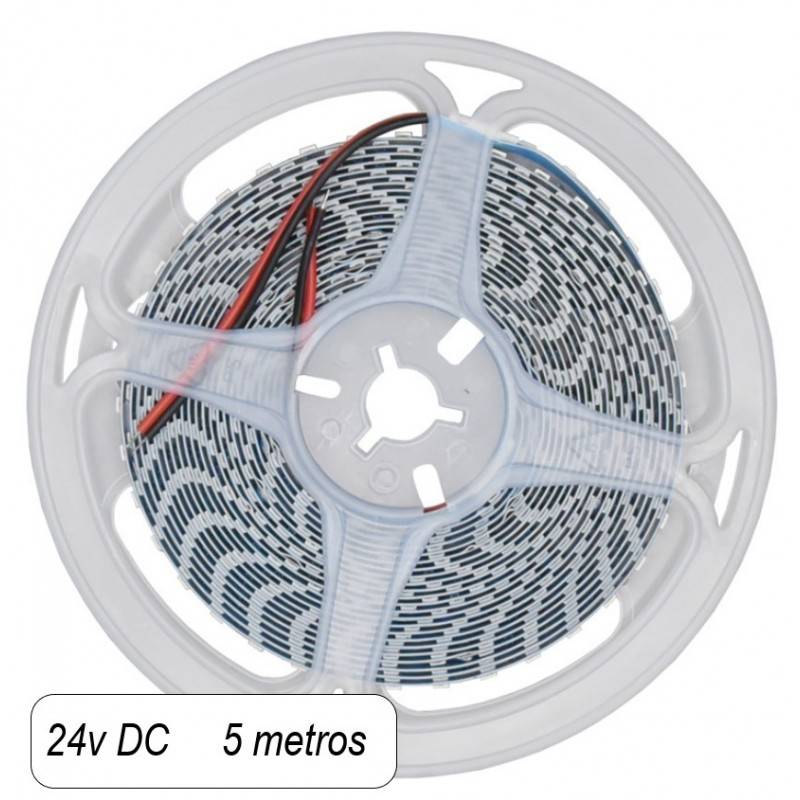

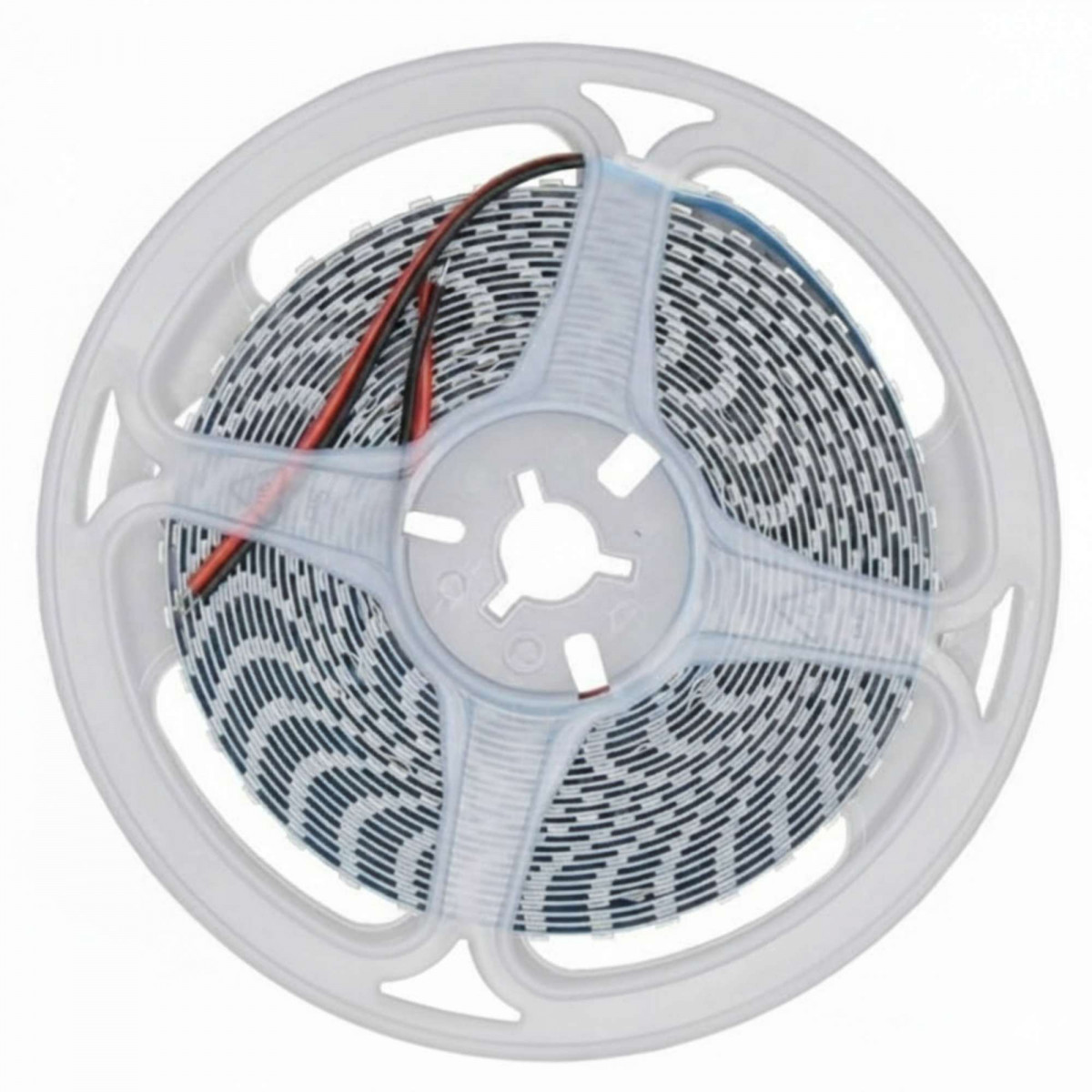

It comes in a 5 meter roll and allows cutting every 5 cm.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

LED strip 24V DC special for butcheries 18W/m - IP20 - 5 meter roll

This 24V DC LED strip is specially designed for butcher's shop lighting, as it emits a specific wavelength of illumination to highlight the reddish hue of the meat.

It has a high color rendering index, CRI>85, allowing to show the colors in a real way and its intensity can be regulated.

Due to its IP20 protection rating, it is suitable for indoor use, without exposure to moisture or external particles.

High power and low consumption

Thanks to its high power of 90W (18 W/meter), this LED strip is suitable for covering large spaces. In addition, it has a high chip density: 120 LED chips/meter.

Easy installation and handling

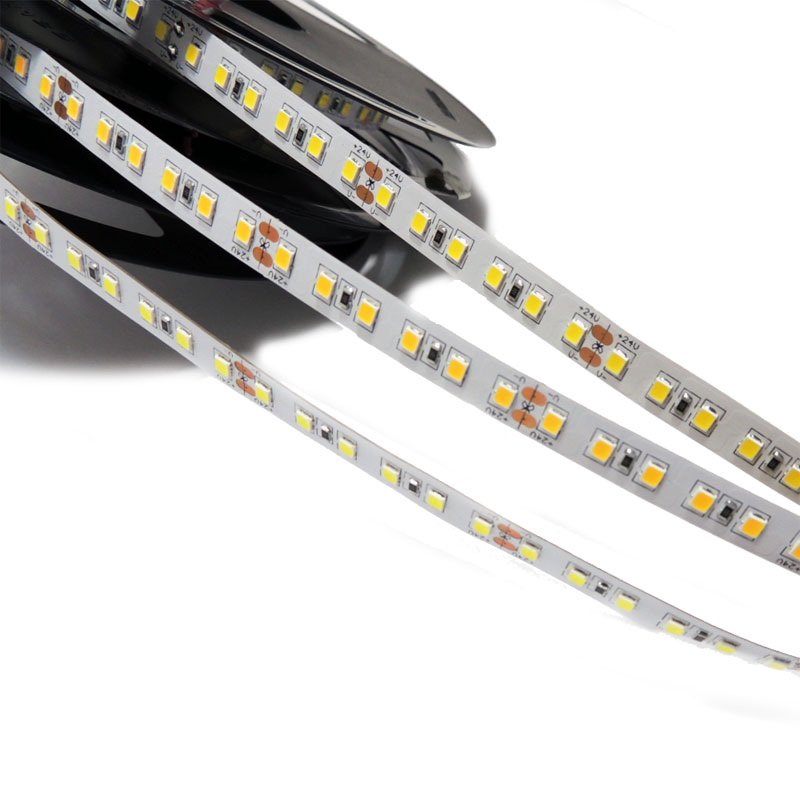

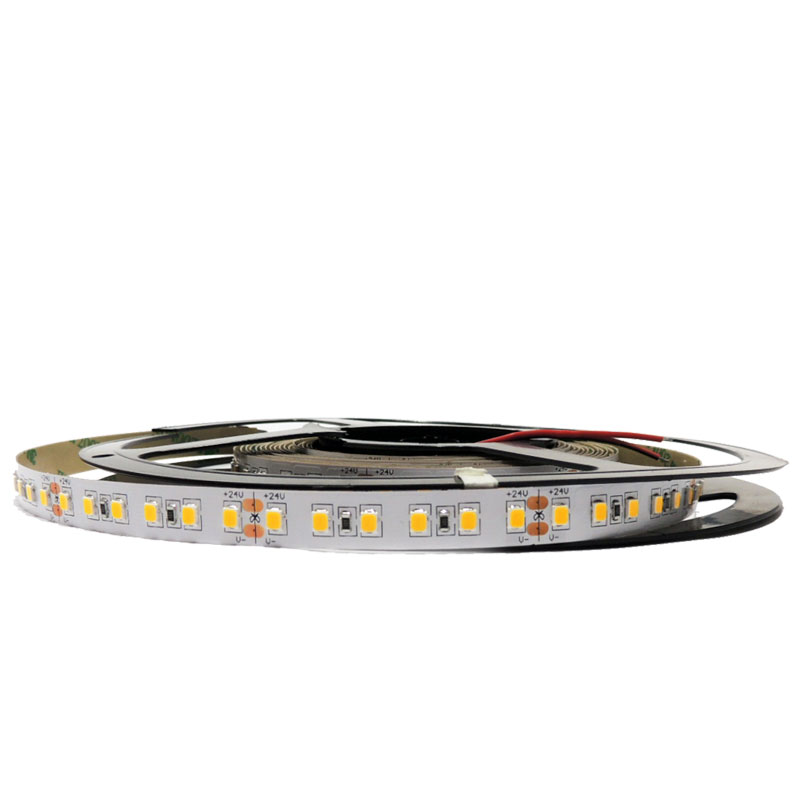

The LED strip is supplied in a roll of 5 meters. Cuts can be made every 50 mm, according to the indicated markings. The width of the strip is 10 mm and has a 3M self-adhesive on the back to adhere it to the desired surface.

Uses and advantages of the special LED strip for butcher shops:

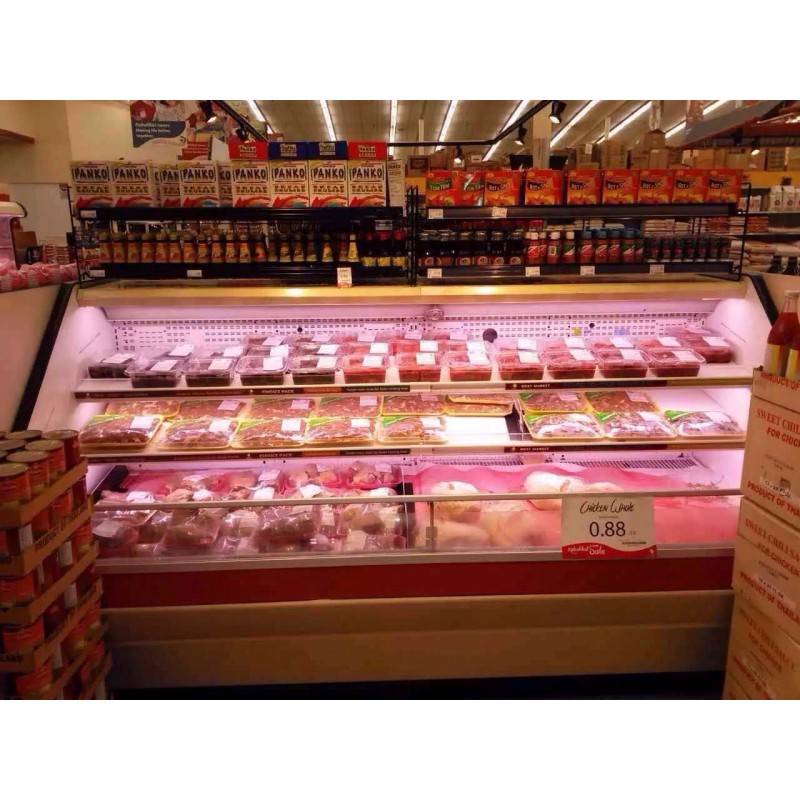

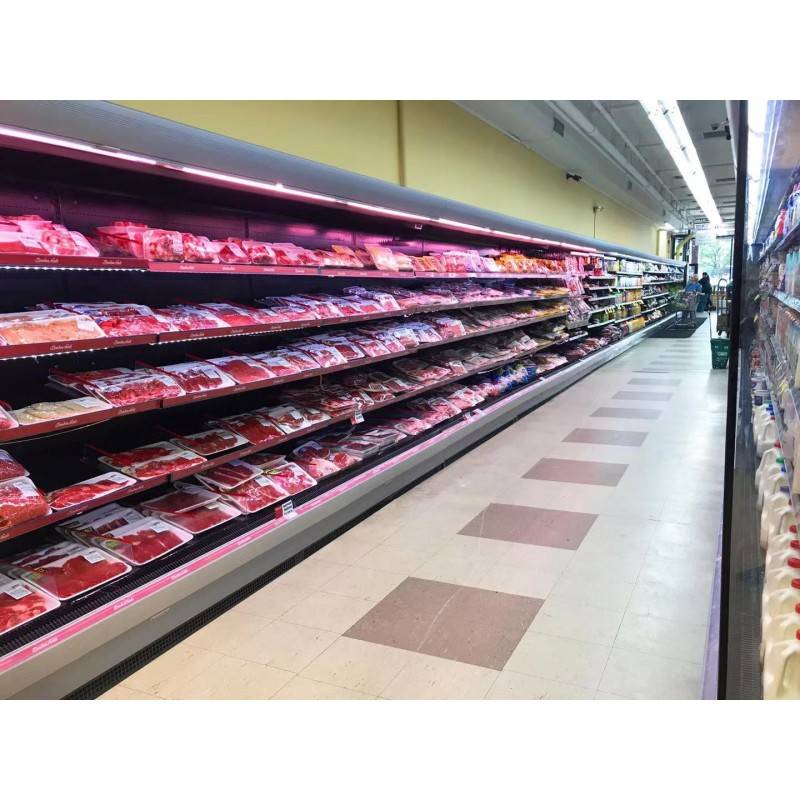

✔ Can be used in food stores, butcher shops, supermarkets with meat section, restaurants or fairs.

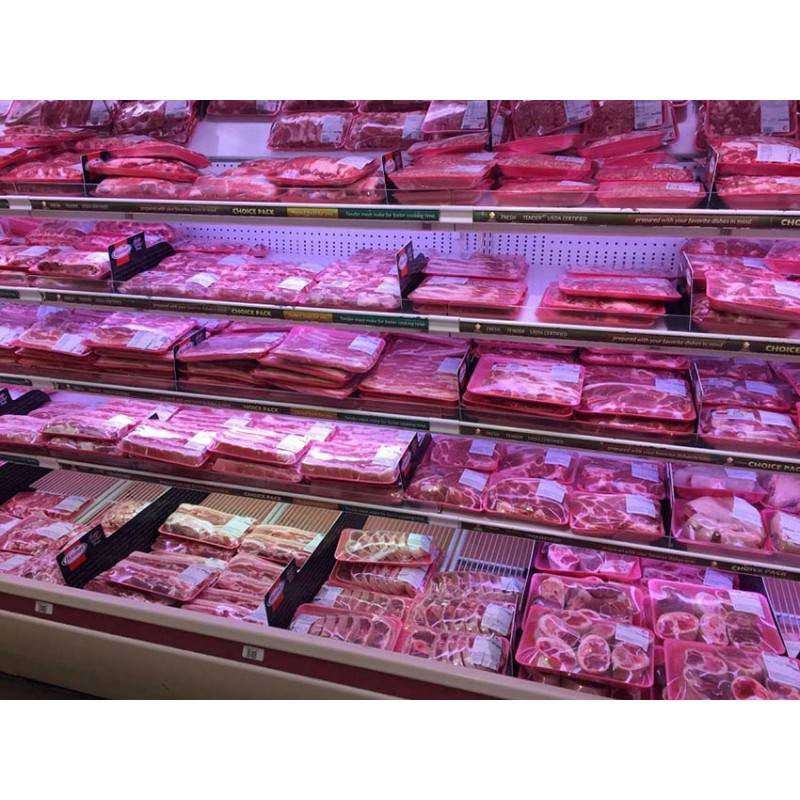

✔ It emits an illumination in a pinkish hue that enhances the red color of the meat, giving it a fresh and appetizing appearance. In this way, it improves the customer's perception of the product, favoring the purchase decision.

✔ It does not emit heat, so it keeps products fresh, preventing spoilage.

✔ It does not emit UV or IR radiation, slowing down the natural discoloration process of the meat, thus increasing the time we can have it on display with a fresh and attractive appearance.

✔ By incorporating LED technology, it allows great energy savings with respect to traditional luminaires, due to its low power consumption.

Main characteristics of the product:

  • Voltage: 24V DC
  • Lumens: 5710 lm
  • Power: 18W/m
  • Opening angle: 120°.
  • Dimmable
  • Width: 10mm
  • Cut-off distance 50mm
  • IP20: indoor use
  • Strip length: 5 meters
  • LED chips: SMD2835 (120chips/m)
  • Dimensions: 10x5000mm
2018-09-12
Nominal Voltage (V)
24V-DC
Power (W)
90
Power/m (W/m)
18
Lumens (Lm)
5710
Beam angle (º)
120
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
5000x10
Frequency (Hz)
50 - 60
CRI
85-90
LED Type
SMD 2835
Dimmable
Yes
No. of chips/metre
120
Track width (mm)
10
Cutting distance (mm)
50
Use Outdoor
No
Adhesive
3M
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: What is the color temperature?
R: Answer: It is a special strip for butchery, the color temperature is not relevant, it is out of range in measurements, since its tonality is reddish.
Its chromatic coordinates are: x=0.3160, y=0.1443, v=0.2112
P: Question: Could you recommend a power supply for this product?
It would make cuts of 2 meters
R: Answer: Each meter is 18W, you will need a 24Vdc source and more than 36W for 2 meters of this strip model.
