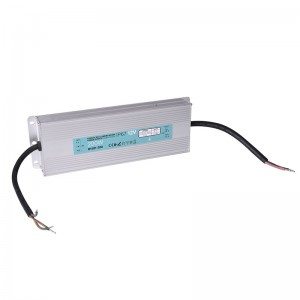

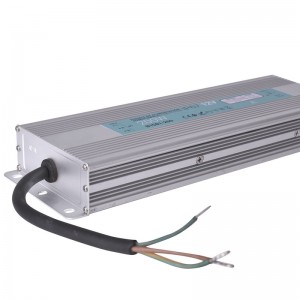

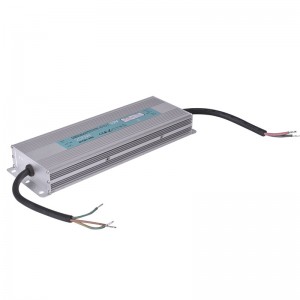

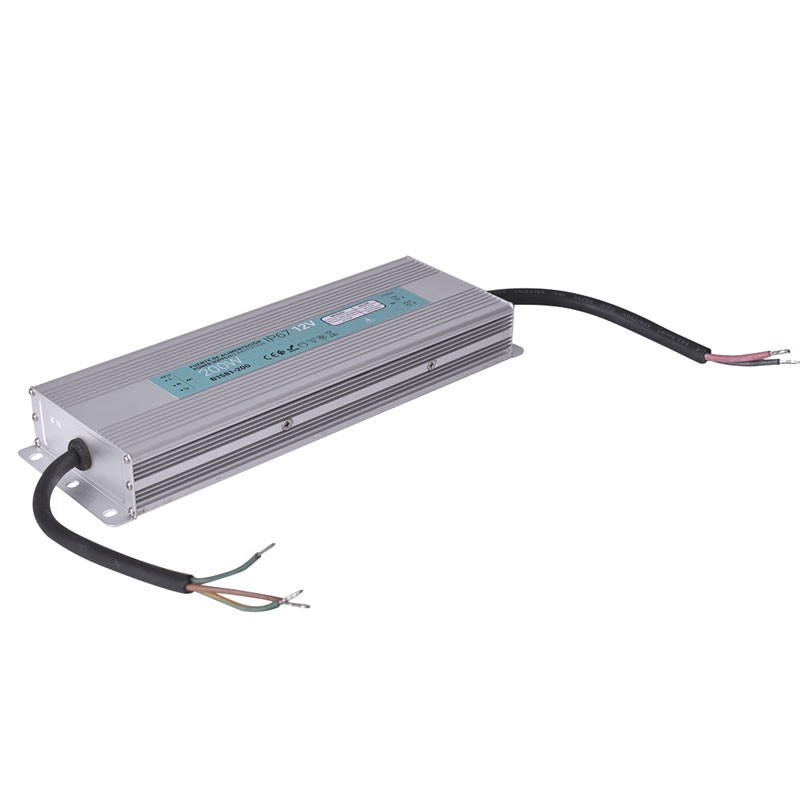

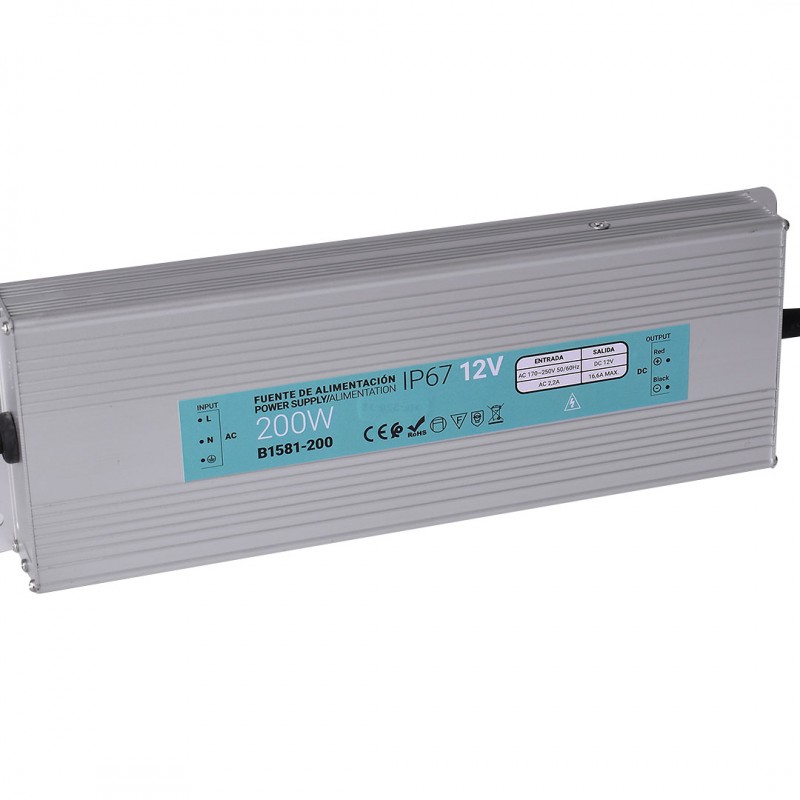

Compact watertight power supply 12V 200W IP67
SKU:B1581-200
€44.90
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
WATERPROOF POWER SUPPLY 12V 200W FOR LED STRIPS
TECHNICAL SPECIFICATIONS:
✔ Voltage range: 170 ~ 250V.
✔ Frequency range: 50Hz.
✔ Current input: 2.2A
✔ Output voltage: 12V DC
✔ Output amperage: 16.6A
✔ Power output : 200W
✔ Automatic voltage and current protection / short circuit / high temperature.
✔ Automatic Reset Protection.
✔ Working temperature : -10ºC ~ 60ºC.
✔ Waterproof rating: IP67

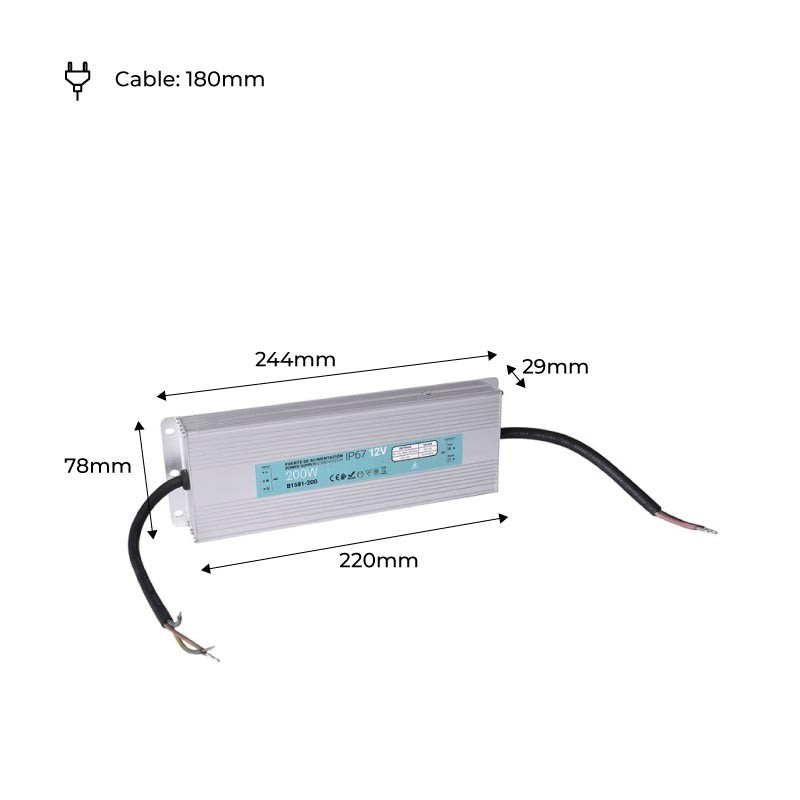

✔ Dimensions : L254 X W60 X H33mm (made of aluminum).
✔ Weight: 732g
2018-08-03
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
200
Lifetime (h)
25000
IP
IP67
Dimensions (mm) Lxlxh
254x60x33
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.4
Output voltage (V)
12V
Weight (g)
730
Material
Aluminium
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
16.7
Questions
| P: Question: | Does the CVS-200-12 power supply have 1 or 2 12 volt or 2 times 6 volt outputs? |
|---|
| R: Answer: | It is a 12Vdc output, 200W (currently only has one output cable). |
|---|
| P: Question: | Why does it have 4 wires at the output? |
|---|
| R: Answer: | Some fountain models have several outlets |
|---|
| P: Question: |
It is valid to feed pool bulbs par 56 of 24w and how many bulbs and if it is much client. Or the most suitable is the waterproof transformer of 160w. alternating current. A greeting. |
|---|
| R: Answer: | 12Vac waterproof transformers ref.B2161-160 are recommended. |
|---|
