Ultra slim power supply 12V 12W IP20
SKU:B1561-12
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

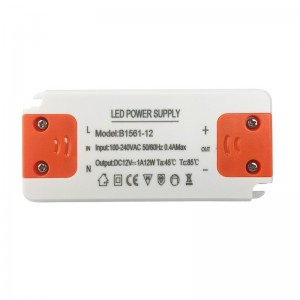

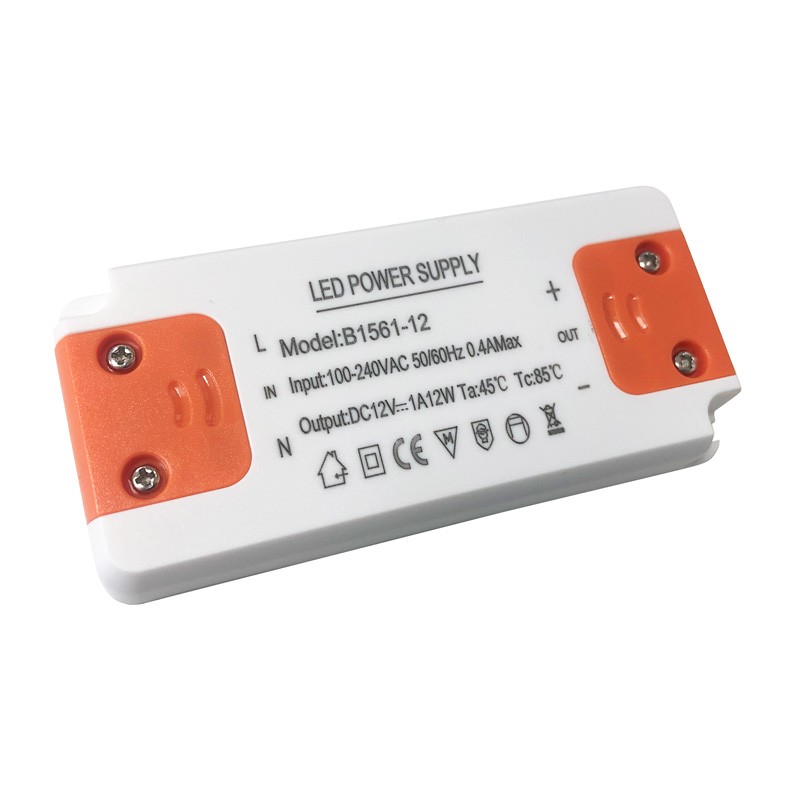

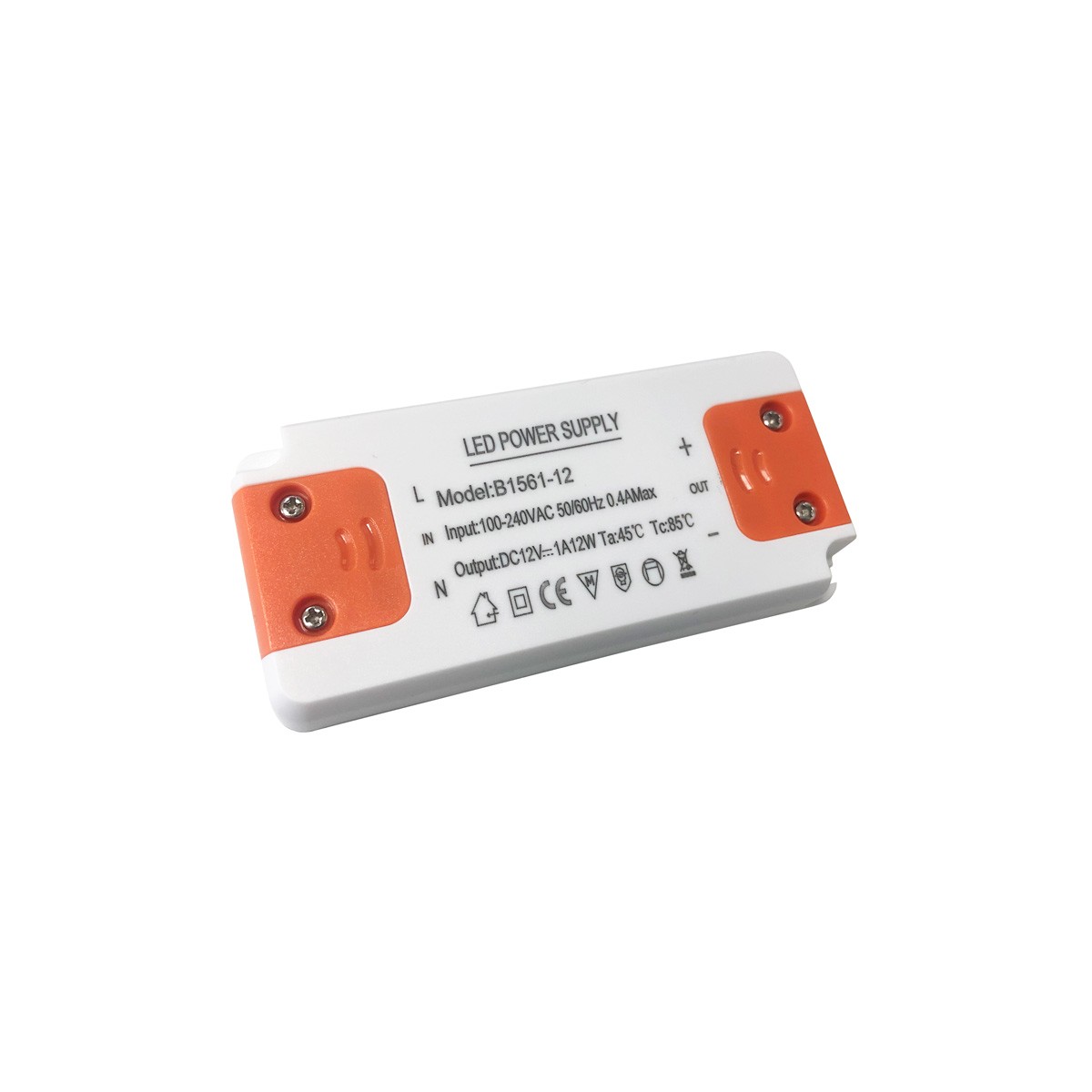

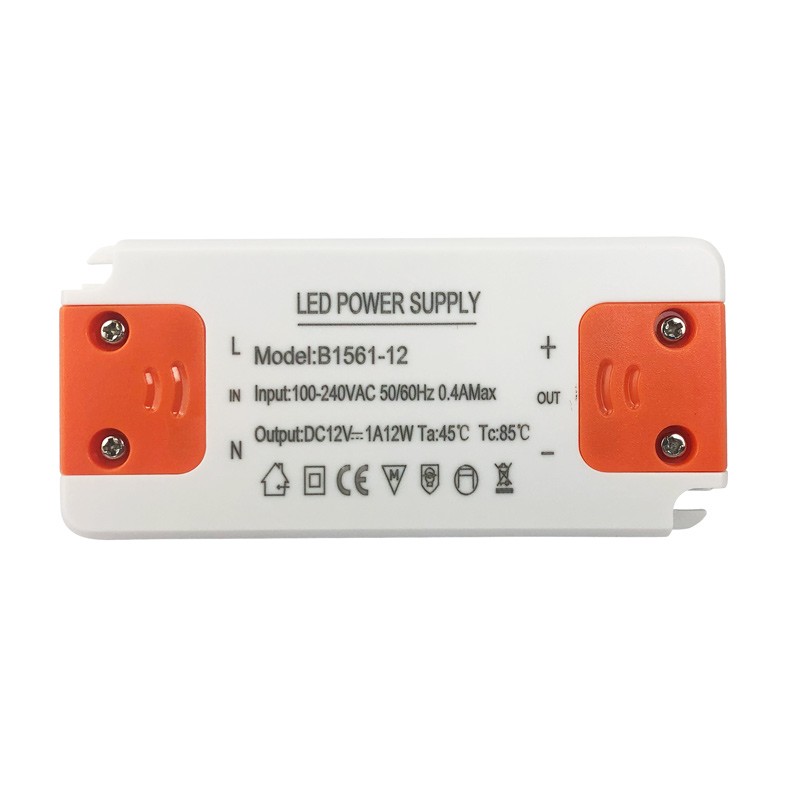

ULTRAFINE POWER SUPPLY 12W. 12V-DC 1A
LED power supply with a rated power of 12W, additionally equipped with a power cable, cable with mini AMP connector and a cable for changing polarity. The power supply system is designed to connect LED lamps with 12V voltage.
Features of 12W ultra-thin power supply. 12V-DC
- Rated power: 12W.
- Input voltage: 100-240V/AC.
- Input current: <1A.
- Output voltage: 12V. DC +/- -0.6 V.
- IP Protection: IP20.
- Maximum ambient temperature 45ºC.

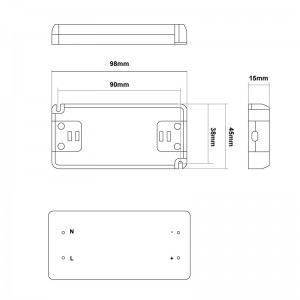

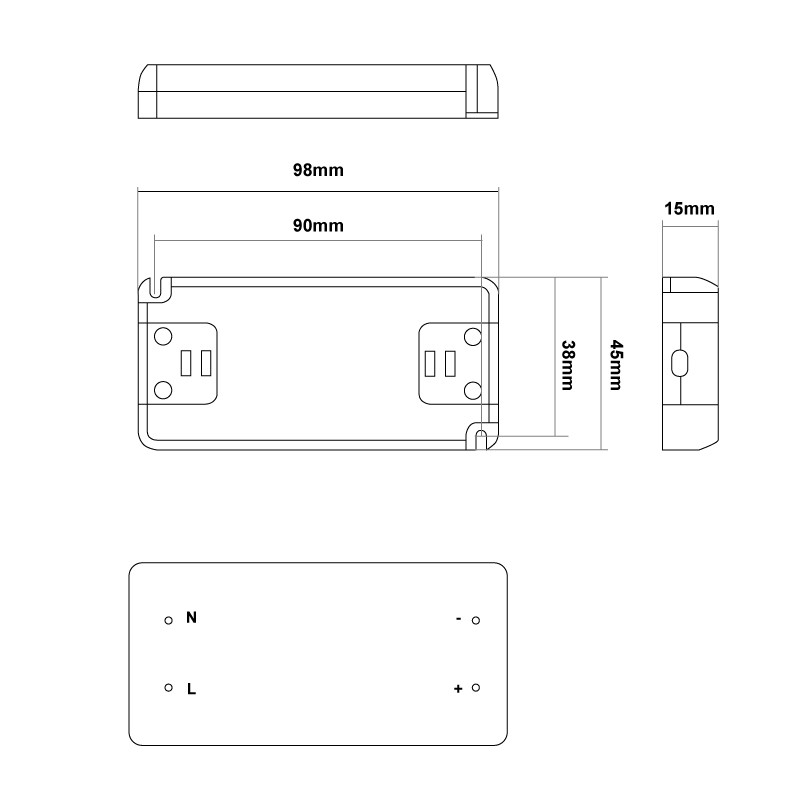

- Power supply dimensions:
- Length: 98mm.
- Height: 15mm.
- Width: 45mm.
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
12
Lifetime (h)
20000
IP
IP20
Dimensions (mm) Lxlxh
98x45x15
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.5
Output voltage (V)
12V
Material
Plastic
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
1
