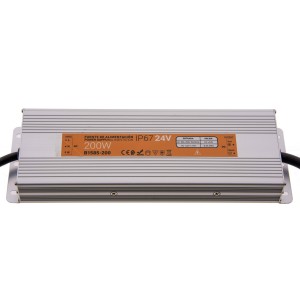

Compact waterproof power supply 24V 200W IP67

SKU:B1585-200
Has superado el límite de unidades
In stock 665 units
Data sheet

Compactwaterproof power supply 200W IP67 Output 24V-DC 8,3A.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

WATERPROOF POWER SUPPLY 12V 200W FOR LED STRIPS

TECHNICAL SPECIFICATIONS:

º Voltage range: 170 ~ 250V
º Frequency range: 50Hz
º Output voltage: 24V DC
º Output amperage: 8.3A
º Output power : 200W
º Automatic voltage and current protection / Short circuit / high temperature protection
º Automatic reset protection.
º Working Temperature: -10ºC ~ 60ºC
Waterproof rating: IP67

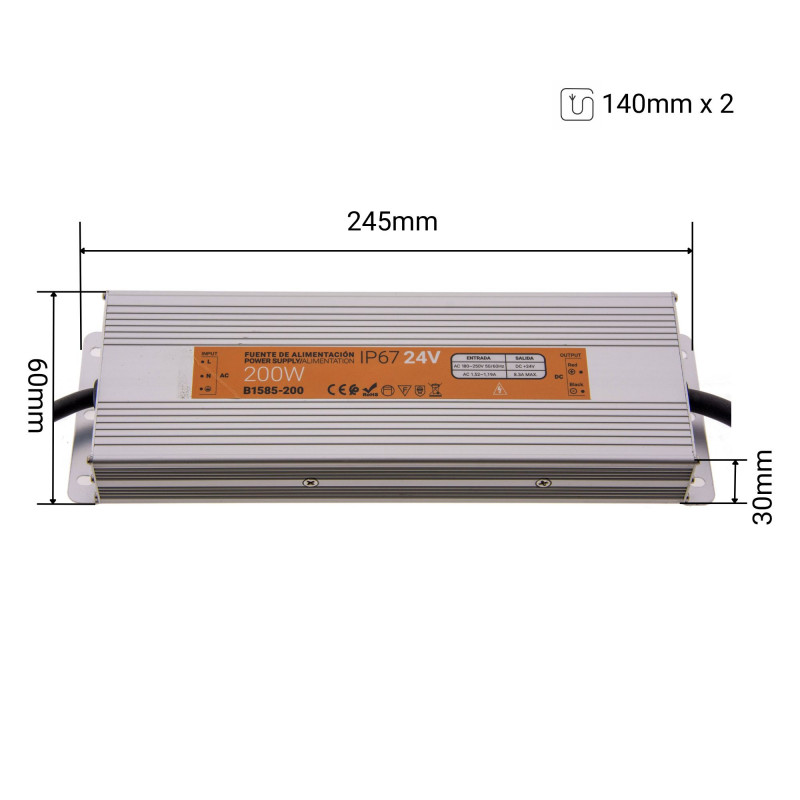

º Dimensions : L254 X W60 X H33mm (aluminum)

2018-08-03
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
200
Lifetime (h)
25000
IP
IP67
Dimensions (mm) Lxlxh
238x28x32
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.4
Output voltage (V)
24V
Weight (g)
740
Material
Aluminium
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
8.33
Barcelona LED

Questions

P: Question: Is the 24V B1585-200 power supply current or DC voltage or both?
R: Answer: It is a 24Vdc constant voltage power supply up to 200W.

Barcelona LED: Alejandro| 19/04/2023

P: Question: What is the low power supply frequency? Is it to know if recording with cameras at high speed (120) would be seen to fluctuate the light?
R: Answer: The frequency of the power supply is 50Hz. The light would not be seen to fluctuate with high speed cameras.
