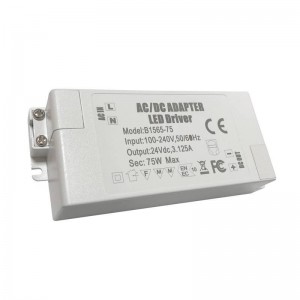

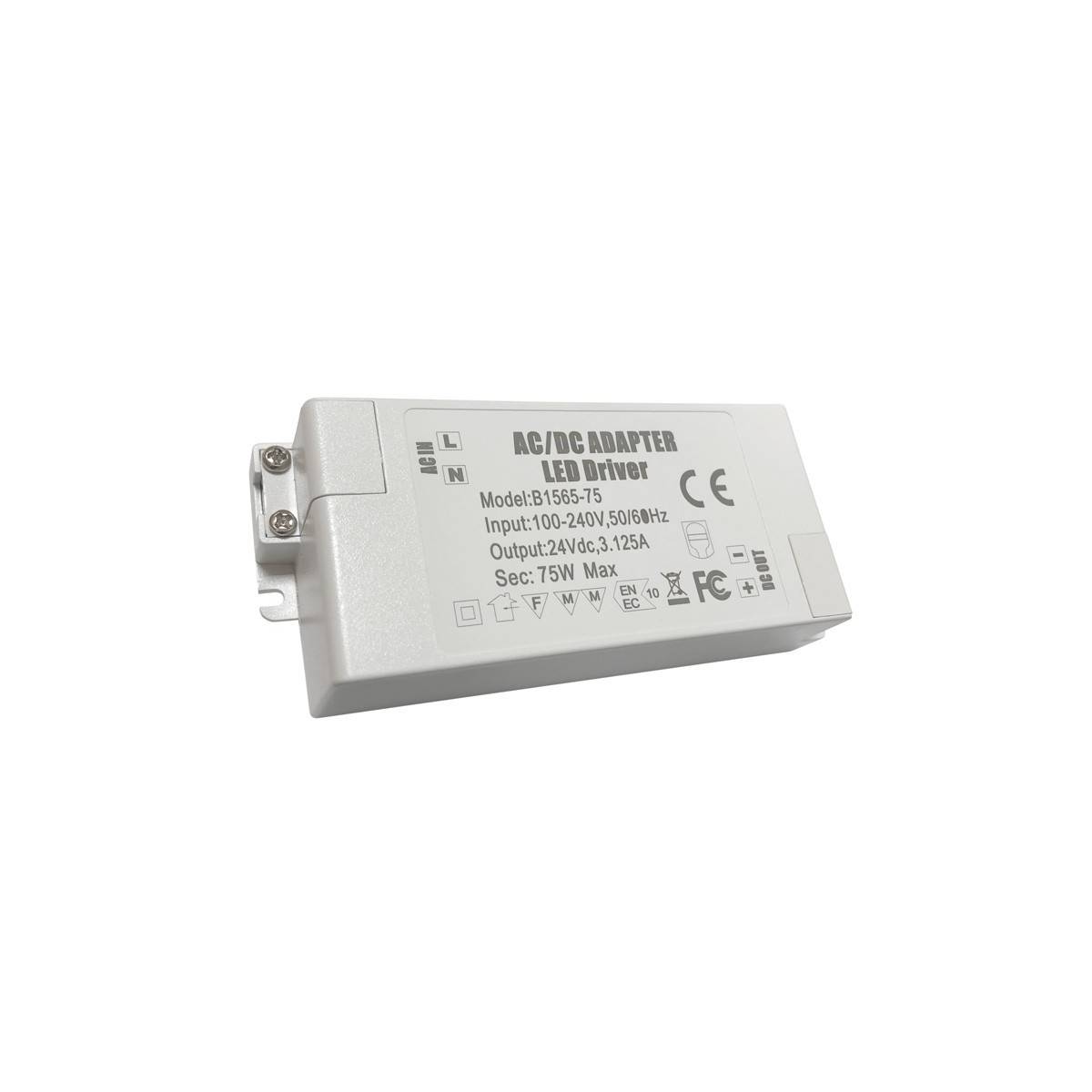

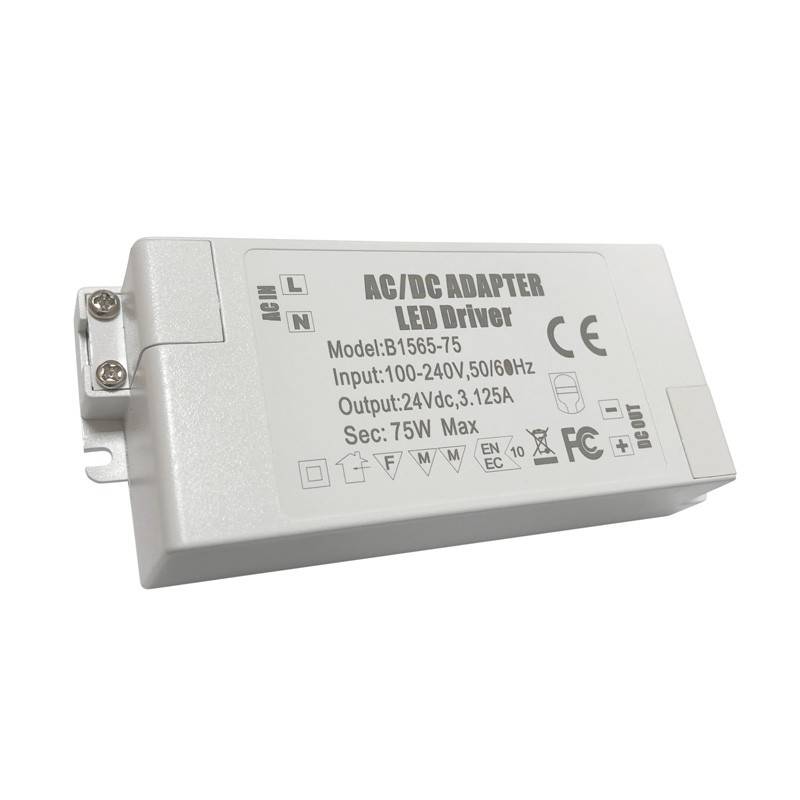

Power supply 24V DC 75W 3.1A 100-240V

24V-DC 75W constant voltage POWER SUPPLY

Slim power supply with 75W power rating and compact size. Designed to connect LED strips with 24V voltage. Input voltage of 100-240V and an output of 3.1A at 24V DC. Protection against overheating, short circuits, overvoltage, humidity, dust, etc. The power supplies are equipped with overvoltage and overload protection.

Power supply designed exclusively for indoor use, and in constant voltage mode. The electronic protection circuit of the power supply switches off in case of short-circuit or overload in the secondary circuit, overheating and opening of the supply.

Applications

Suitable for all types of 24V applications in office, commercial, domestic, catering and hospitality, etc.

It powers 24V-DC LED strips, as well as any other element with 24V-DC working voltage, without exceeding the 75W maximum power of the power supply.

Features 24V DC power supply

• Rated power: 75W.
• Input voltage: 100-240V-AC.
• Output current: 3.125A.
• Power factor: >0.6.
• Output voltage: 24V-DC.
• IP protection: IP20.
• Maximum ambient temperature 45ºC.
• Very narrow housing: 23mm.
• Dimensions: 120x50x30mm.
