Switching power supply 24V 25W

Name: Power Supply 25W 24V | Power Supplies
Brand: Barcelona LED
SKU: B1566-25
Price: 9.45 EUR
Availability: InStock

SKU:B1566-25

€9.45 Tax included

In stock 89 units

Data sheet

25W switching power supply, selectable input voltage 110-AC or 220V-AC, output 24V-DC 1A. Output voltage adjustable ±20%. IP20 protection rating. High heat dissipation and overload and overvoltage protection.

Shipping to Africa available

public

For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

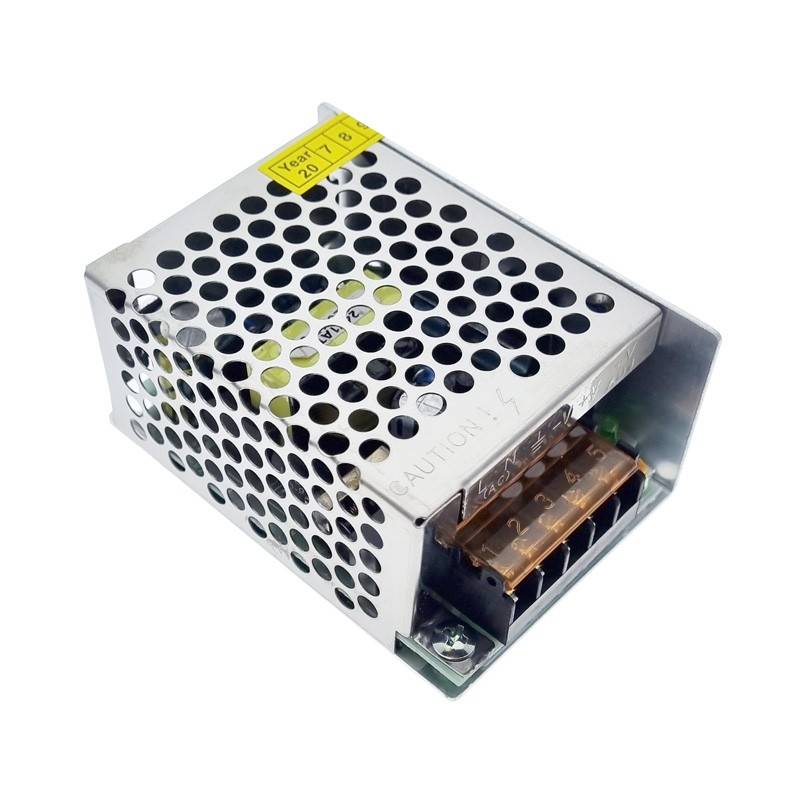

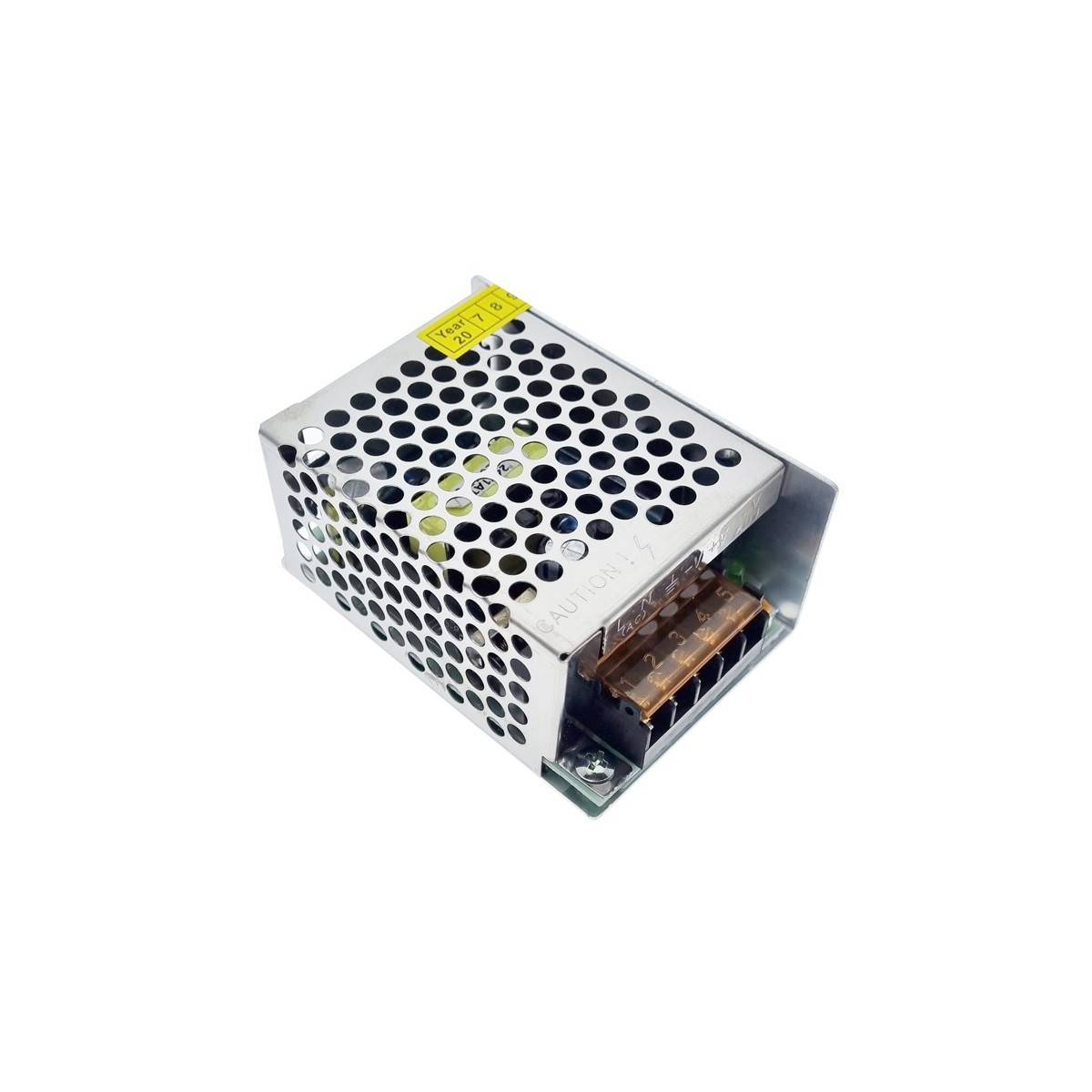

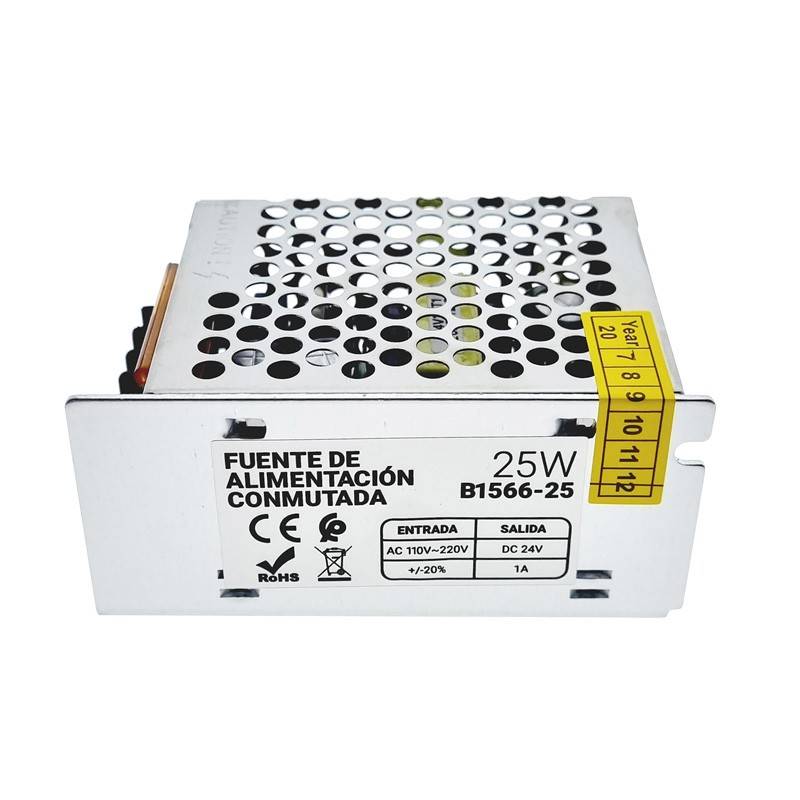

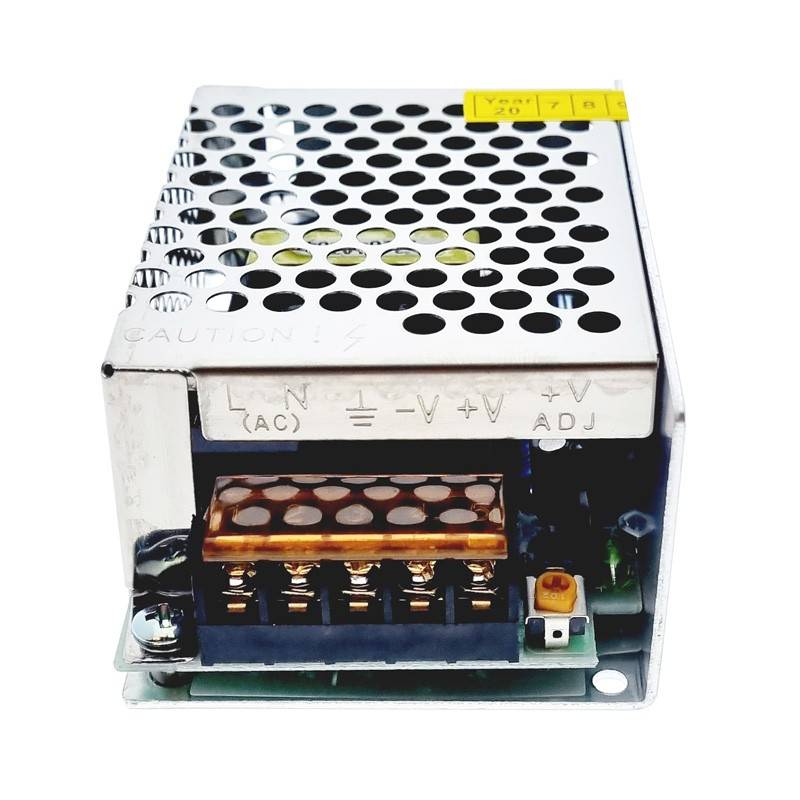

25W 24V power supply

The 25W switching power supply automatically detects the input voltage 110-AC or 220V-AC and has a 24V-DC 1A output. By adjusting the output voltage by ±20%, the voltage drop between the power supply and the point of consumption can be compensated and the power supply can be moved away from the point of consumption.

These power supplies are protected against overloads, overvoltages and have a high heat dissipation, thanks to their perforated casing that favors cooling.

With an IP20 degree of protection, the power supply is for indoor use only. Dimensions: 85x85x60mm.

Applications

The 25W power supply has the function of powering 24V-DC led strips, as well as any other luminaire with 24V-DC working voltage, as long as it does not exceed the maximum power of the power supply.
Suitable for all kinds of uses: home, commercial, office, store, restaurant, etc.

Availability date: 2018-07-06

Nominal Voltage (V)

110 - 220

Power (W)

Lifetime (h)

25000

IP20

Dimensions (mm) Lxlxh

85x85x60

Frequency (Hz)

50 - 60

Power factor (cosφ)
