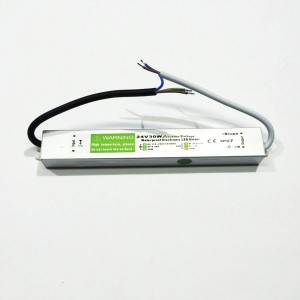

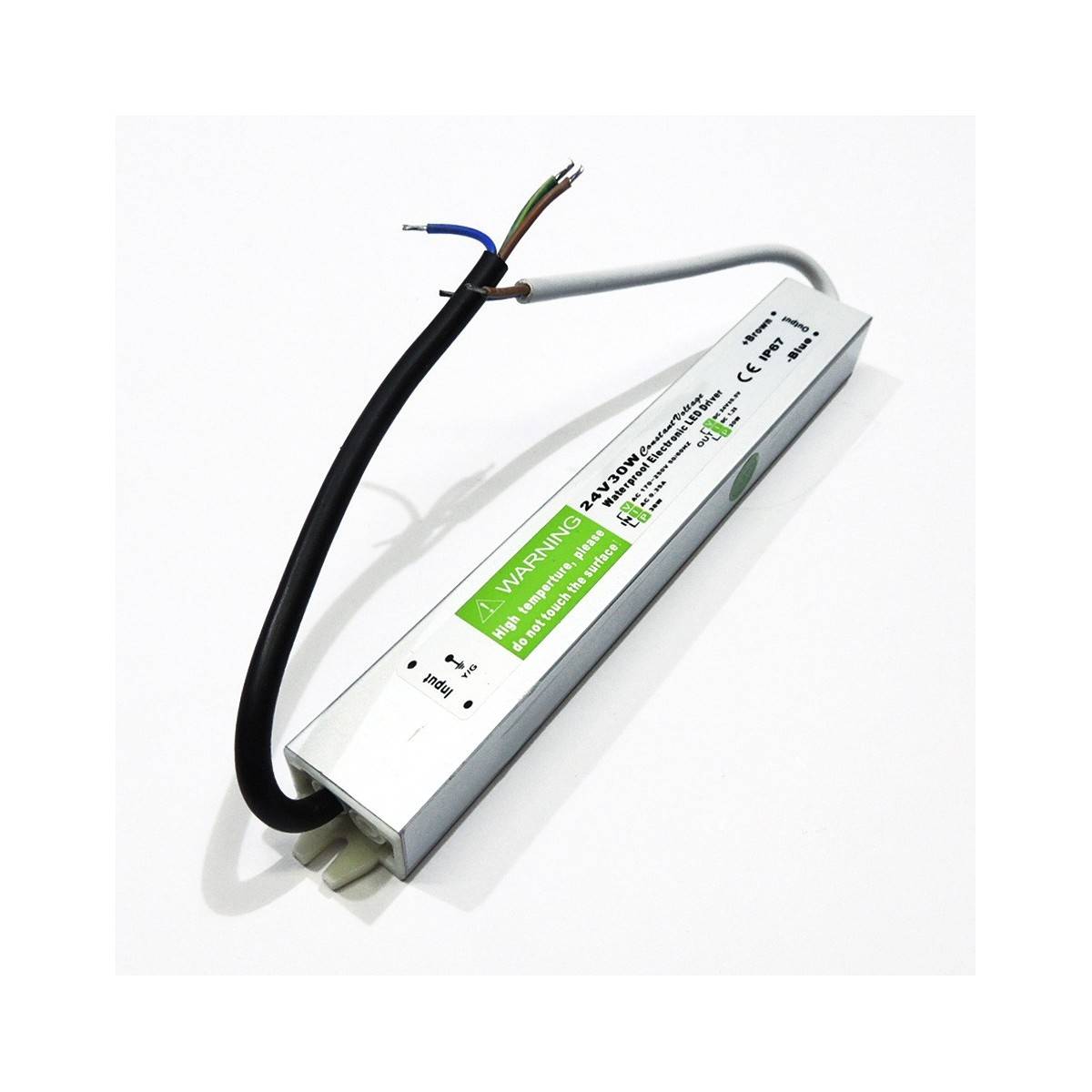

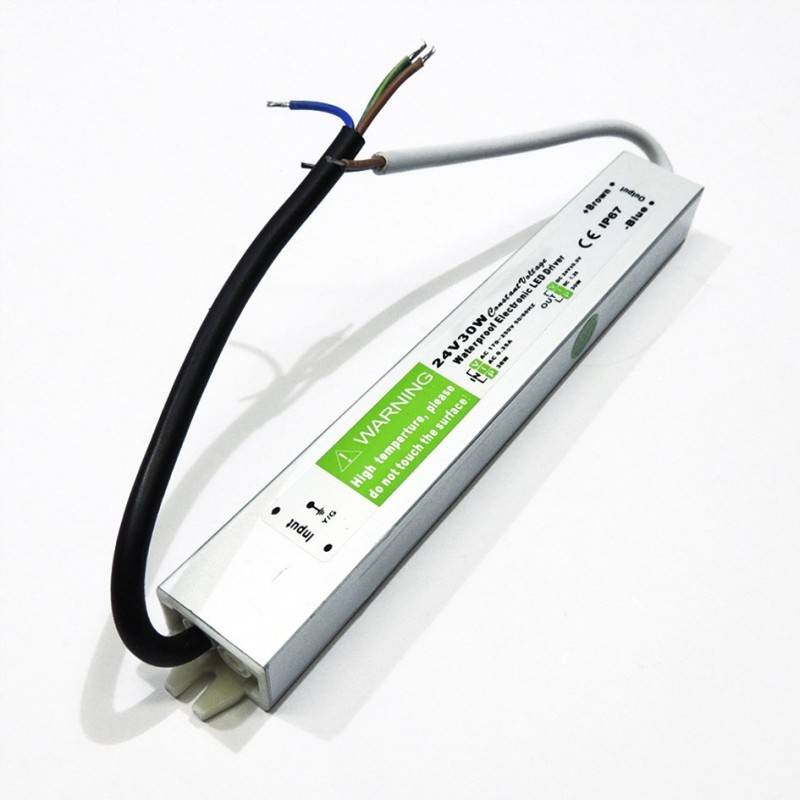

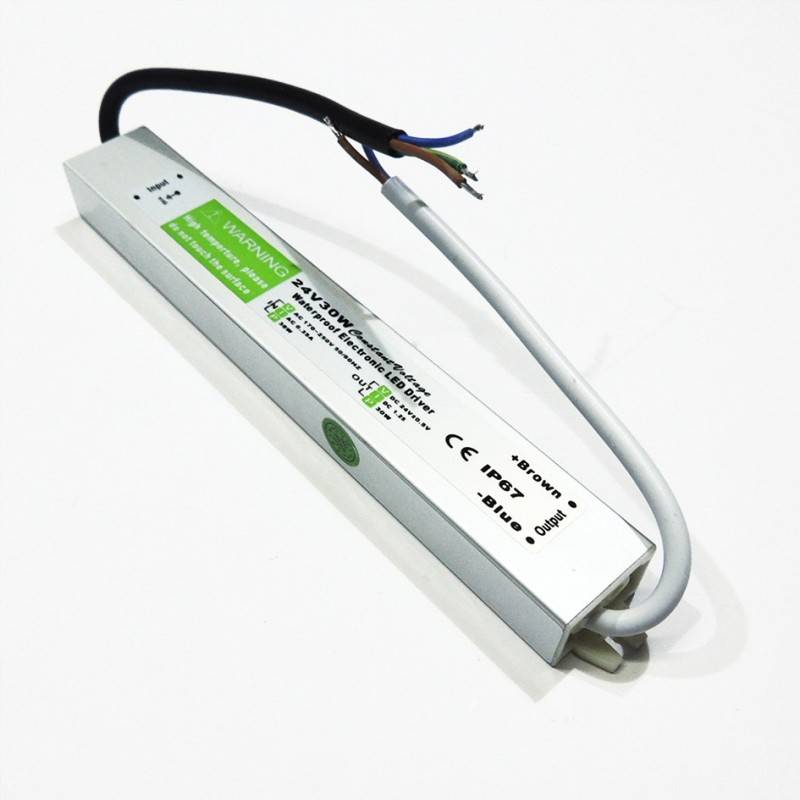

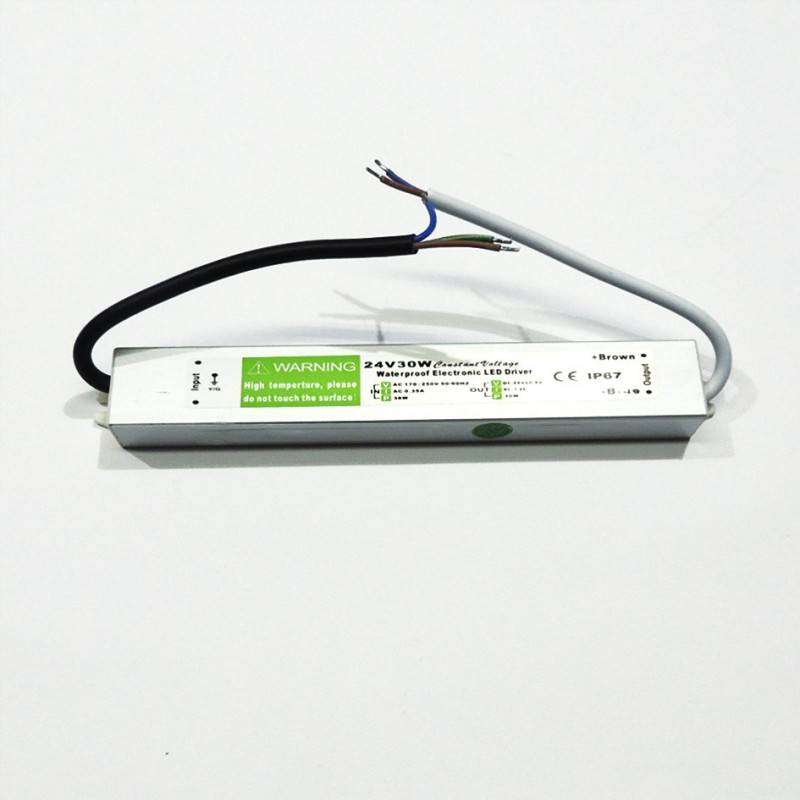

Waterproof power supply 24V 30W IP67
SKU:B1584-30
€15.50
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: commercial@barcelonaled.fr
Watertight power supply 24V 30 watts
*Technical specifications:
º Voltage range: 170 ~ 250V
º Frequency range: 50 Hz
º Current input 0.4A/115V 0.25A/235V
º Output voltage: 24V DC
º Output amperage: 1.25A
º Output power : 30W
º Automaticprotection
º Over voltage andover current / Short circuit / high temperature
Auto ResetProtection.
WorkingTemperature: -10ºC ~ 60ºC
WaterproofRating: IP67
Dimensions: L204 X W30 X H21mm (Aluminum)
Weight: 1.2Kg
2018-07-06
Nominal Voltage (V)
110-230
Power (W)
30
Lifetime (h)
25000
IP
IP67
Dimensions (mm) Lxlxh
222x30x18
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.3
Output voltage (V)
24V
Material
Aluminium
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
1.25
Questions
| P: Question: |
Is it adjustable? If not, is there a slim option that is adjustable? |
|---|
| R: Answer: | It is not dimmable, the only 24Vdc source dimmable by TRIAC is Ref. B4257. Dimming in LED strips is normally done with dimming controllers after the output voltage. |
|---|
| P: Question: |
Good morning I am an individual, in this source, the blue wire goes with the black (-) of the led strip? And therefore the brown wire with the red (+) of the strip. Am I right, thank you. |
|---|
| R: Answer: | Correct. You can see in the silkscreen of the source: (-) Blue - Blue, (+) Brown-Brown Output-Output |
|---|
