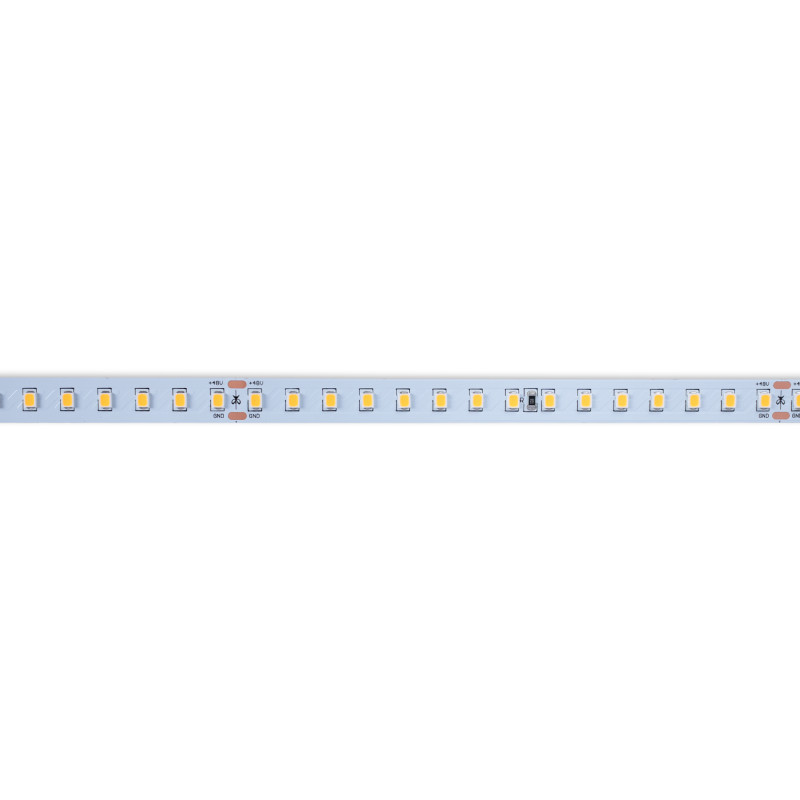

48V DC LED Strip - Single color - 12W/m - 10mm - IP20 - 10 meters - 120ch/m

SKU:BLS2835-48V12W-IP20-10M-BC
Colour temperature
Has superado el límite de unidades
In stock 178 units
Data sheet

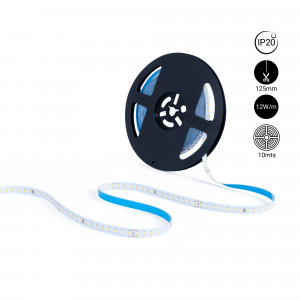

The 48V single color LED strip has a power of 12W/m and comes in a 10-meters roll.

With a density of 120 chips/m, it offers high quality illumination with an efficiency of 100 lm/W.

Due to its minimal voltage drop, it is a perfect choice for long distance installations without the need for additional components.

Available in 3 tones: warm white (3000K), neutral white (4000K) and cool white (6500K).

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

48V DC LED Strip - Single Color- 10 meters

  • Efficient voltage: Operating at 48V, the LED strip minimizes voltage drop, allowing for long installations without the need for amplifiers or additional power supplies.

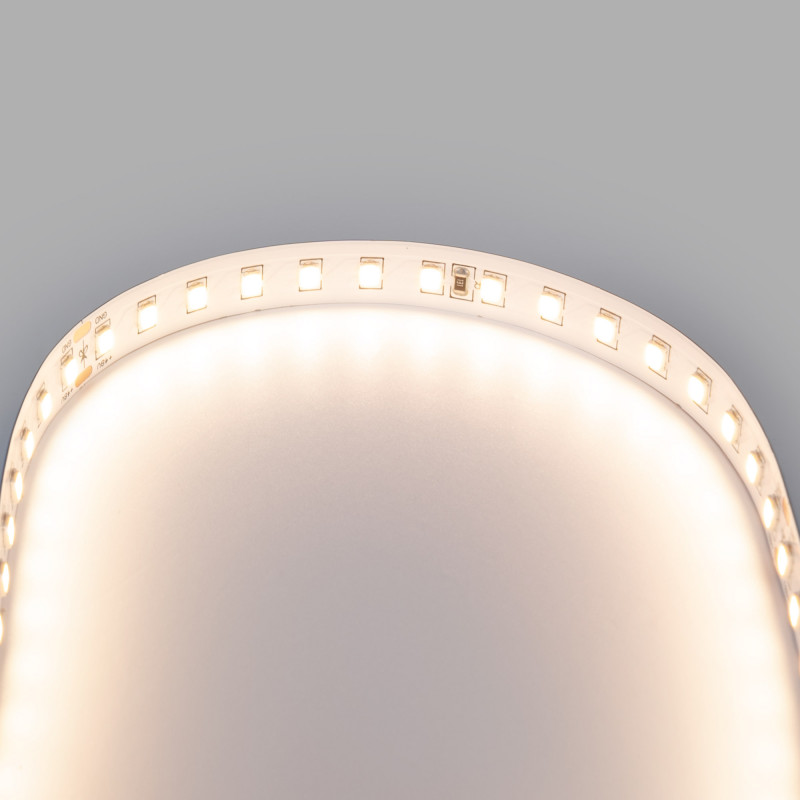

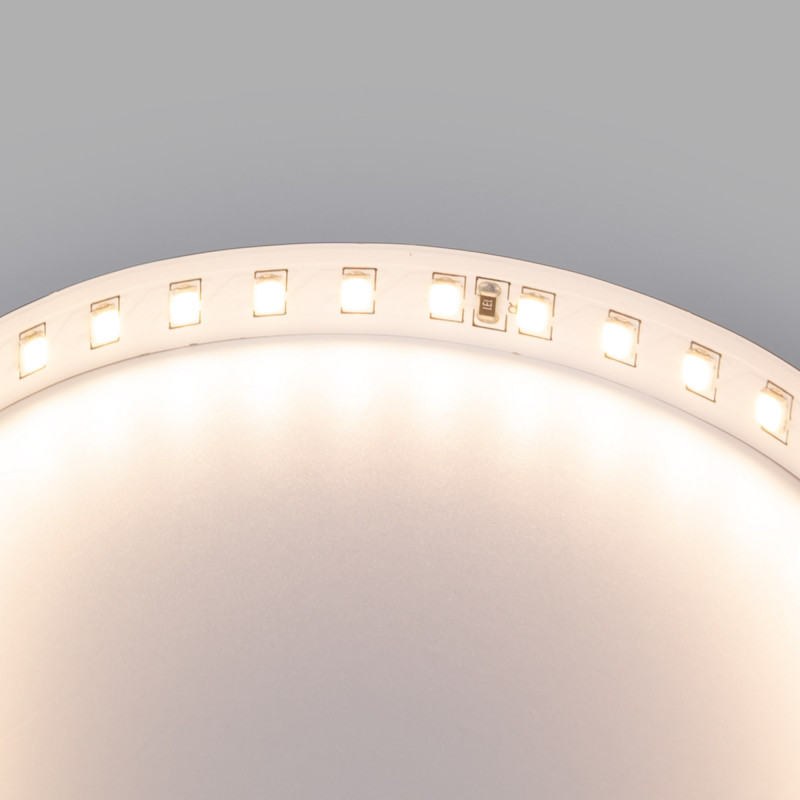

  • High brightness: Incorporates SMD2835 LED chips with a density of 120 chips/m, ensuring bright and homogeneous lighting. With a power of 12W/m and an efficiency of 100lm/W, this LED strip is not only powerful but also energy efficient.

  • Variety of tones: Available in three color temperatures: warm white (3000K), neutral white (4000K) and cool white (6500K), it adapts to various lighting needs.

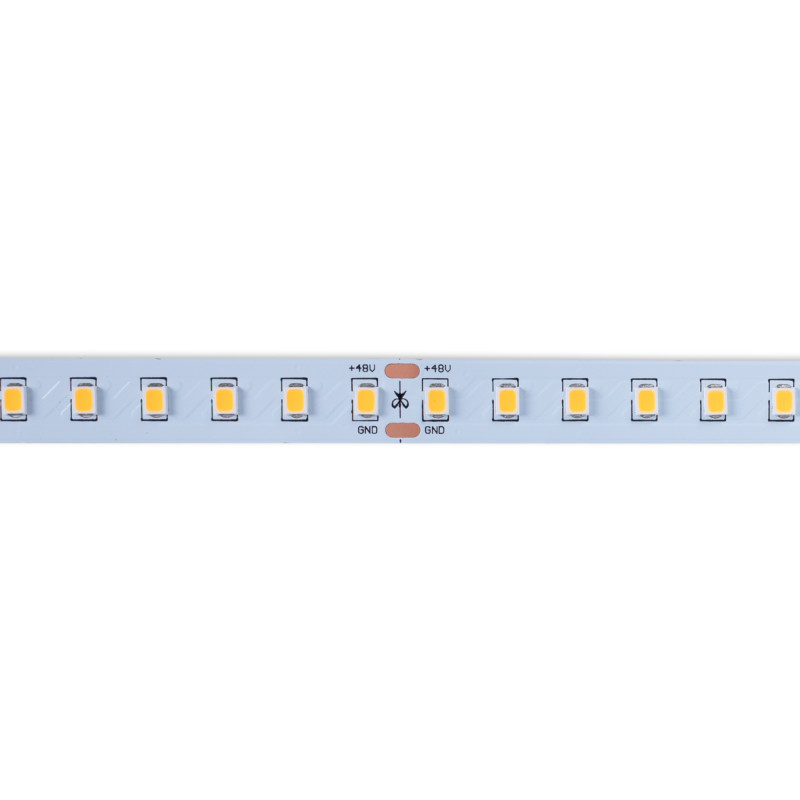

  • Practical design: Its 10mm wide PCB allows cuts every 125mm, facilitating installation and adaptation to any space. In addition, it incorporates a 3M self-adhesive on the back to adhere it to the desired surface.

  • Durability and safety: Manufactured with resistant and durable materials, it has an IP20 degree of protection, suitable for indoor use.

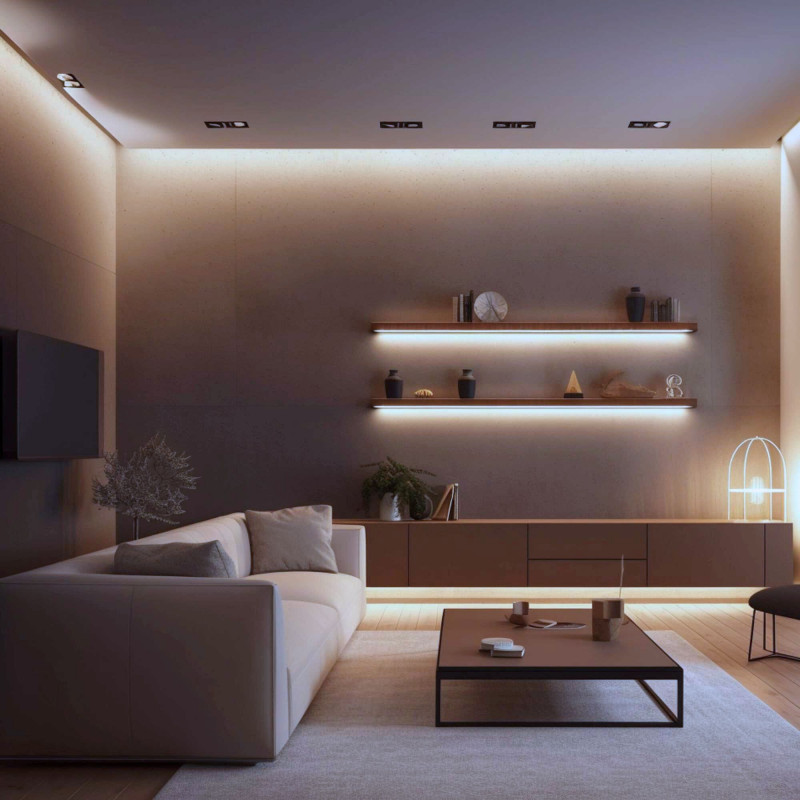

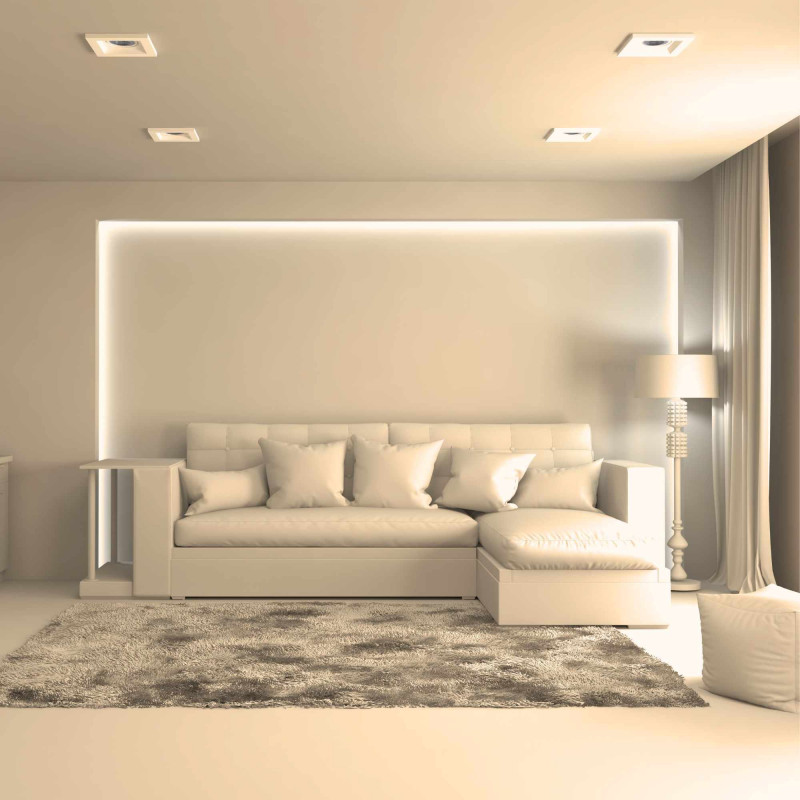

This LED strip is especially recommended for residential and commercial projects that demand extensive installations without compromising quality or efficiency.

We have a large family of compatible drivers, controllers and power supplies (See related products).

Nominal Voltage (V)
48V
Power/m (W/m)
12
Kelvin (K)
3000
4000
6500
Beam angle (º)
120
IP
IP20
Dimensions (mm) Lxlxh
10 x 10000
Hue
Cool white
Neutral white
Warm white
Efficiency (Lm/w)
100
CRI
80-85
LED Type
SMD 2835
Dimmable
Yes
No. of chips/metre
120
Track width (mm)
10
Cutting distance (mm)
125
Use Outdoor
No
Energy efficiency class
F
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: Hello,

What type of connection do you have at the end of the strip?

Thanks
R: Answer: Hello, this strip is connected directly to a 48 V source by two wires (positive and negative). Thank you very much!

Barcelona LED: Sergi| 11/10/2024
