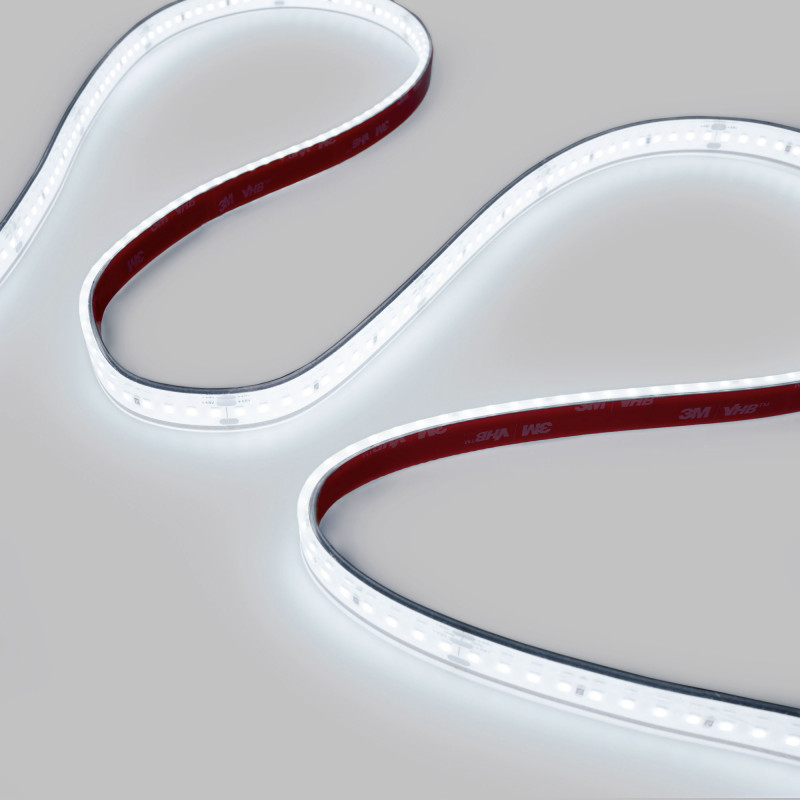

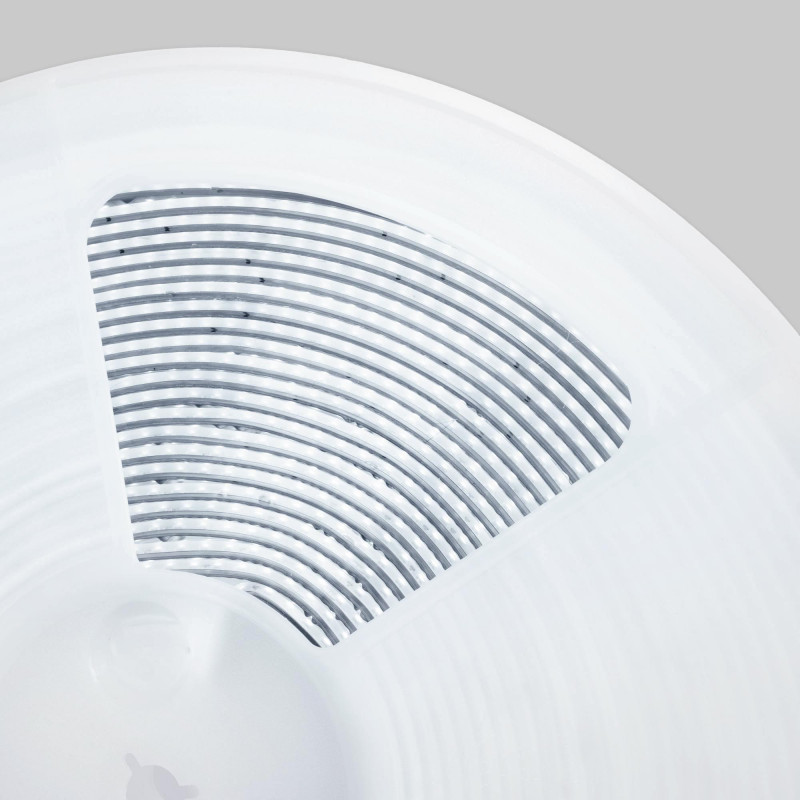

Submersible LED strip 48V DC - Monochrome - 9.6W/m - 12mm - IP68 - 20 metres - 168ch/m

SKU:NWS0412-48V-20M-BN
Colour temperature
Has superado el límite de unidades
In stock 39 units
Data sheet

The 48V single color LED Strip offers 9.6W/m of power in a 20 meter roll, with 168 LED/m for an efficient 100 lm/W lighting.

Available in warm white (3000K), neutral (4000K), and cool white (6500K).

Thanks to its IP68 rating it's submersible and perfect for long distance installations due to its minimal voltage drop.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

48V DC Submersible LED Strip - Single Colour - 20 metres

Our 48V LED Strip offers a high quality lighting solution that combines efficiency and durability. Featured specifications include:

  • Efficient voltage: Operating at 48V, the LED strip ensures near-zero voltage drop, allowing long runs to be installed without the need for additional amplifiers or power supplies.

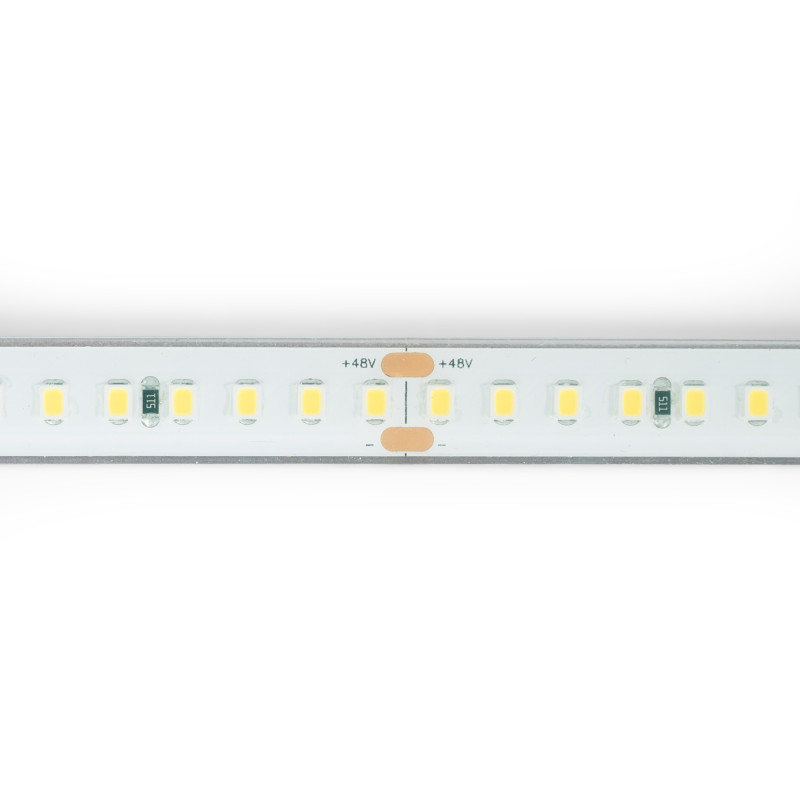

  • High brightness: Incorporates SMD2835 LED chips with a density of 168 LED/m, ensuring bright and homogeneous lighting. With a power of 9.6W/m and an efficiency of 100lm/W, this LED strip is not only powerful but also energy efficient.

  • Superior light quality: It has a high colour rendering index, CRI>90, ensuring faithful colour rendering, similar to natural light.
  • Tone versatility: Available in three colour temperatures: warm white (3000K), neutral white (4000K) and cool white (6500K), it adapts to various situations.

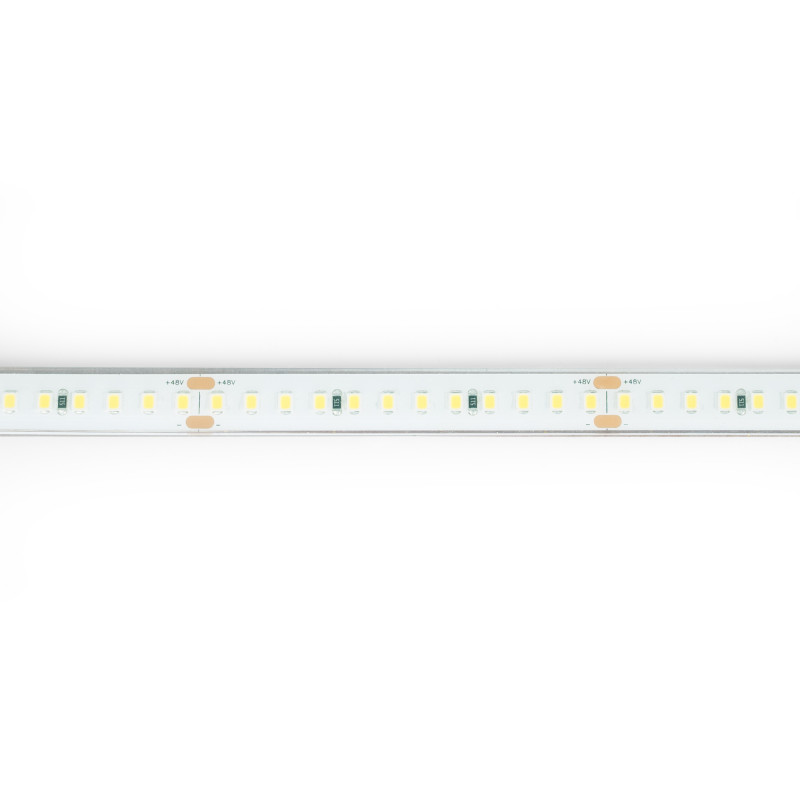

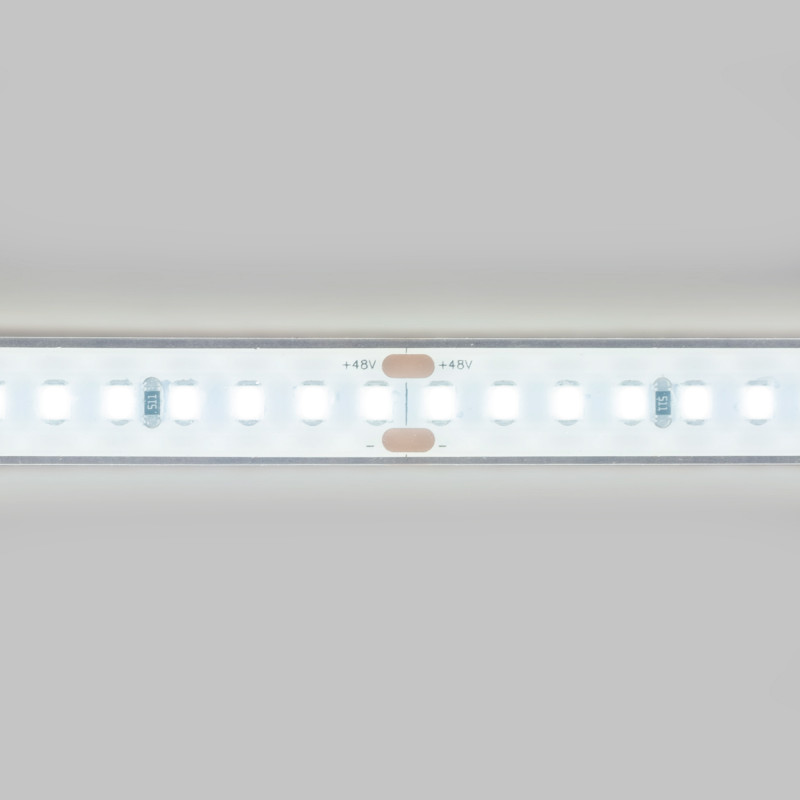

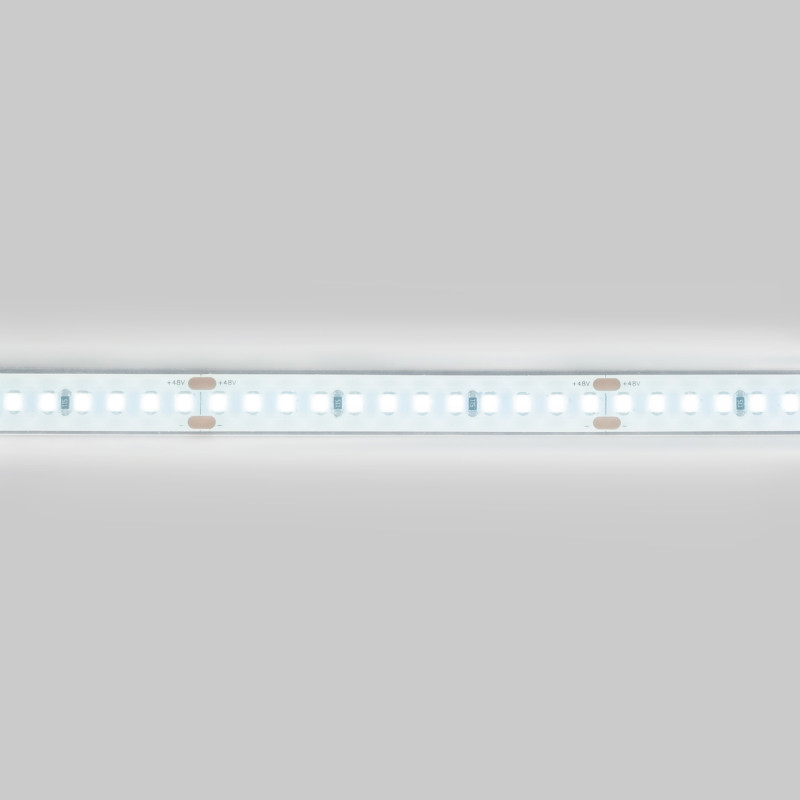

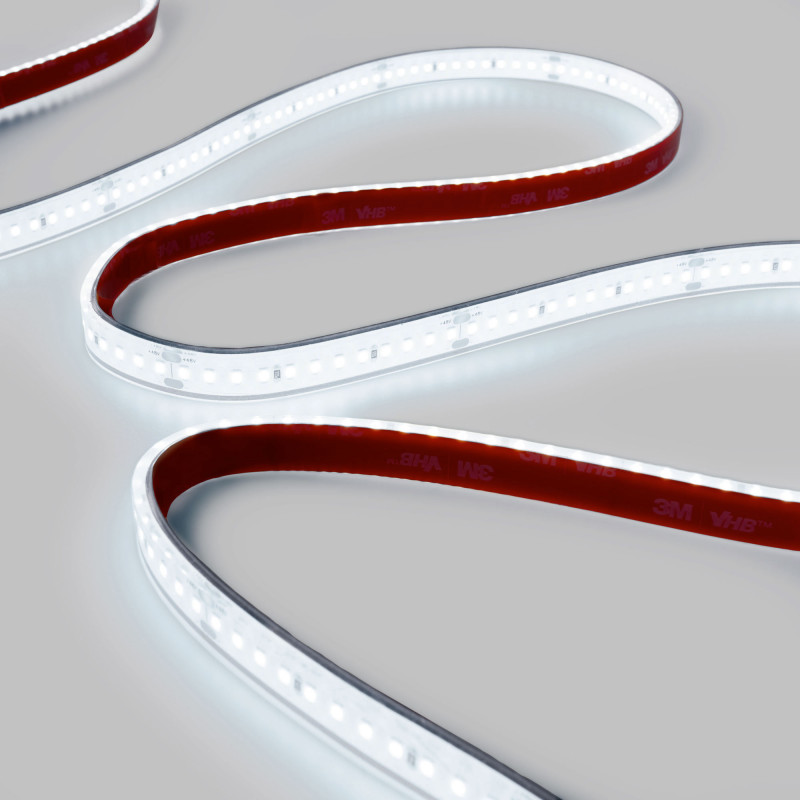

  • Practical design: With a PCB width of 10mm and a total width of 12mm (including cover) allows cuts every 71.4mm, facilitating installation and adaptation to any space. In addition, it incorporates a 3M self-adhesive on the back to adhere it to the desired surface.

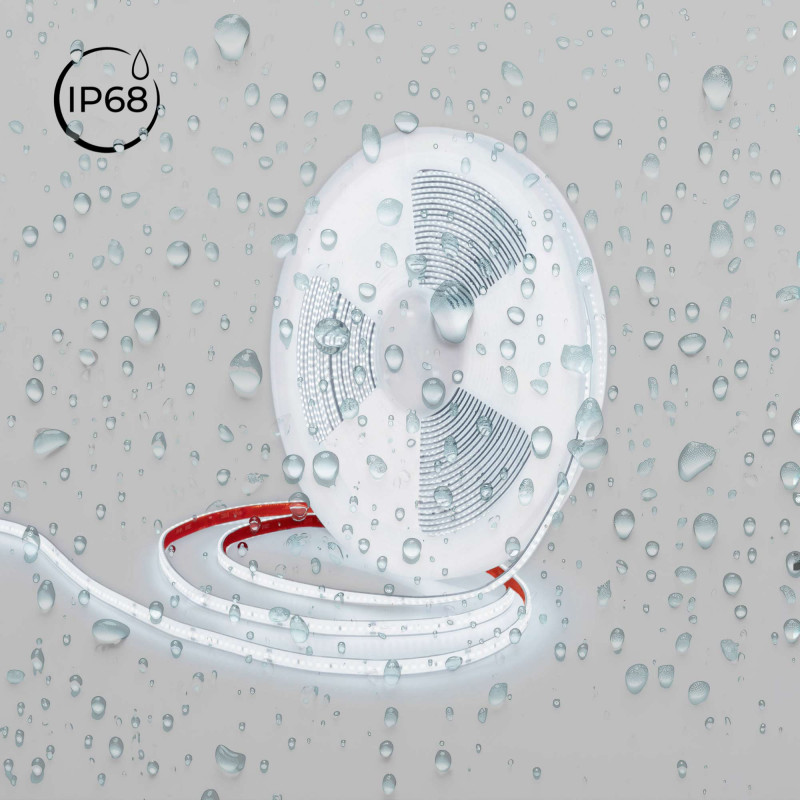

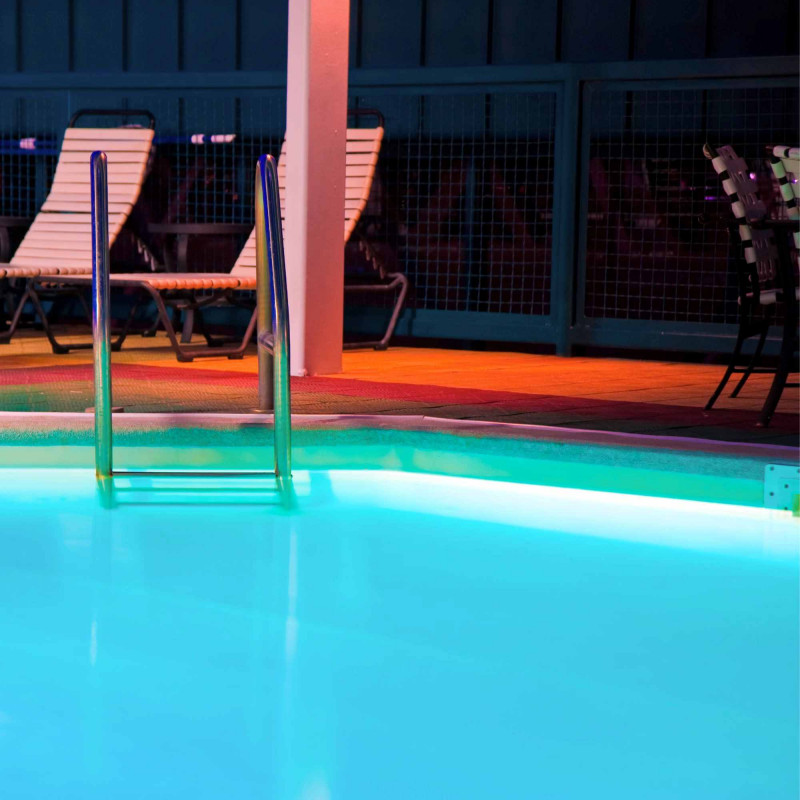

  • Submersible and resistant: Manufactured with resistant and durable materials, it features an IP68 protection rating, which not only gives it resistance to external factors such as rain and dust, but also allows its use under water.

We have controllers, remotes and compatible covers (See related products).

Nominal Voltage (V)
48V
Power/m (W/m)
9,6
Kelvin (K)
3000
4000
6500
IP
IP68
Hue
Cool white
Neutral white
Warm white
Dimmable
Yes
No. of chips/metre
168
Track width (mm)
12
Cutting distance (mm)
71
Material
Silicone
Use Outdoor
Yes
Adhesive
3M
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
