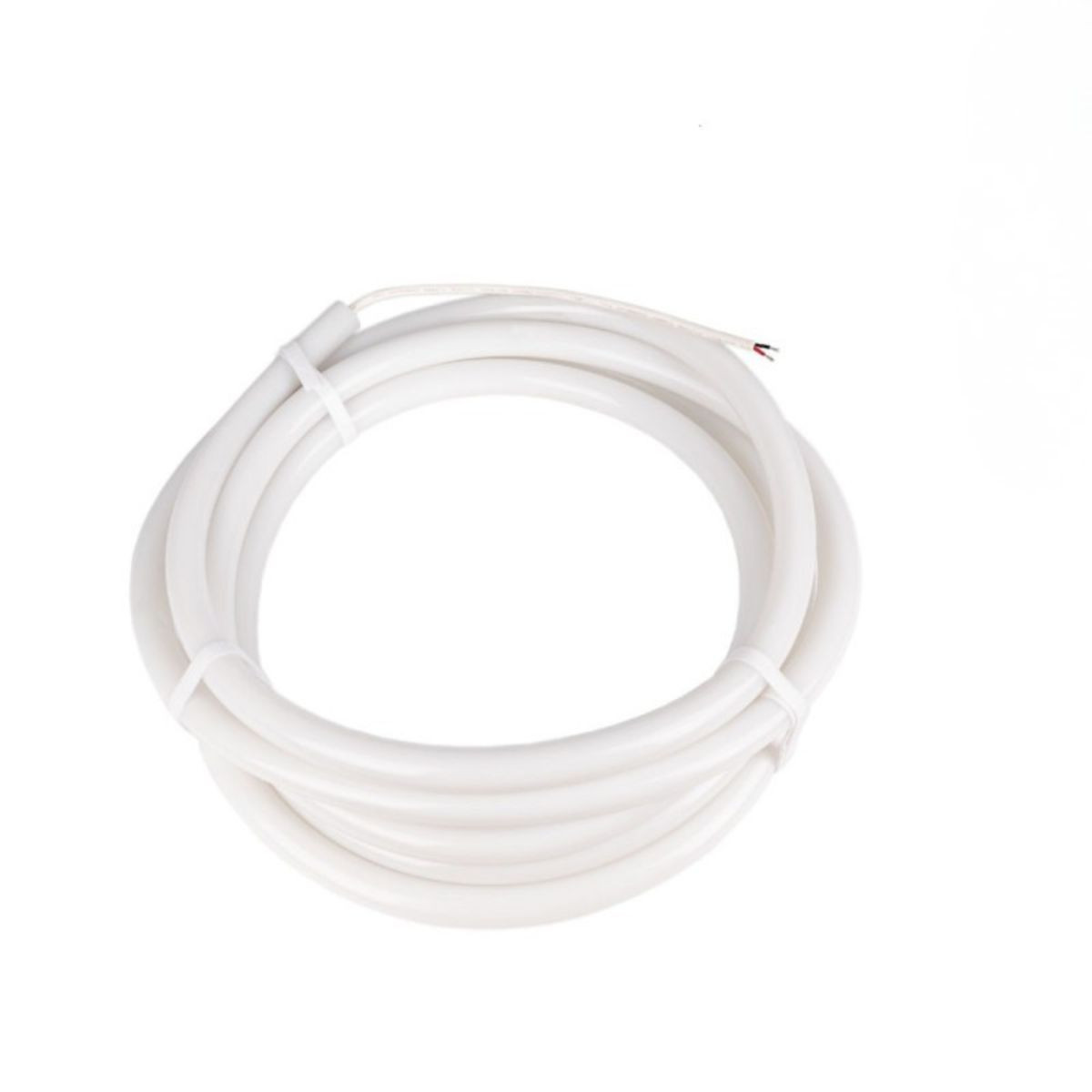

Flexible LED neon 360º circular - Ø22mm - 5 meters - 24V DC - 240Ch/m - 19,2W/m - IP65

Flexible LED neon 360º circular - Ø22mm - 5 meters - 24V DC - 240Ch/m - 19,2W/m - IP65

SKU:NSD22-5M-BN
Colour temperature
Has superado el límite de unidades
In stock 55 units
Data sheet

The 360º flexible LED neon can achieve high visual impact decorative lighting .

Incorporating double LED strip, it has a high density of SMD2835 LED chips (240 chips/m), ensuring a high power, stable and homogeneous illumination.

Available in warm white, neutral white and cool white, it emits light over its entire surface, allowing it to be installed in different positions, even surrounding objects.

Its IP65 degree of protection enables its use outdoors and ensures its durability.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

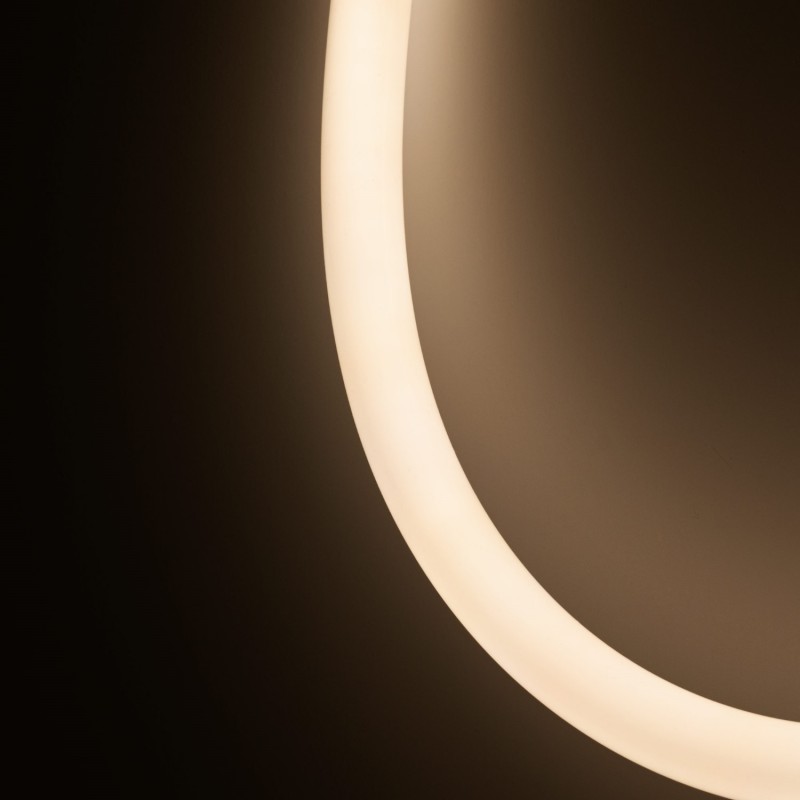

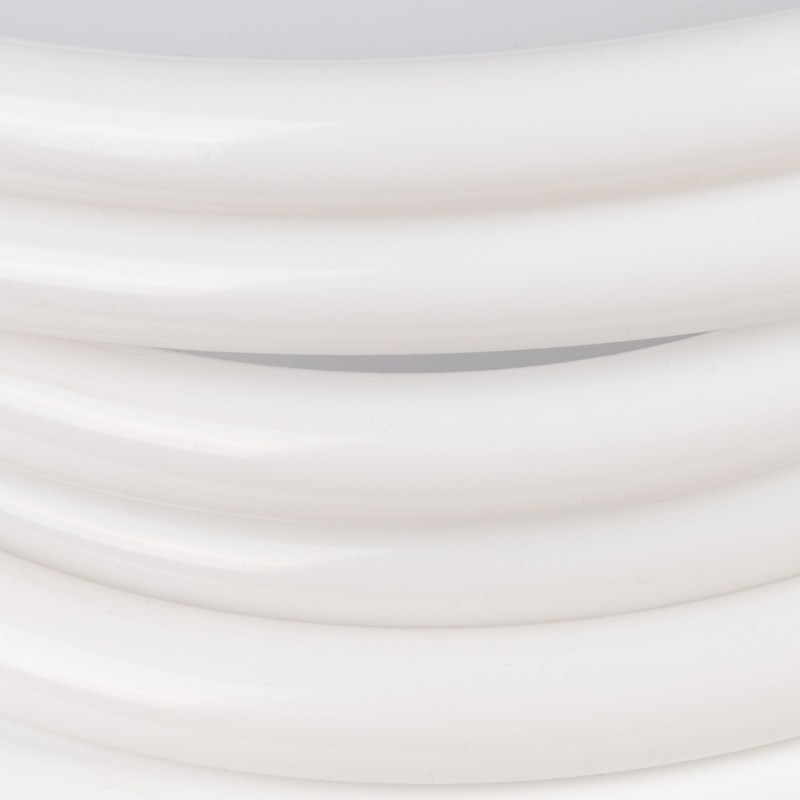

The 360º flexible LED neon incorporates a silicone cover, which disperses the light in a similar way to the old neon signs.

It incorporates double LED strip, so it emits a high power illumination thanks to its high concentration of LED chips (240chips/m).

By emitting light on all sides, it has a great versatility to adapt to any lighting or decorative project.

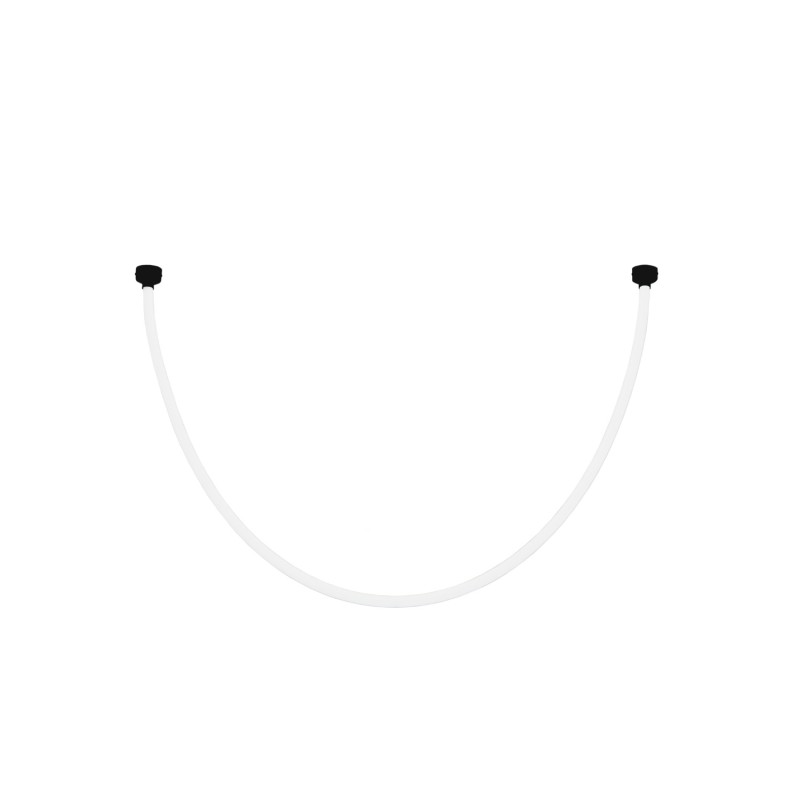

It is compatible with the following references: N20D-TF - NSD22-TF - NSD22-TE.

It is a resistant product made of silicone, with UV protection and a high IP65 rating, allowing its use outdoors and guaranteeing its durability against adverse environmental conditions.

By incorporating LED technology, it allows significant energy savings compared to conventional neon lights, since it emits virtually no heat and also improves the optical effect by the use of silicone, thus resulting in greater luminous efficiency.

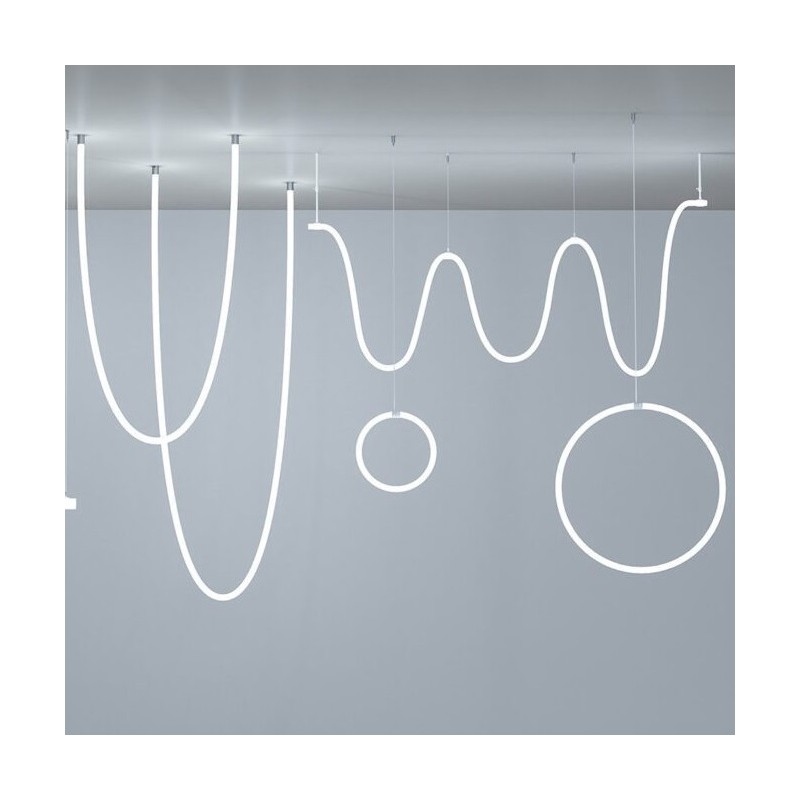

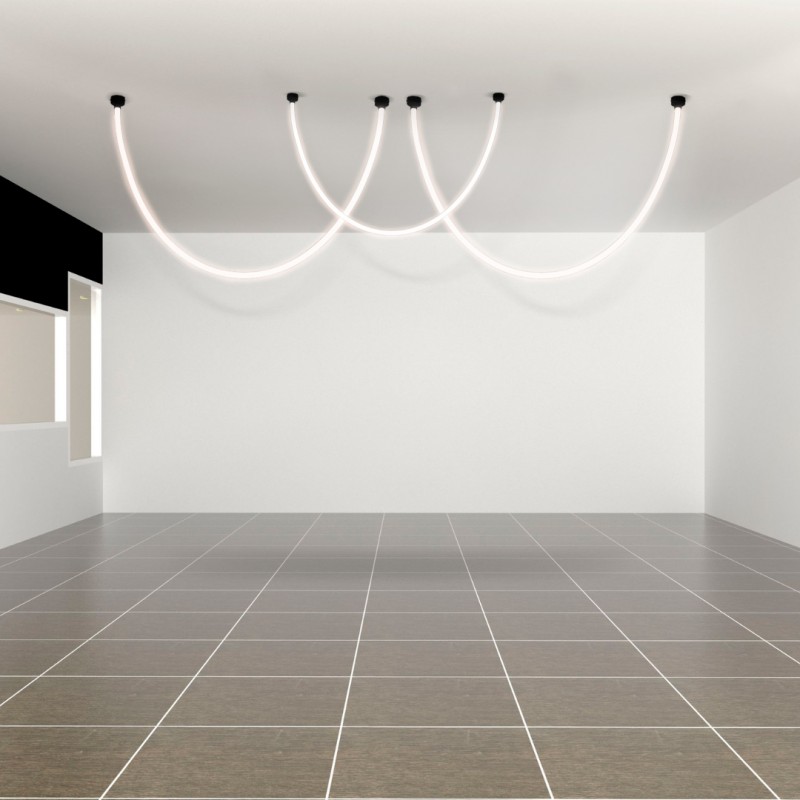

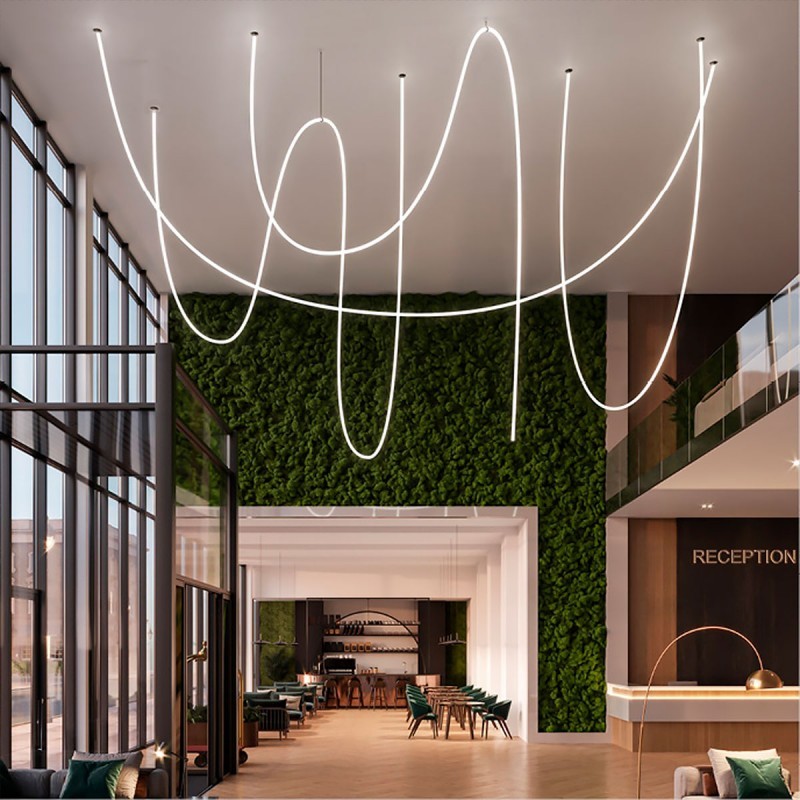

Our flexible LED neon can be applied in multiple projects that require a great visual impact, such as creating illuminated signs, signage, to decorate or highlight spaces in the home, lines of structures in buildings, restaurants, bars or commerce in general.

Main characteristics of the product:

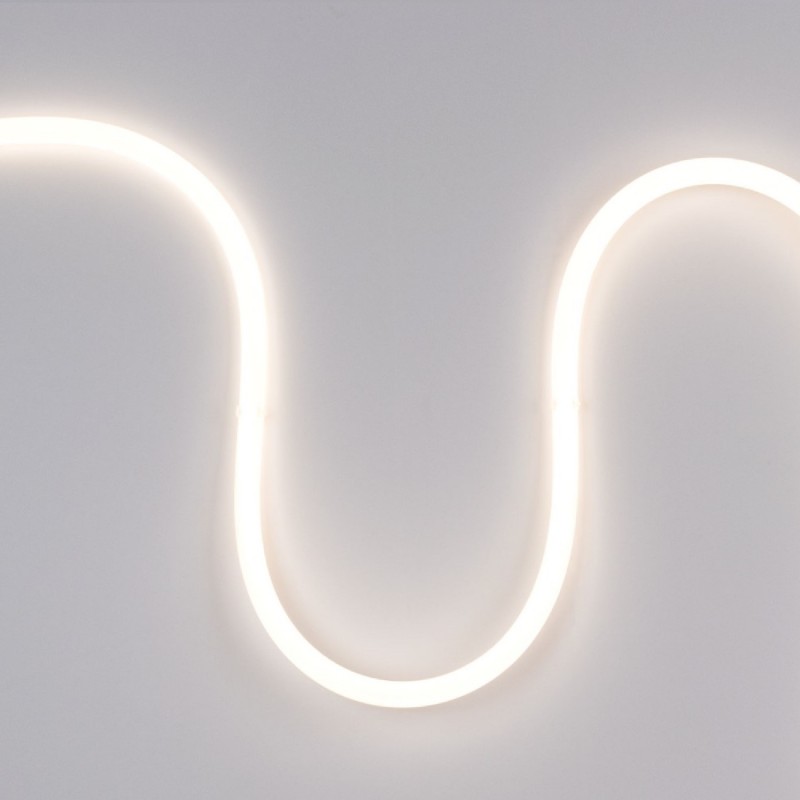

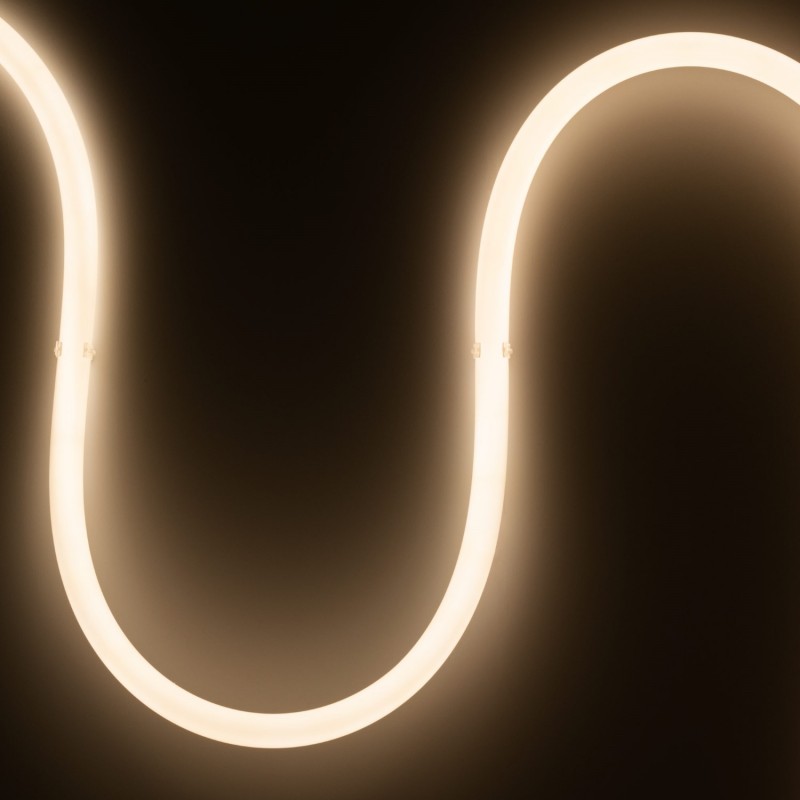

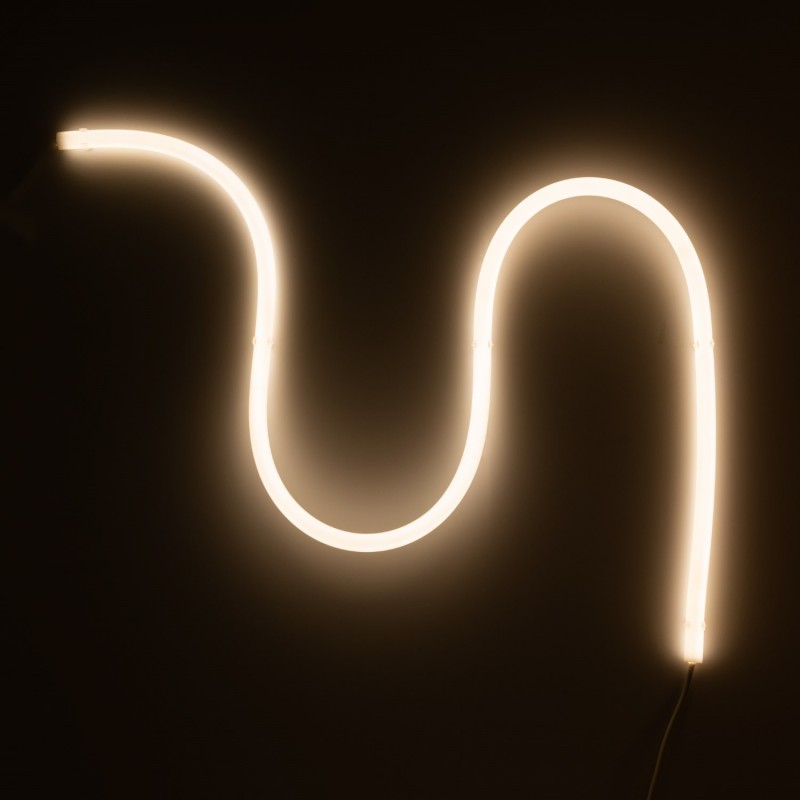

  • Maximum flexibility

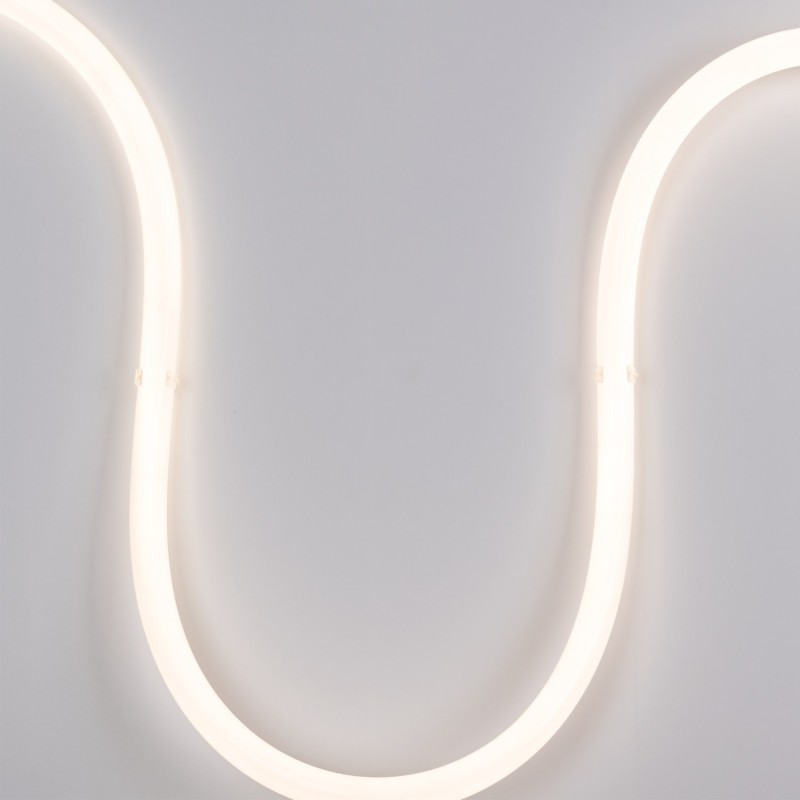

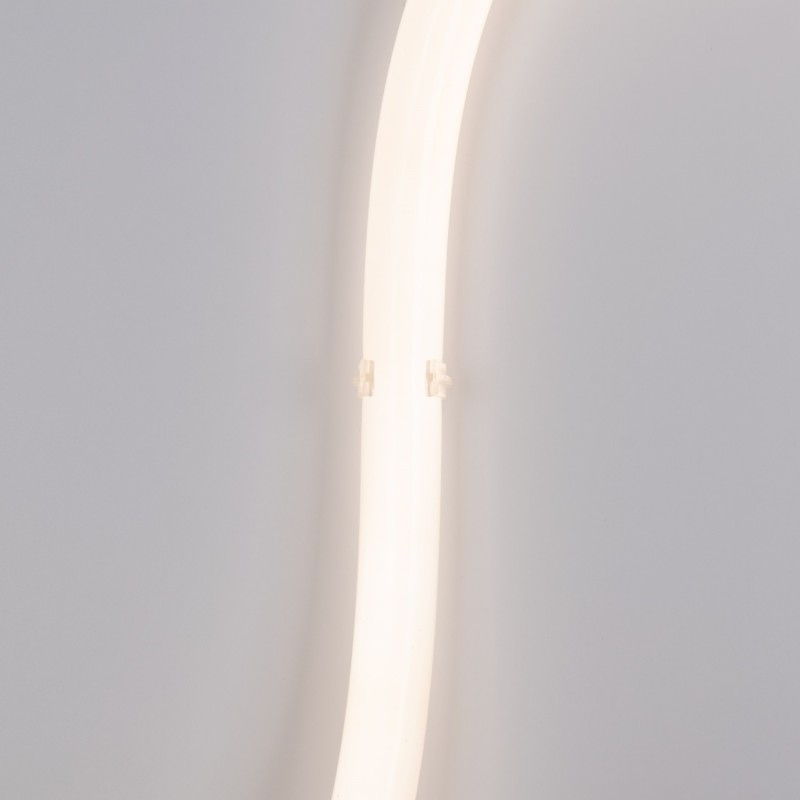

  • 360° light emission
  • Double LED strip
  • 24V DC
  • Density: 240ch/m
  • LED Type: SMD2835
  • Power: 19.2W/m
  • Efficiency: 79 lm/W

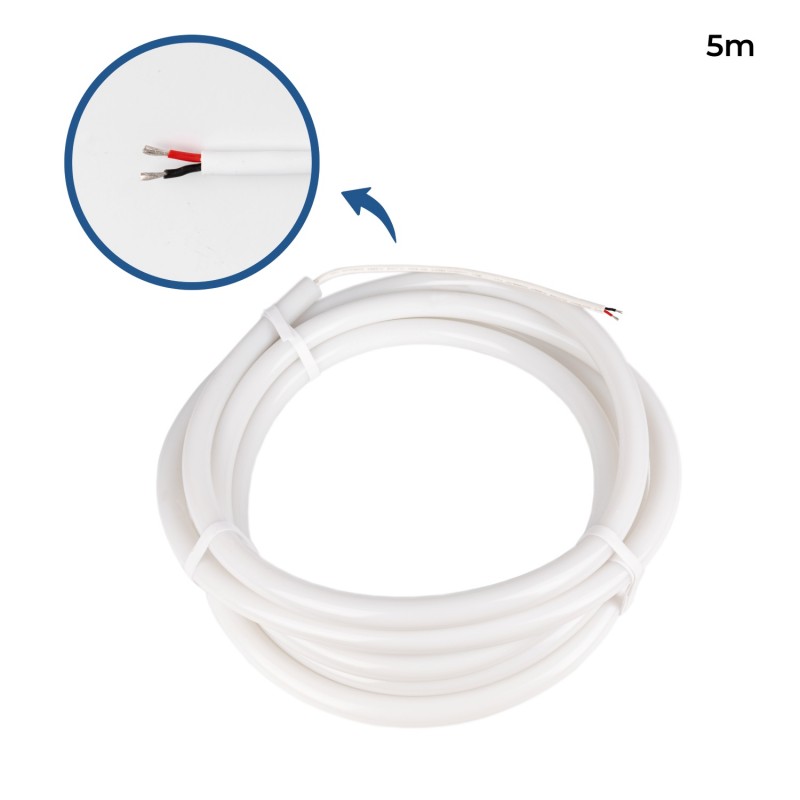

  • Length: 5 meters
  • Color: warm white (3000 K) , neutral white (4000K) and cool white (6000K)

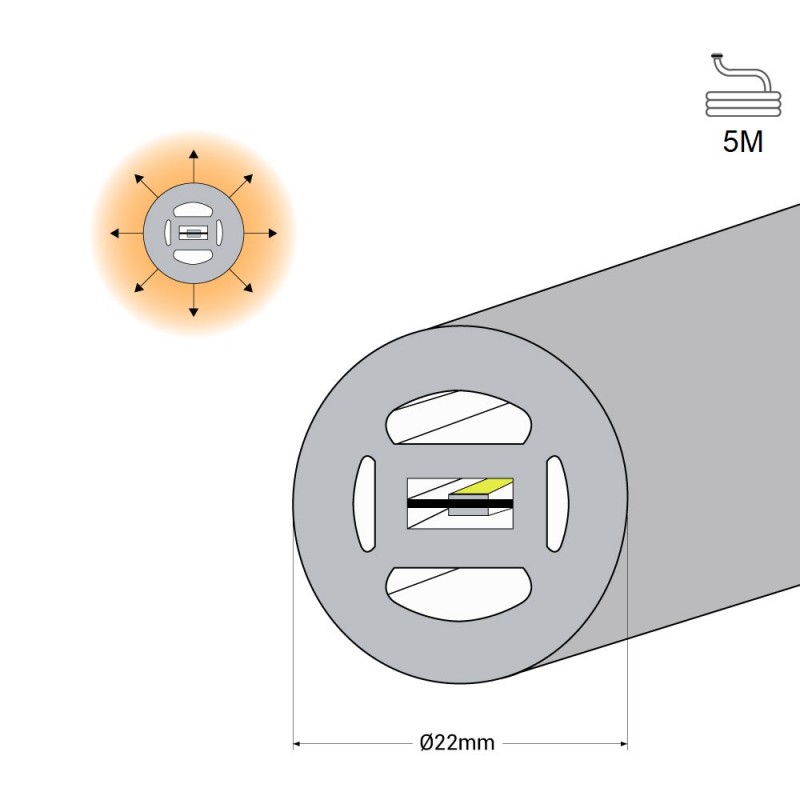

  • Dimensions: ø 22 x 5000 mm
  • IP65: suitable for outdoor use
  • Does not allow cutting

Please note that certain technical characteristics such as power, lumens or CRI may vary according to the color/shade of the product. For further details, please consult the attached test reports in the "Downloads" section, or contact our sales advisors.

Nominal Voltage (V)
24V-DC
Power/m (W/m)
19,2
Kelvin (K)
3000
4000
6000
Beam angle (º)
360°
IP
IP65
Dimensions (mm) Lxlxh
Ø22x5000
Hue
Cool white
Neutral white
Warm white
Efficiency (Lm/w)
79
CRI
90-95
LED Type
SMD 2835
No. of chips/metre
240
Material
Silicone
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: Hello,

is it theoretically possible to shorten the LED strip in there, since it is then not waterproof? Is the LED strip bent at the end and mounted on both sides, or is it two separate strips in there?

Thanks
R: Answer: Hello Markus,

The neon tube cannot be shortened. There are 2 LED strips installed inside.
Regards

Barcelona LED: Benajamin| 08/09/2023
