LED Strip 48V DC - RGB + CCT - 15W/m - 12mm - IP20 - 10 meters - 90ch/m

48V DC LED Strip - RGB + CCT - 15W/m - 12mm - IP20 - 10 meters - 90ch/m

SKU:BLS5050-48V15W-IP20-10M-RGBCCT
Has superado el límite de unidades
In stock 76 units
Data sheet

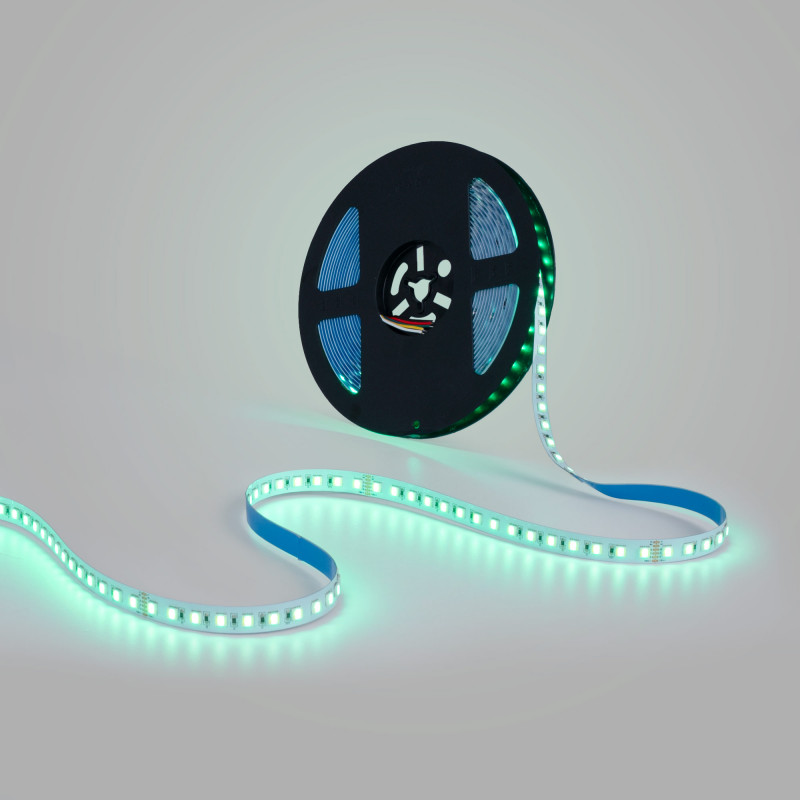

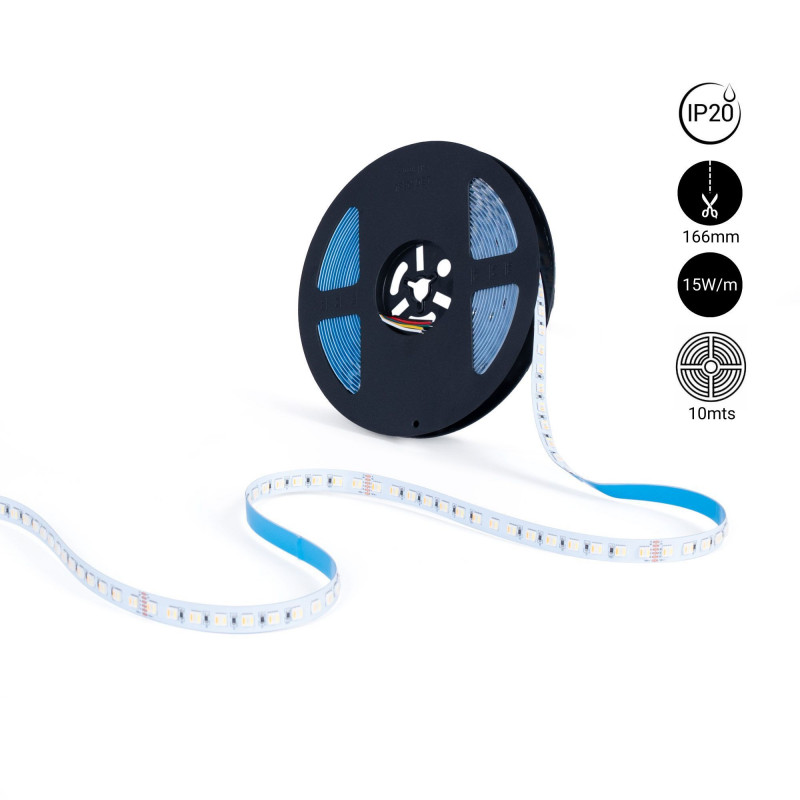

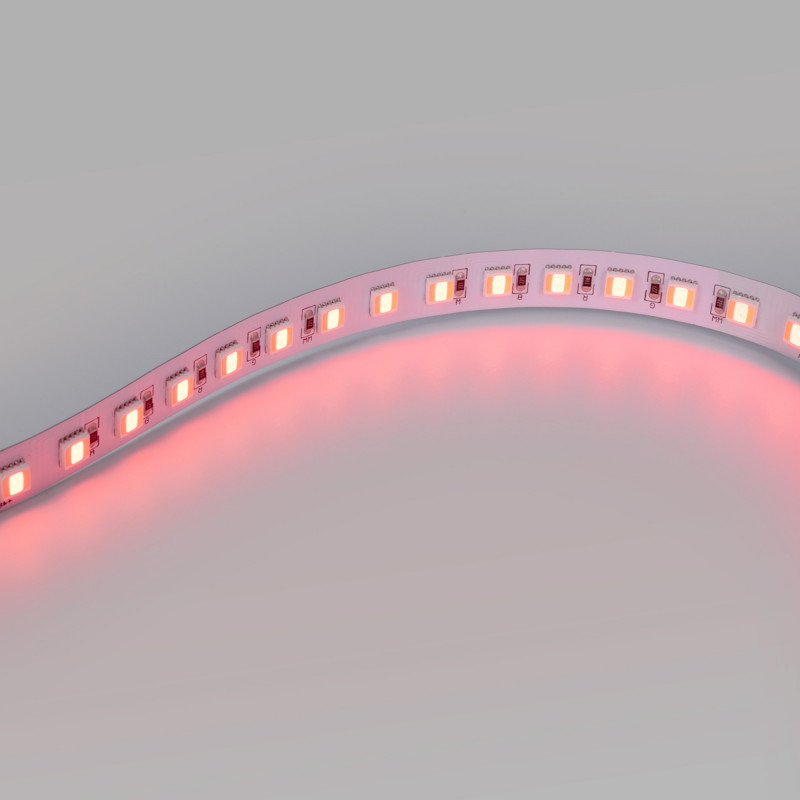

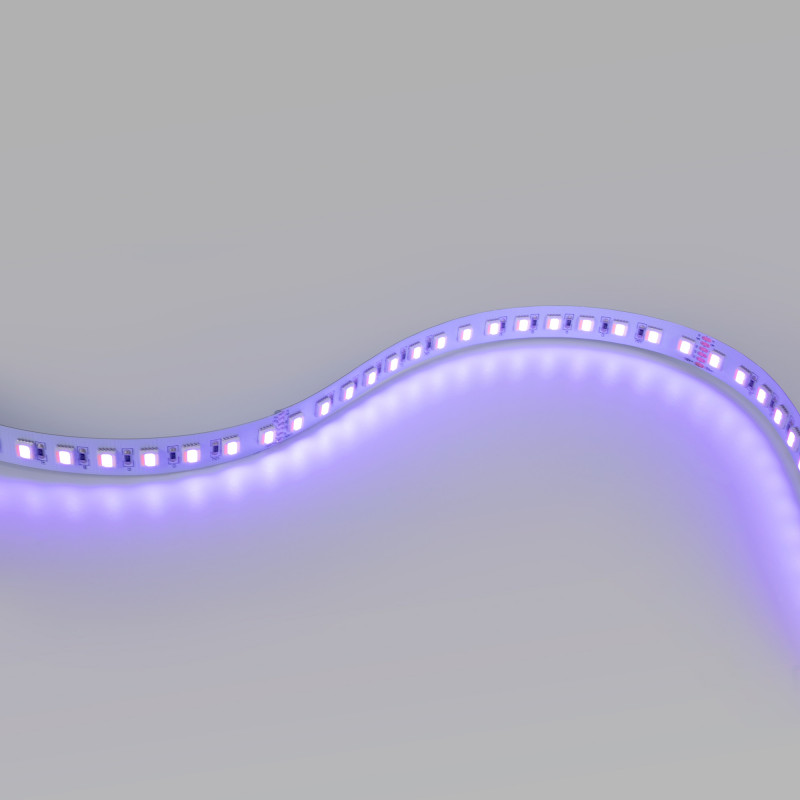

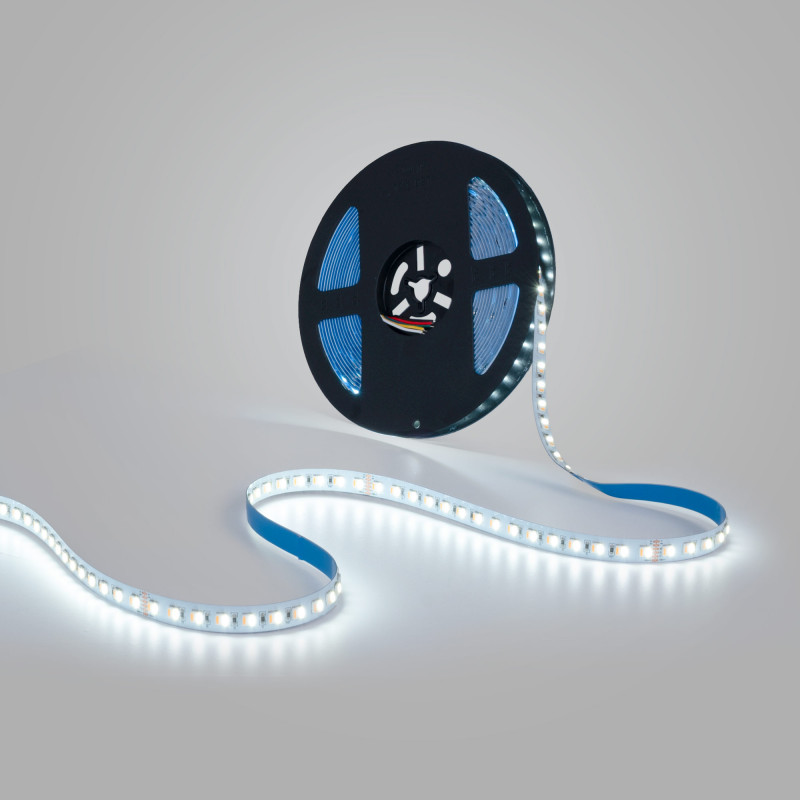

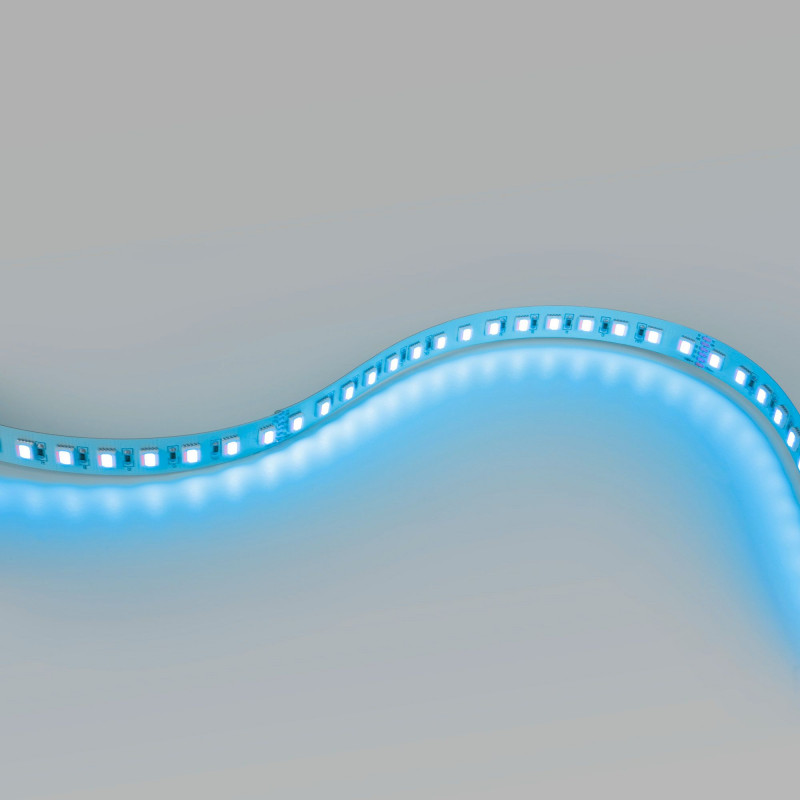

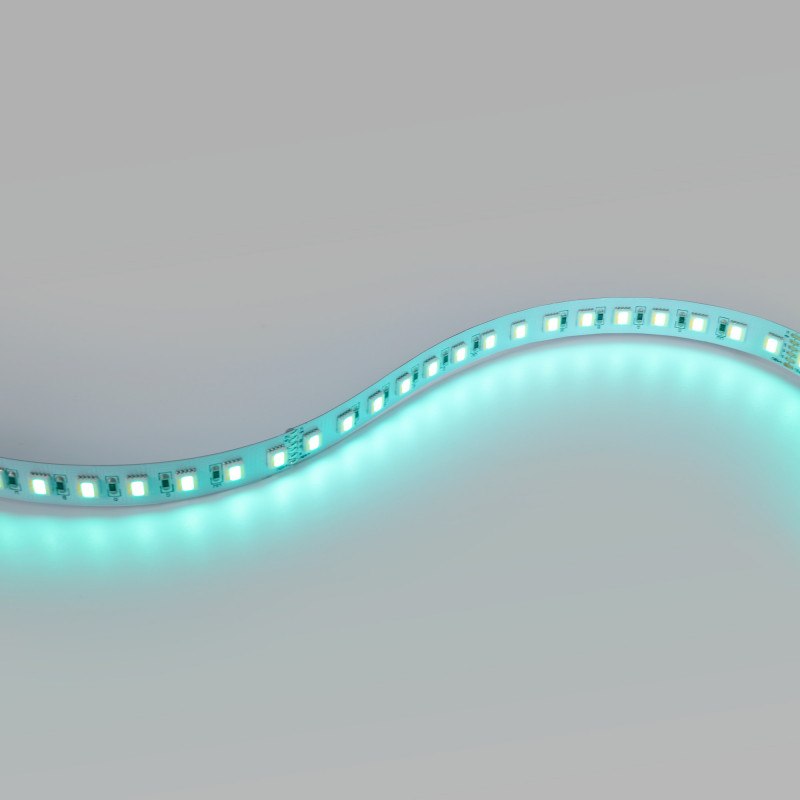

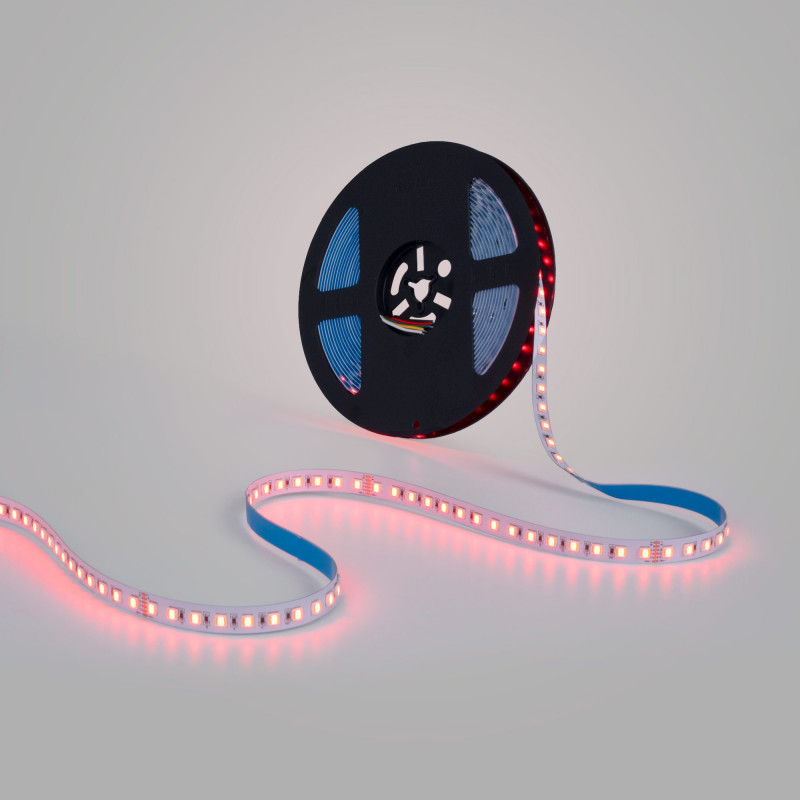

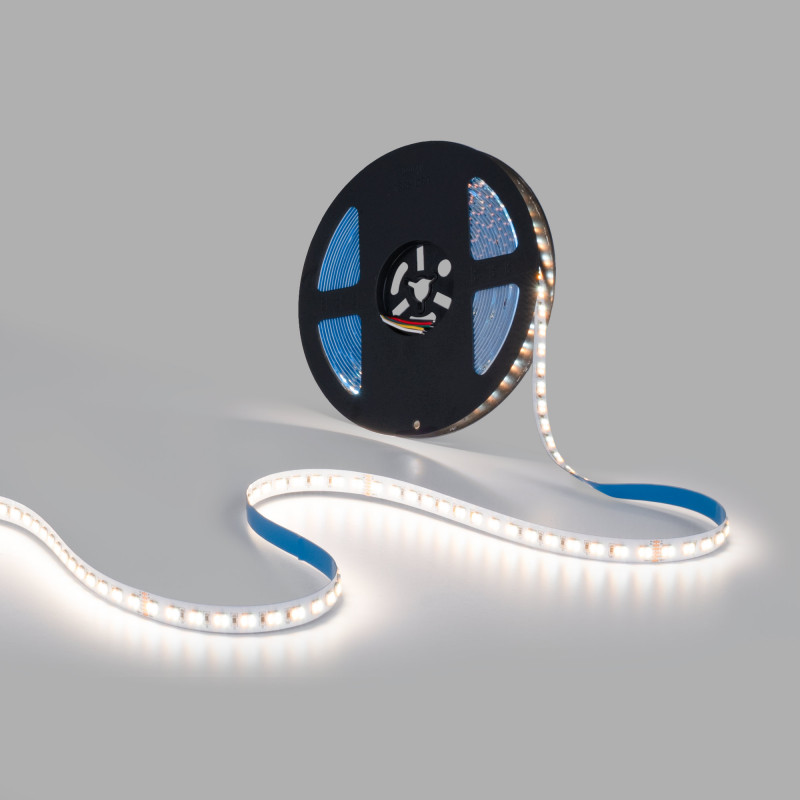

The 48V RGB+CCT LED strip has a power of 15W/m and comes in a 10-meters roll.

With a density of 90chips/m, it offers high quality lighting with an efficiency of 120 lm/W.

Due to its minimal voltage drop, it is a perfect choice for long distance installations without the need for additional components.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

48V DC  LED Strip - RGB + CCT - 10 meters

  • Efficient voltage: Operating at 48V, the LED strip minimizes voltage drop, allowing for long installations without the need for amplifiers or additional power supplies.

  • High brightness: Incorporates SMD5050 LED chips with a density of 90 chips/m, ensuring bright and uniform lighting. With a power of 15W/m and an efficiency of 120lm/W, this LED strip is not only powerful but also energy efficient.

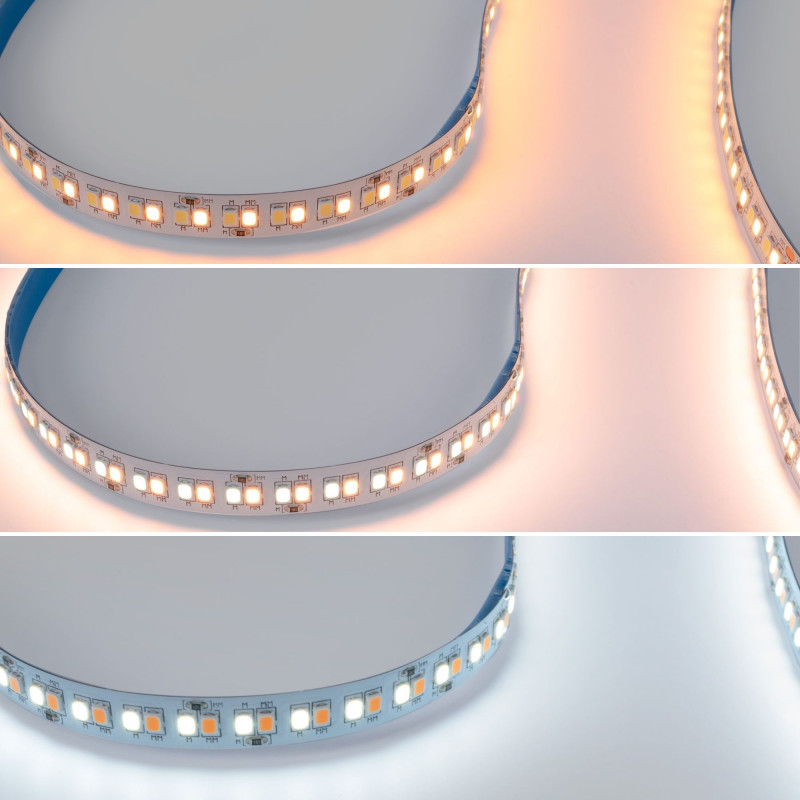

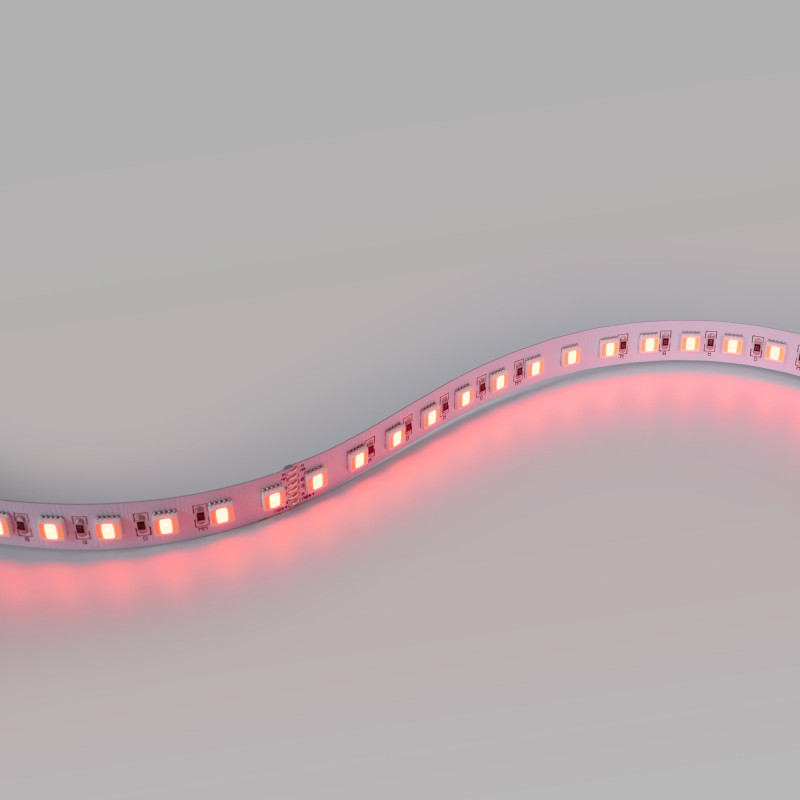

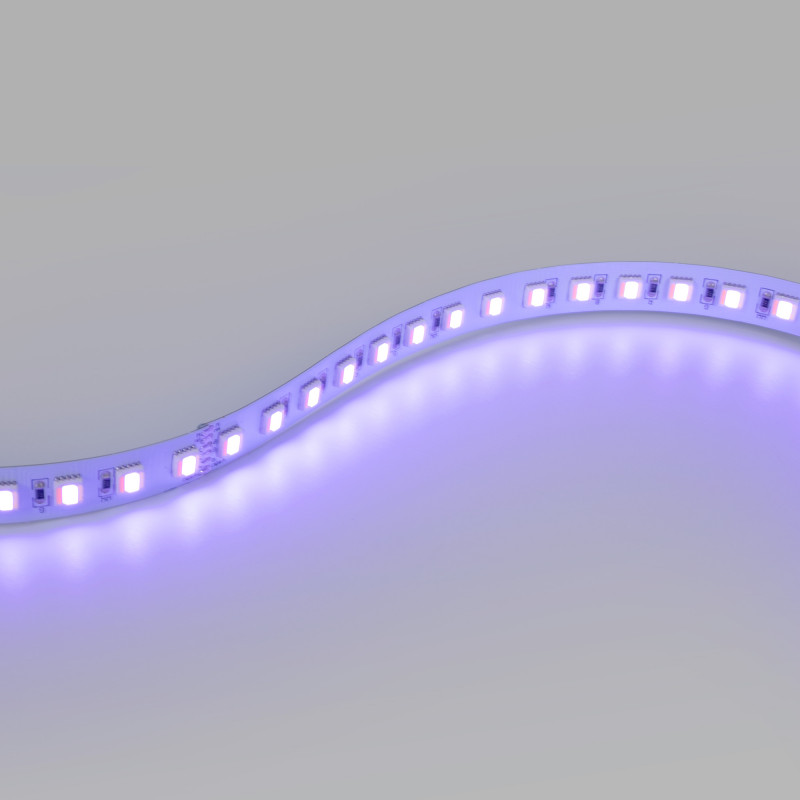

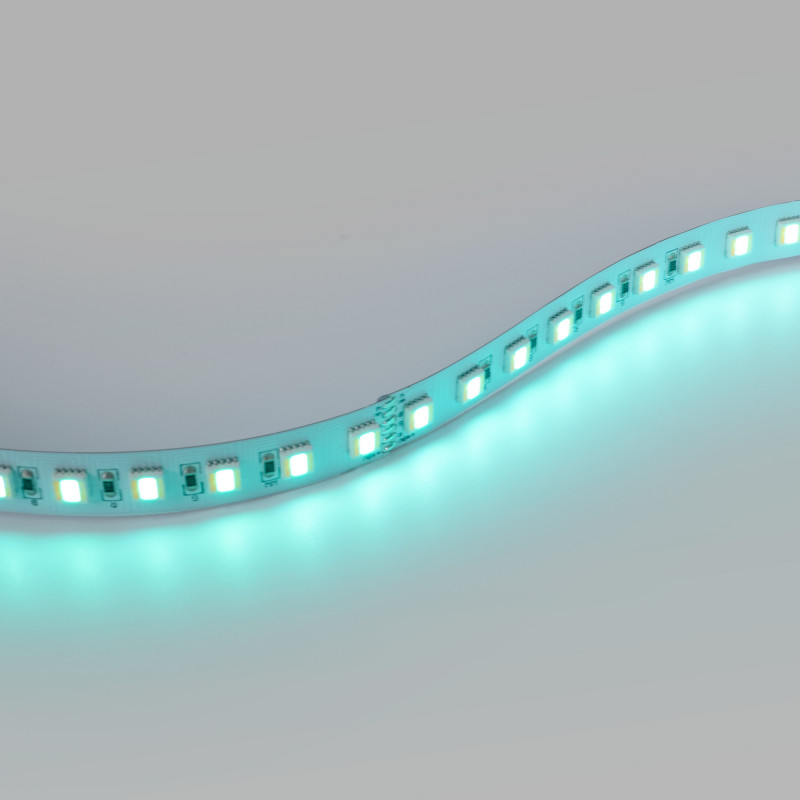

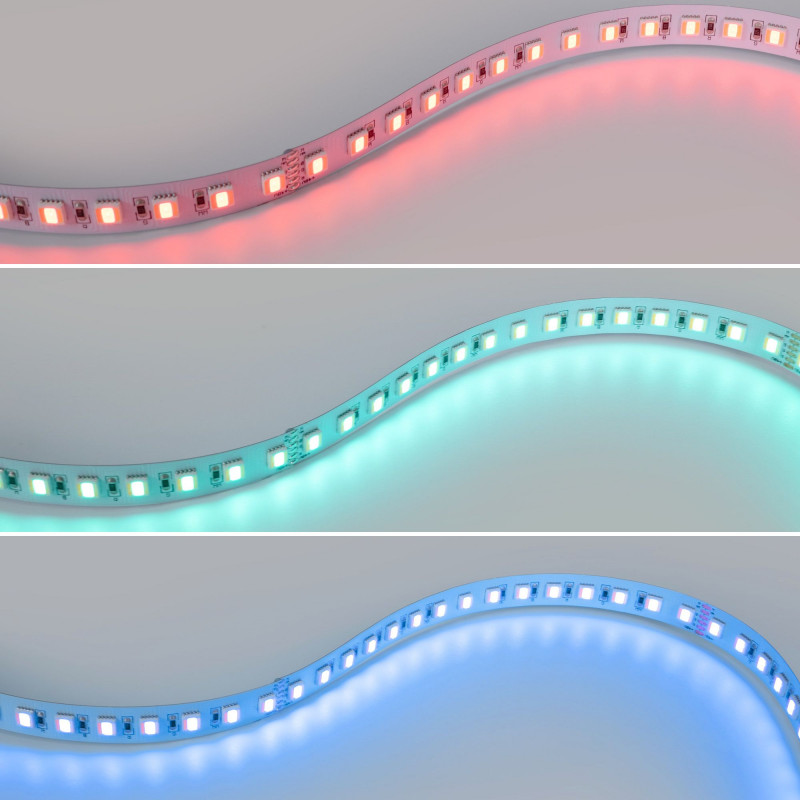

  • Color versatility: Being an RGB+CCT strip, it allows to create customized environments with a wide range of colors and white temperatures, from warm to cool, adapting to any type of decoration or event.

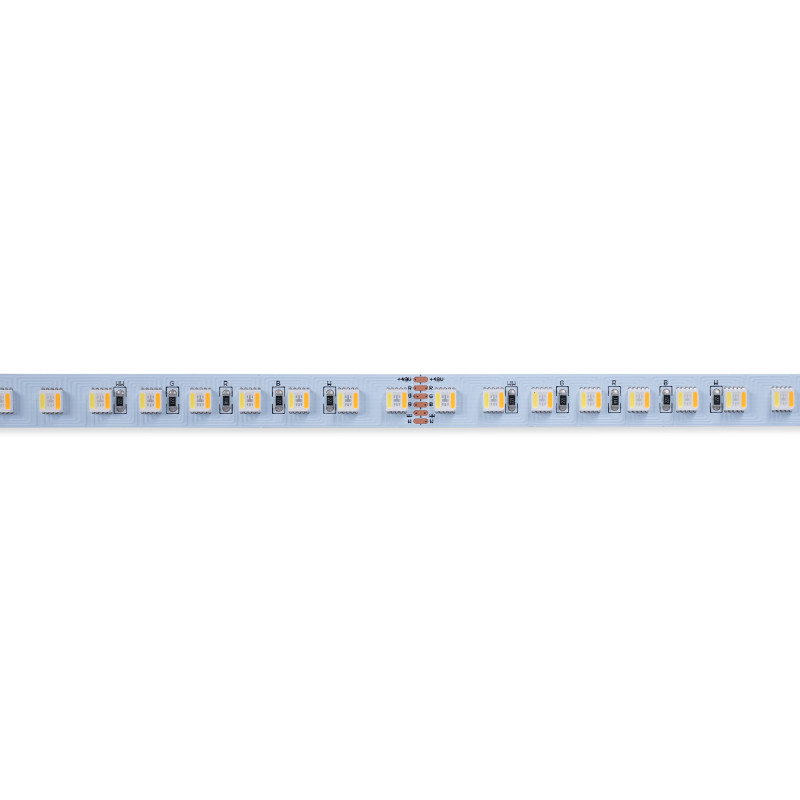

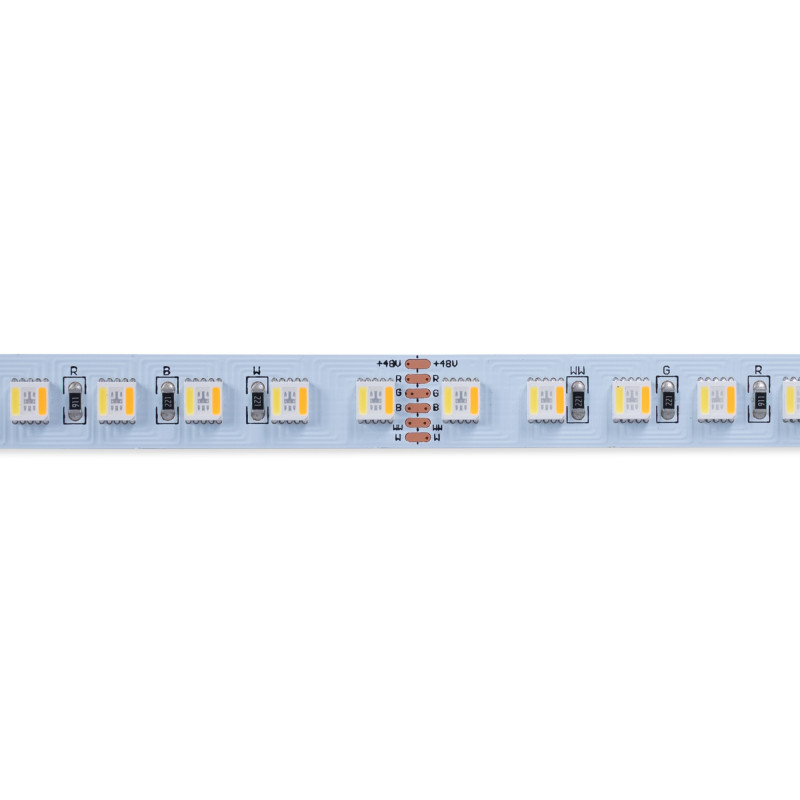

  • Practical design: Its 12mm wide PCB allows cuts every 166mm, facilitating installation and adaptation to any space. In addition, it incorporates a 3M self-adhesive on the back to adhere it to the desired surface.

  • Durability and safety: Manufactured with resistant and durable materials, it has an IP20 degree of protection, suitable for indoor use.

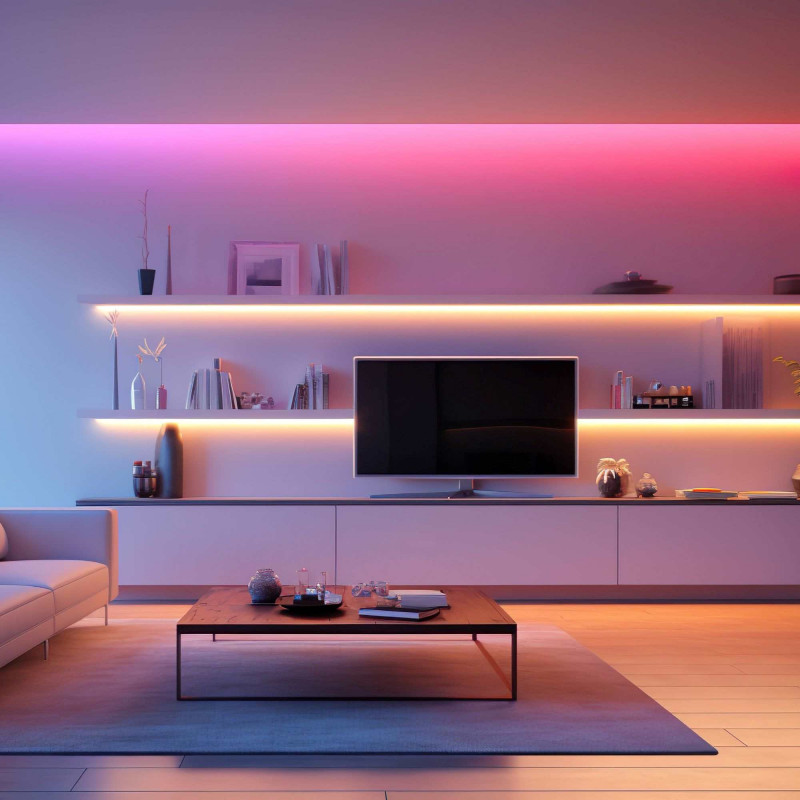

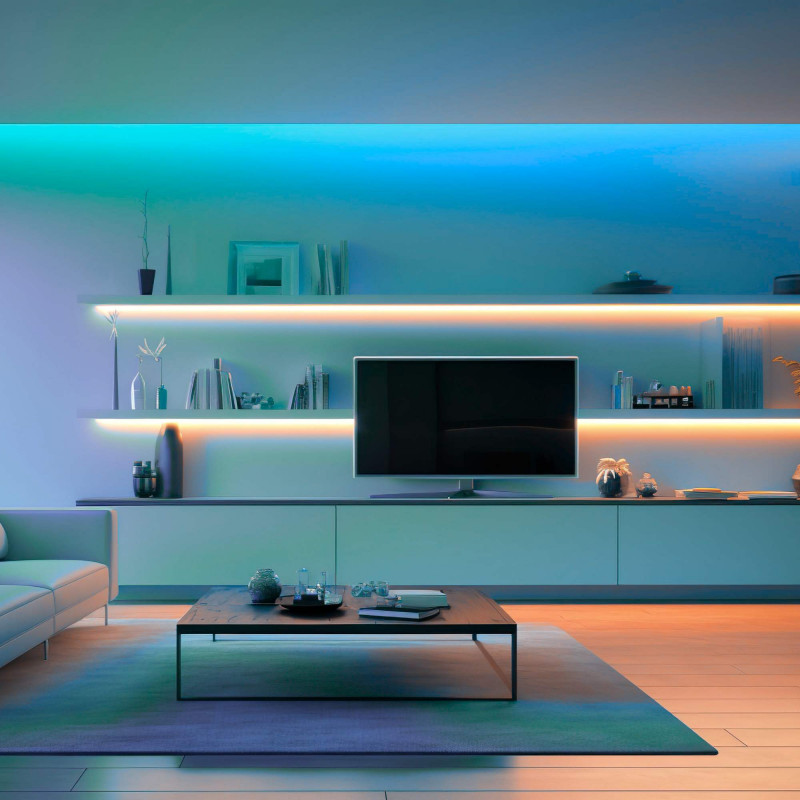

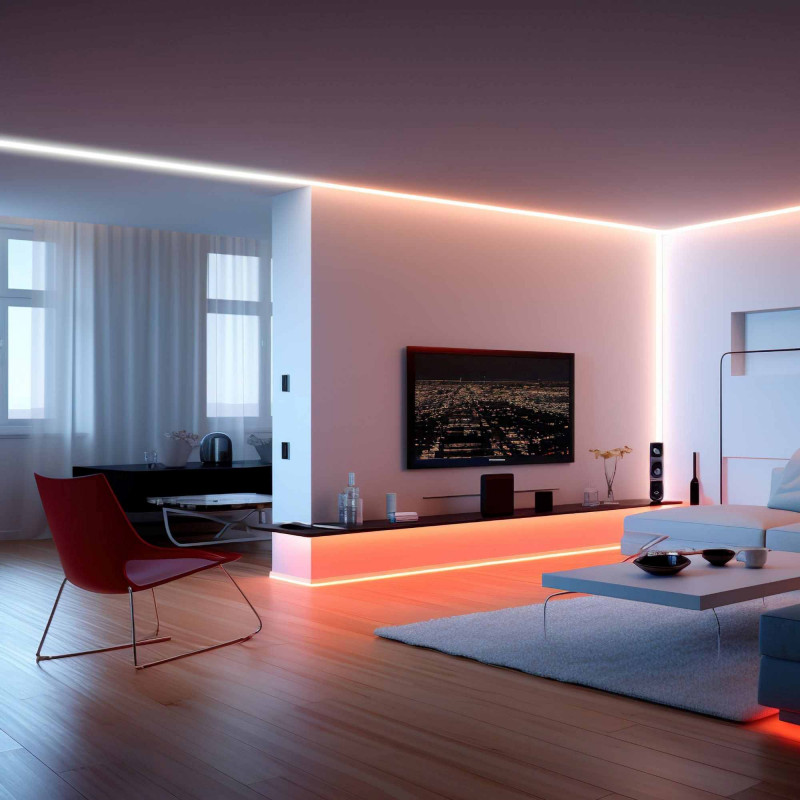

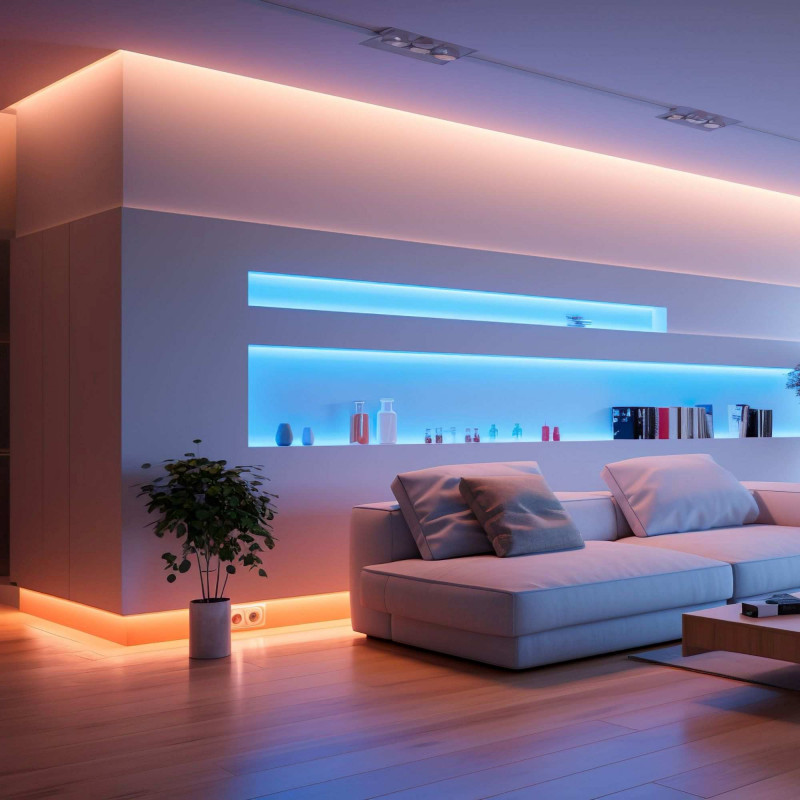

This LED strip is ideal for residential and commercial projects where long installations are required, providing adaptable lighting thanks to its RGB+CCT capability.

We have a large family of compatible drivers, controllers and power supplies (See related products).

Nominal Voltage (V)
48V
Power/m (W/m)
15
Beam angle (º)
120
IP
IP20
Dimensions (mm) Lxlxh
12 x 10000
Hue
RGB+CCT
Efficiency (Lm/w)
120
Dimmable
Yes
No. of chips/metre
90
Track width (mm)
12
Cutting distance (mm)
166
Use Outdoor
No
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
