Single color IC COB LED strip - 24V DC - 12W/m - IP20 - 360LED/m - Width 10mm - 5 meters
Single color IC COB LED strip - 24V DC - 12W/m - IP20 - 360LED/m - Width 10mm - 5 meters
Single color IC COB LED strip - 24V DC - 12W/m - IP20 - 360LED/m - Width 10mm - 5 meters

Single color IC COB LED strip - 24V DC - 12W/m - IP20 - 360LED/m - Width 10mm - 5 meters

SKU:BLSCOB-24V12W-IC-IP20-BF
Colour temperature
Has superado el límite de unidades
In stock 147 units
Data sheet

The 24V DC COB LED strip offers bright and uniform lighting, with no shadows or visible light spots, unlike traditional LED strips.

Each LED chip has its own light source and integrated driver (IC), allowing individual control of each one. In this way, the LED strip can be programmed to create customized light patterns.

With a density of 360 LED/m, it offers high quality and high luminous efficacy (100lm/W).

Available in warm white (3000K) and cool white (6000K).

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

This LED strip incorporates COB technology, which allows it to emit a continuous light without visible points. Especially recommended when a homogeneous illumination is desired, to work with reflective surfaces or to use transparent diffusers.

With a luminous intensity of 12W per meter, it provides exceptional brightness, superior to conventional LED strips.

Given that it's an IC smart LED strip, it allows for individual control of each LED. It's ideal for decoration of hotels, bars, all kinds of events or as a replacement for traditional neon lights.

It has a high color rendering index (CRI>90), allowing to visualize colors with high fidelity, similar to natural light.

The individual control of each chip offers multiple possibilities of LED lighting, allowing the creation of eye-catching visual effects. In addition, these IC LED strips are easy to program and work very well with many types of controllers to create the desired effect every time.

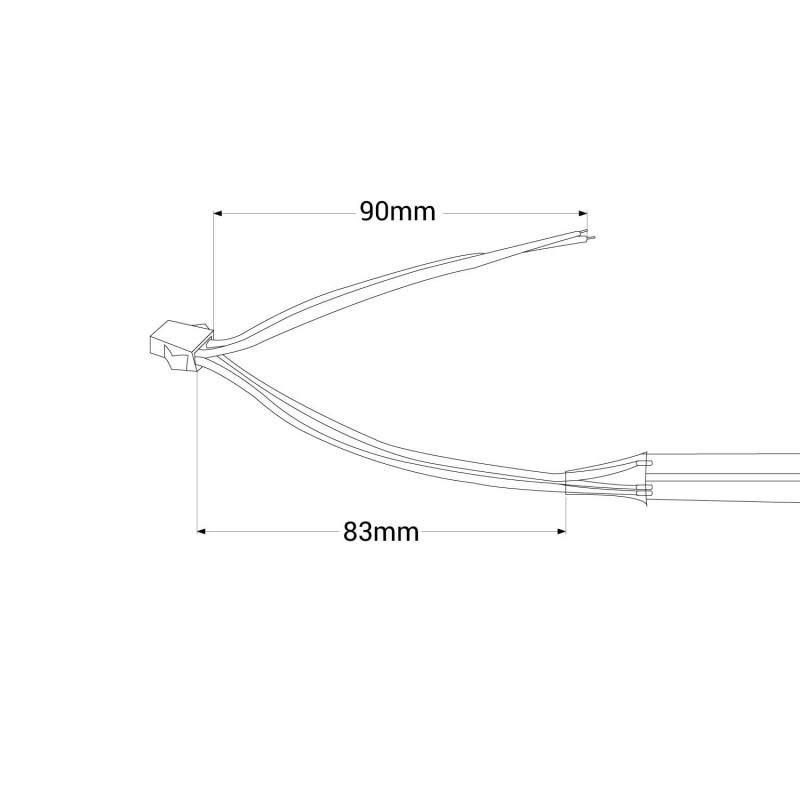

It comes in a 5 meter roll and can be cut every 83mm, according to the marks. It incorporates 3M self-adhesive on the back to adhere to the desired surface.

Its slim 10mm design allows for easy installation in any corner of the home, office or store.

Product features:

  • Voltage: 24V DC
  • Efficacy:100lm/W
  • Power: 12W/m
  • Beam angle: 120°
  • Dimmable
  • Width: 10mm
  • Cut distance: 83mm
  • IP20: indoor use
  • Strip length: 5 meters
  • LED chips: COB (360 LED/m)
  • Shade: warm white (3000K) and cool white (6000K)
  • Dimensions: 10x5000mm

Nominal Voltage (V)
24V-DC
Power/m (W/m)
12
Kelvin (K)
3000
6000
Beam angle (º)
120
IP
IP20
Dimensions (mm) Lxlxh
10 x 5000
Hue
Cool white
Warm white
CRI
90-95
LED Type
SMD 2835
Dimmable
Yes
No. of chips/metre
360
Track width (mm)
10
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Adhesive
3M
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
