Smart LED Strip IC RGB 12V DC - 14,4 W/m - IP20 - 60 LED/m - Width 10mm - 5 meters
SKU:B1574RGB
€19.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
The intelligent LED strip IC allows to control an array of 3 LEDs per pixel.
The IC chip used in this strip is WS2811, with low power consumption and high efficiency, which enables intelligent RGB lighting control.
With a beam opening angle of 120° and a voltage of 12V, the strip features 300 high quality integrated SMD 5050 RGB RGB SMD LEDs.
The individual control of each pixel offers multiple LED lighting possibilities, allowing you to create eye-catching visual effects. In addition, these RGB IC RGB LED strips are easy to program and work well with many types of controllers to create the desired effect every time.
The LED strip is self-adhesive on the back and comes on a 5 meter reel with an IP20 protection rating.

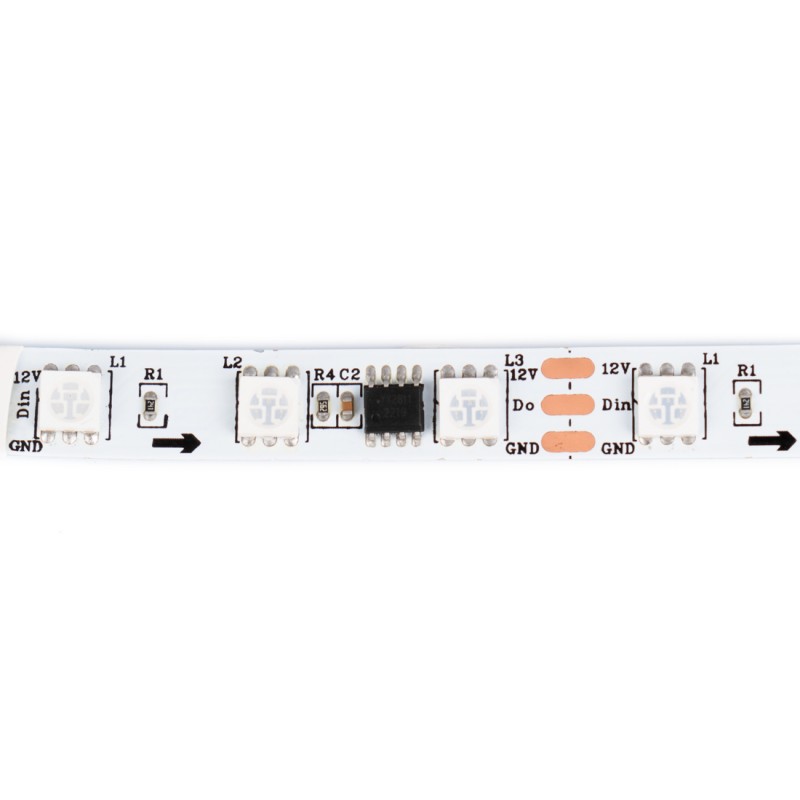

It is possible to cut the strip every 50mm (every 3 chips), which allows great versatility for different applications.
The wires of the LED strip are made of high quality copper and have excellent conductivity, which ensures stable and uniform illumination. The outer layer of the strip is made of PVC, which makes it environmentally friendly and durable, and provides a very long service life.
To control this IC smart LED strip, a controller compatible with IC smart strips should be used, common RGB controllers cannot be used.
|
Main product features:
|
Nominal Voltage (V)
12V-DC
Power/m (W/m)
14,4
Lumens (Lm)
360
Beam angle (º)
120
IP
IP20
Hue
RGB
Sensor
No
LED Type
SMD 5050
Dimmable
Yes
No. of chips/metre
60
Track width (mm)
10
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Intensive
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: |
Hello! Which controller is used to control these strips? Are they DMX compatible? What software is used to create the effects? |
|---|
| R: Answer: | They work with controllers for IC strips (pixel led). It needs a controller that goes from DMX to SPI. |
|---|
| P: Question: |
Hello, do you have this type of IC strip in 24v? Best regards! |
|---|
| R: Answer: | No, we only have IC pixel led strips in 5v and 12v models. |
|---|
| P: Question: | Is this strip compatible with the WS2811/WS2812B/SK6812? 9-key RGB LED strip music controller? |
|---|
| R: Answer: | Yes, you'll find all the compatible controllers under essential accessories. |
|---|
| P: Question: | What type of controller is used in this ribbon and is it possible to show more than one color? |
|---|
| R: Answer: | Here are some options that are already highlighted in "Essential accessories": https://www.barcelonaled.com/pt/controlador-e-regulador-led/controle-e-regulador-rgb-12-24v/controlador-musical-para-fita-led-rgbw-ic-pixel-spi-bluetooth.html https://www.barcelonaled.com/pt/controlador-e-regulador-led/controle-e-regulador-rgb-12-24v/controlador-musical-para-fitas-led-rgb-comando-com-9-teclas-ws2811ws2812bsk6812.html Barcelona LED: Alex| 12/02/2021 |
|---|
