SKU:BPM-40W-CCT-B
Has superado el límite de unidades
Out of stock
Data sheet

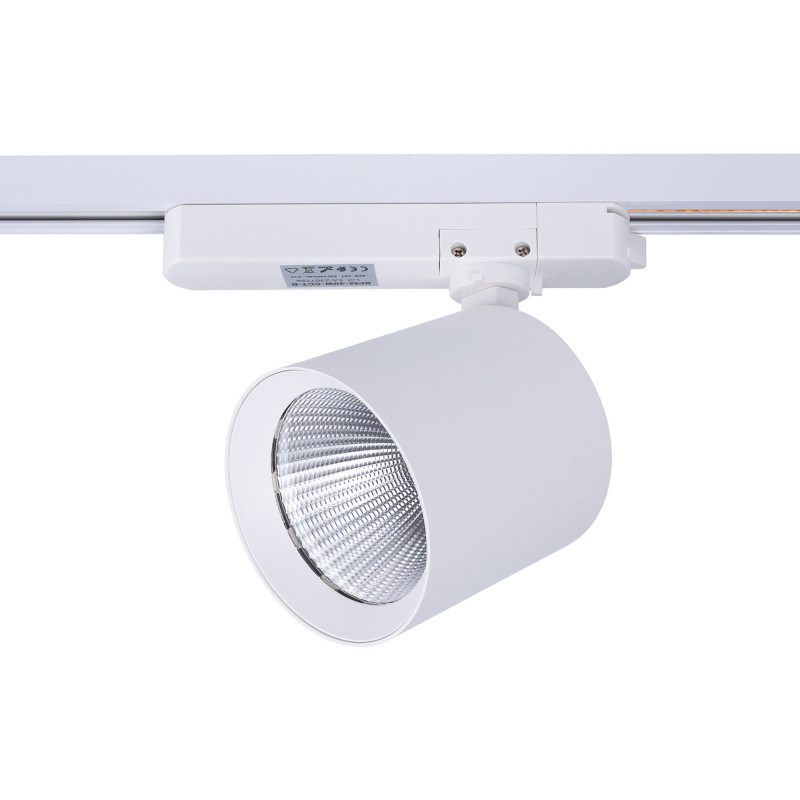

1-phase LED track spotlight distinguished by its compact design and high-quality components.

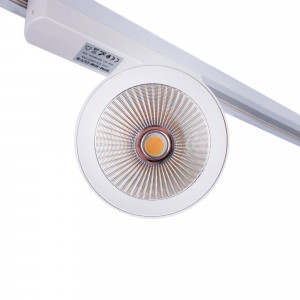

Its powerful beam with a COB LED chip precisely illuminates details, with a high colour rendering index (CRI >90), allowing colours to be displayed naturally.

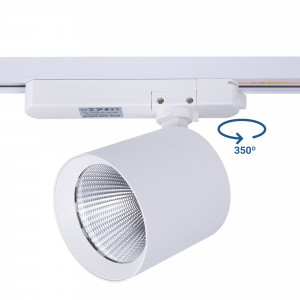

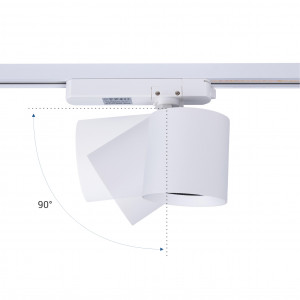

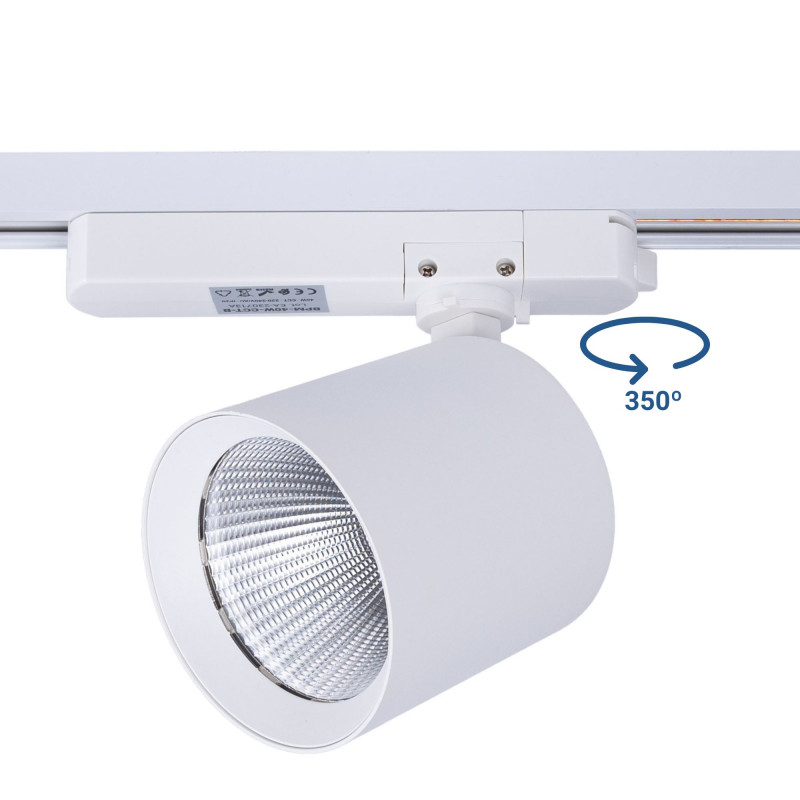

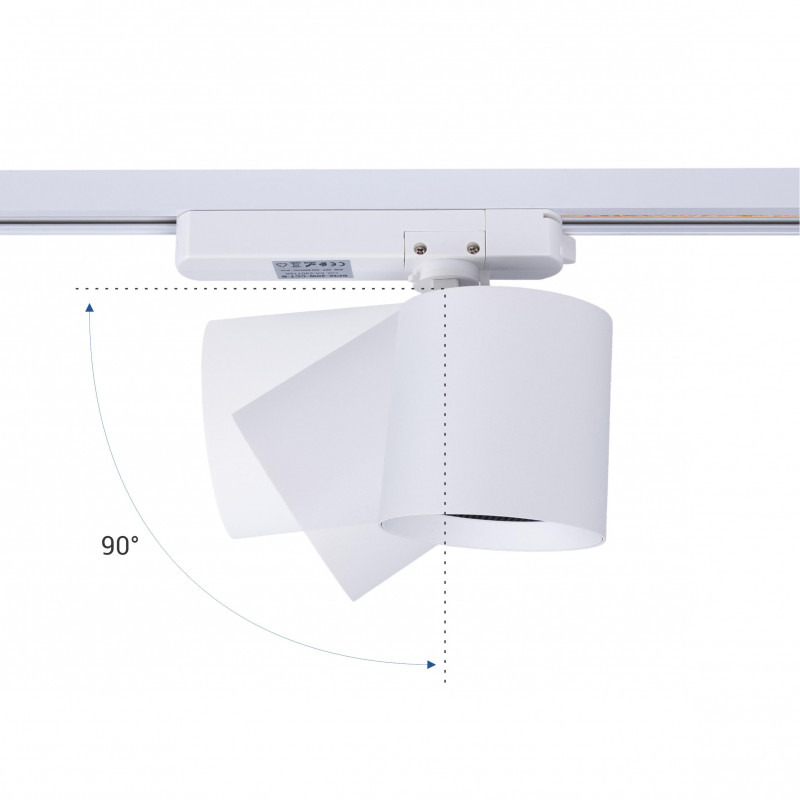

It features a body capable of horizontal rotation up to 350º and vertical rotation up to 90º, complemented by a beam angle of 38º. This ensures focused light, ideal for highlighting objects or products.

Additionally, its CCT system provides the option to adjust the colour temperature, allowing the selection of the most suitable light for the needs of each project.

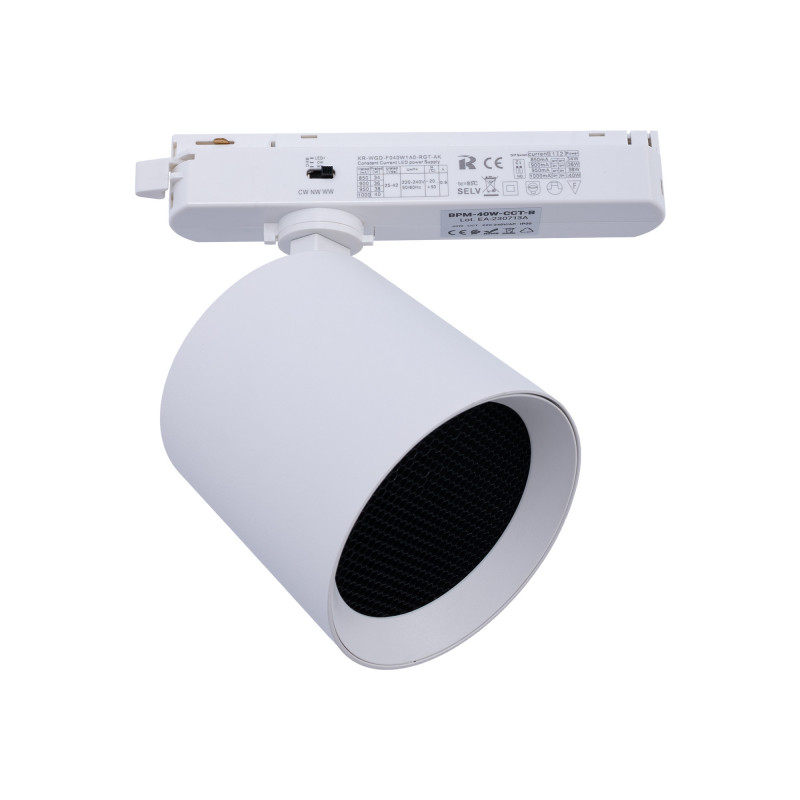

It comes with a honeycomb-shaped filter with a diameter of 80mm and a thickness of 2mm, to be placed in the spotlight for anti-glare lighting.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

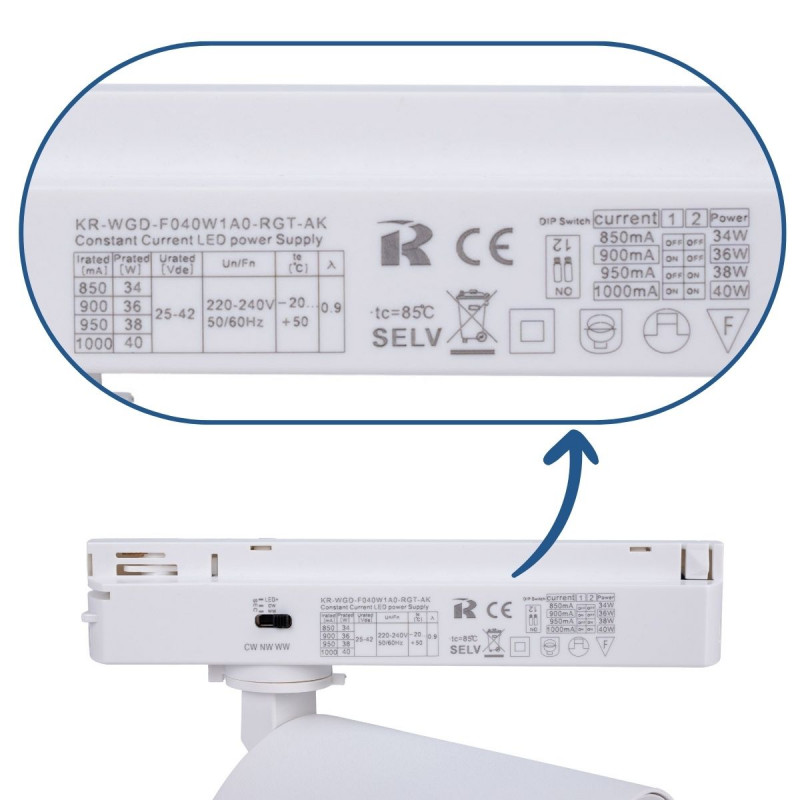

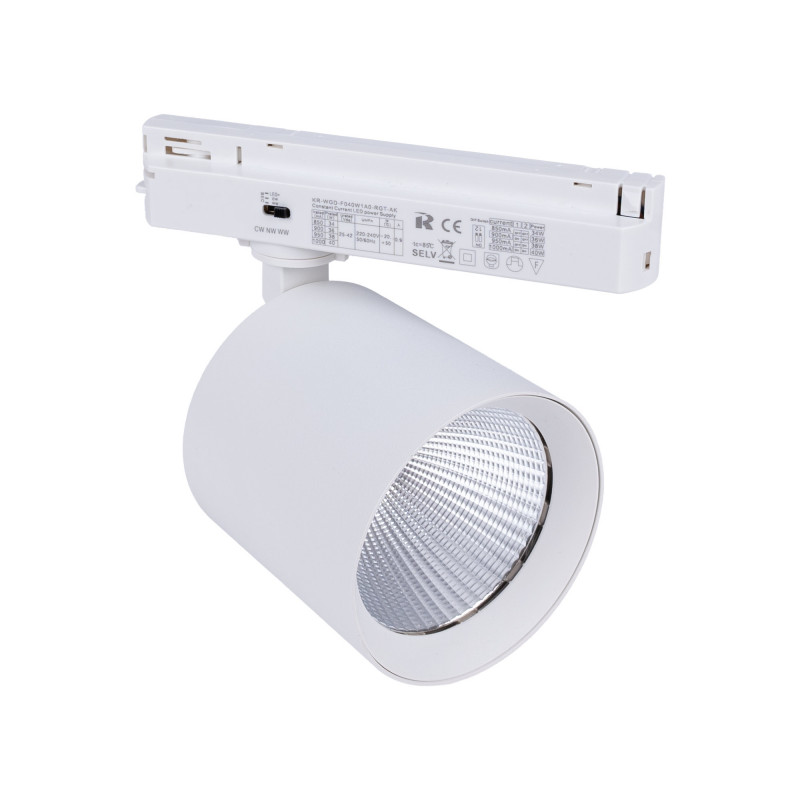

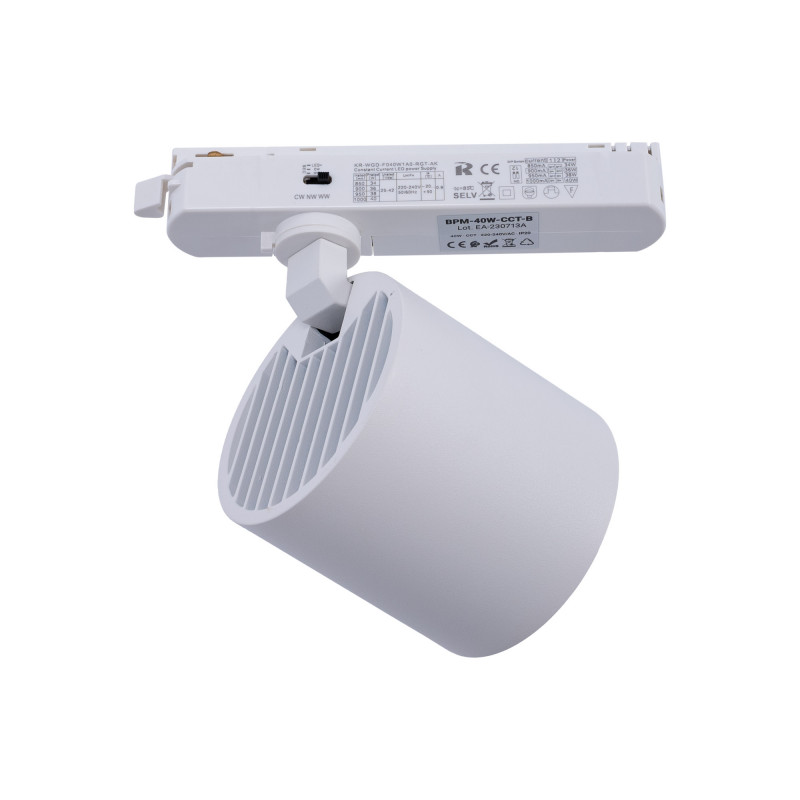

This high-quality LED spotlight stands out for its compact design and the intrack driver system. This system not only facilitates installation but also reduces heat transfer from the fixture to the driver, thus extending its service life.

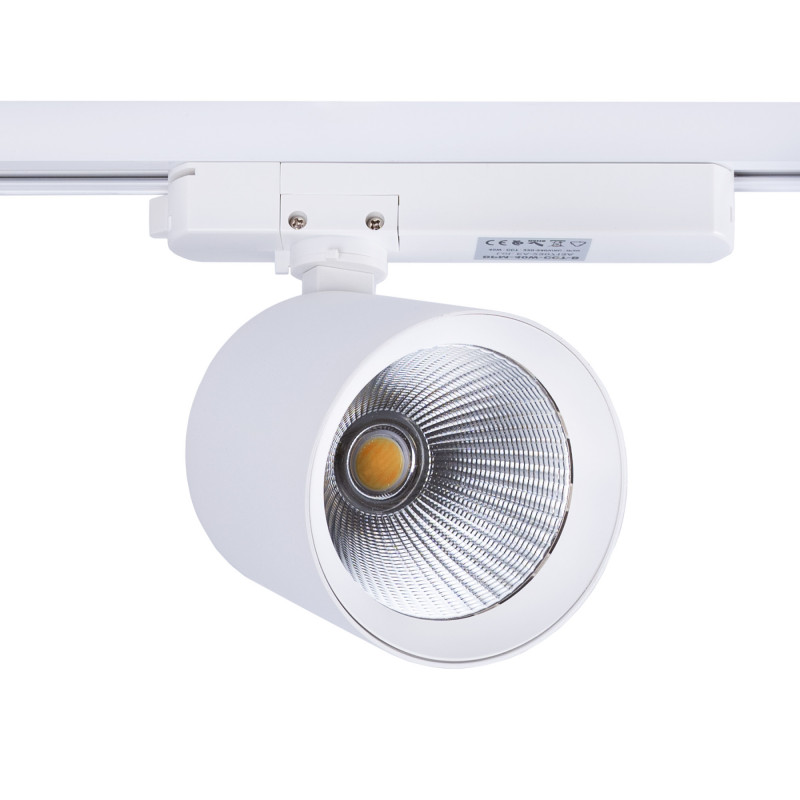

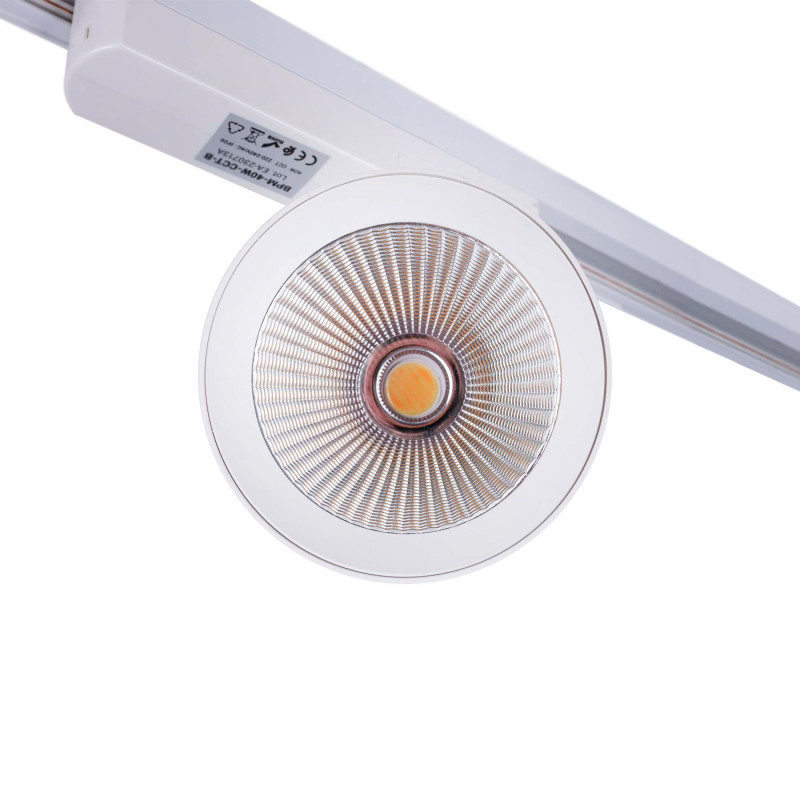

The spotlight incorporates a 40W Bridgelux COB LED chip producing 3300 lumens.

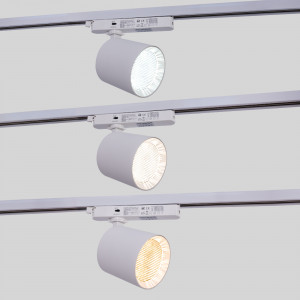

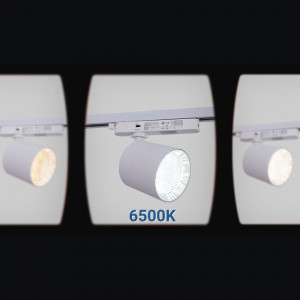

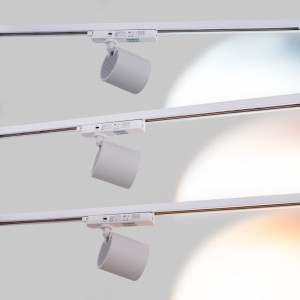

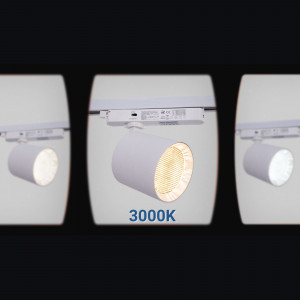

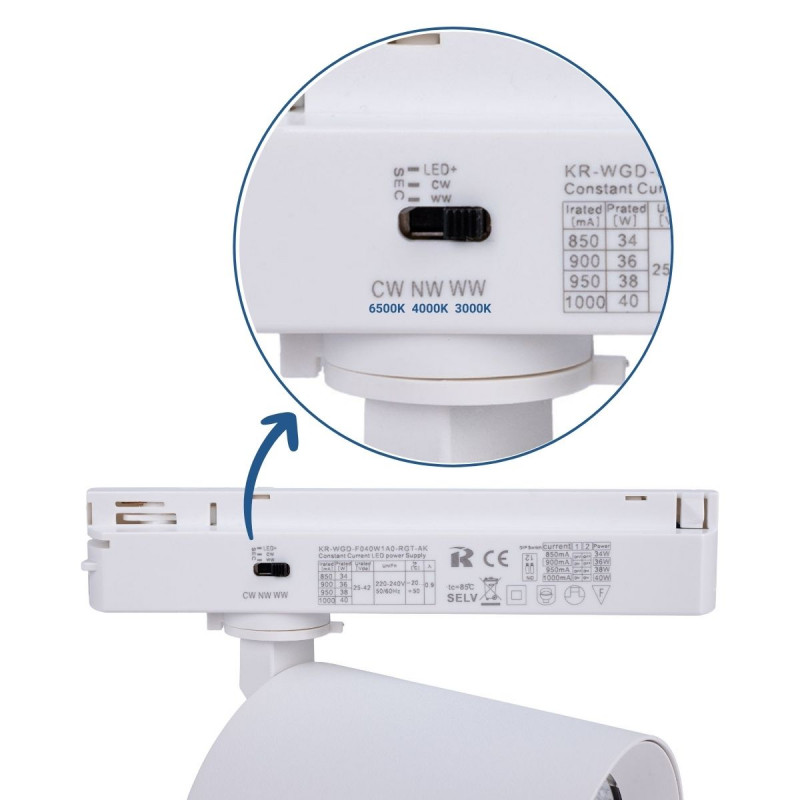

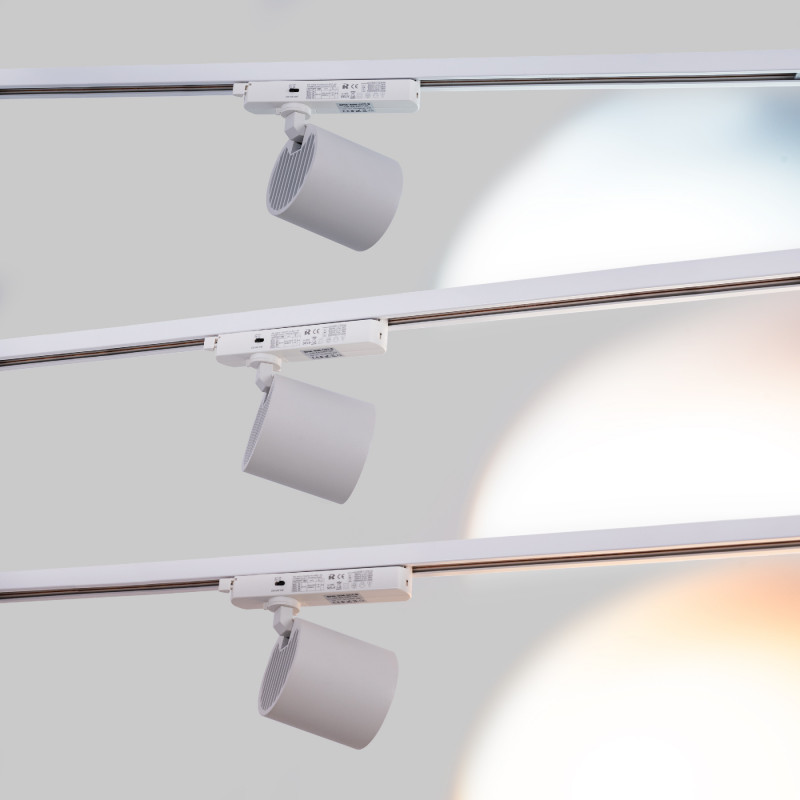

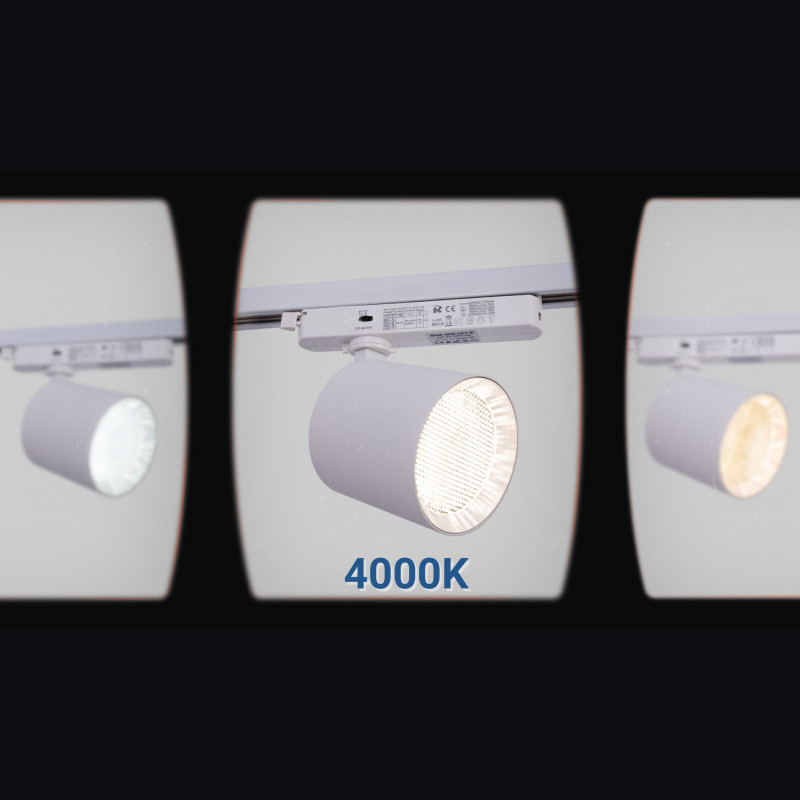

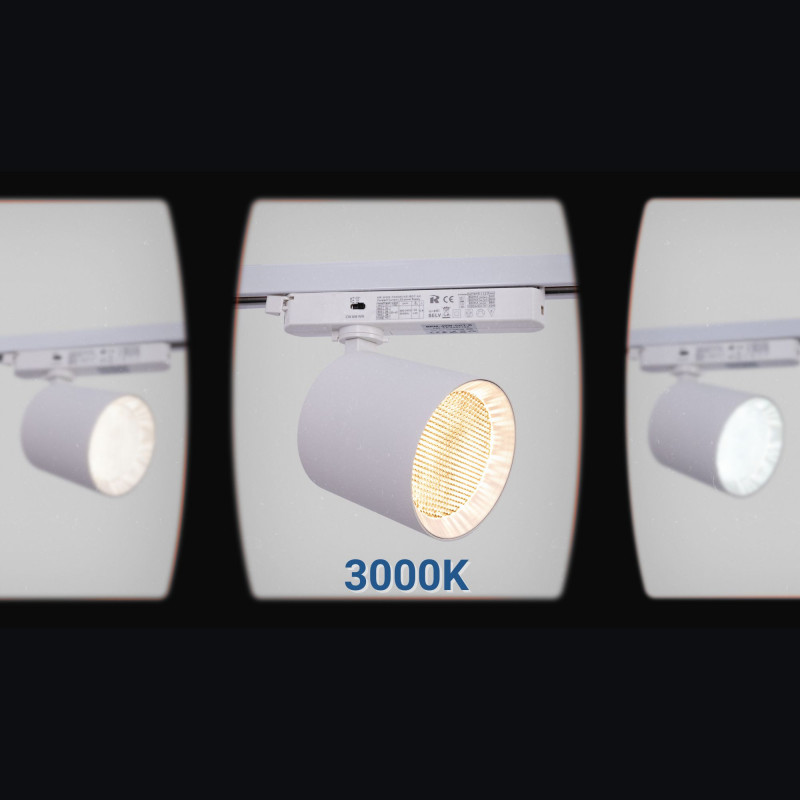

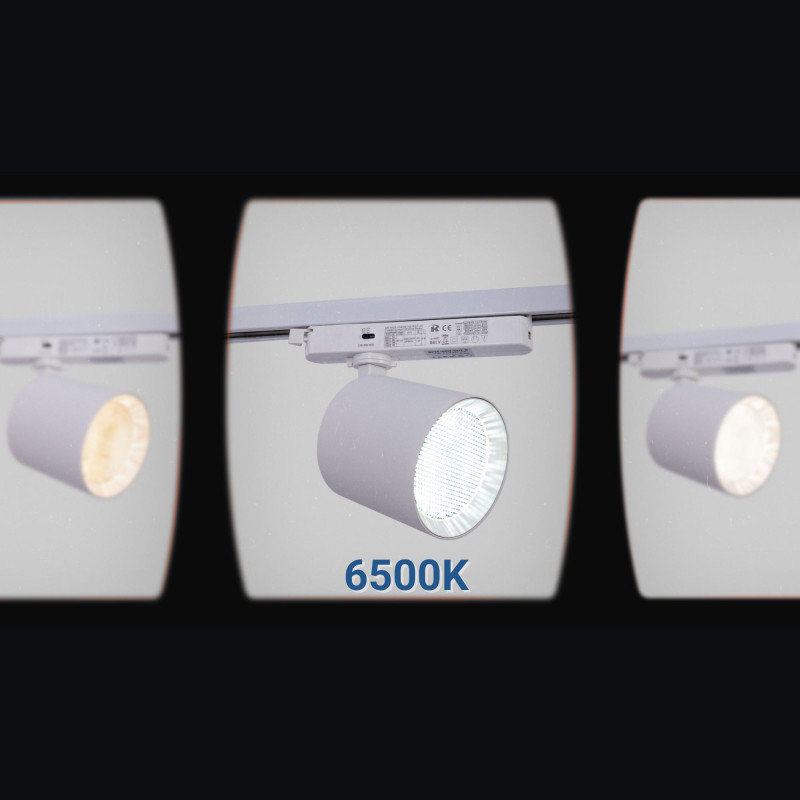

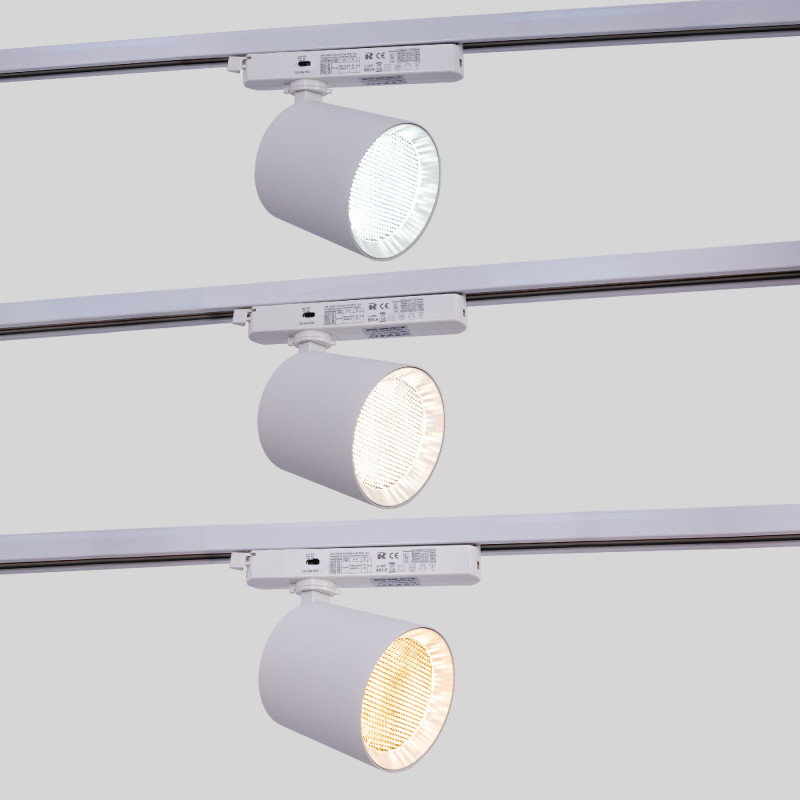

Its CCT system allows for adjusting the colour temperature in three shades: warm light (3000K), neutral light (4000K), or cool light (6500K), through a built-in dip switch in the driver.

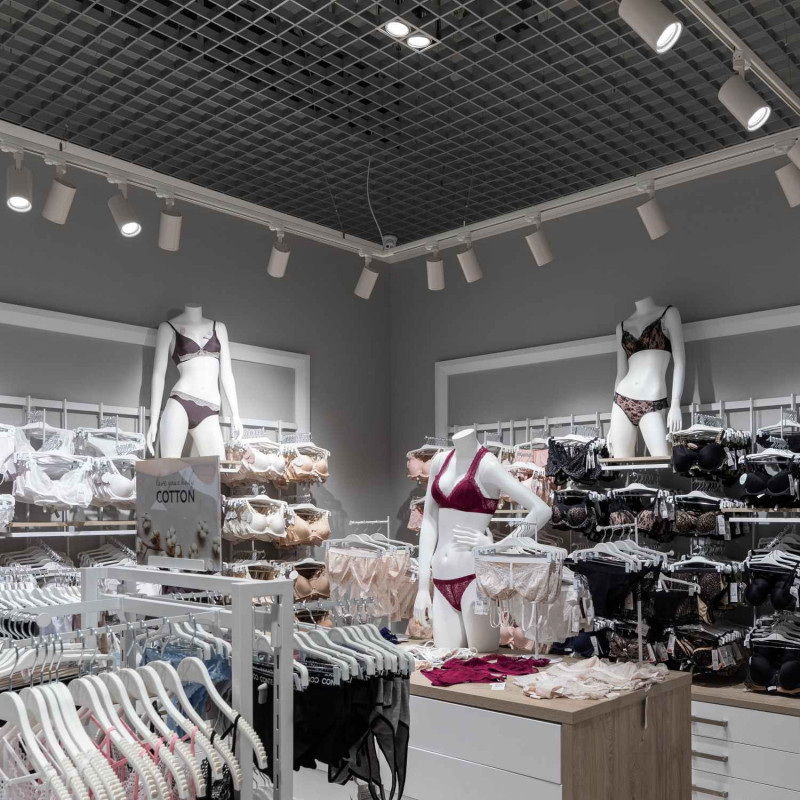

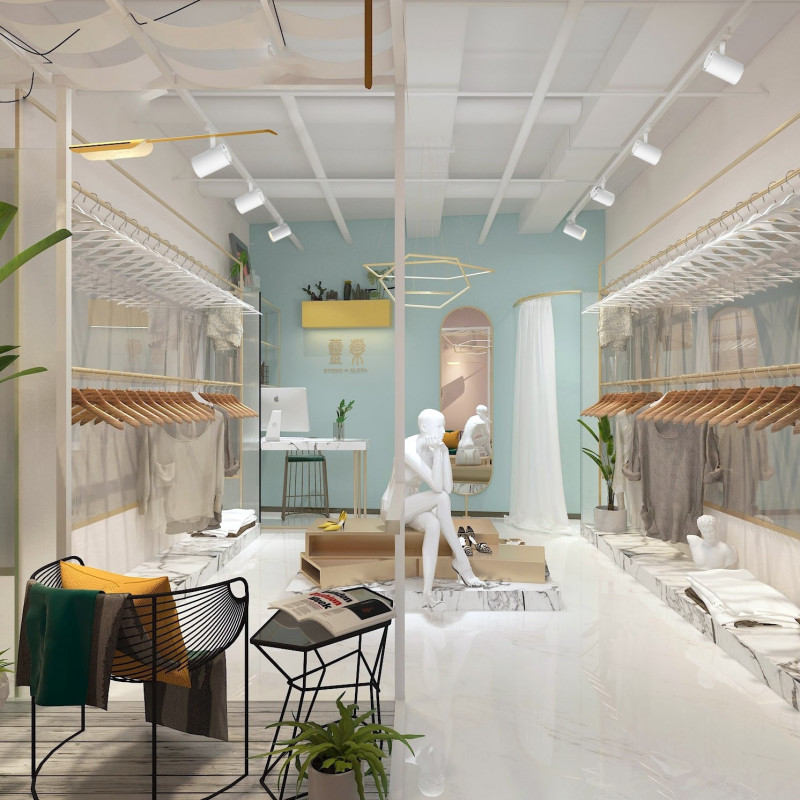

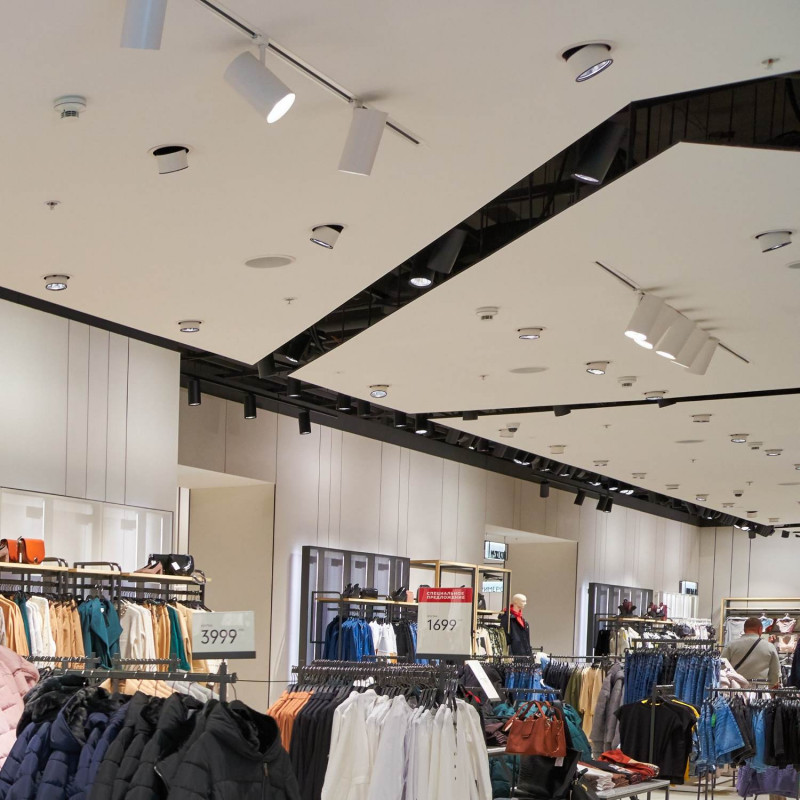

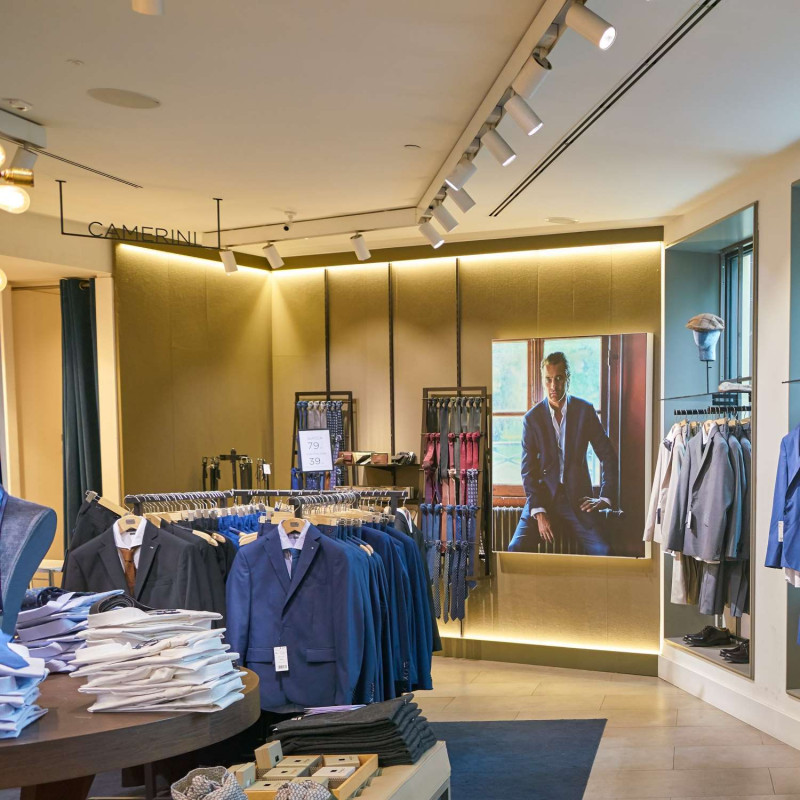

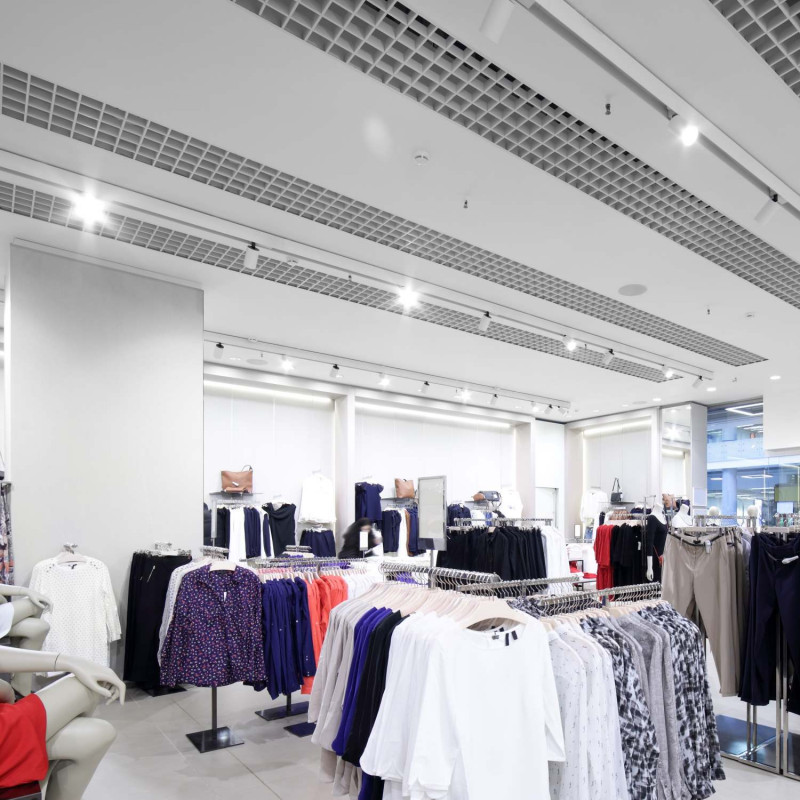

With an adjustable design and a beam angle of 38º, it's ideal for illuminating shops, restaurants, and businesses, as well as any other project requiring focused lighting.

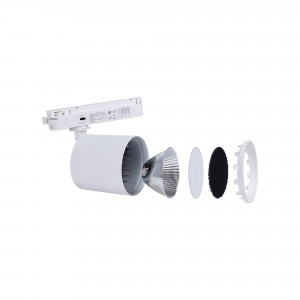

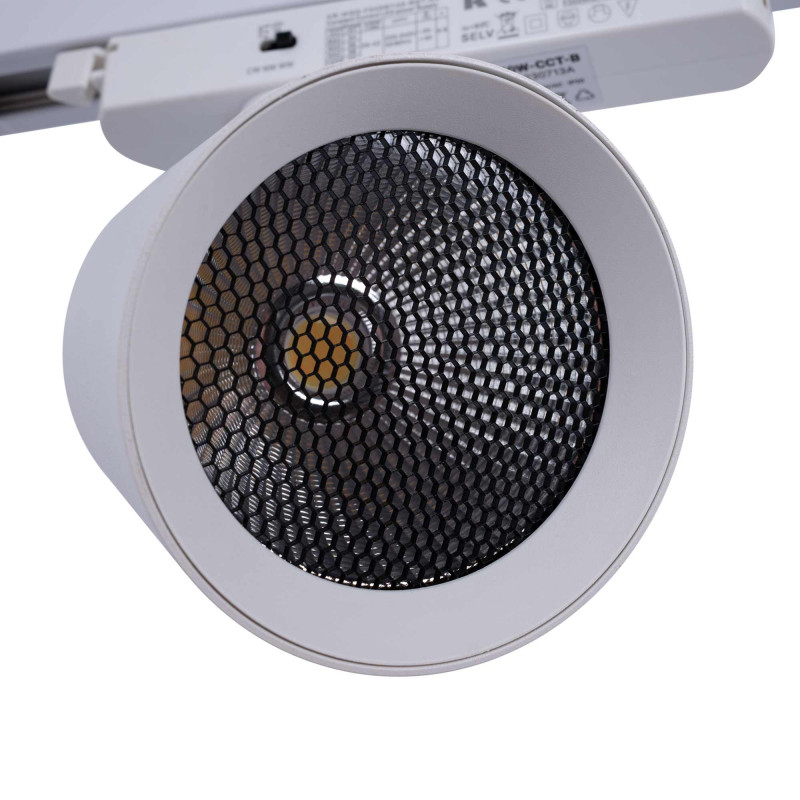

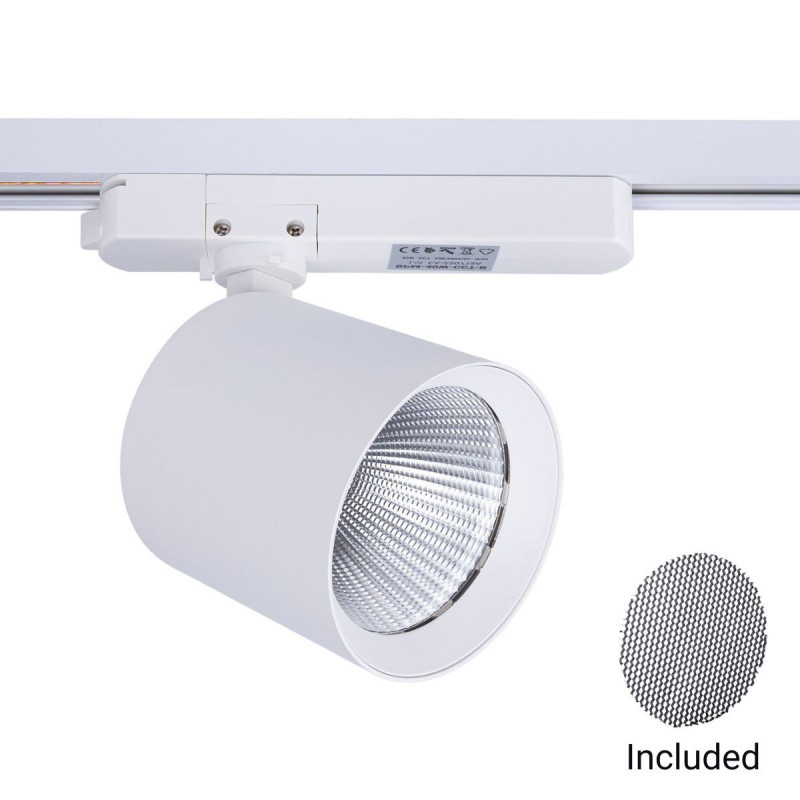

It incorporates a honeycomb anti-glare filter with a diameter of 80 mm and a thickness of 2 mm, positioned in the spotlight to reduce UGR.

The combination of aesthetic details, high-quality components, and functional features makes this product an efficient and high-quality solution for any lighting project.

Product features:

  • Compact and aesthetic design.
  • Material: Aluminum.
  • Diffuser material: Polycarbonate.
  • Including anti-glare honeycomb filter.
  • KR intrack driver for high performance and durability.
  • Type of LED: COB.
  • Power: 40W.
  • Lumens: 3293lm (warm white), 3272lm (neutral white) and 3186lm (cool white).
  • CRI>90.
  • Adjustable in any direction.
  • CCT shade: warm white (3000K), neutral white (4000K) and cool white (6500K).
  • Housing color: white.

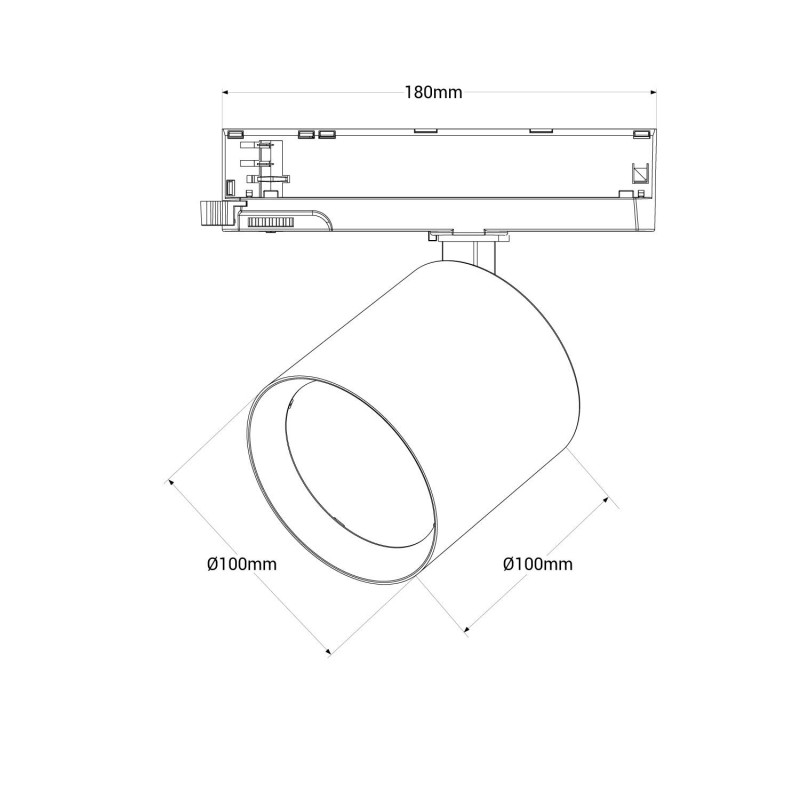

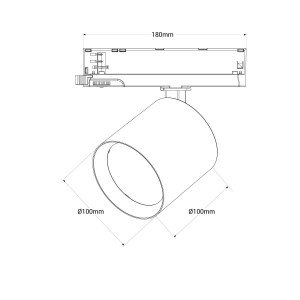

  • Dimensions: Ø 100 x 100 x 180 mm.

Nominal Voltage (V)
220 - 240 V/AC
Power (W)
40
Lumens (Lm)
3186lm (cool white)
3272lm (neutral white)
3293lm (warm white)
Kelvin (K)
3000
4000
6000
Beam angle (º)
38
IP
IP20
Dimensions (mm) Lxlxh
Ø 100 x 100 x 180
Hue
CCT
CRI
90-95
LED Type
COB
Dimmable
No
Driver
Internal
Orientable
Yes
Material
Aluminium
Diffuser material
Polycarbonate
Energy efficiency class
F
Certificates
CE
ROHS
Warranty
5 years
Track Type
Monophasic
