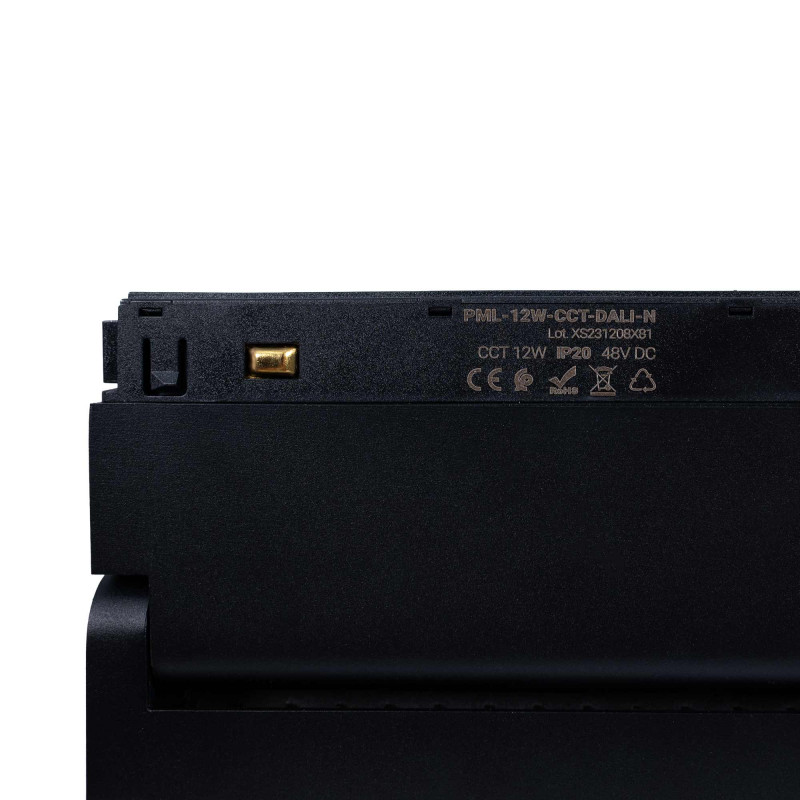

SKU:PML-12W-CCT-DALI-N
Has superado el límite de unidades
In stock 191 units
Data sheet

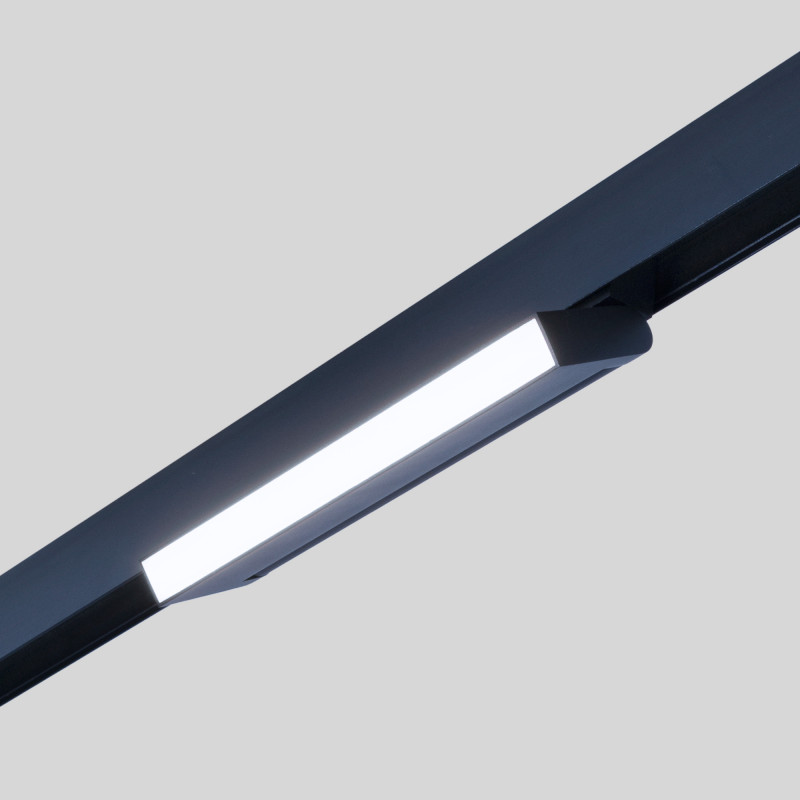

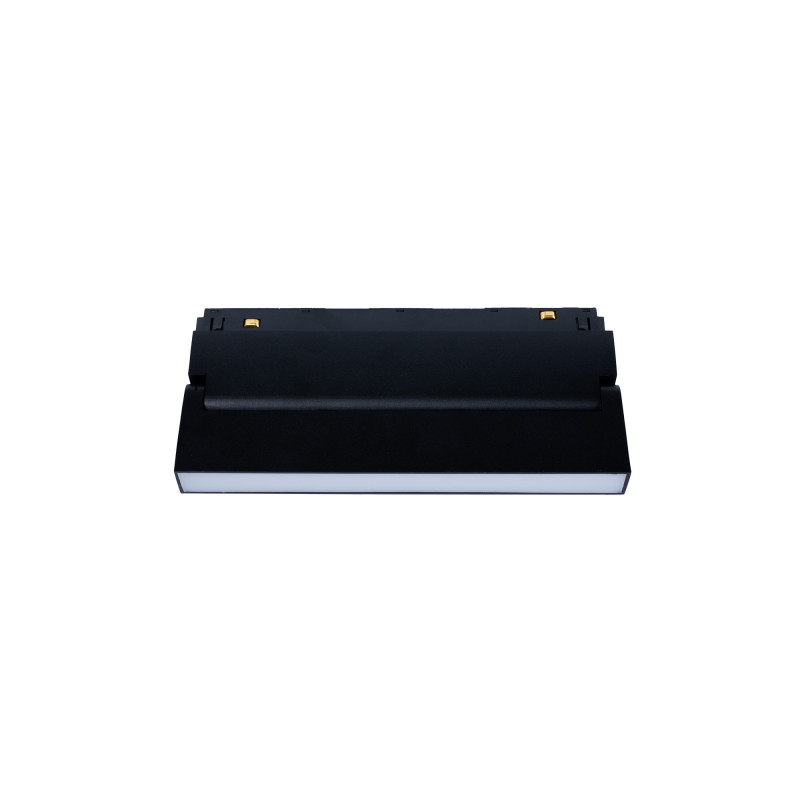

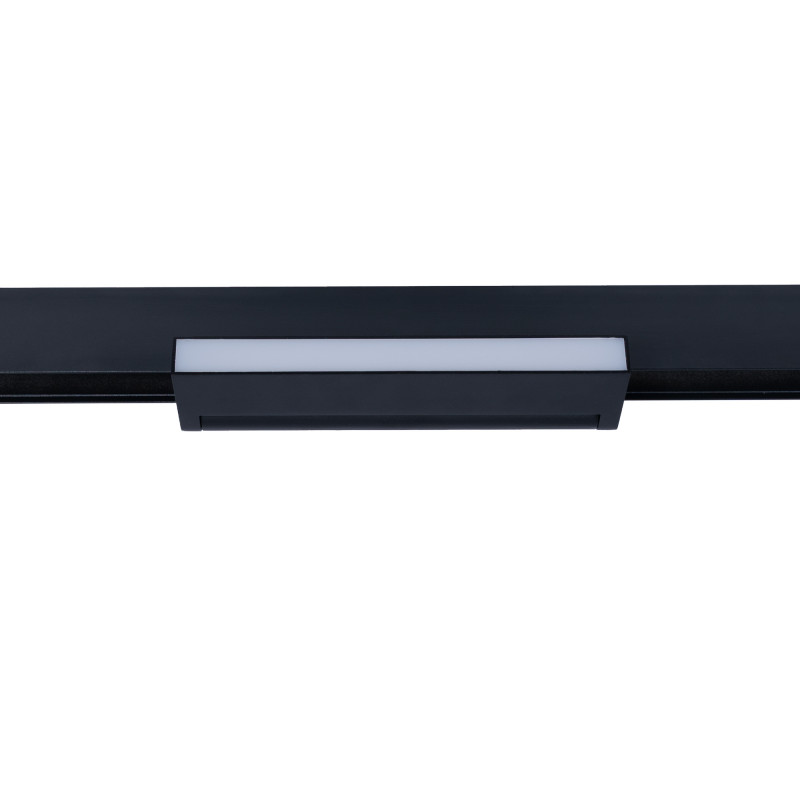

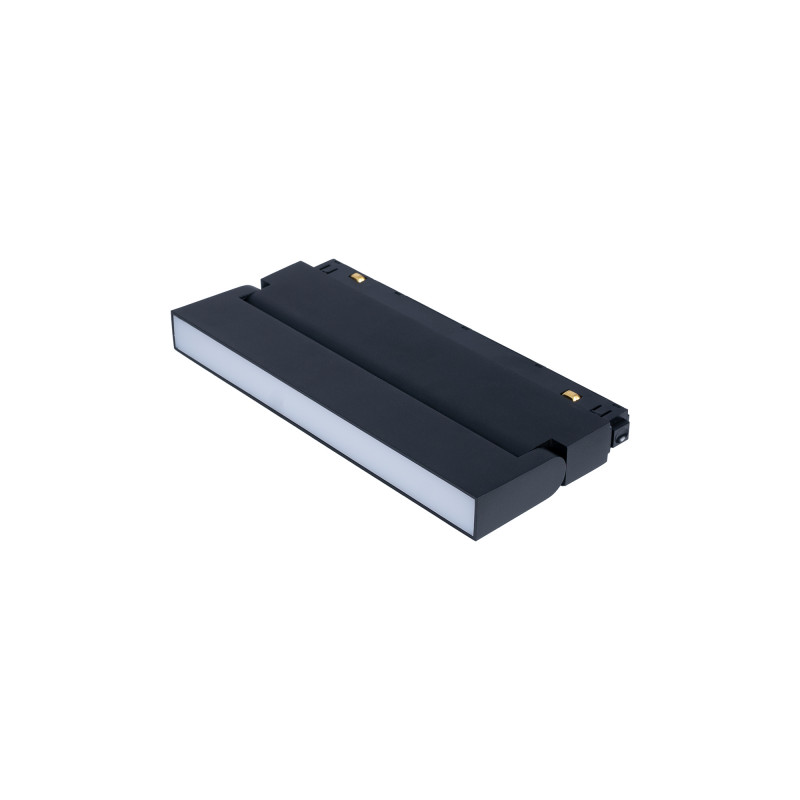

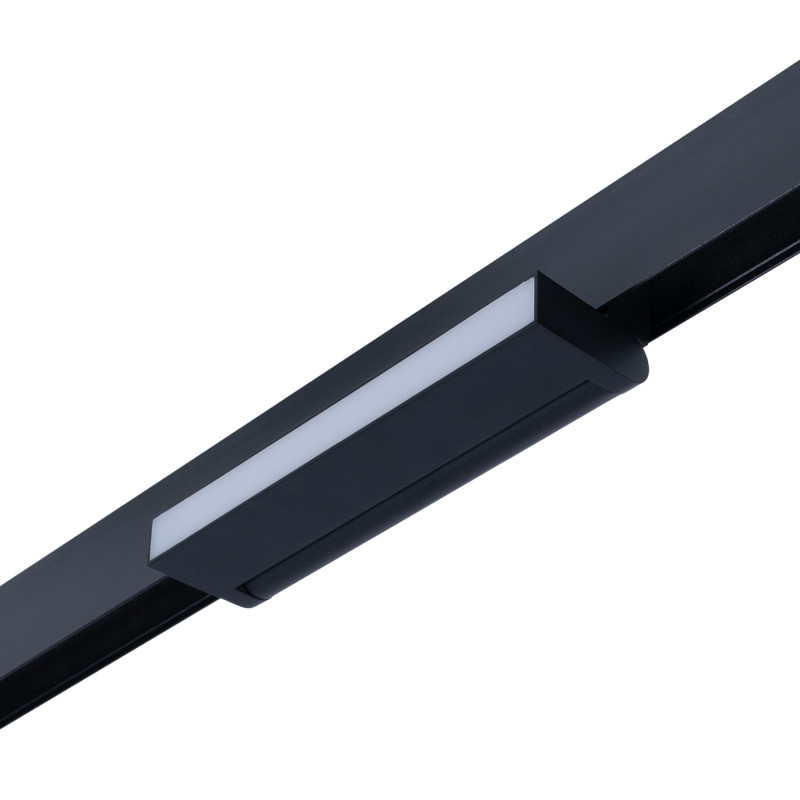

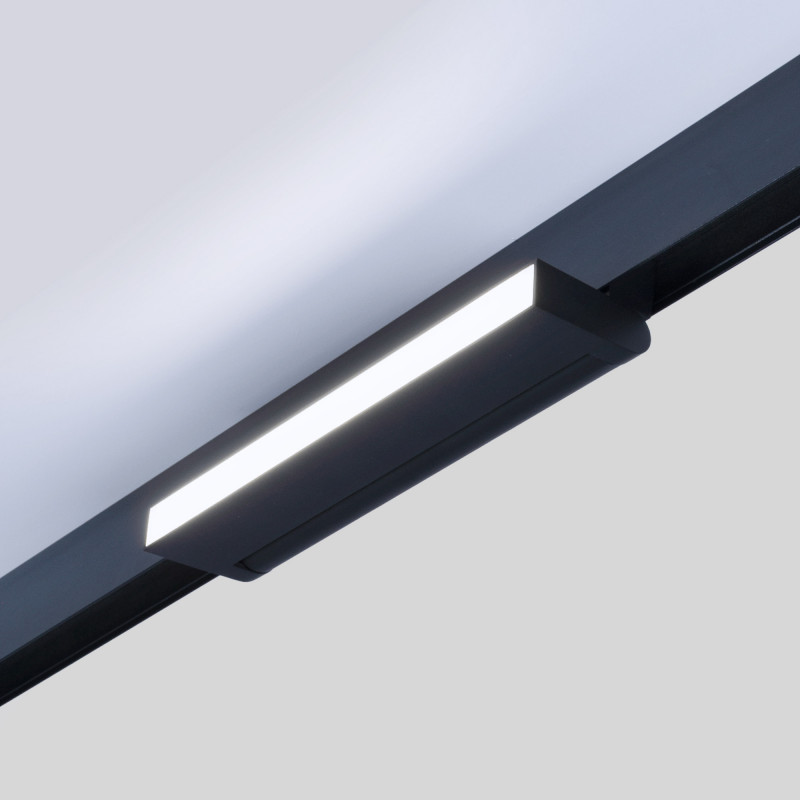

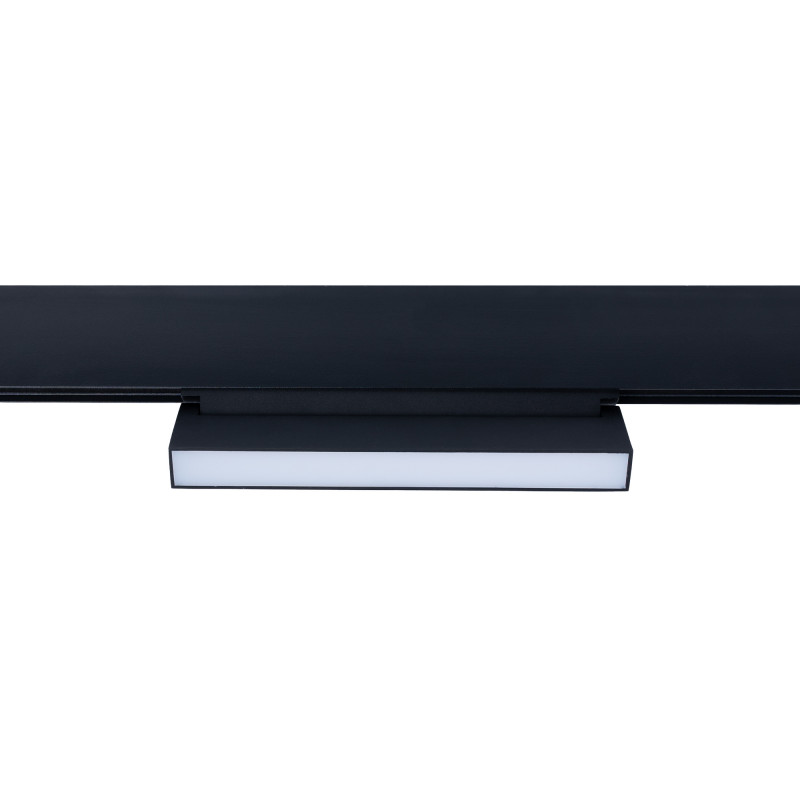

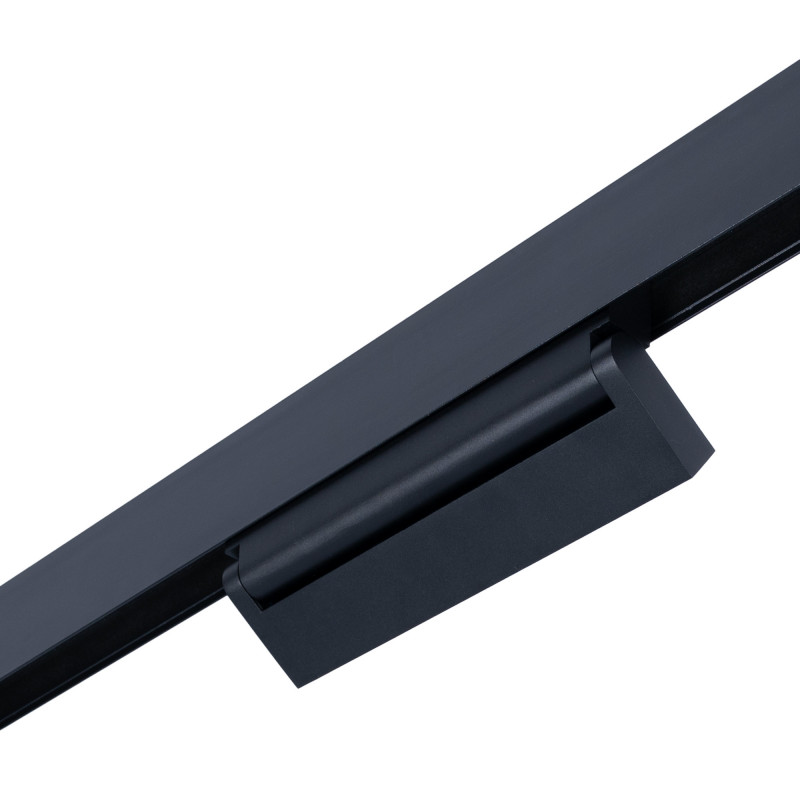

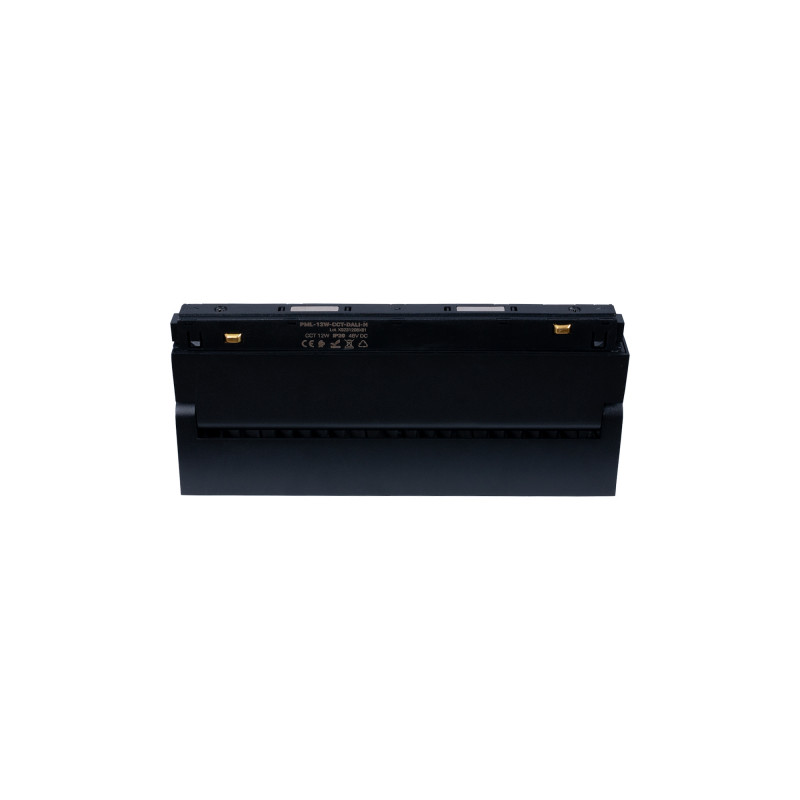

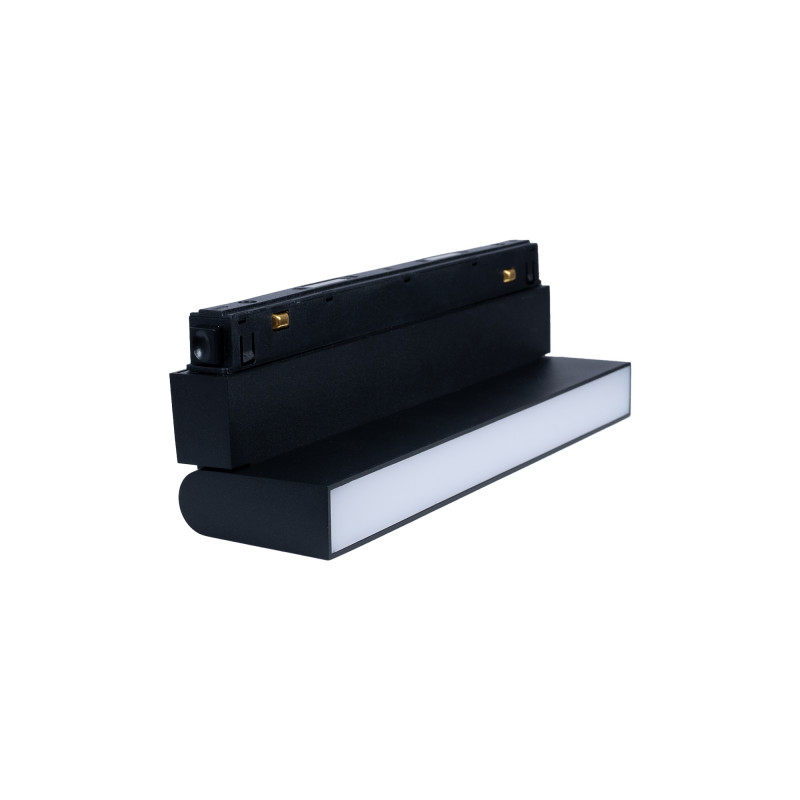

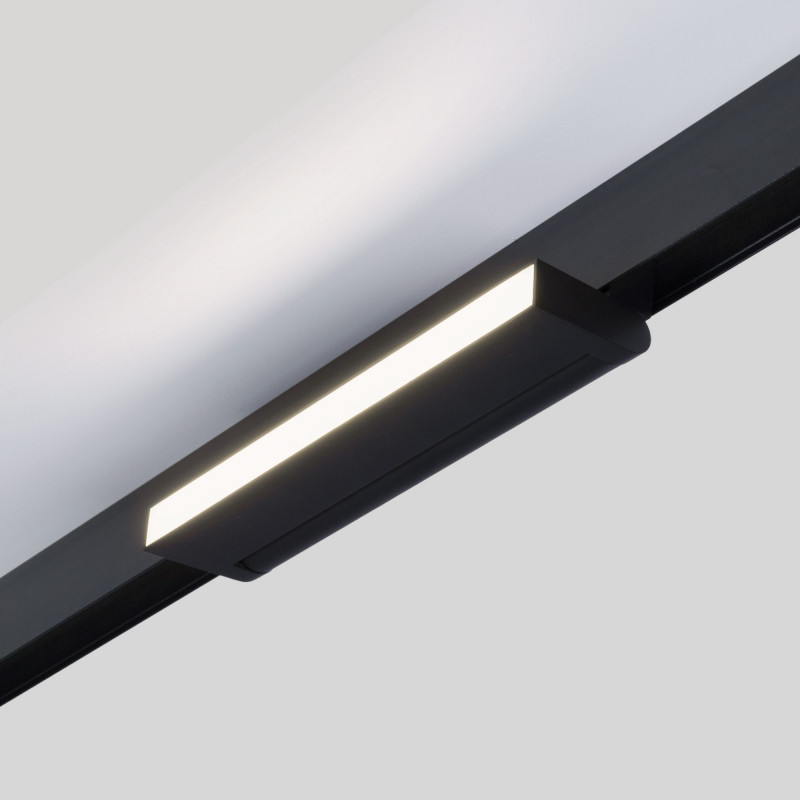

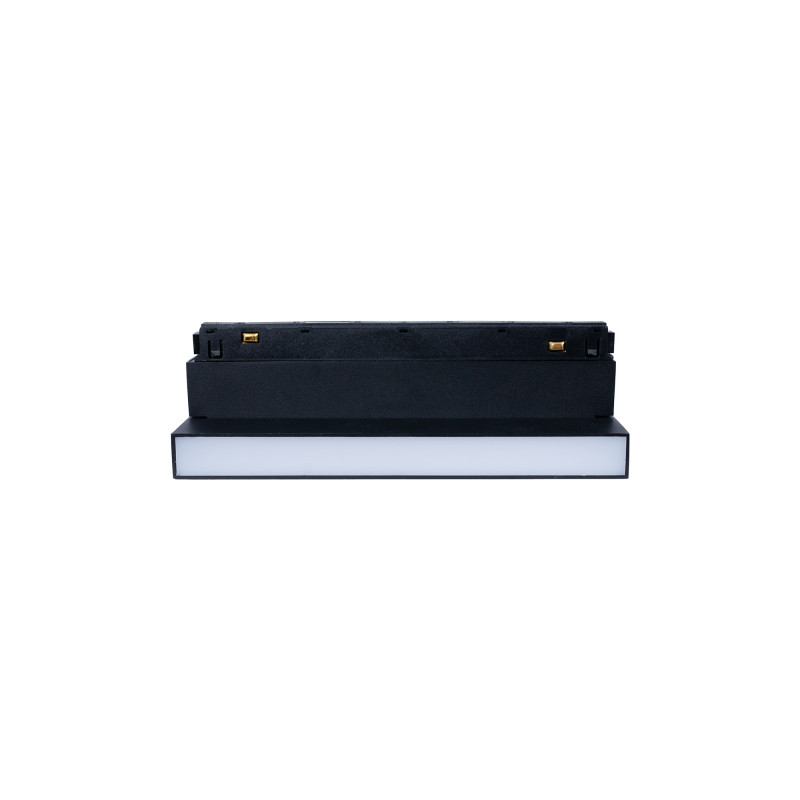

12W LED adjustable linear light for 48V magnetic track.

It incorporates DALI-2 protocol dimmable driver and CCT system with adjustable colour temperature (2700K - 6000K).

It requires a DALI controller/master (not included).

Designed to minimize glare, with a 120° beam angle.

Perfect for offices and commercial spaces, it offers efficient lighting and superior visual comfort.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

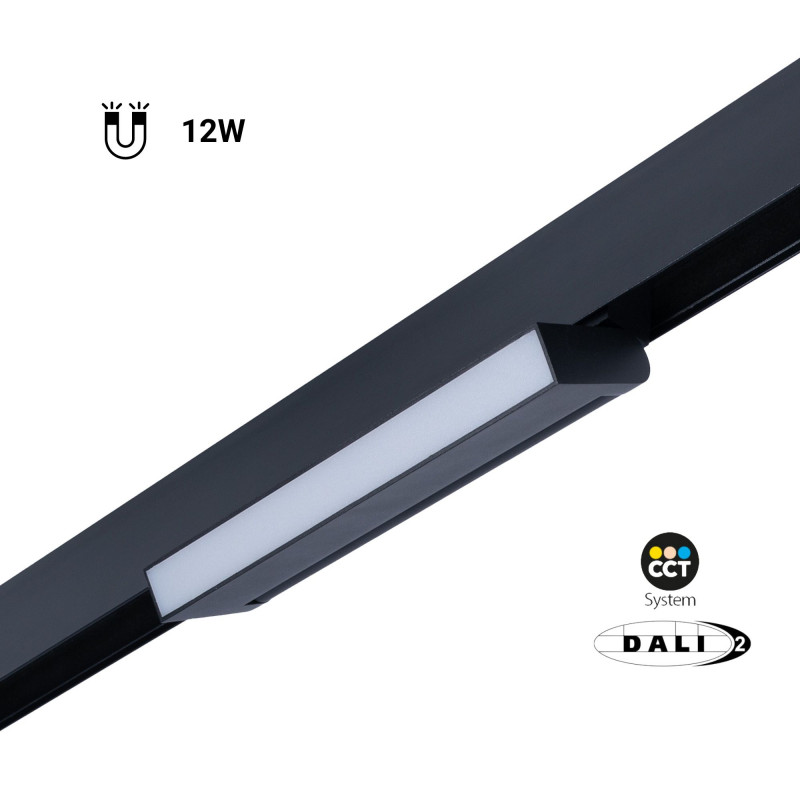

CCT Adjustable magnetic linear track light - 12W - Opal diffuser - DALI-2 control

  • Modern, sleek design: Its modern and linear black design complements any contemporary decor. The compact dimensions of 22cm allow for a discreet and elegant integration in both domestic and commercial spaces.
  • DALI dimming: A DALI-2 protocol dimmable driver offers precise lighting control, allowing the creation of customized ambiances that integrate seamlessly with the main lighting system. It requires a DALI controller/master (not included).

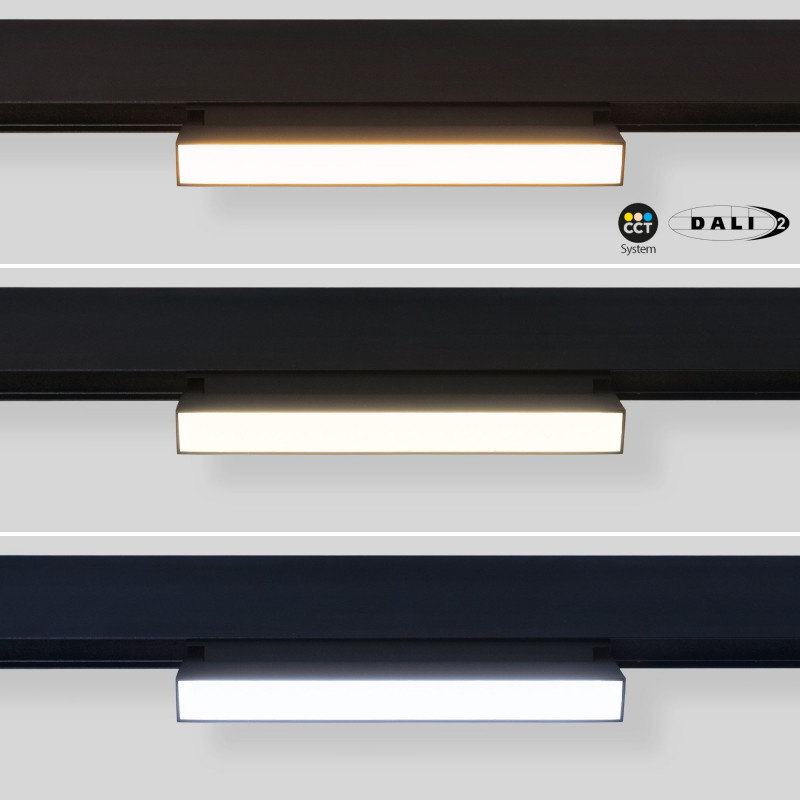

  • Adjustable CCT system: Using DALI control, it allows adjusting the colour temperature between 2700K and 6000K to suit different needs and environments. The default shade is neutral white.
  • Maximum visual comfort: With a UGR18 rating, this luminaire is specially designed to minimize glare and avoid eye fatigue, ensuring maximum visual comfort for users.

  • Wide beam angle: Boasting a wide 120° beam angle, it delivers expansive and uniform light distribution, ensuring minimal harsh shadows.

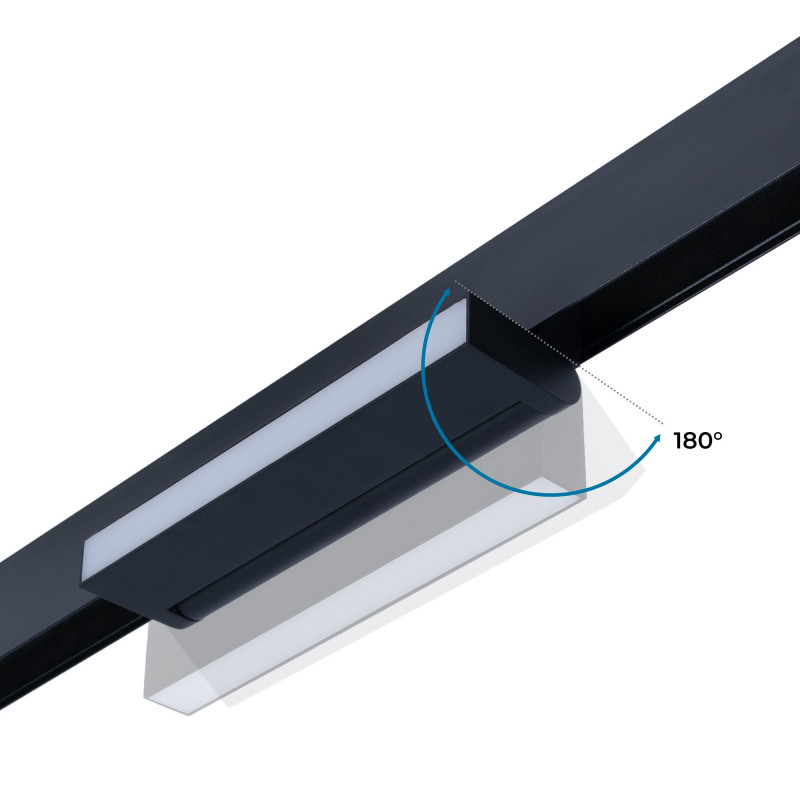

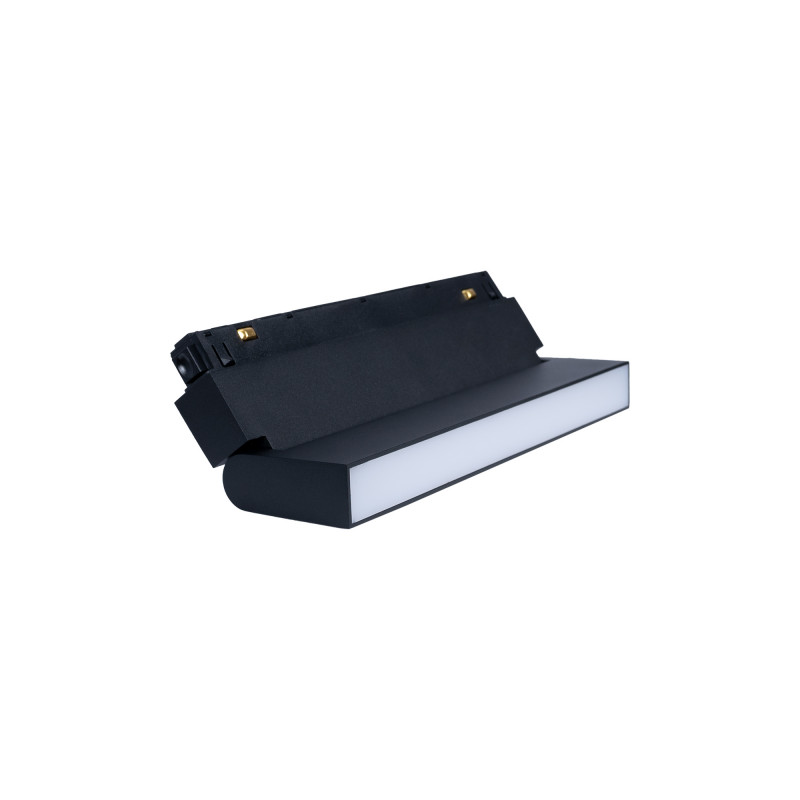

  • Adjustable light fixture: It allows directing the light to where it's most needed, increasing functionality and adaptability in any installation.

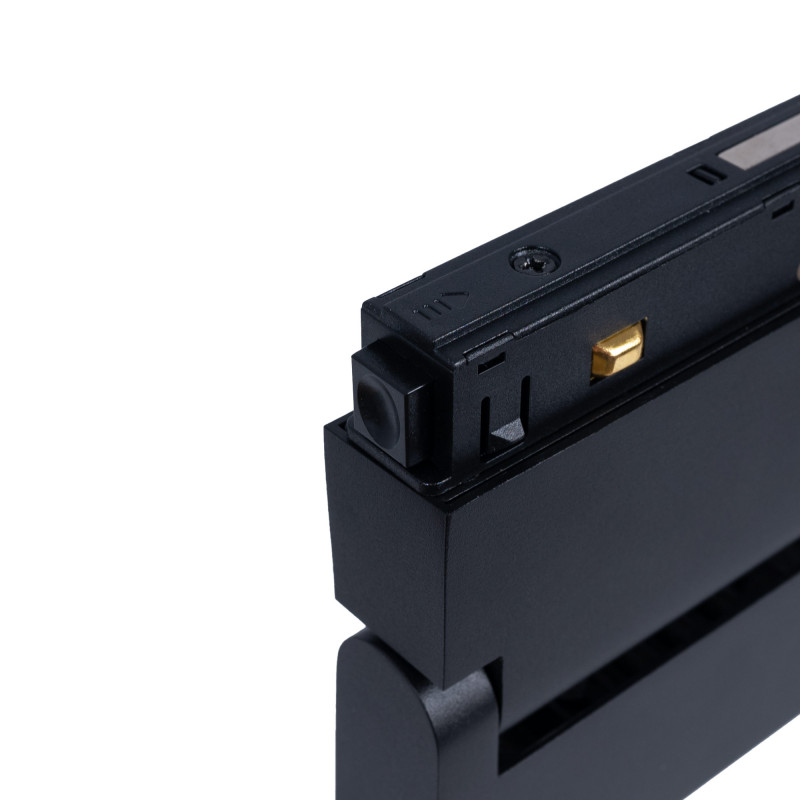

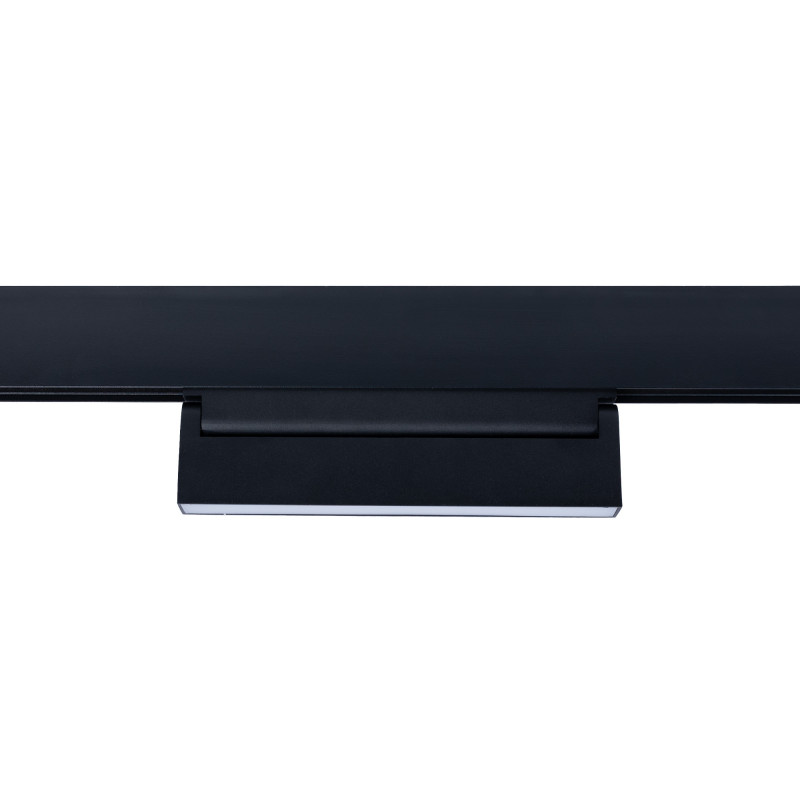

  • Simple and versatile installation: Its practical design allows quick installation on the magnetic track without the need for tools. Additionally, it can be easily moved along the track and combined with other luminaires.
Nominal Voltage (V)
48V
Power (W)
12
Kelvin (K)
2700-6000
Beam angle (º)
120
IP
IP20
Dimensions (mm) Lxlxh
220 x 105 x 23
Hue
CCT
CRI
95-97
UGR
UGR22
Dimmable
Yes
Driver
BOKE
Control system
DALI
Colour control
CCT
Orientable
Yes
Material
Aluminium
Diffuser material
Polycarbonate
Use Outdoor
No
Track Type
Magnetic
