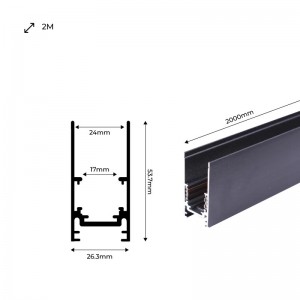

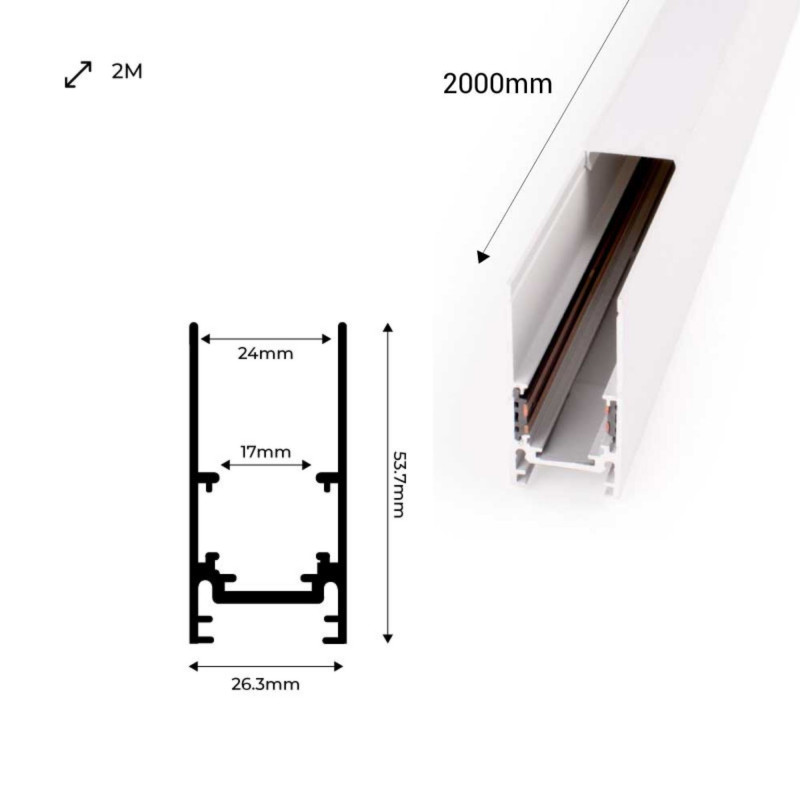

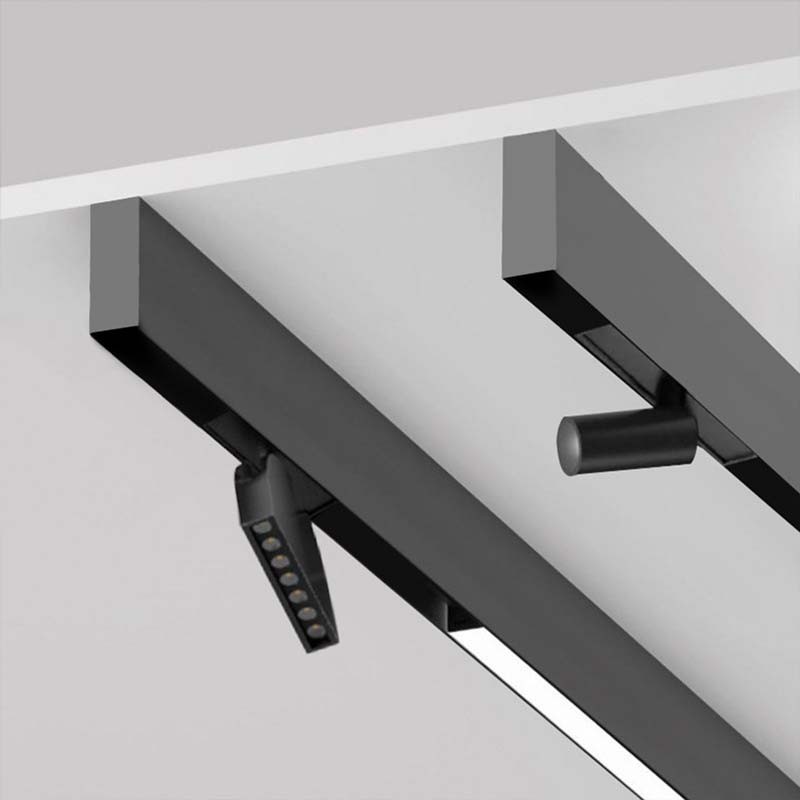

Magnetic rail 20mm surface mounted 48V - 2 meters
SKU:CMS-200-N
€42.45
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

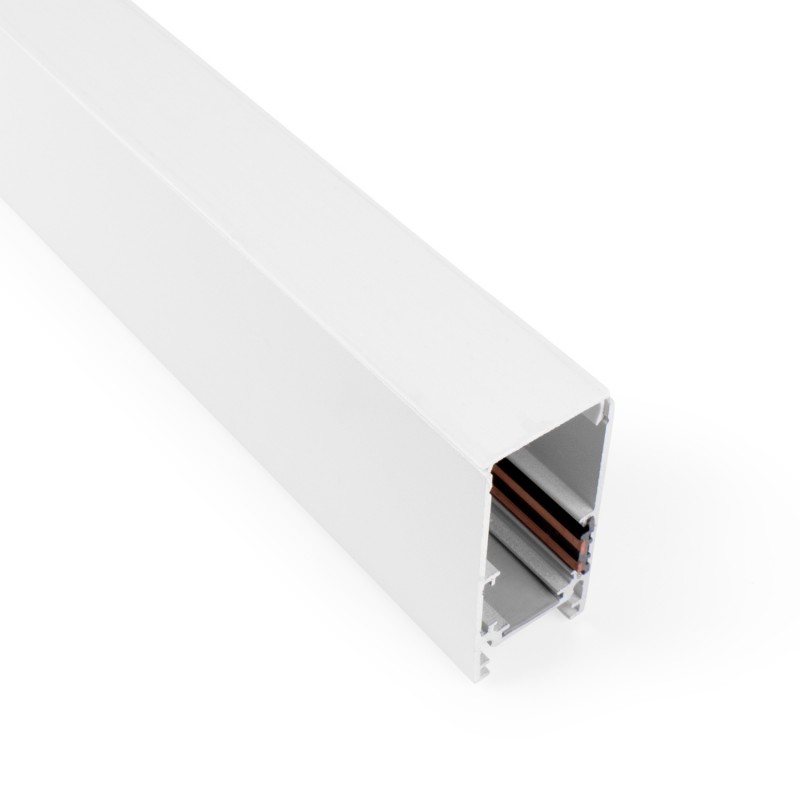

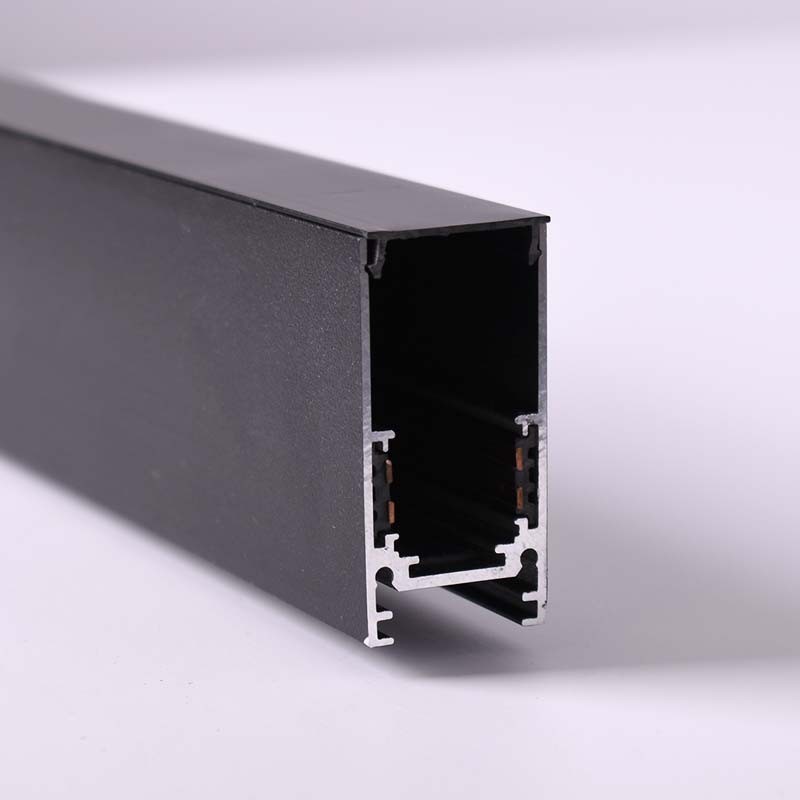

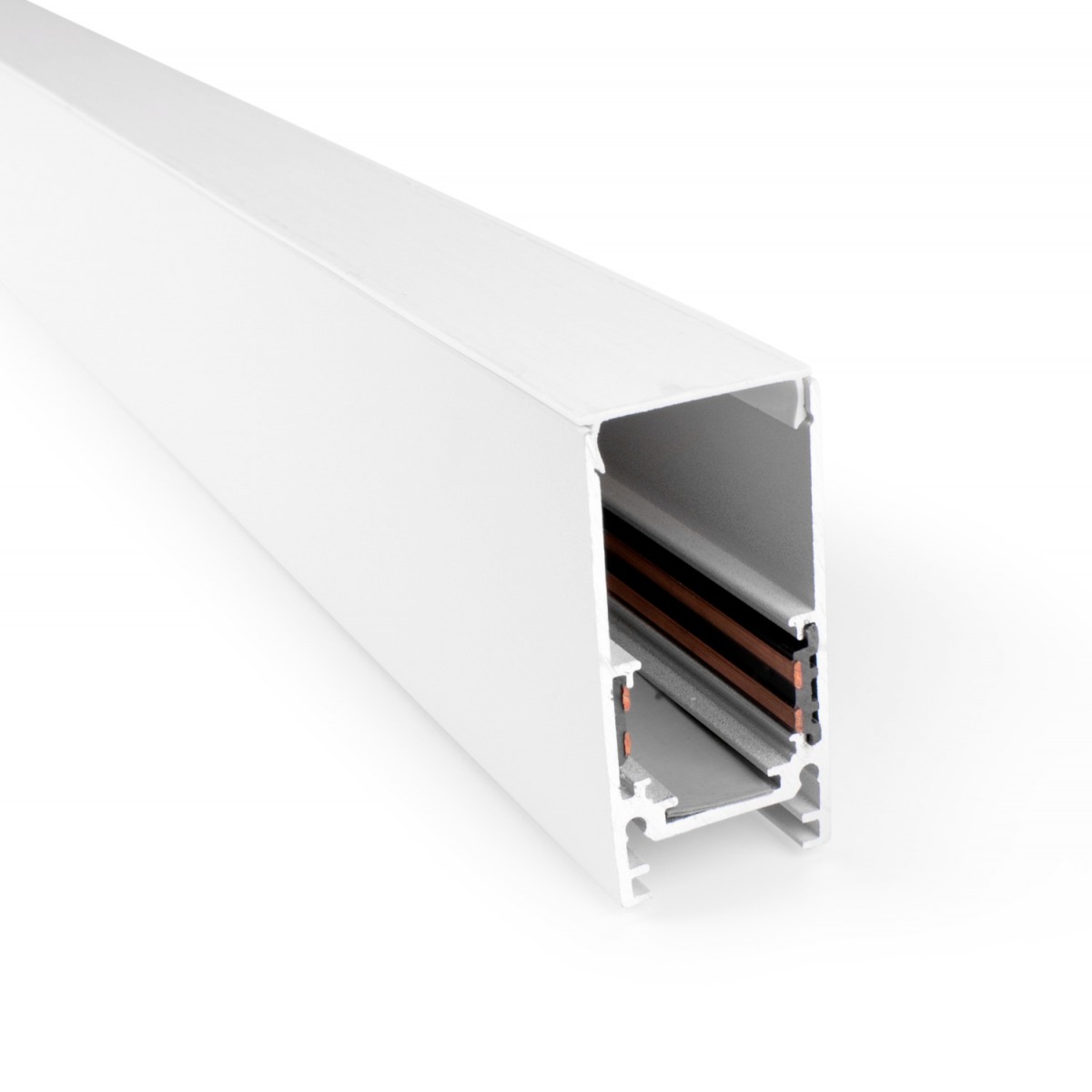

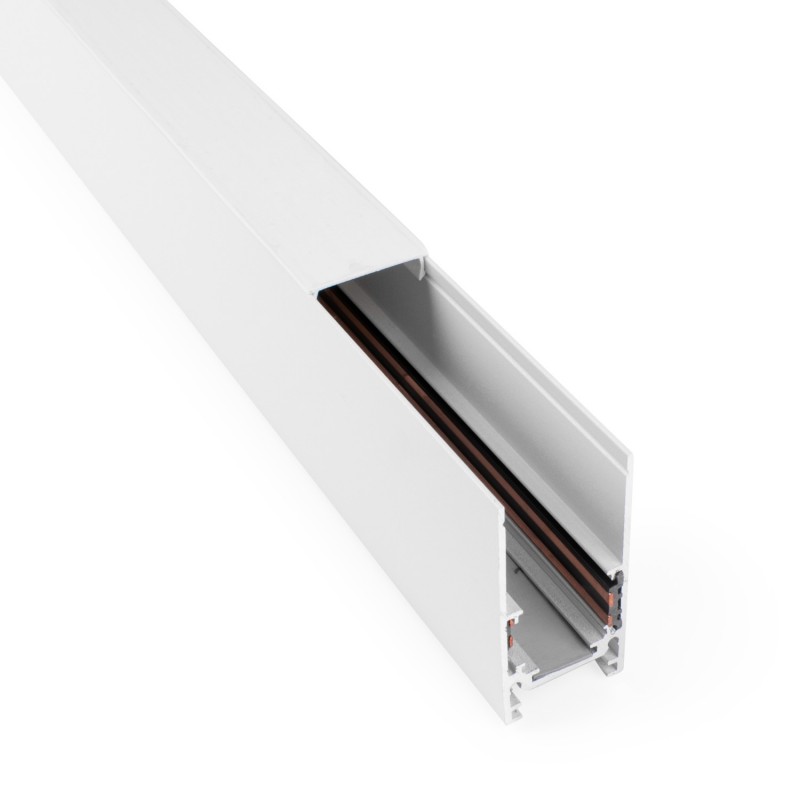

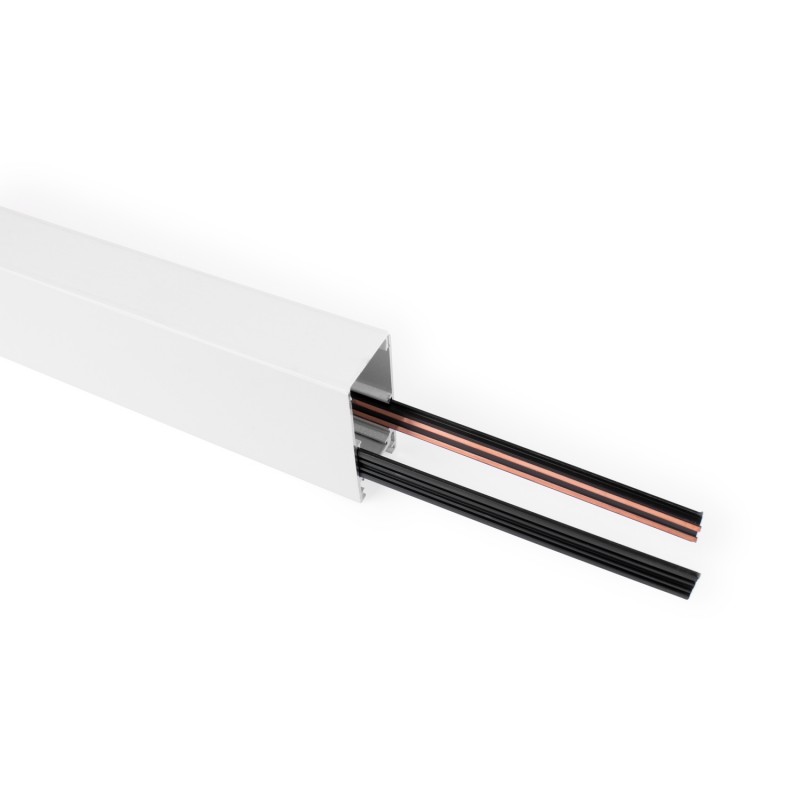

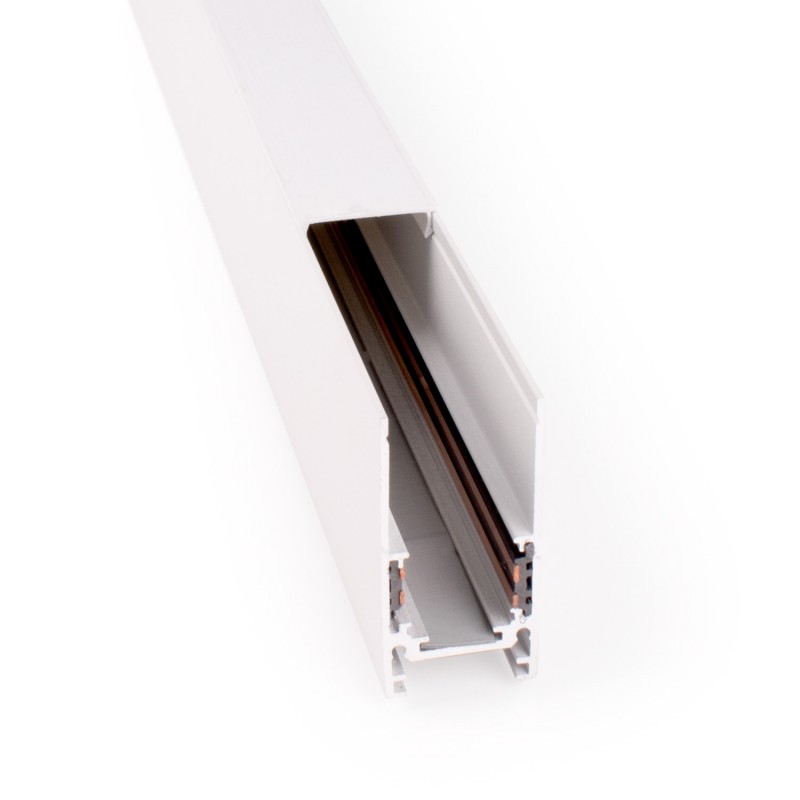

This magnetic rail has two copper conductors on each side of the rail, which act as phase and neutral of the circuit, to feed the luminaires installed on it.

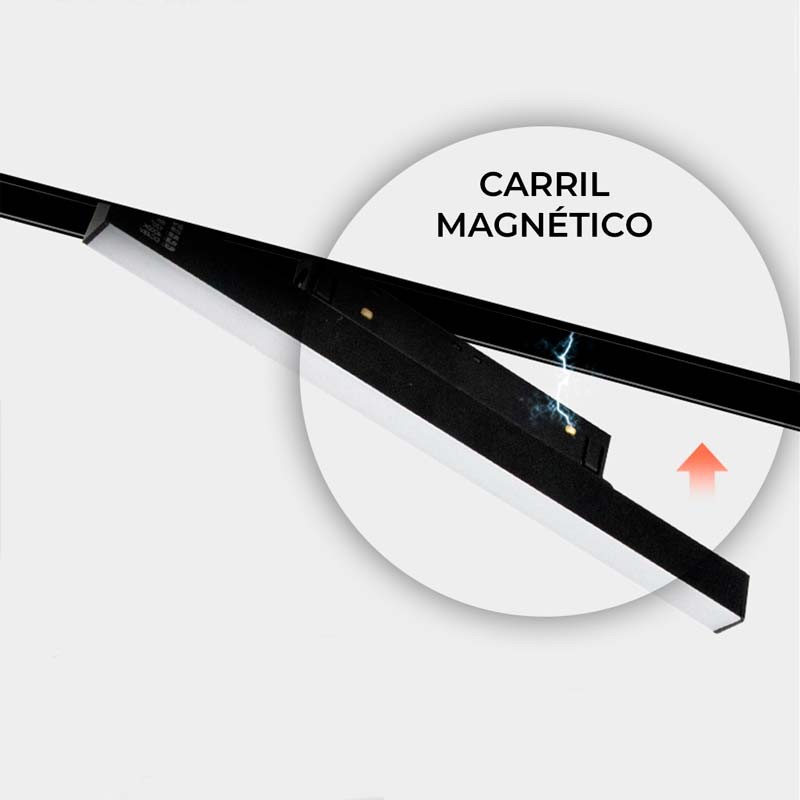

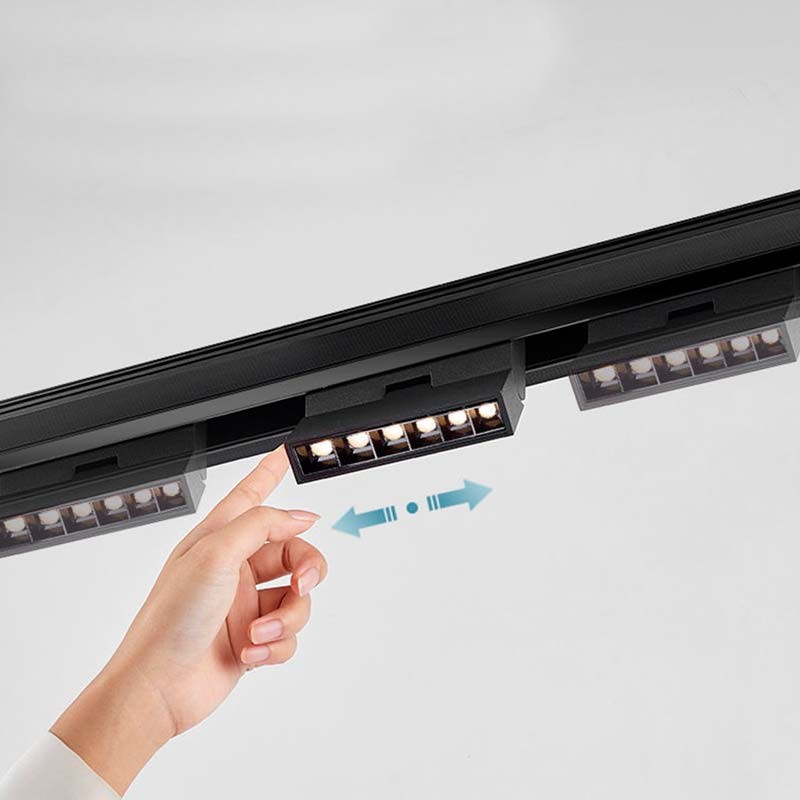

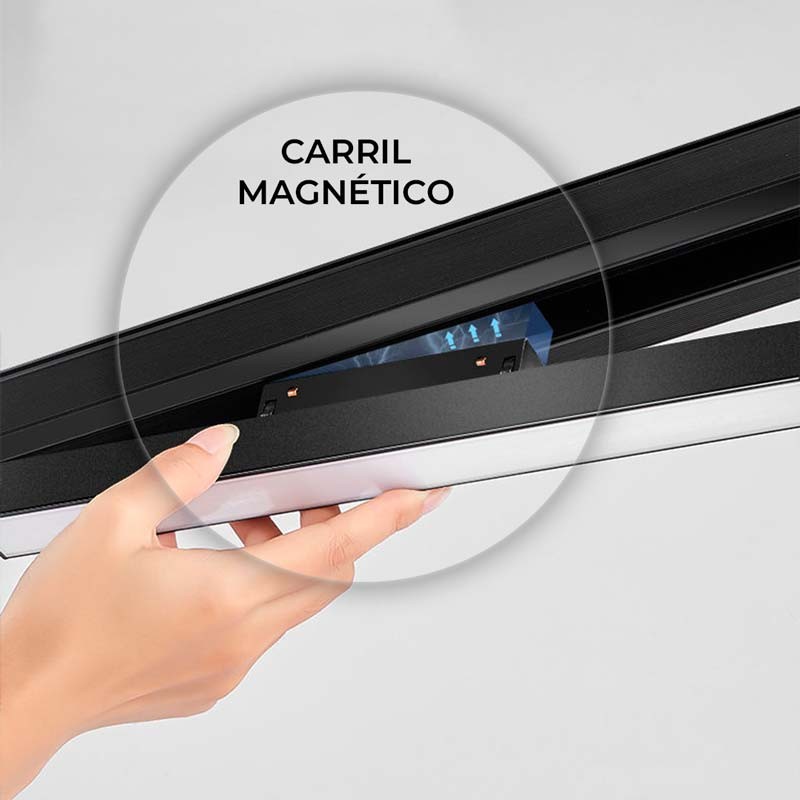

In addition, it incorporates an iron sheet that attracts the magnetic luminaires, making it extremely simple to install without the use of tools.

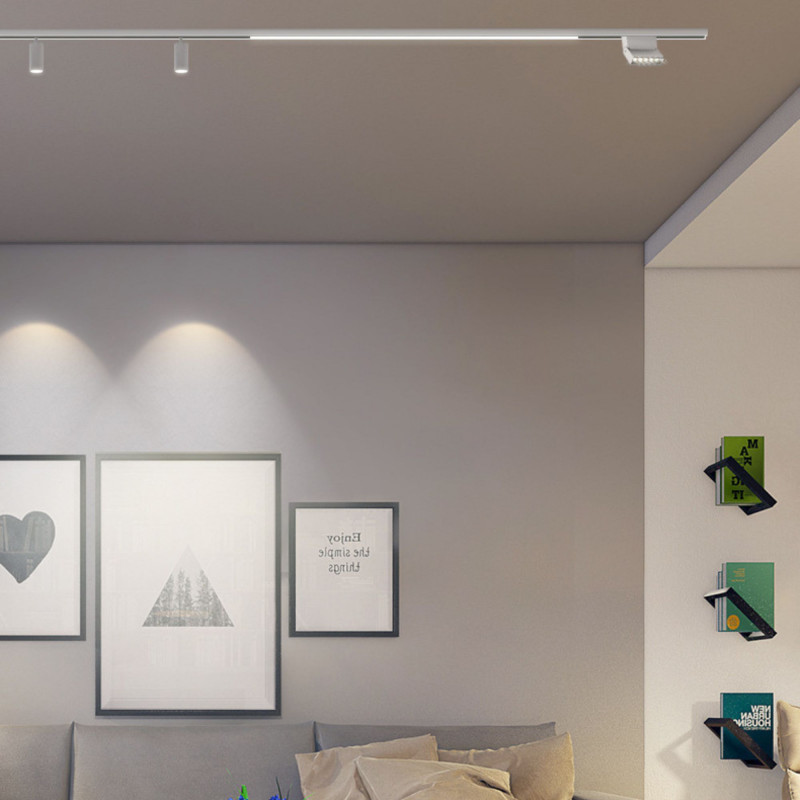

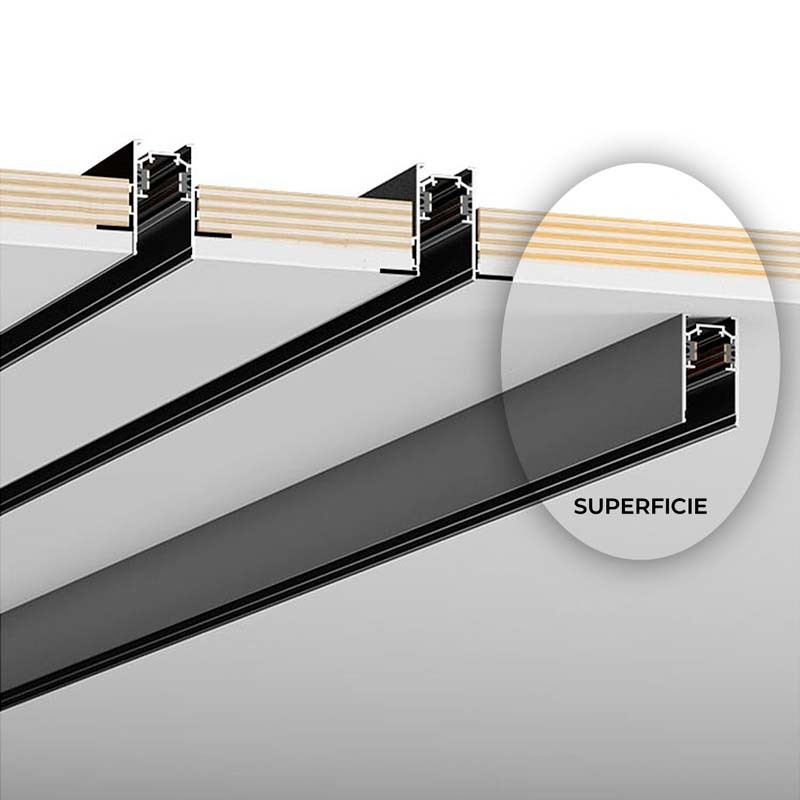

The track can be installed on the surface of plasterboard ceilings or walls, both vertically and horizontally.
It is also suitable for installation as a suspension track by adding the suspension kit.

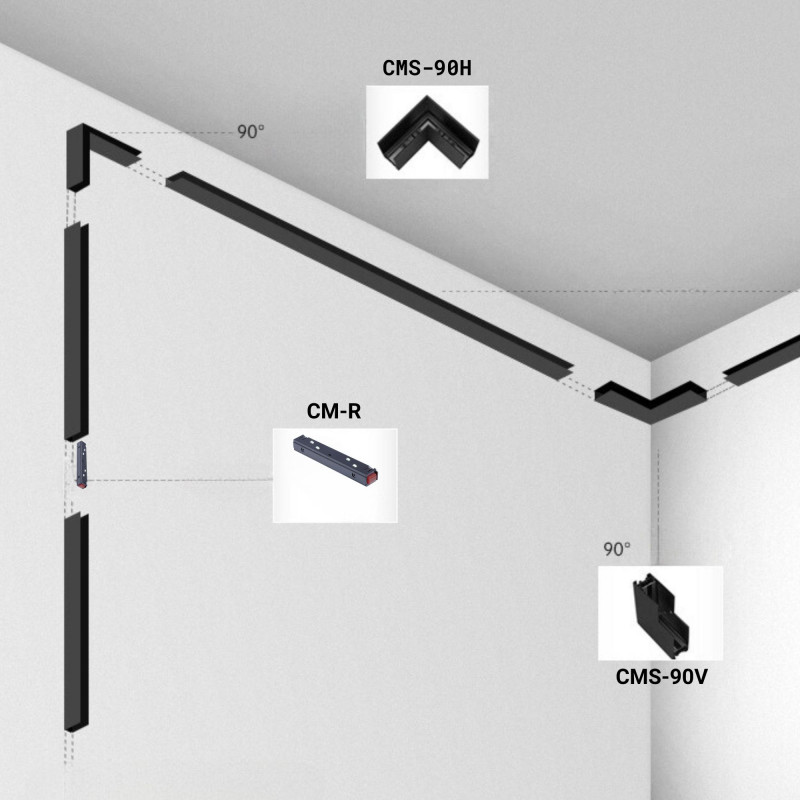

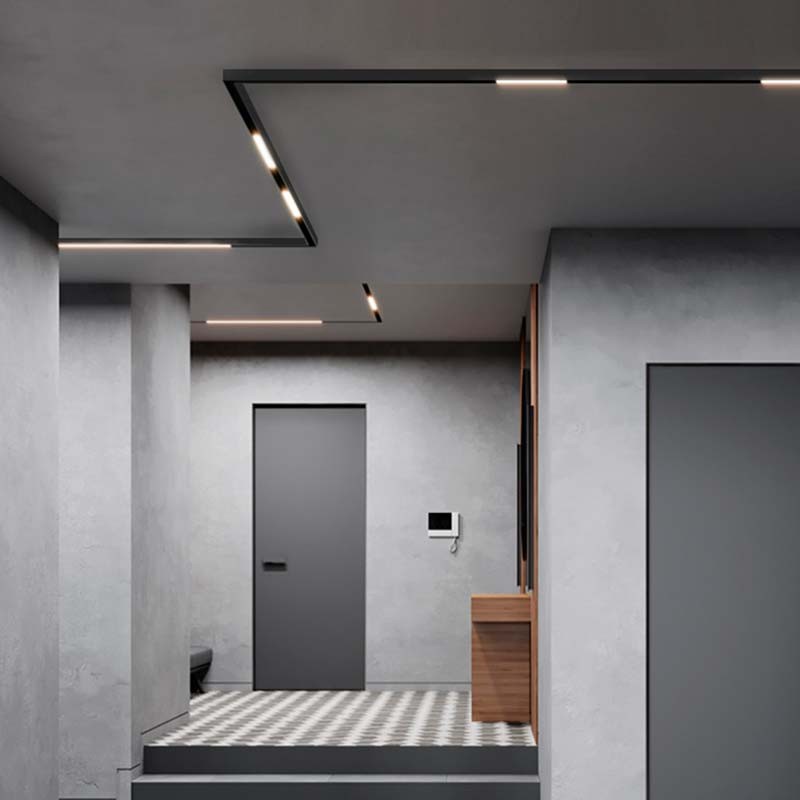

It can be combined with other track sections, forming different configurations, according to the requirements of each project.
It operates at 48 V and is powered by an integrated power supply for magnetic rails. It can also be powered by an external power supply, in which case it will require a specific adapter.
Magnetic rail systems are highly versatile, offering an aesthetic, functional and state-of-the-art solution for any lighting project, and are therefore an increasingly popular choice for the most demanding architects, interior designers and lighting designers.

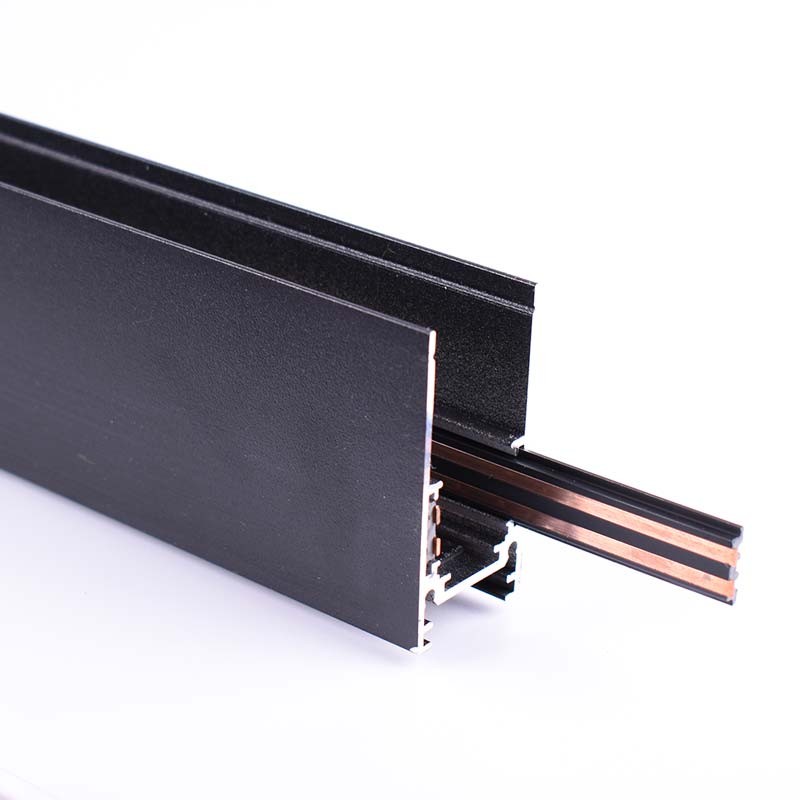

Available in black and white.
Questions
| P: Question: | Hello, is it possible to have the track cut to size by the installer without affecting the operation of the track? Thank you. |
|---|
| R: Answer: | Hi Daniele, Yes, the tracks can be cut to size without affecting their operation.
Barcelona LED: Jhosimar| 18/11/2024 |
|---|
| P: Question: | Is it compatible with DALI lights? |
|---|
| R: Answer: | Hi, yes they would work, as long as the luminaires are magnetic as well. Thank you very much!
Barcelona LED: Sergi| 16/10/2024 |
|---|
| P: Question: |
Good morning, how do you attach the track to the ceiling, does the power cable already have a hole in it or does it have to be drilled? Thank you for your kindness. |
|---|
| R: Answer: | You have to make the hole in the rail to fix it to the ceiling with the screws and nylon dowels.You also have to make another hole to introduce the power cable to connect it to the power supply.
Barcelona LED: Alex| 01/08/2024 |
|---|
| P: Question: |
How many watts can each 1 meter rail supply? How many bulbs will fit? thanks |
|---|
| R: Answer: | Hello Laura It will depend on the model of bulb you choose, as each one has a different size and power, also you have to take into account that the ballast takes up space. However, you do it with a 6w bulb and a 100w ballast. You can only have 6 bulbs plus the ballast. If you need more information please send an email to commerciale@barcelonaled.com. Greetings. Barcelona LED: Alex| 24/07/2024 |
|---|
| P: Question: | Can I have two different ignitions on the same track? |
|---|
| R: Answer: | Hello, No, it is not possible, there is only one line. Best regards, Julie Barcelona LED: fanny| 03/07/2024 |
|---|
| P: Question: | If I want to mount two rails together in line, do I need an accessory to power both rails? Or can I just use a power supply to power these 4 meters? |
|---|
| R: Answer: | If you wish to combine several rail sections to form a customized configuration, you must connect the rails together using special connectors ref. CM-F-N or CM-R-N that allow electrical and mechanical connection between the different rail sections (power supplies are normally up to 200W). |
|---|
