Magnetic track 48V + suspension kit - 1 meter

SKU:CMC-100-B
Colour
Has superado el límite de unidades
In stock 97 units
Data sheet

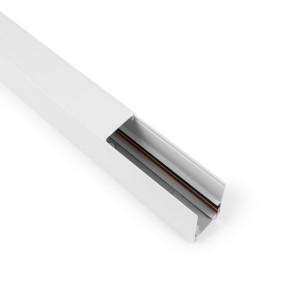

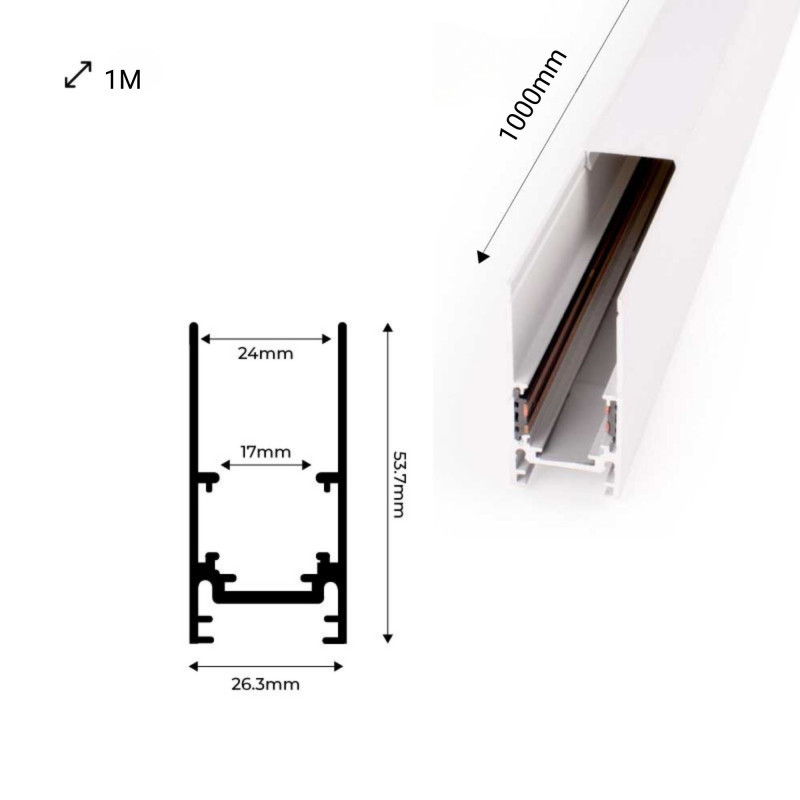

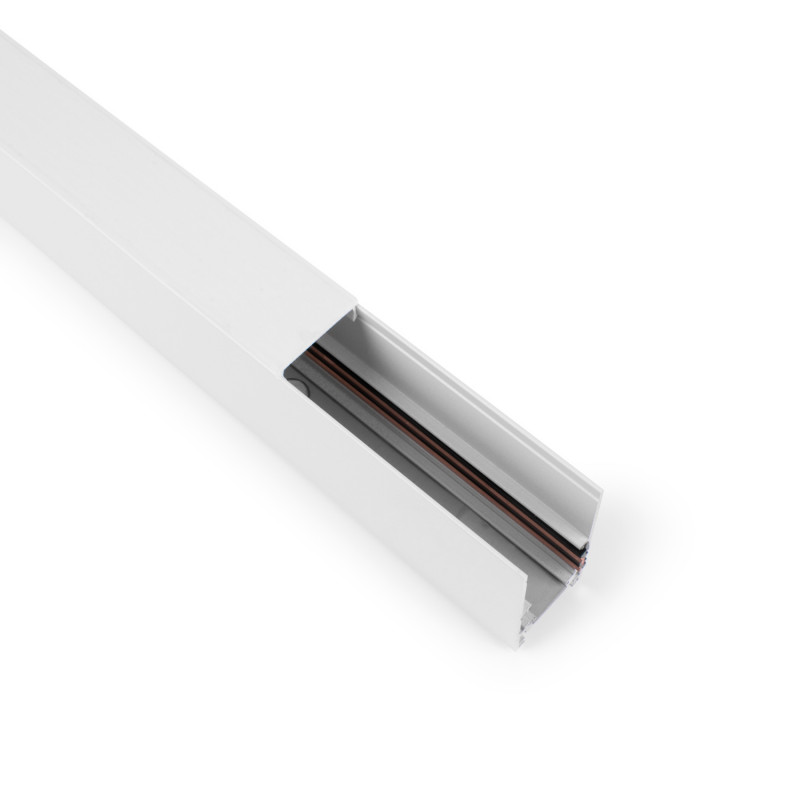

Our 20mm surface magnetic track is made of high quality aluminum and is available in black or white. It allows to place magnetic LED spotlights in a very simple way, according to the needs of each project.

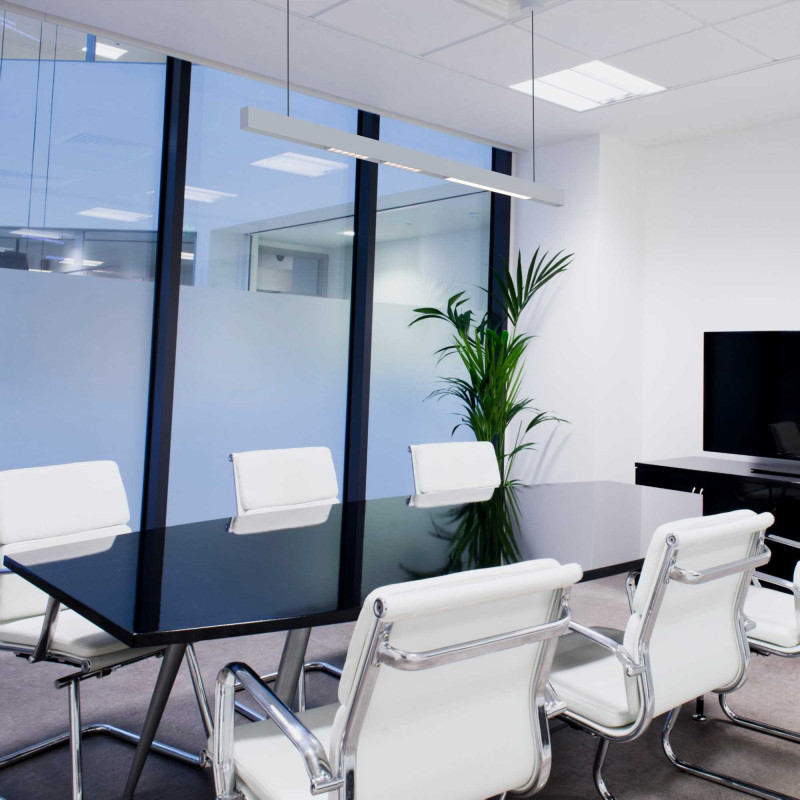

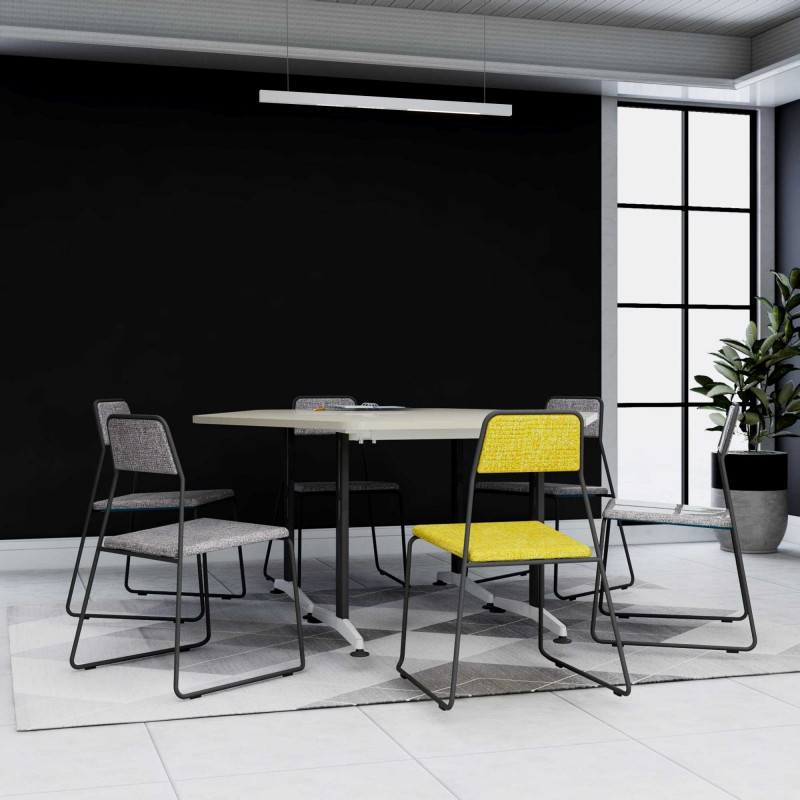

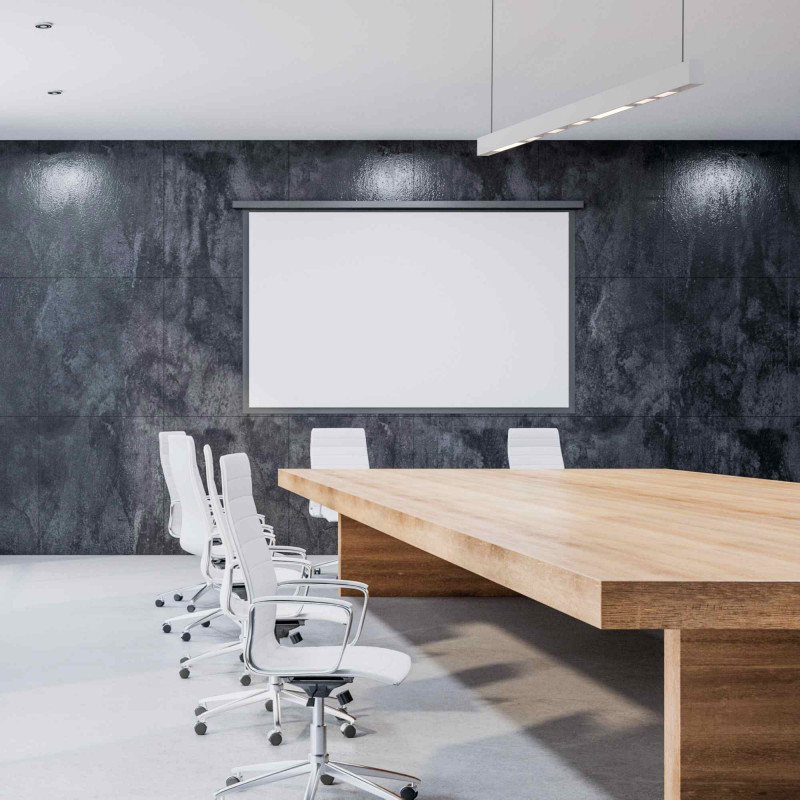

With the suspension kit it's possible to install this track suspended from the ceiling, allowing to adjust the height to the desired level.

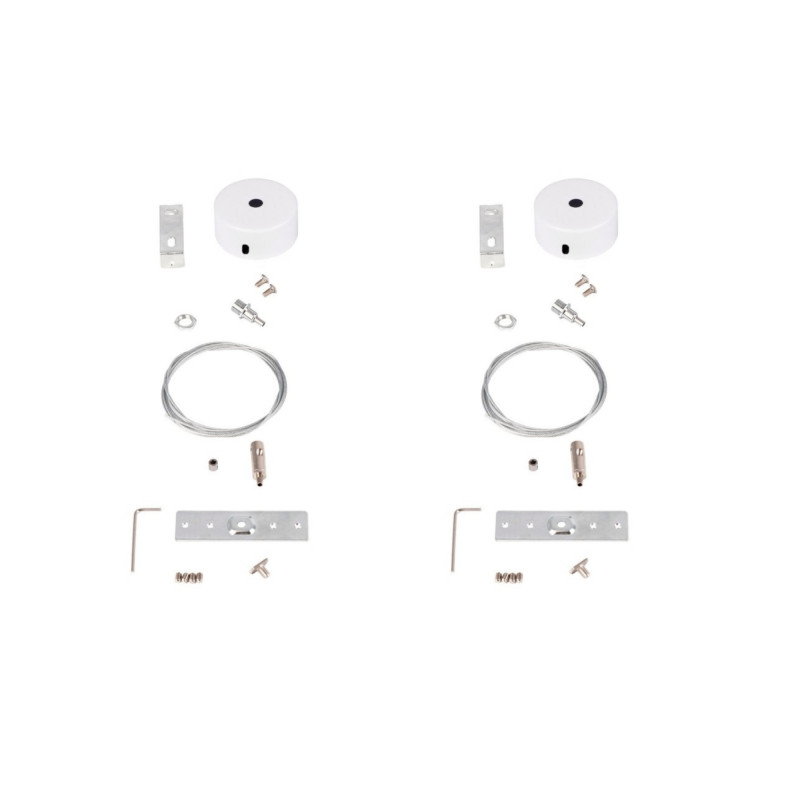

The pack includes:

✔ A 1 m long magnetic track.

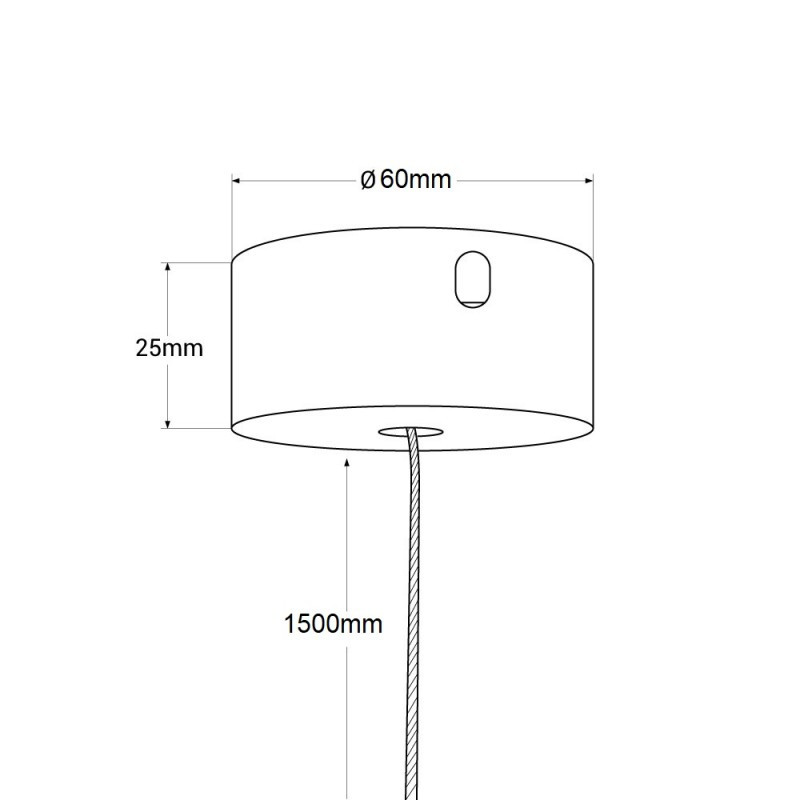

✔ 2 steel cables 1.5 m long (height adjustable)
✔ 2 track couplers
✔ 2 roof hooks
✔ Black aluminum cover to protect the free surface between luminaires.
✔ 2 end caps
✔ All accessories required for installation.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Our pack of magnetic track and suspension kit, allows the installation of the track suspended from the ceiling, with the possibility of adjusting the height up to 1.2 m.

It has all the necessary elements to perform the installation.

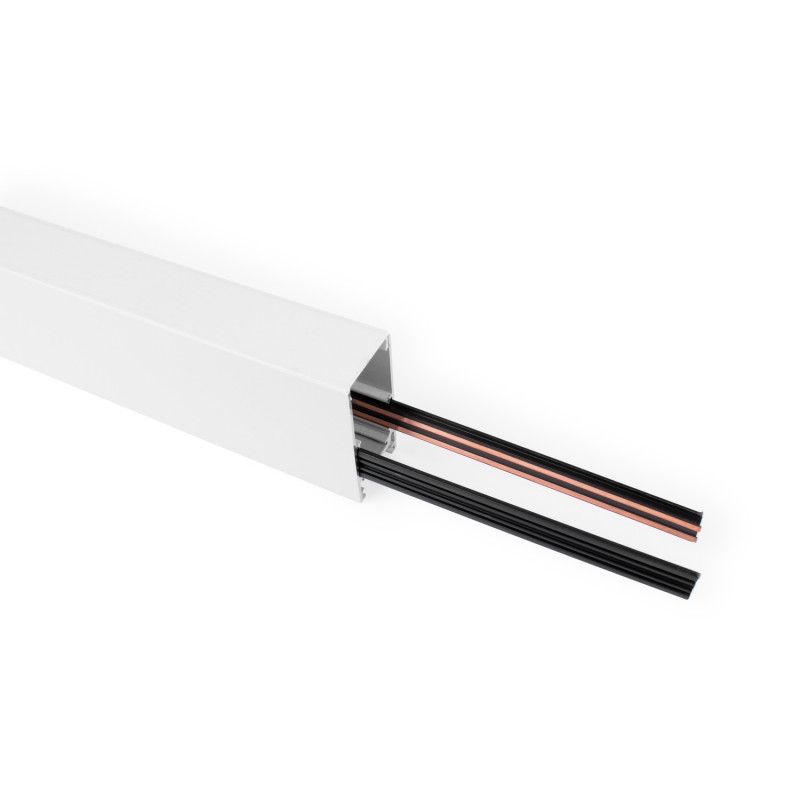

The magnetic track has two copper conductors on each side of the track, which act as phase and neutral of the circuit, to feed the luminaires installed on it.

In addition, it incorporates an iron sheet that attracts the magnetic luminaires, making their installation extremely simple, without the use of tools.

It operates at 48V and is powered by an integrated power supply for magnetic tracks. It can also be powered by an external source, in which case it will require a specific adapter.

Magnetic rail systems are highly versatile, offering an aesthetic, functional and state-of-the-art solution for any lighting project, and are therefore an increasingly popular choice for the most demanding architects, interior designers and lighting designers.

IP
IP20
Material
Aluminium
Use Outdoor
No
Certificates
CE
ROHS
Warranty
3 years
Track Type
Magnetic
