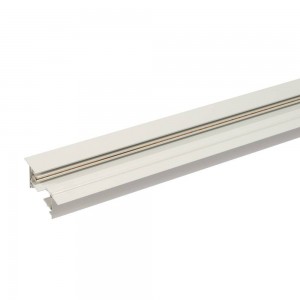

Single-phase recessed track for LED spotlights (2 meters)
2 meter bar of single-phase recessed track. The rail has the necessary hardware and fixing hardware, and can be cut to the desired size. Its design includes two external fins as trims, hiding any imperfection in the ceiling and remaining practically flush with the surface.
The advantage of installing rails for spotlights is the versatility obtained by having the possibility of manipulating the spotlights and moving them along the rail to where they are needed on each occasion, without great effort and without requiring an installer.
Using LED spotlights you can have a homogeneous, intense and very low consumption lighting, each two meter bar allows the installation of up to 20 spotlights of 25W!
Features of the recessed single-phase rail

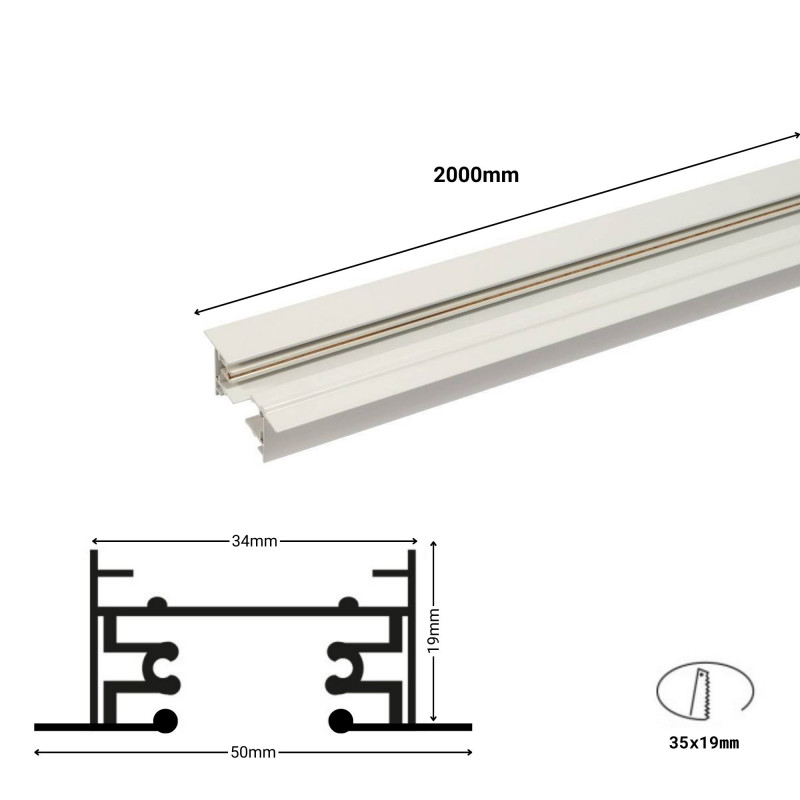

Outer dimensions: width 50mm (including fins) x depth 19mm
Dimensions of the cut-out width for recessed mounting: 35mm
Hi. The product description says that it comes with the necessary hardware for installation. I bought it through handmade and it only comes with 3 plugs and 3 screws to fix it to the ceiling as if it were a standard non recessed rail. Being recessed I think it should bring a mechanism (U clamp type anchor inside the false ceiling or similar) to fix in the hole created in the false ceiling of plasterboard. Can you advise me or tell me how to do it?
R: Answer:
The plug is for color in a surface with a groove where the profile fits and is screwed to the surface. For a plasterboard type system where there is a hollow groove will have to put some plate horizontally to attach to the plasterboard can behind fastened by rivet or screw (we do not have plate or anchor).
P: Question:
I would like to know if the 2 meter single phase rail is black glossy or matte black.
R: Answer:
The outer coating has some gloss
P: Question:
Hi, I would like to make three sections fed by the same phase, and with two 2 meter rails I have enough. Then I would like to know if I can buy separately a set of feeder and plug for the third section.
Thank you!
R: Answer:
Yes, we have accessories for the single-phase rail, ref. BTM-GB01-B and ref. BTM-GB07-B.
P: Question:
Hi. Does this rail include a sleeve for this rail ? I am missing straight shape .....also L-shape
R: Answer:
Recessed single-phase track includes starter feeder and end cap. The accessories for joints and swivels are included separately.
P: Question:
Do you have connectors to join more than one recessed rail? Or, if not, could the surface ones be used?
R: Answer:
The BTM-GB02-N rigid connection can be used.
P: Question:
Do you have a one meter hidden rail? Thanks
R: Answer:
We do not have a single-phase recessed track for 1 meter LED spotlights.
Barcelona LED: Marc| 04/02/2020
Page: 1
Can't find the answer you're looking for?
Your Question has been successfully sent our team. Thanks for question!
2 meter bar of single-phase rail for recessed mounting. The rail has the necessary hardware and fixing screws, and can be cut to the desired size. Its design includes two external fins as trims, hiding any imperfection in the ceiling and being practically flush with the surface.
Includes start feeder and end cap ** Includes start feeder and end cap **.
