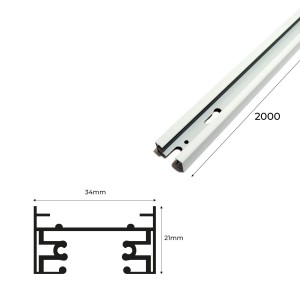

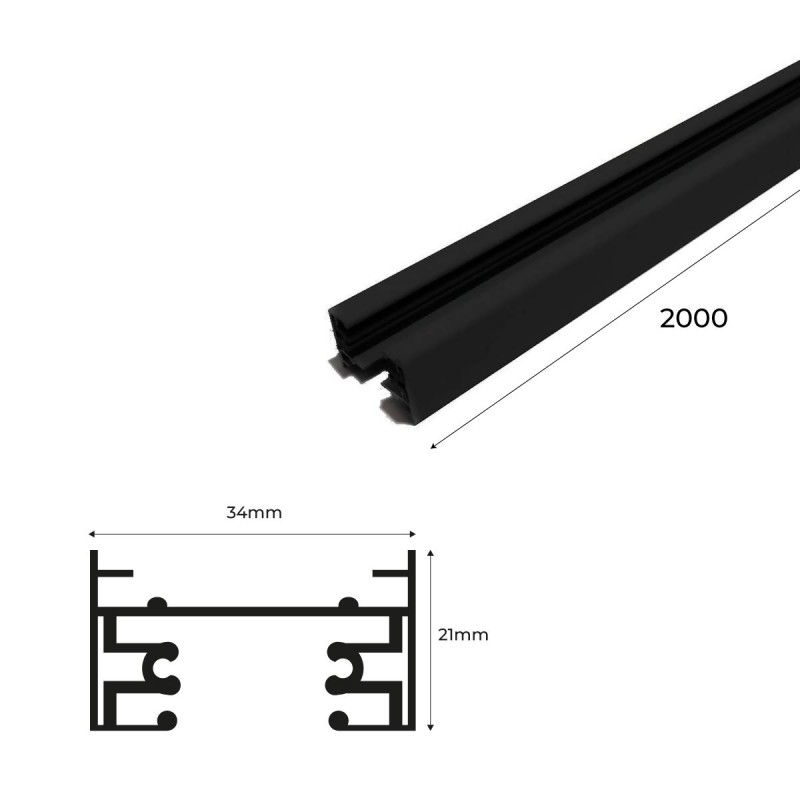

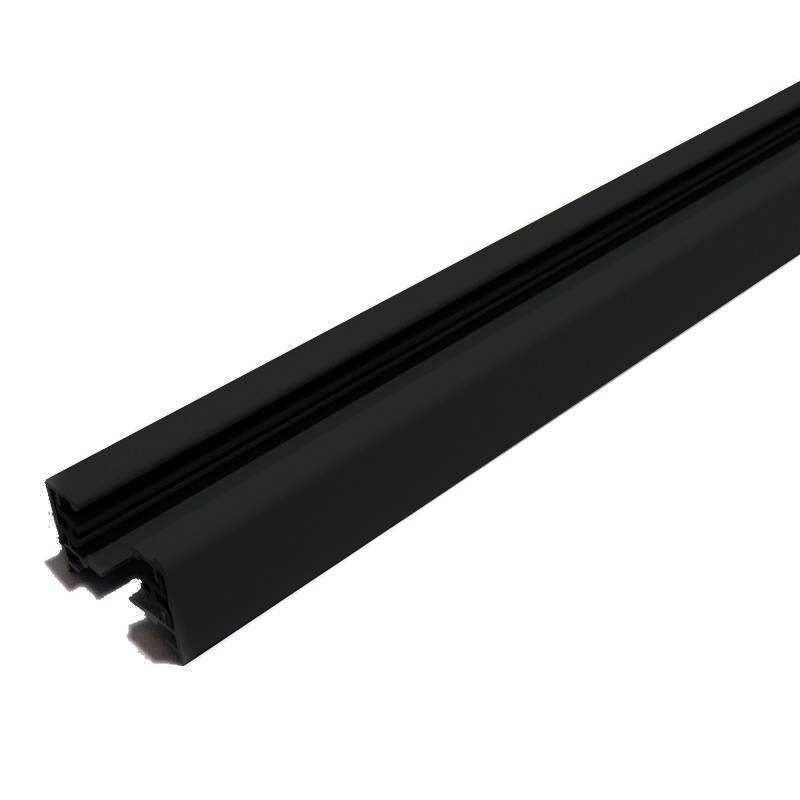

Surface mounted 1-phase track for LED spotlights - 2 m
SKU:BTM-200-N
€14.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
The single-phase track provides a solid platform for the installation of electrical equipment and luminaires, facilitating the organization and distribution of cables in an orderly manner.
Its extruded aluminum construction ensures strength and durability, and is available in white, black and silver colors.

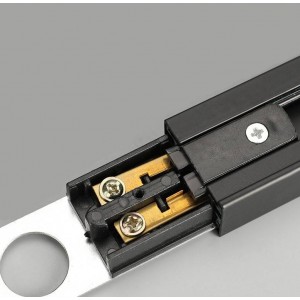

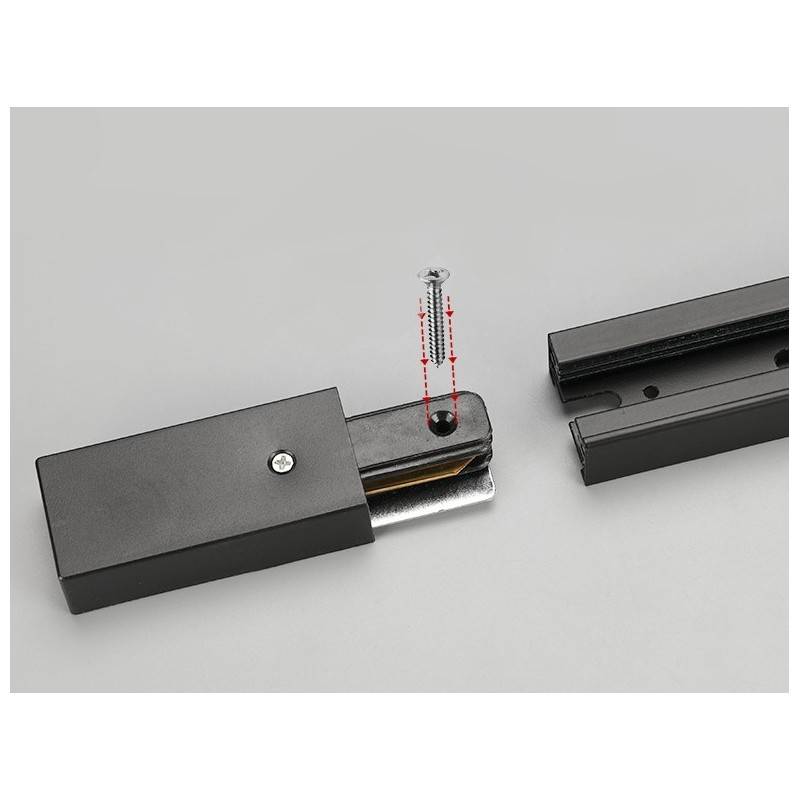

It includes a starter power supply and an end cap that guarantees a safe and aesthetic finish.
It's possible to combine it with the accessories available in our catalog to join it longitudinally or at 90° (see related products).
Applications:
- Commercial lighting.
- Lighting in art galleries and museums.
- Exhibition lighting.
- Lighting in showcases and shop windows.
- Offices and work spaces
- Residential spaces
|
Product features:
|
Questions
| P: Question: |
I need to know if there is a longer rail, what is the maximum ?????????? |
|---|
| R: Answer: | we have rails in two sizes : 1m and 2m you can use the joints to make the size you want and the design you want |
|---|
| P: Question: |
Good afternoon, I would like to know if the 2 meter rail could be cut to 1.5 meters and if so if you make them. Thank you. |
|---|
| R: Answer: | 2mts and 1mts rails are sold, but the installer can cut the rail. |
|---|
| P: Question: | Hello I am interested in mounting rail in a business, I guess I will need about 6 meters of rail, can I connect 6 meters of bars with a single with a single plug start and end (plus their corresponding unions). Is there a limit of lights? |
|---|
| R: Answer: | If they can be mounted one behind the other, the rails are normally 16A max. |
|---|
| P: Question: |
Good morning, Is the single-phase electrified rail compatible with any of the spotlights you have on the site? Is it possible to combine different types of spotlights in the same track? Thank you very much |
|---|
| R: Answer: | Any of the spotlights for single-phase rail can be mounted on the single-phase rail ( not those for three-phase rail). |
|---|
| P: Question: |
Good morning. I would like to know if the adjustable length spotlight (or any other lamp), can be slid on the rail, pushing directly from the spotlight. If not, if you can push it and get it slide, pushing with a simple extension from the ground. And finally, what type of lighting fixture would be more suitable for a work station, to dilute the light, that is to say, that does not concentrate it as the spotlights do, but that can be incorporated into the rail. Thank you very much for your consideration. |
|---|
| R: Answer: | The track spotlights are anchored by flanges to be connected to the 220vac mains and to the track fastening. They can be placed and changed anywhere on the track. |
|---|
| P: Question: | hello, I need 3 mts da rail, it is clear that I need one of 2 mts and 1, but the question is, how do I join them? or they already have joints; in the catalog I do not find straight joints, and also what kind of focus we need, thanks. |
|---|
| R: Answer: | Straight rigid joint for single-phase rail: BTM-GB02-N |
|---|
| P: Question: |
Hi, I would like to form a quadrant of focus rails, I guess of 2 m each side. Is it possible to join them somehow? Thank you. |
|---|
| R: Answer: | Yes with 90º joints |
|---|
| P: Question: | Hi, I am looking at rails and spotlights on different websites, are the measurements of the rails standard or each manufacturer has its own measurements? |
|---|
| R: Answer: | They follow a certain standardization but there may be rail models and spotlights that do not follow it because they are old or a specific product of a certain brand. |
|---|
| P: Question: |
No sé si és possible posar l'alimentador a la meitat del carril. En cas contrari, que només fos possible a l'inici, voldria saber si hi ha prou espai per la part de darrere per a passar-hi un parell de fils fins a l'alimentador a l'extrem. Gràcies. |
|---|
| R: Answer: | The only way to connect a rail in the middle, is to include a T-junction ref. BTM-GB04-N in the middle and connect a piece of rail with a start connector to the excess terminal. |
|---|
| P: Question: | I would need the references to install a single-phase electrified rail with "U" signature of 2m long by 0.7m wide. If it could not be cut I would reduce the width to 0,5m. Black color. Thanks |
|---|
| R: Answer: | We only have this model of single-phase track available. We recommend consulting a professional for track installation. |
|---|
