Three-phase rail for LED spotlights - 1 meter bar

SKU:BTT-100-N
Colour
Has superado el límite de unidades
In stock 124 units
Data sheet

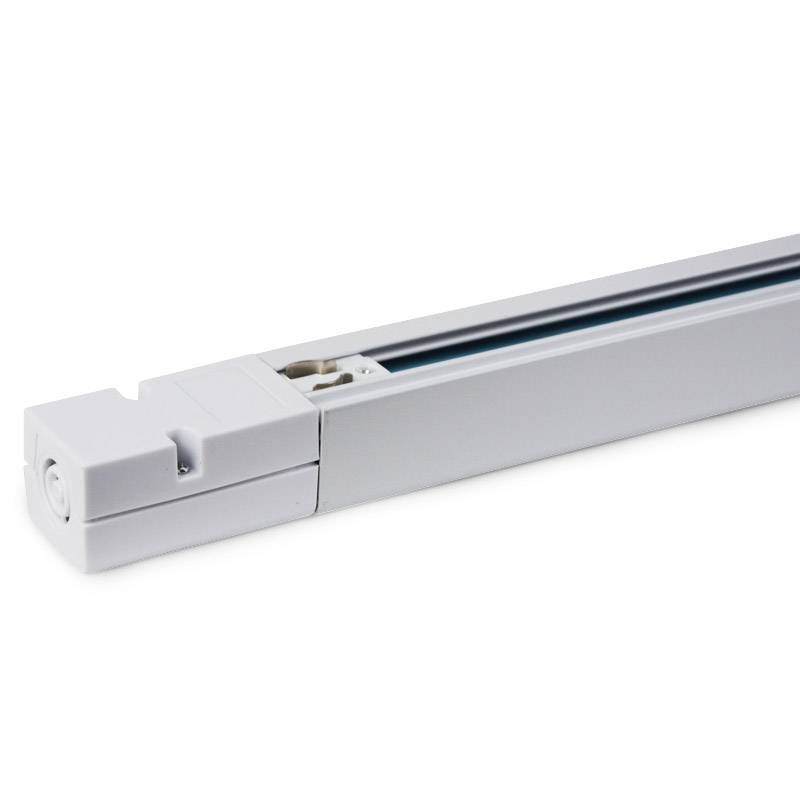

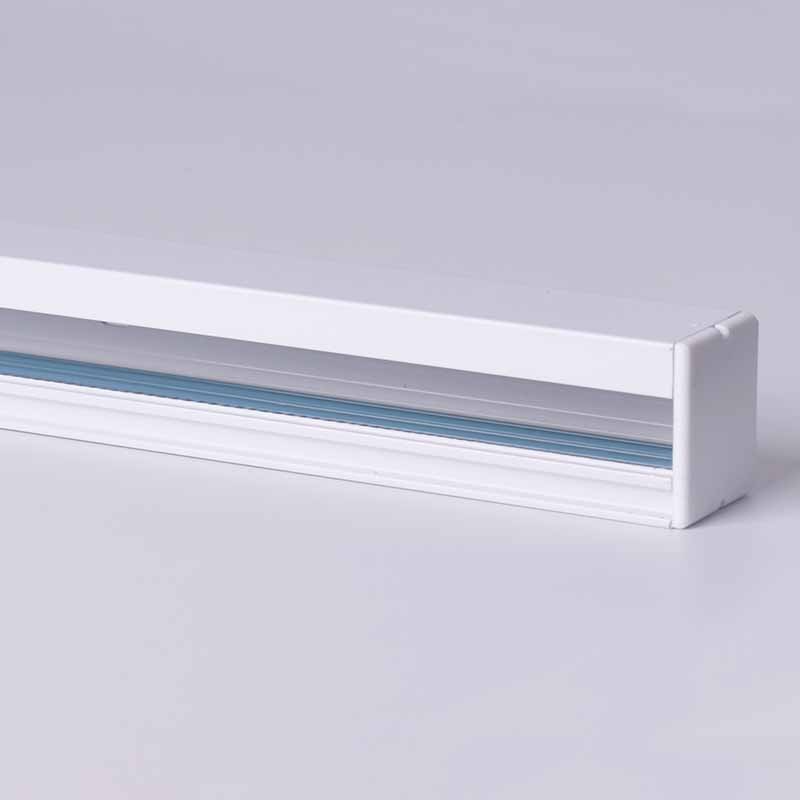

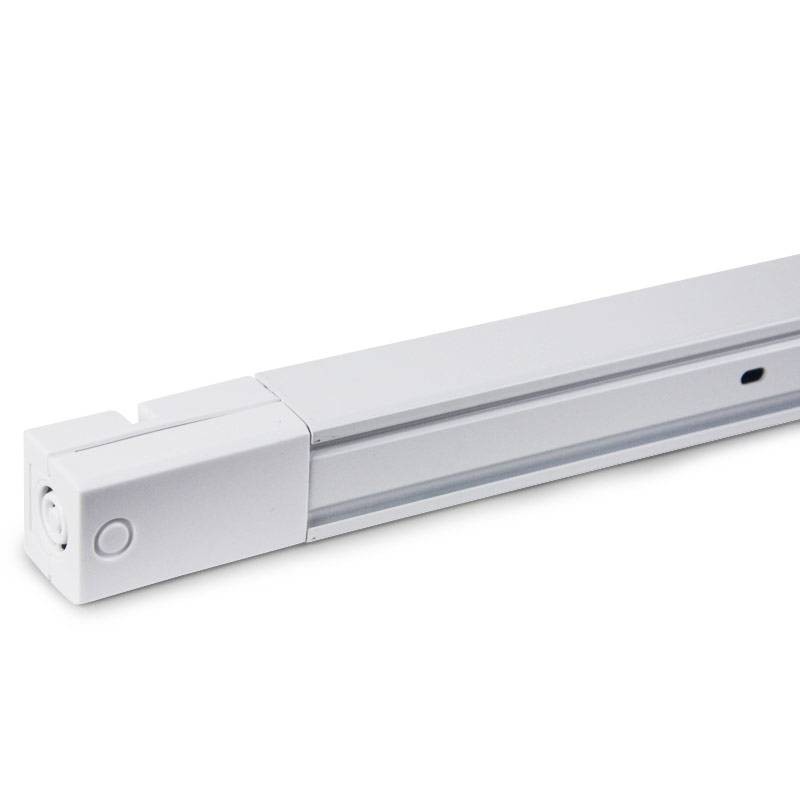

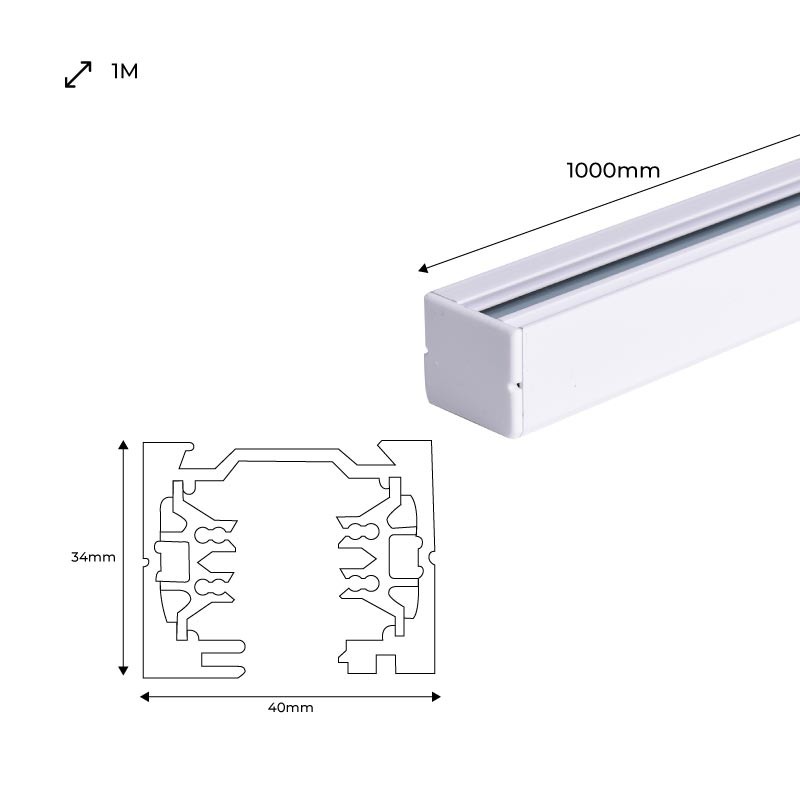

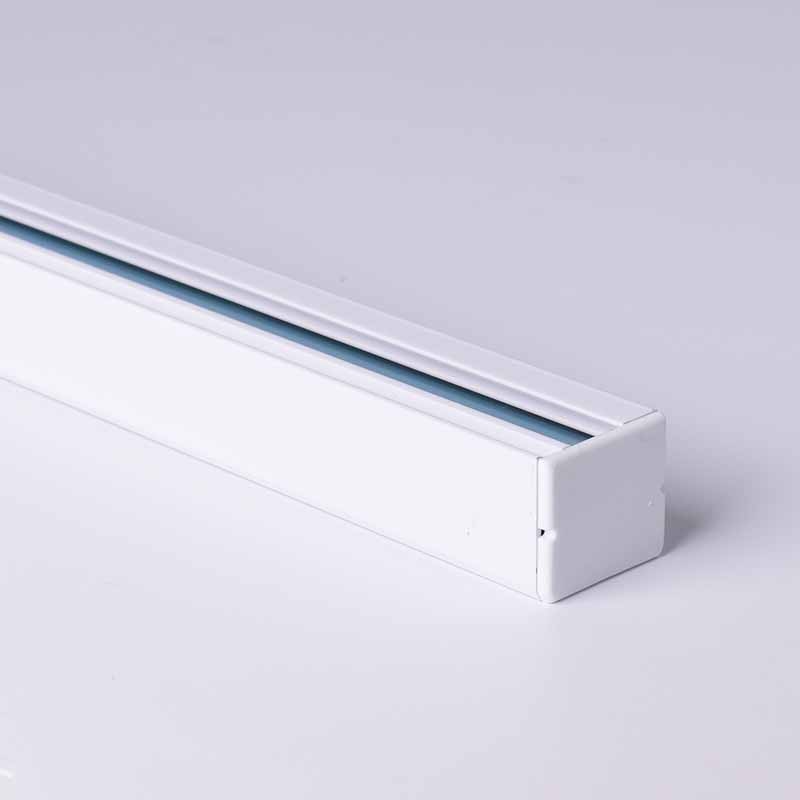

The three-phase track, 1 meter long, allows to install LED spotlights and to move them easily, according to the needs. It consists of an aluminum profile available in two colors (black or white), with 3 electrical lines that allow three independent ignitions on the same track. In this way, it offers great versatility for the differential switching on and off of luminaires, according to the needs. Supports a maximum of 16A.

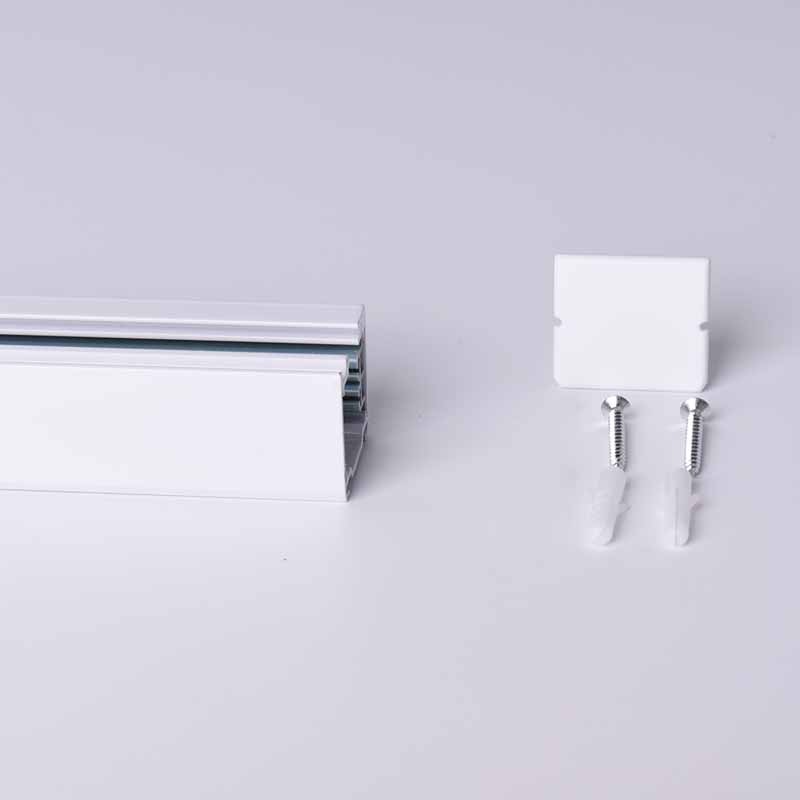

**Includes start feeder and end cap**.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

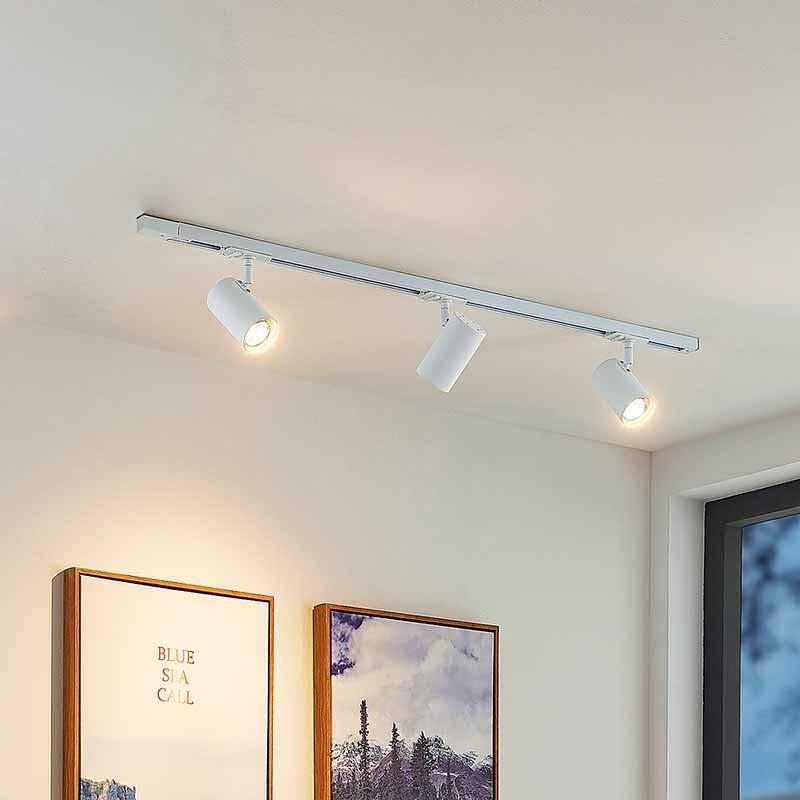

By having three phases, the three-phase track allows us to have three different circuits that can be controlled separately, giving the possibility to easily change the lighting of an environment.

We can, for example, install a row of spotlights that are always on at maximum power, another row with dimmable spotlights, and another row with spotlights that we only turn on at certain times, such as at night.

The three-phase track can be installed both vertically and horizontally, allowing the luminaires to move along it and can also be combined with other tracks, creating multifunctional track systems.

We have a large number of accessories available for complex installations, such as joints, flexible or rigid brackets and different types of spotlights or luminaires.

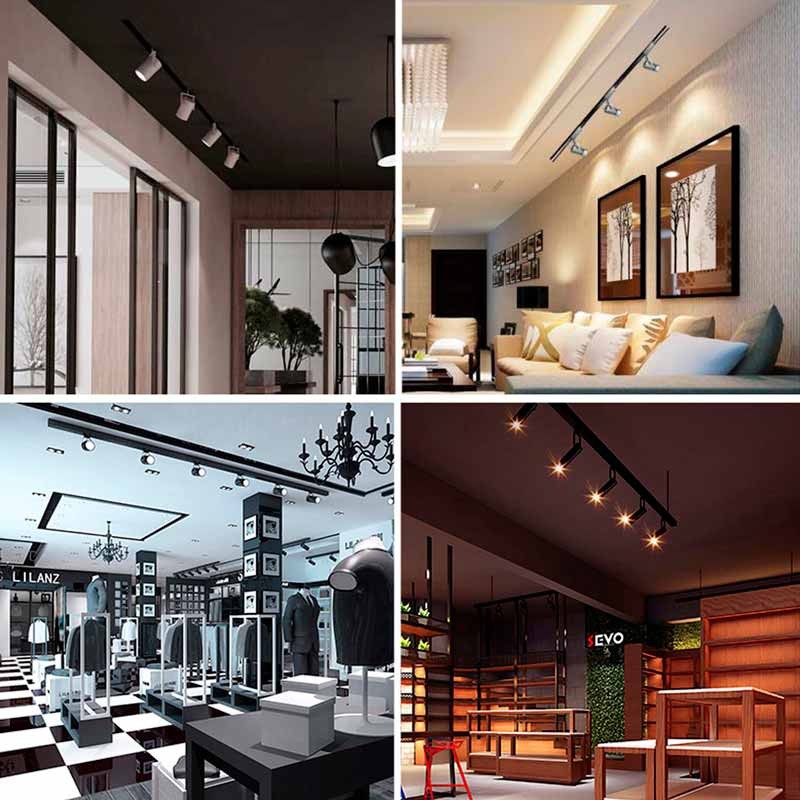

All this will allow us to have a highly versatile lighting system perfect for illuminating commercial premises, shop windows, hotels, offices, offices and large surfaces in general.

Nominal Voltage (V)
220 - 250 V/AC
Maximum power (W)
3900
IP
IP20
Use Outdoor
No
Certificates
CE
ROHS
Warranty
3 years
Maximum intensity (A)
15
Track Type
Triphasic
