Three-phase track for LED spotlights - 2 meter bar

SKU:BTT-200-N
Colour
Has superado el límite de unidades
In stock 584 units
Data sheet

The three-phase surface track, 2 meters long, allows to install LED spotlights and to move them easily, according to the needs.

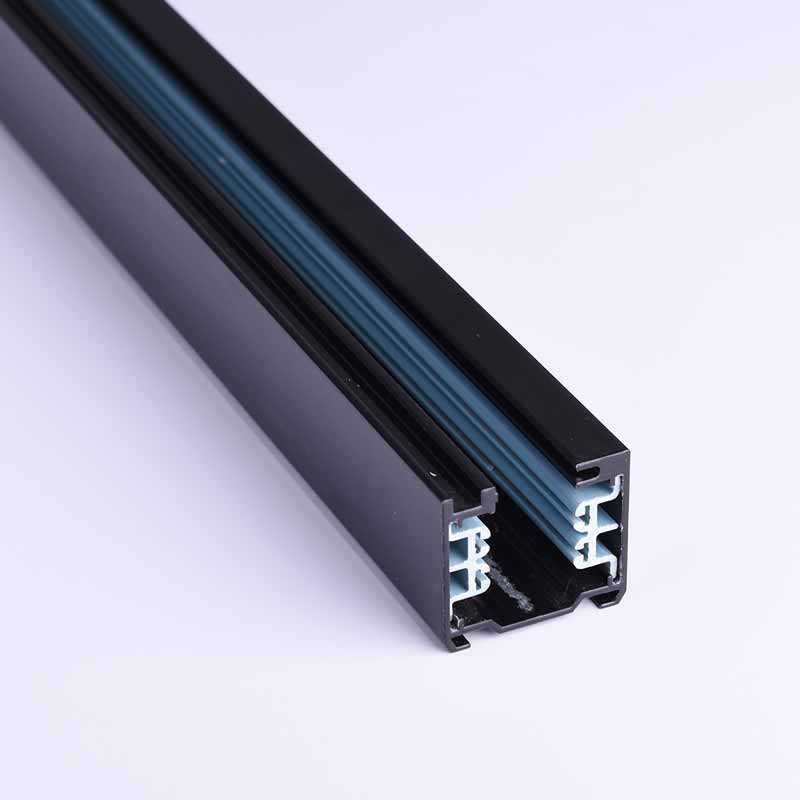

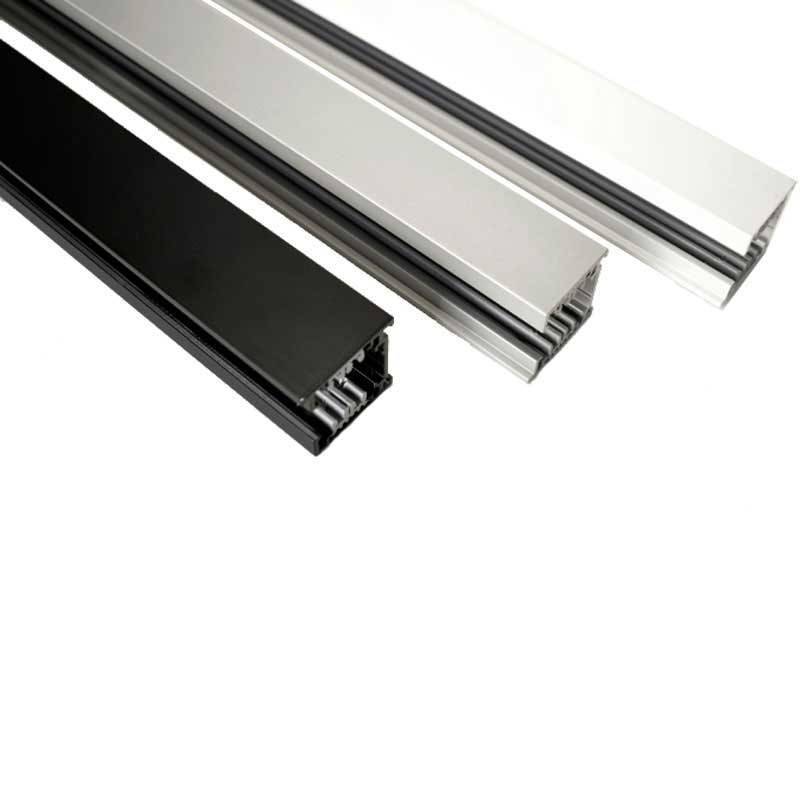

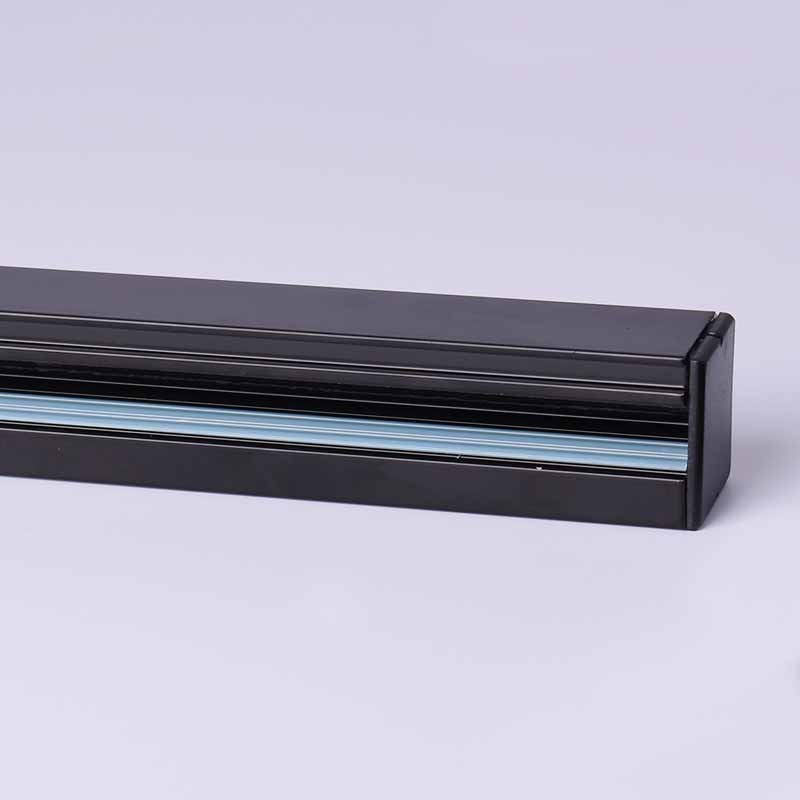

It consists of an aluminum profile available in two colors (black or white), with 3 electrical lines that allow three independent ignitions on the same rail. In this way, it offers great versatility for the differential switching on and off of luminaires, according to the requirements of each project.

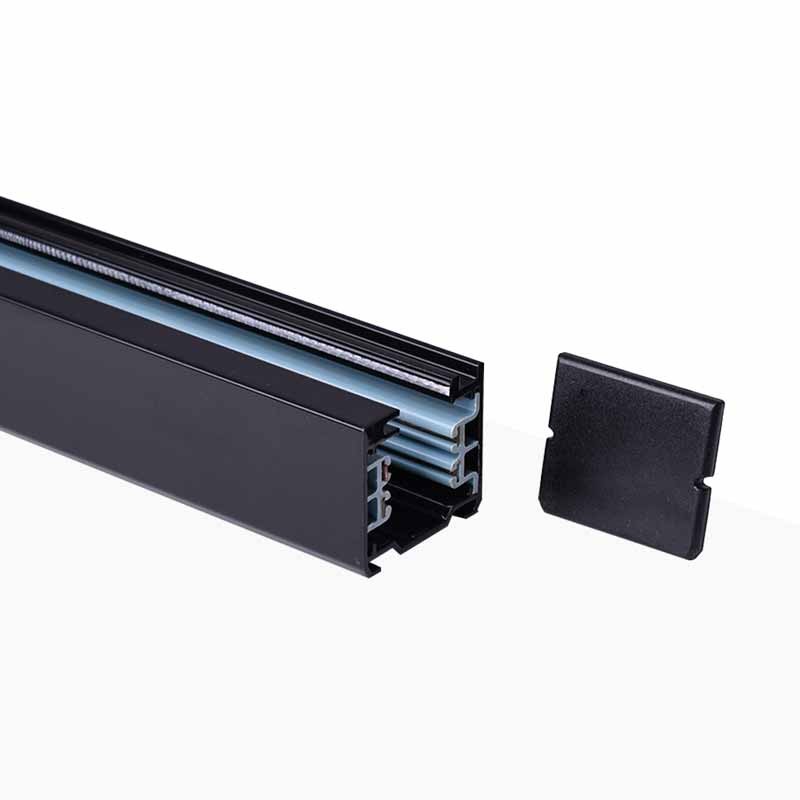

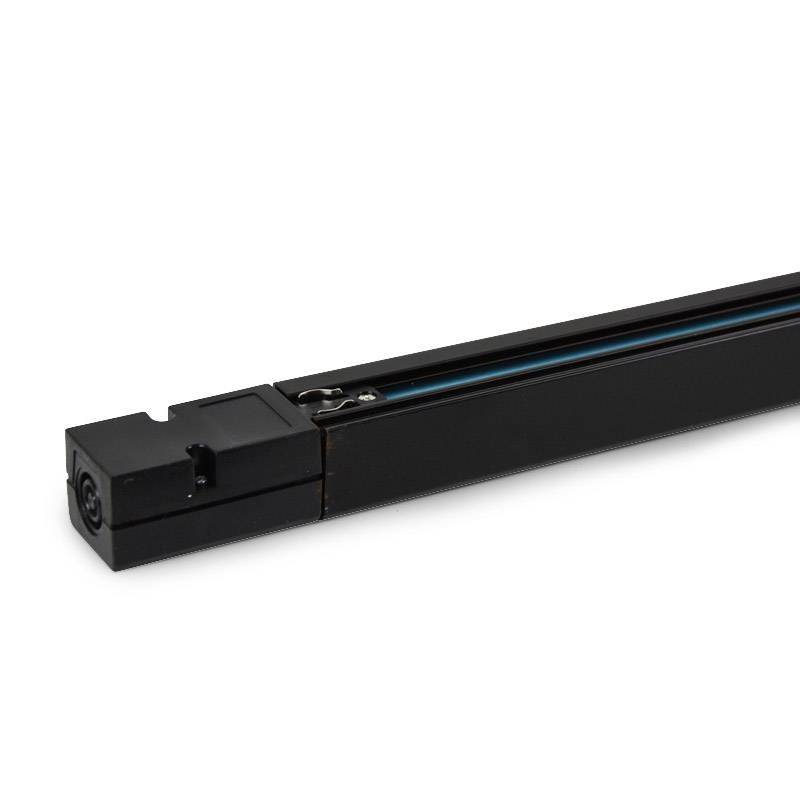

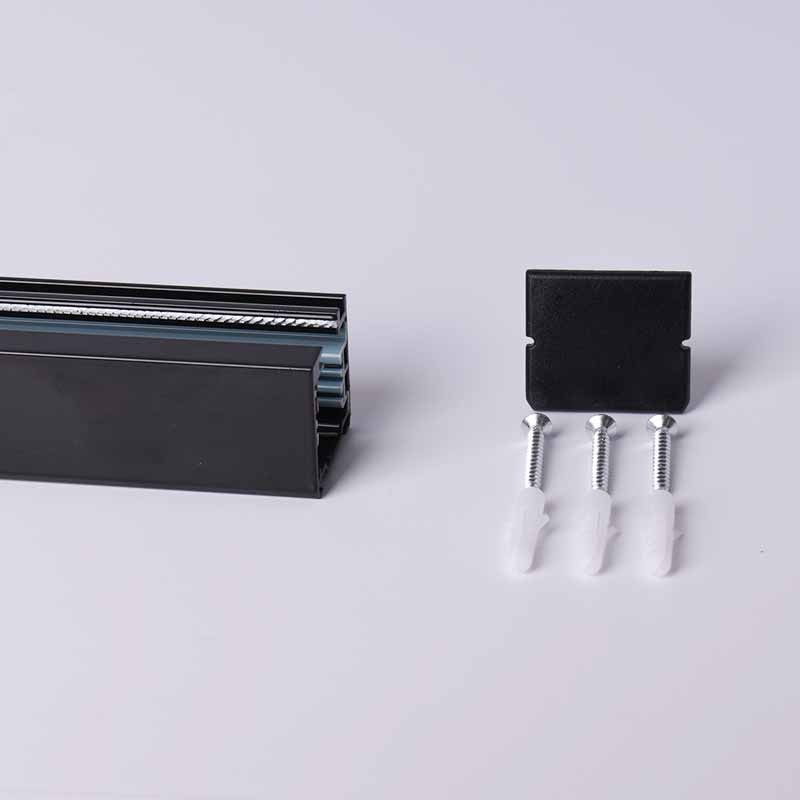

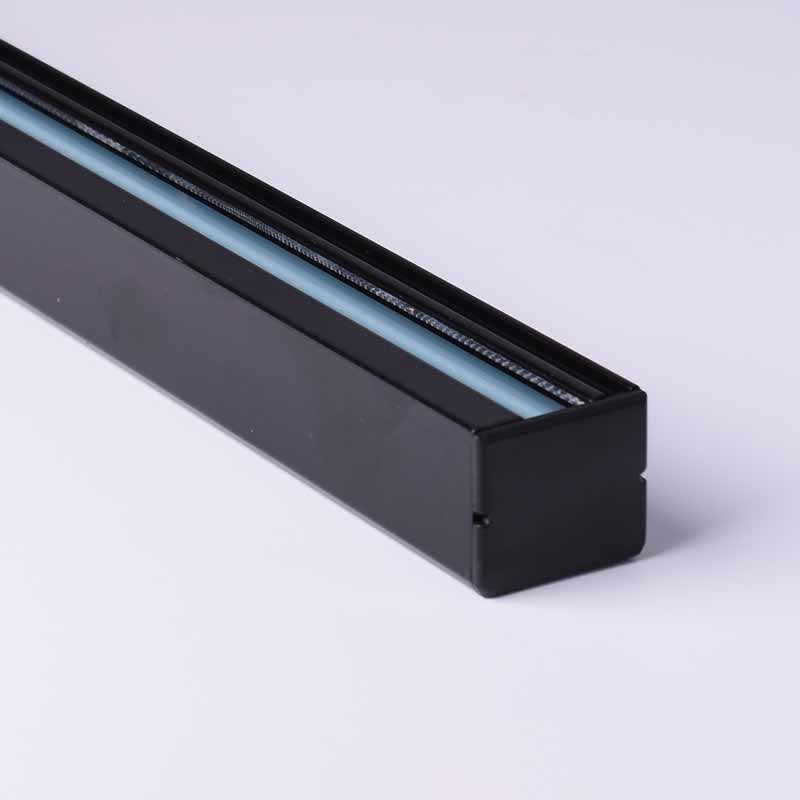

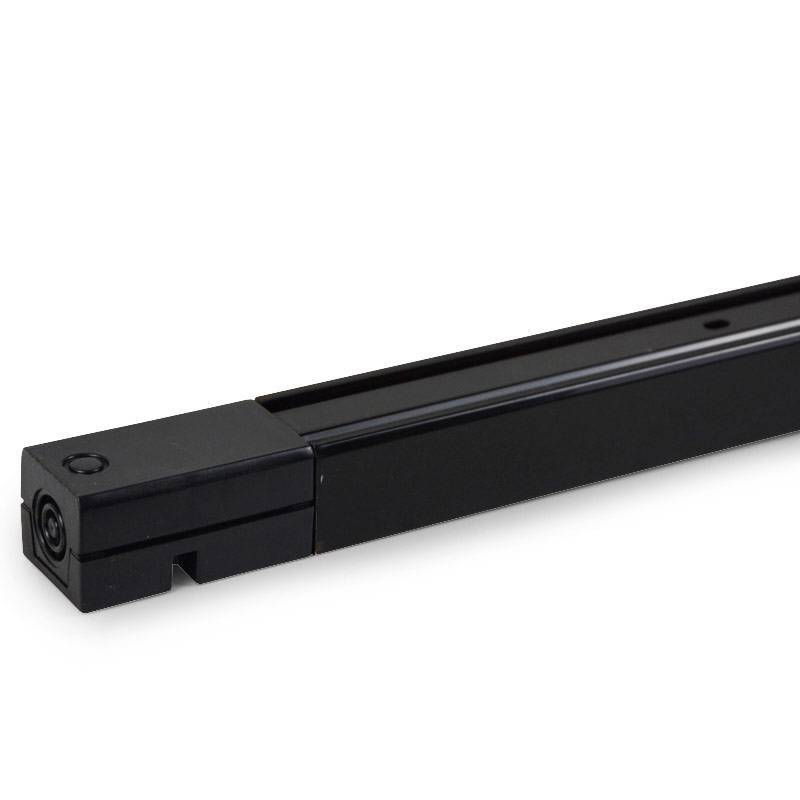

**It includes start feeder and end cap**.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

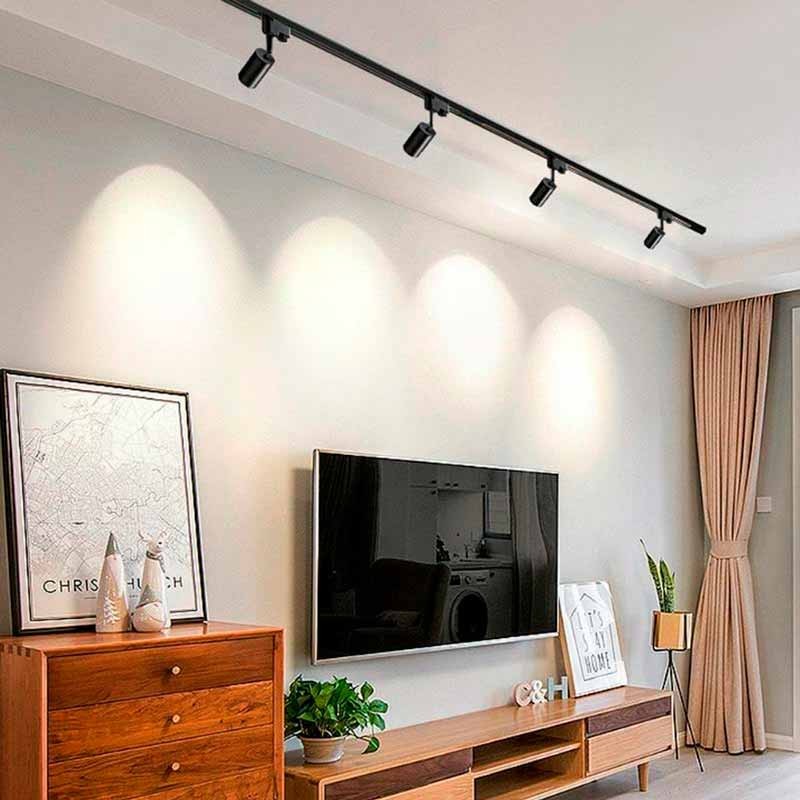

By having three phases, this track allows us to have three different circuits that can be controlled separately, giving the possibility to easily change the lighting of an environment. We can, for example, install a line of spotlights that are always on at maximum power, another row with dimmable spotlights, and another row with spotlights that we only turn on at certain times, such as at night.

It can be installed on the surface, either vertically or horizontally, or it can also be installed in suspension, by adding the hanging kit for three-phase track. In addition, it can be combined with other rails, creating multifunctional rail systems.

We have a large number of accessories available for customized installations according to needs, such as joints, flexible or rigid brackets and different types of spotlights or luminaires.

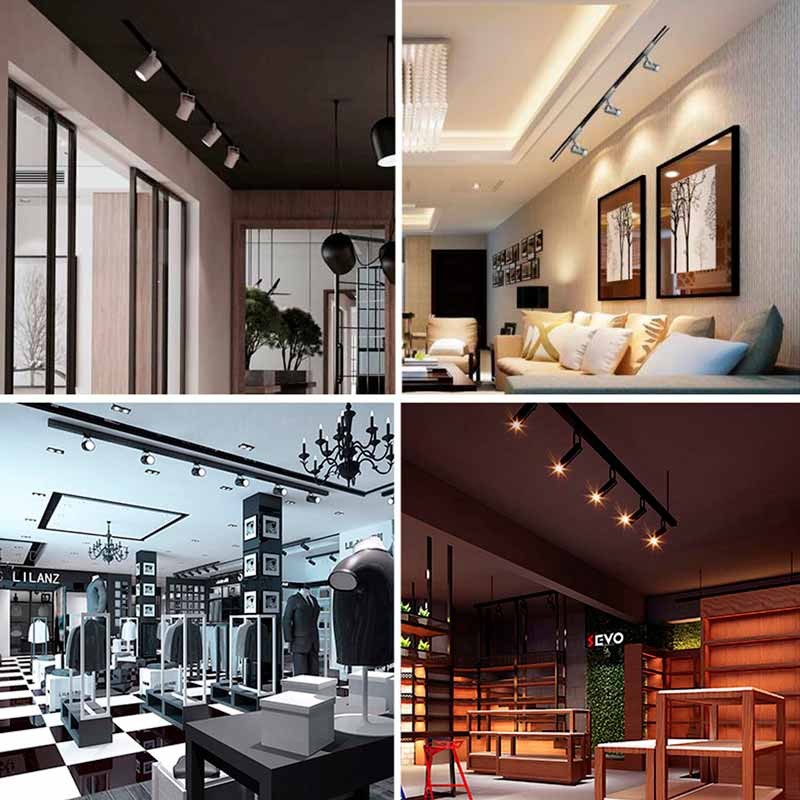

All this, will allow us to have a highly versatile lighting system, perfect for illuminating commercial premises, shop windows, hotels, offices, offices and large surfaces in general.

Main characteristics of the product:

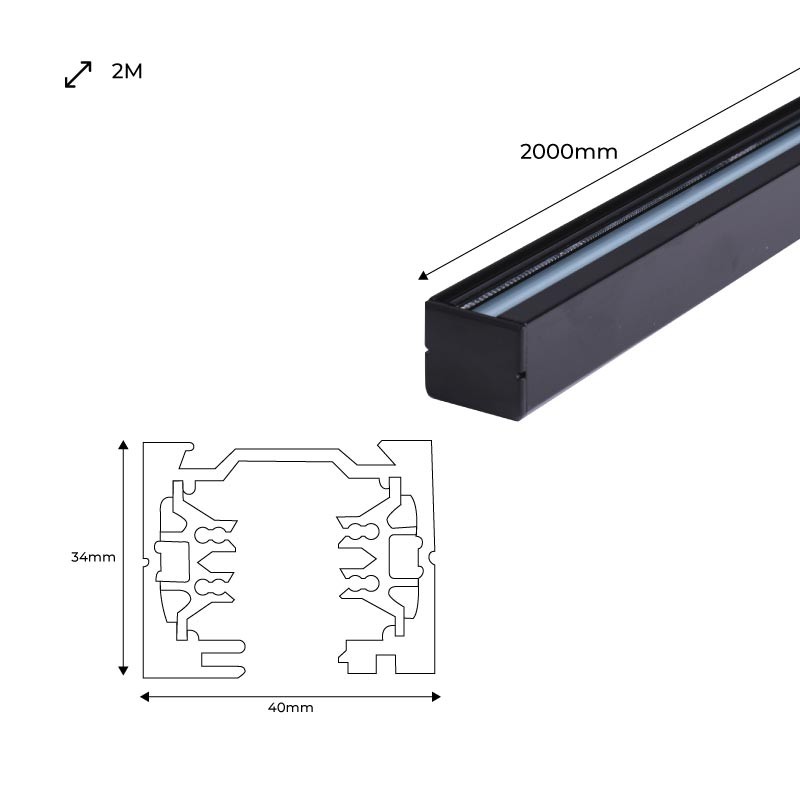

  • Dimensions: 2000 x 40 x 34 mm
  • Voltage: 220-250 V
  • Maximum power: 3900 W
  • Maximum current: 15 A
  • Including starting power supply and end cap
  • Indoor use: IP20
  • Surface or suspended installation (by adding accessories)
  • Maximum length to be installed: 20 m
2018-06-02
Nominal Voltage (V)
220 - 250 V/AC
Maximum power (W)
3900
IP
IP20
Dimensions (mm) Lxlxh
2000 x 40 x 34
Use Outdoor
No
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
15
Track Type
Triphasic
