Starter connector with cable for magnetic rail - 48V
SKU:CM-I-N
€4.45
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
The wired start connector is intended to communicate any external power supply compatible with the 48 V magnetic rail.
It is very easy to install and is compatible with our entire line of 20 mm magnetic rails: surface-mounted, flush-mounted and trimless.
Compatible with DALI protocol.
Main characteristics:

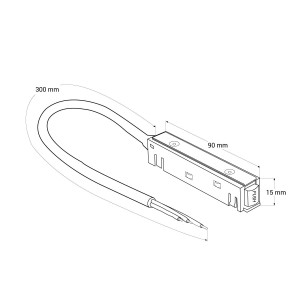

- Dimensions: 90 x 15 mm
- Cable length: 300 mm
- Maximum output voltage: 48 V DC
- Available in white and black color
Questions

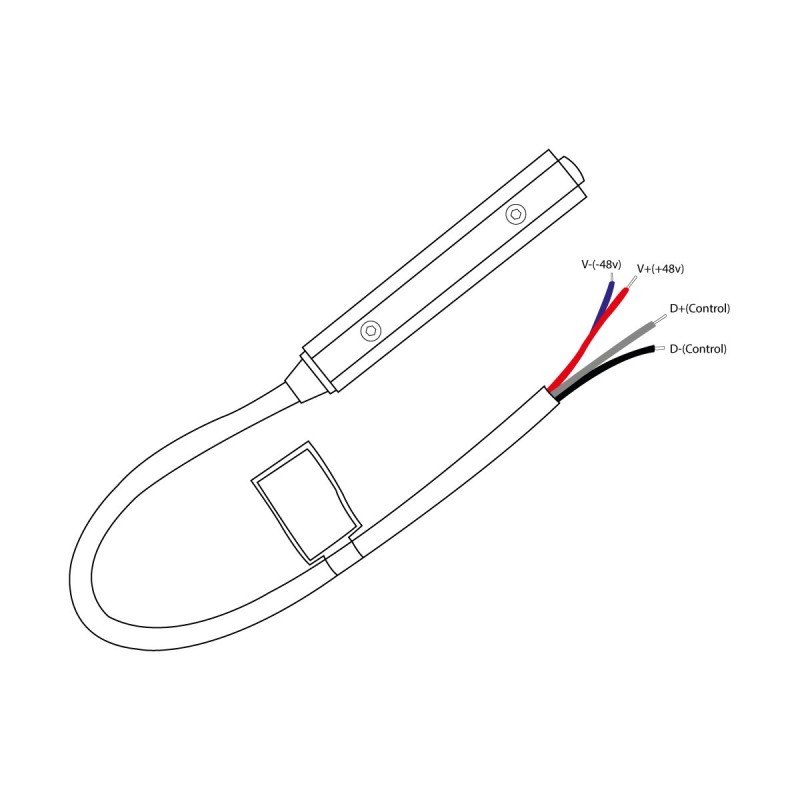

| P: Question: | How do you connect DALI-2, Dali in black and white? |
|---|
| R: Answer: | Hello, That's right, the black and white wire is for the Dali control unit. |
|---|
| P: Question: | What is necessary for the operation of the magnetic rail? This connector or the integrated power supply? |
|---|
| R: Answer: | The magnetic rail needs to be powered at 48Vdc. You can connect an integrated power supply or an external power supply that will need this connector. |
|---|
