Slim LED Tri-proof light - 120cm - 36W - 3400lm - IP65
SKU:B8410-2-120BF
€14.99
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

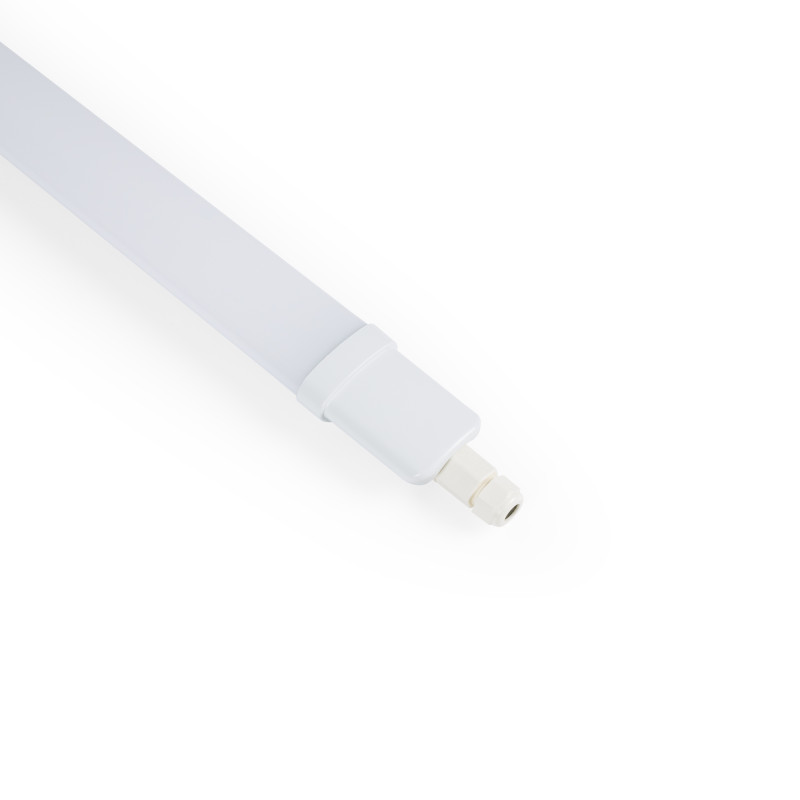

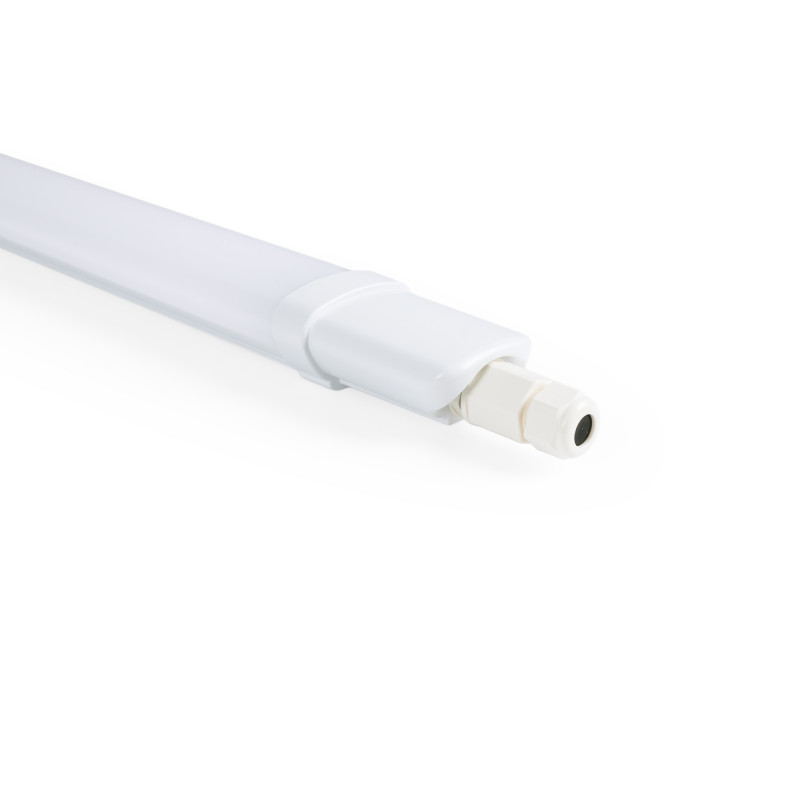

LED tri-proof slim batten light - 120cm
We introduce a new and revolutionary system of LED tri-proof luminaires, with an ultra-thin and compact design.
This fixture allows replacing traditional fluorescent tubes, providing significant energy savings.
It stands out for its powerful and uniform lighting, thanks to its integrated SAN'AN LED chips.
Manufactured from highly durable polycarbonate, it ensures longevity and excellent heat dissipation, resulting in an approximate lifetime of 25,000 hours.
It emits a cool white light (6500K) with a brightness of 3400 lumens, ensuring optimal visibility in any environment through its opal diffuser.
Thanks to its high protection rating, it's resistant to water and dust, making it ideal for outdoor use or in harsh environments.

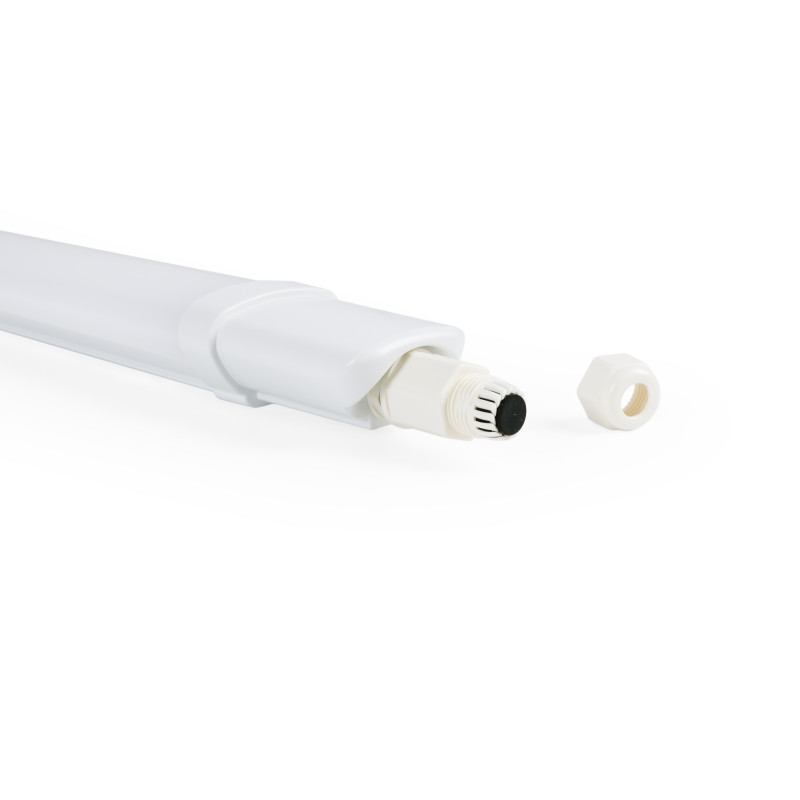

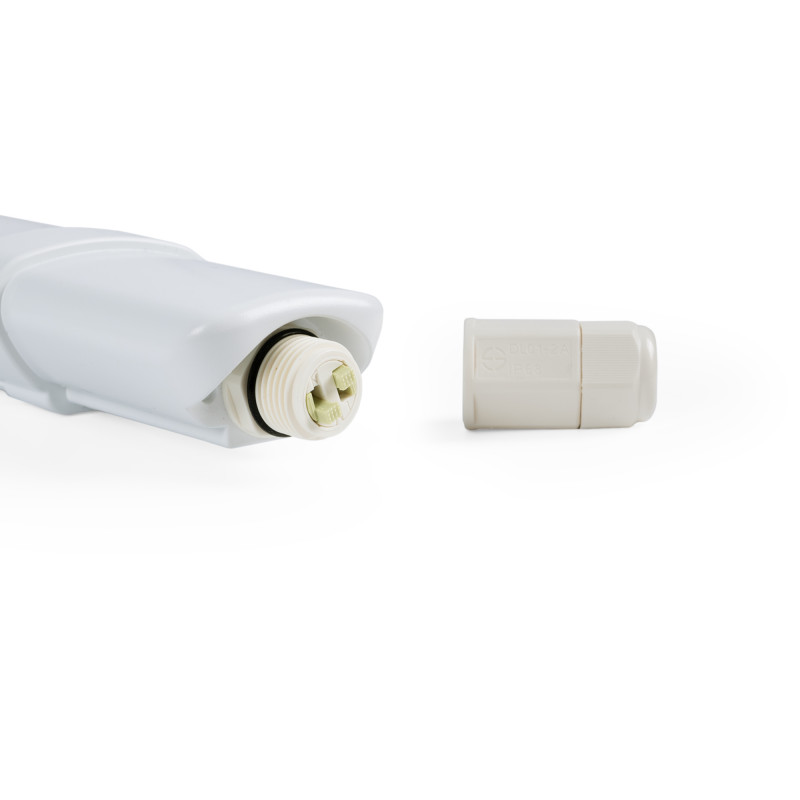

Its installation is straightforward and includes all necessary elements for assembly.
Applications
Due to its resistance and colour temperautre, it's especially recommended for farms and hatcheries. Additionally, it can be used for multiple applications:

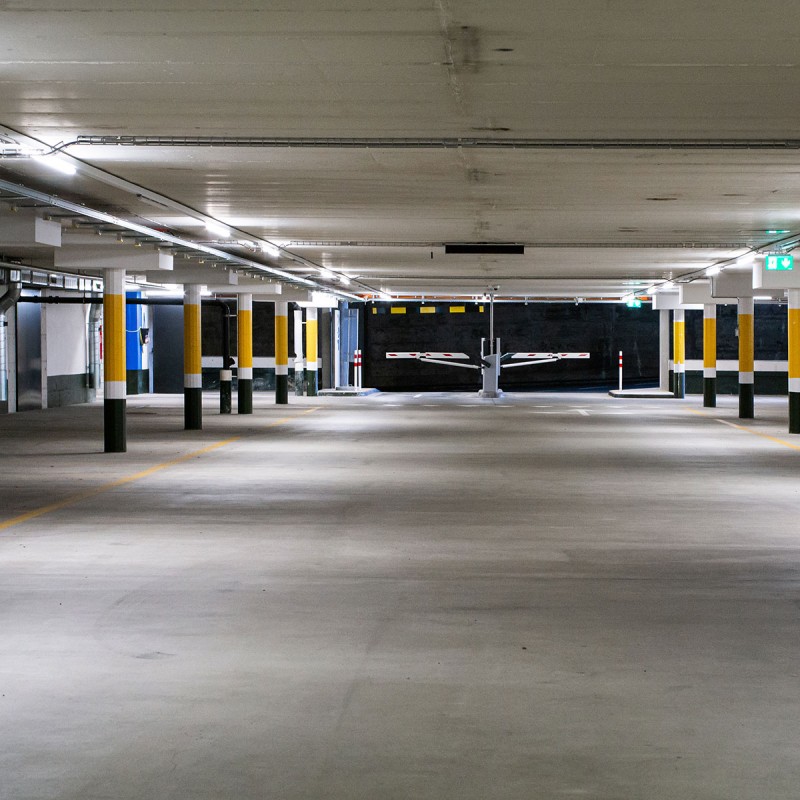

- parking lots and storage rooms

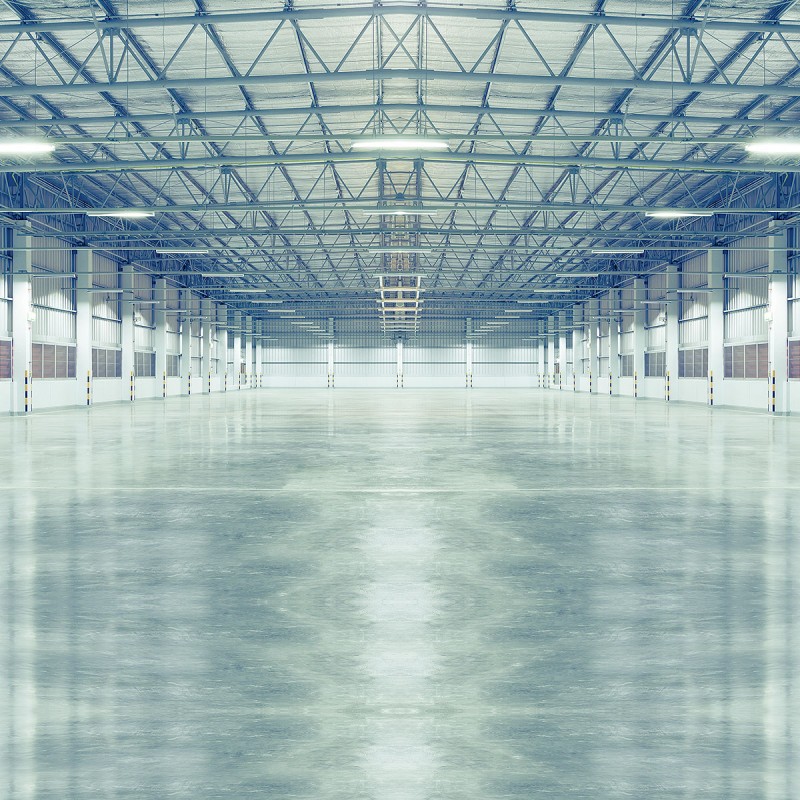

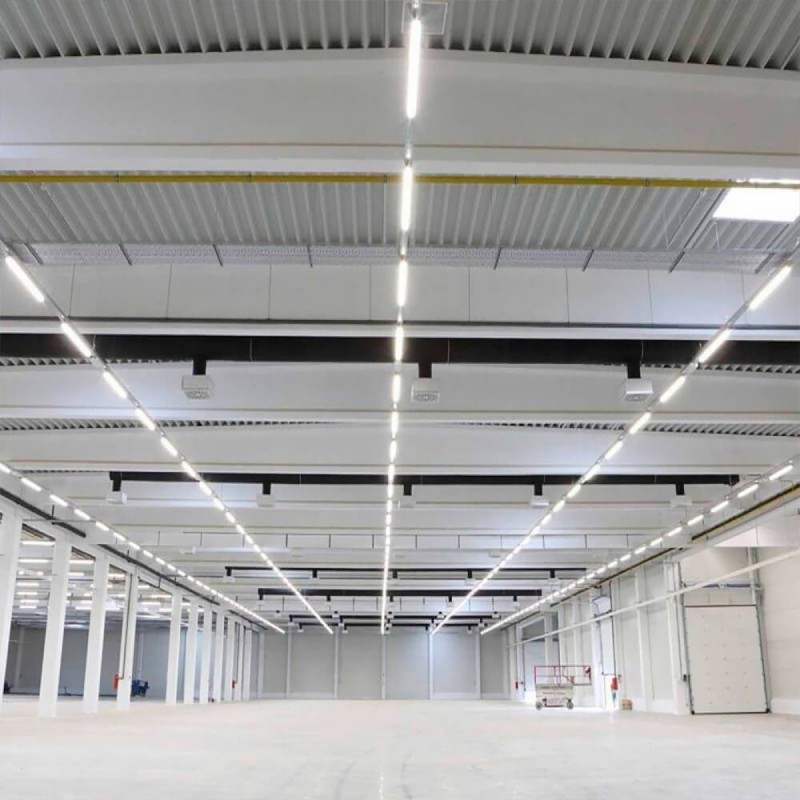

- industrial buildings and kitchens
- tunnels
- terraces, patios and corridors
- communal stairways
- workshops and stores
|
Product features:
|
Nominal Voltage (V)
230
Lumens (Lm)
3400
Kelvin (K)
6500
Beam angle (º)
140
Lifetime (h)
25000
IP
IP65
Dimensions (mm) Lxlxh
1290 x 50 x 34
Frequency (Hz)
50 - 60
Hue
Cool white
Sensor
No
Efficiency (Lm/w)
92
CRI
75-80
LED Type
SMD 2835
Dimmable
No
Power factor (cosφ)
0.9
Driver
Internal
Orientable
No
Material
Plastic
Diffuser material
Polycarbonate
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Frequency of use
Intensive
Energy efficiency class
F
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Length
1290mm
Width
50mm
Height
34mm
Questions
| P: Question: | I purchased a 120cm 36W 3400lm IP65 compact LED waterproof screen and when I plug it in it flickers constantly. The input voltage is 236Vac. |
|---|
| R: Answer: | On a 220-240Vac mains supply it works without problems, make sure that there are no components from previous systems in the installation, ballasts, capacitors etc. or that it is connected in series with other luminaires. Connecting directly to 236Vac the watertight shield should turn on without problems. |
|---|
| P: Question: | Hello, is it not available in neutral white? |
|---|
| R: Answer: | Hello Jaume, All models of waterproof screens we currently have on the web are in cool white. The linear LED luminaire we have it in different shades Greetings, |
|---|
| P: Question: | Hello, in the camunidad we need to change the lighting in the garage we have 153, parking spaces and I've been watching your product, which advise us with the highest illumination in ml, in screens of 1.20 cm, without further cordial greetings, Urbanization Via Parque Alicante. |
|---|
| R: Answer: | Good morning. Can you give me more data of the place where you want to change the luminaires, meters in total, that you have put now, if you can send me photos so we can orientate you better. You can send it with the data to comercial@barcelonaled.com Best regards MªJesus |
|---|
| P: Question: | Hello. Is it available in 600 mm length? |
|---|
| R: Answer: | The watertight screen is only available in 120cmts and 150cmts. |
|---|
