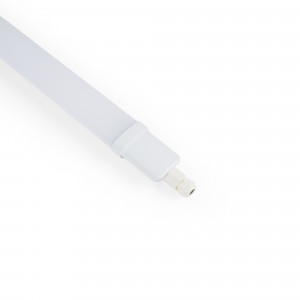

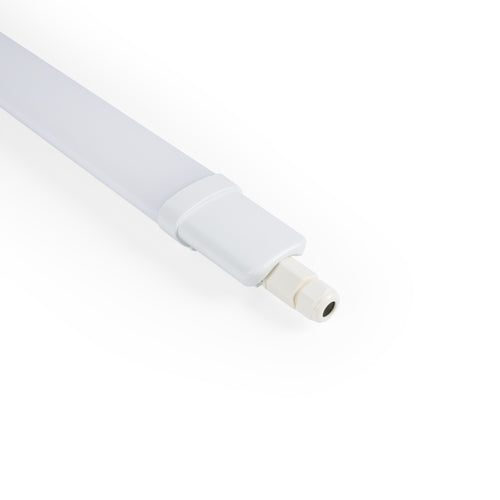

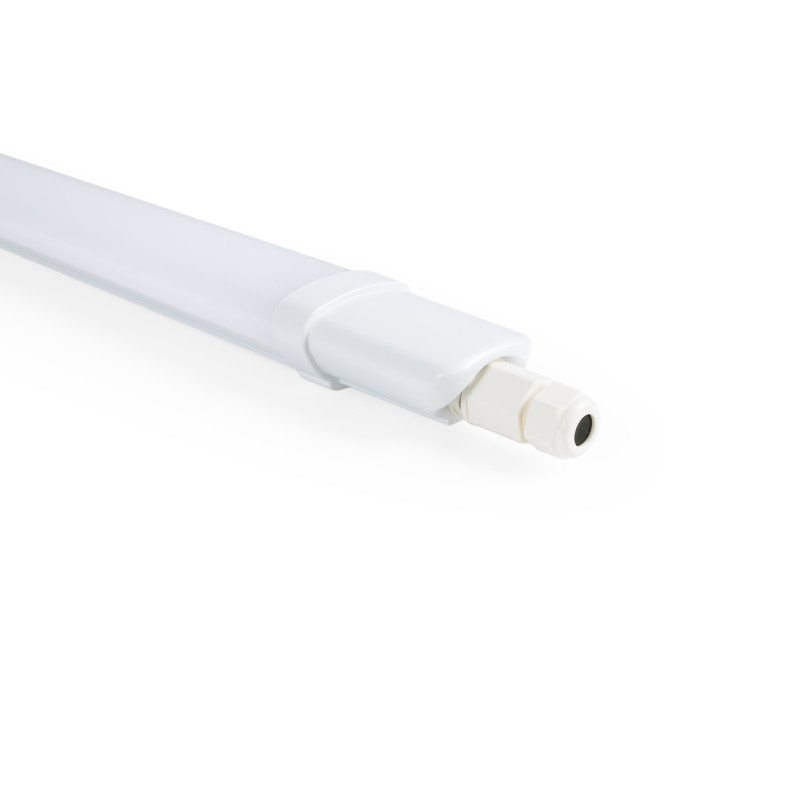

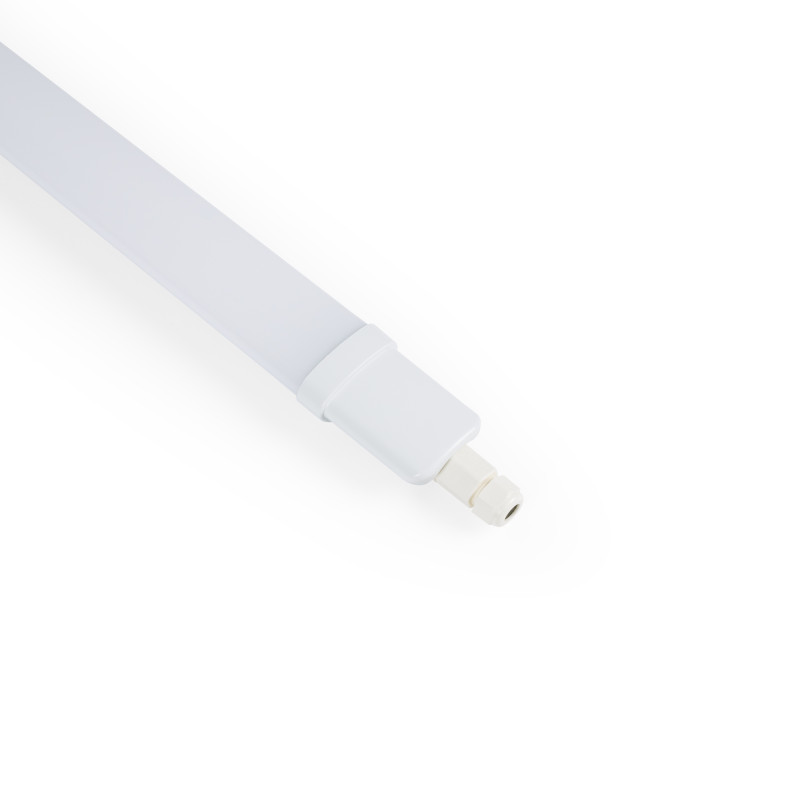

Linkable LED tri-proof slim batten light - 150cm - 45W - 4500lm - IP65
SKU:B8410-2-150BF
€19.49
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
Linkable LED tri-proof slim batten light - 150cm
We introduce a new and revolutionary system of LED tri-proof luminaires, with an ultra-thin and compact design.
This fixture allows replacing traditional fluorescent tubes, providing significant energy savings.
It stands out for its powerful and uniform lighting, thanks to its integrated SAN'AN LED chips.
Manufactured from highly durable polycarbonate, it ensures longevity and excellent heat dissipation, resulting in an approximate lifetime of 25,000 hours.
It emits a cool white light (6500K) with a brightness of 4500 lumens, ensuring optimal visibility in any environment through its opal diffuser.
Thanks to its high protection rating, it's resistant to water and dust, making it ideal for outdoor use or in harsh environments.

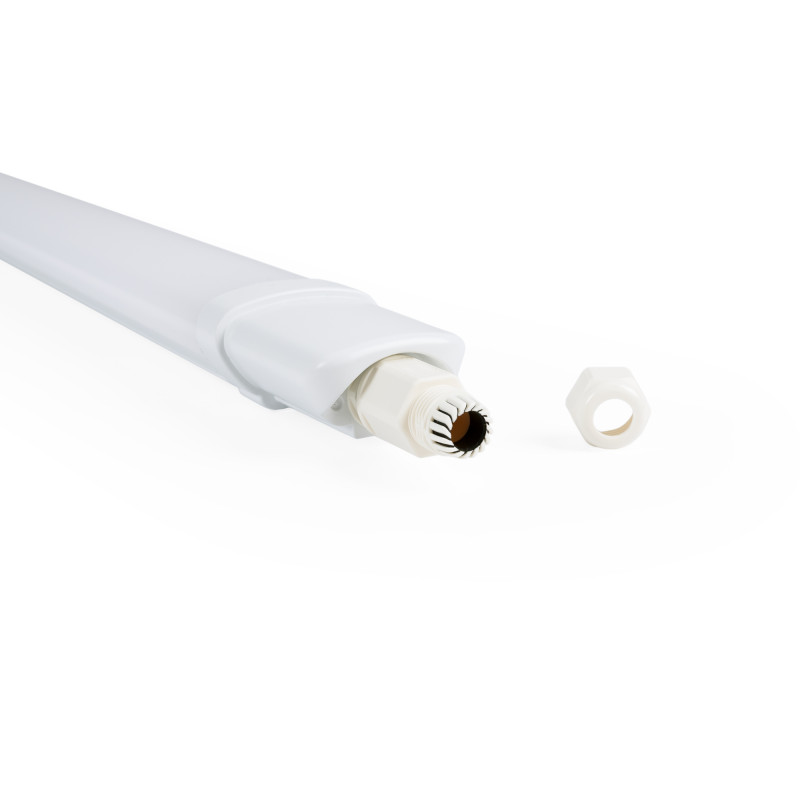

Its installation is straightforward and includes all necessary elements for assembly.

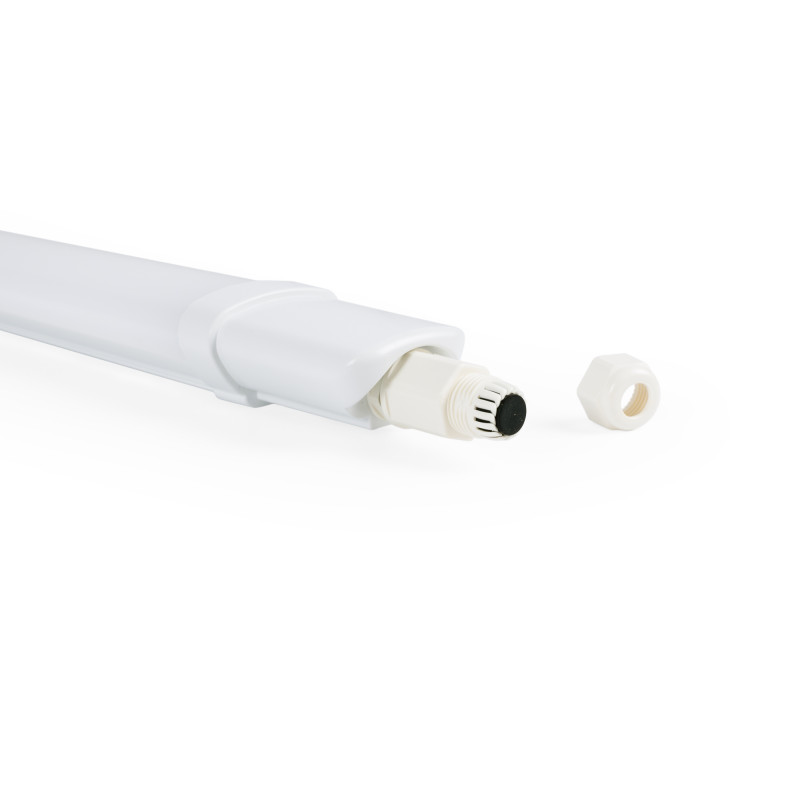

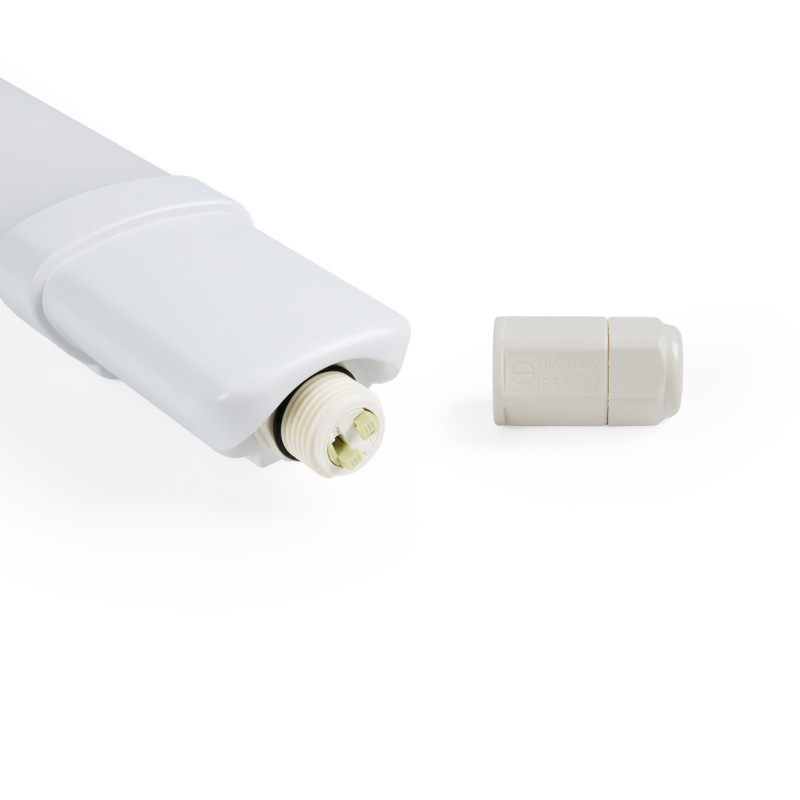

Being linkable, it allows for the creation of customized and efficient lighting systems.
Applications

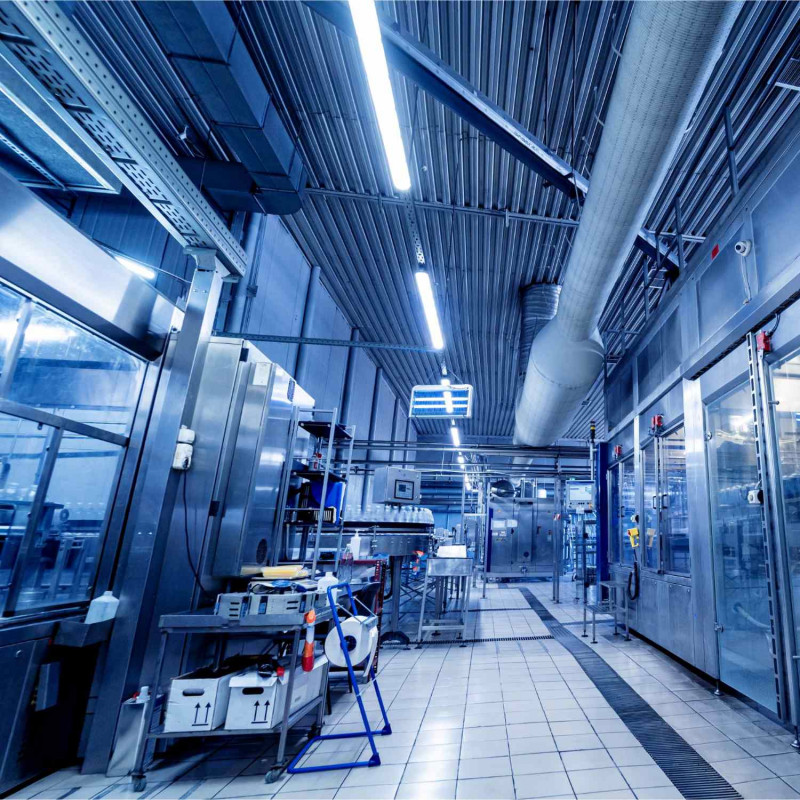

Due to its resistance and colour temperautre, it's especially recommended for farms and hatcheries. Additionally, it can be used for multiple applications:

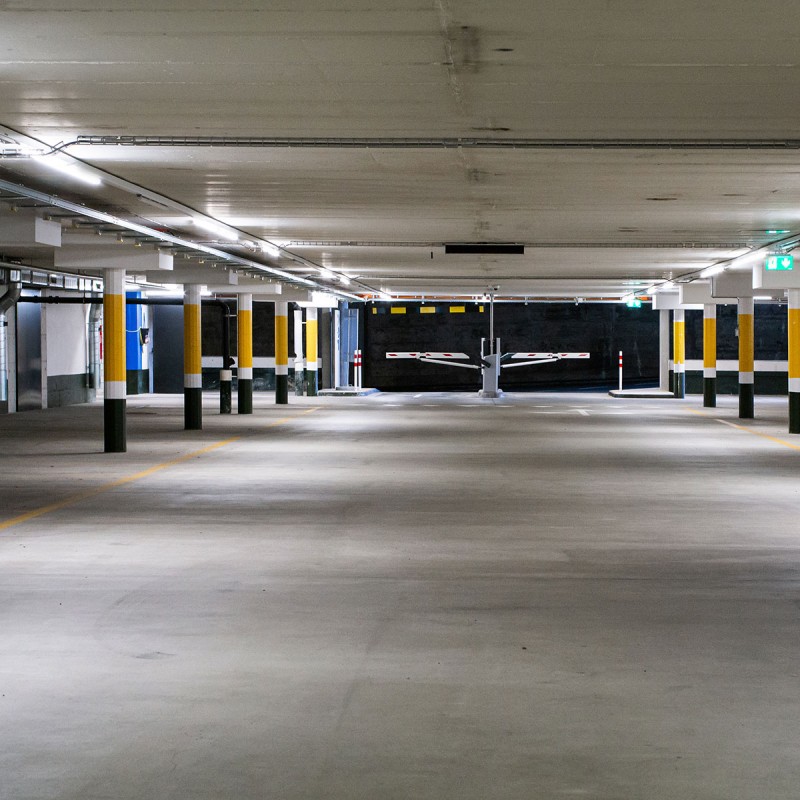

- parking lots and storage rooms

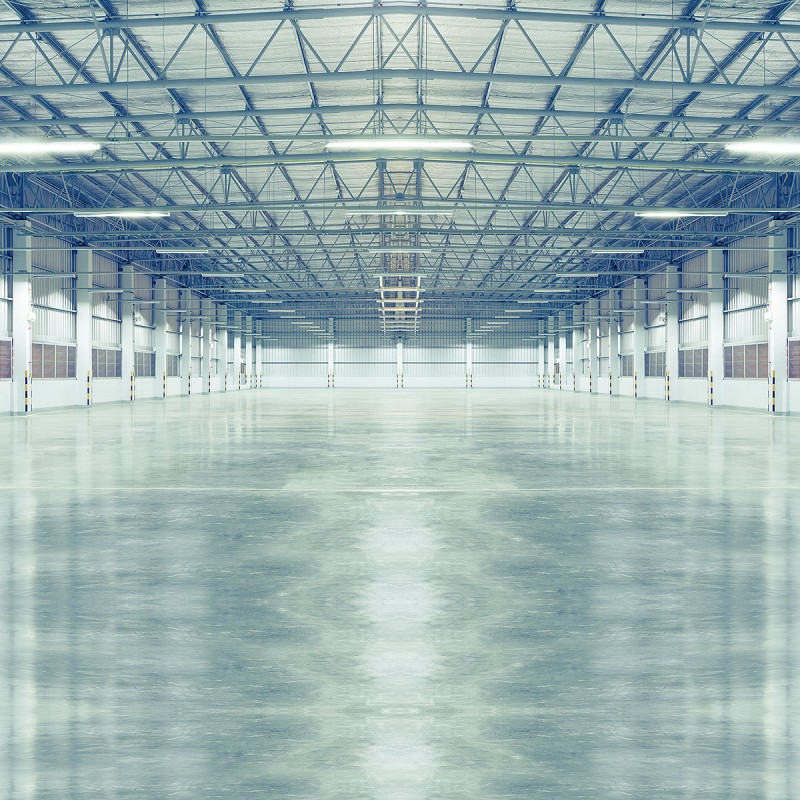

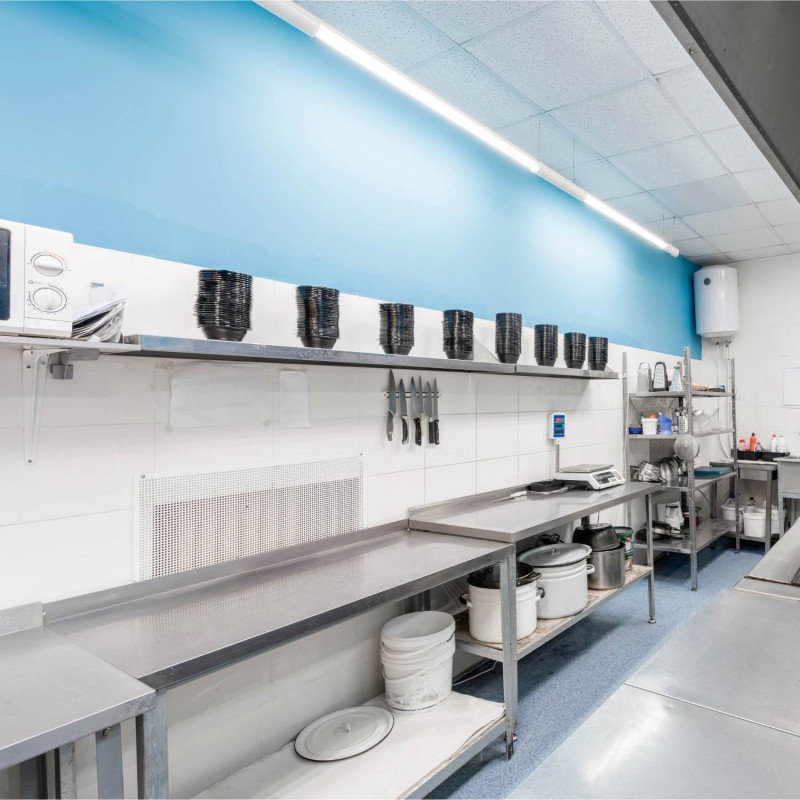

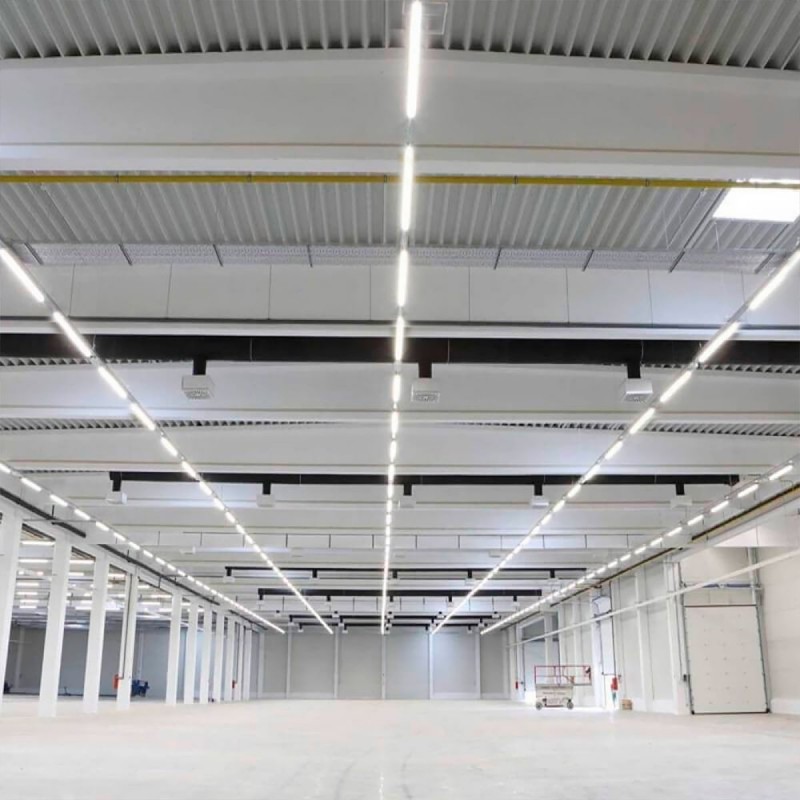

- industrial buildings and kitchens
- tunnels
- terraces, patios and corridors
- communal stairways
- workshops and stores
|
Product features:
|
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
45
Lumens (Lm)
4500
Kelvin (K)
6500
Beam angle (º)
140
Lifetime (h)
25000
IP
IP65
Dimensions (mm) Lxlxh
1570 X 50 X 34
Frequency (Hz)
50 - 60
Hue
Cool white
Sensor
No
Efficiency (Lm/w)
100
CRI
80-85
LED Type
SMD 2835
Dimmable
No
Power factor (cosφ)
0.9
Driver
Internal
Orientable
No
Material
Plastic
Diffuser material
Polycarbonate
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Frequency of use
Intensive
Energy efficiency class
F
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: | Can the waterproof screen reference B8410-150BF be installed directly to the wall or ceiling? |
|---|
| R: Answer: | The lampshade is equipped with staples to fix the luminaire to the ceiling (drilling and plugging required). |
|---|
| P: Question: | Can two luminaires be spliced together? One after the other without having to run a second cable from the beginning of the installation? |
|---|
| R: Answer: | No, these luminaires are only connected on one side. |
|---|
| P: Question: | Can it work with remote control? If not, can you advise me something similar that goes with remote control? It is for a kitchen wall on a porch. |
|---|
| R: Answer: | It is a normal watertight screen does not carry control knob. You may be interested in connecting a sonoff smart switch as the ref. SONOFFRFR2 to control by mobile app or link a SONOFF4KEYREMOTE remote control. |
|---|
| P: Question: |
Good afternoon I would like to know if these waterproof screens have led tubes that can be changed. For example T8 Thanks |
|---|
| R: Answer: | No slim LED waterproof display in a complete set of electronic driver and integrated LEDs, can not be changed or add components. |
|---|
| P: Question: | Pirque has 3 wires and not 2? |
|---|
| R: Answer: | Class 1 luminaires have 3 wires and class 2 luminaires can have two wires (line, neutral, ground). We recommend the use of professional installers. |
|---|
| P: Question: |
I am interested in buying 2 units of this 150cm waterproof screen. The postage is free ? Greetings. |
|---|
| R: Answer: | Good afternoon Lluis, That's right; the shipping is free because the amount of the two units is greater than 30€. Best regards, |
|---|
