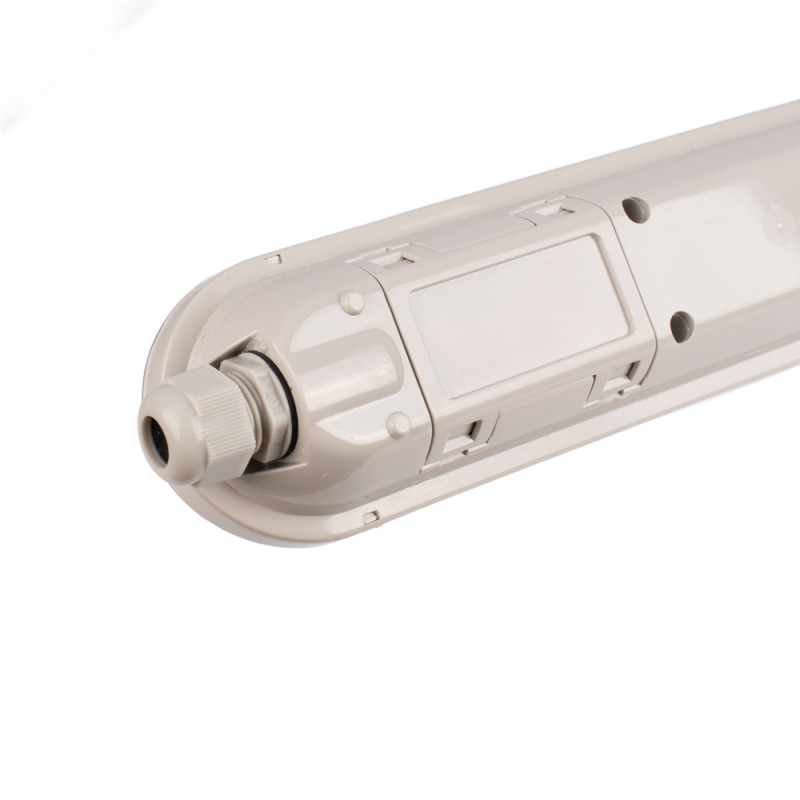

Linkable LED tri-proof batten light - 55W 150cm 7150Lm IP65

SKU:B8400-150BN

Volume discounts

Quantity Price
15 €38.75
30 €38.35
60 €37.95
120 €37.55
360 €37.15
Colour temperature
Has superado el límite de unidades
In stock 1251 units
Data sheet

Tri-proof LED batten light. 150cm-long and 55W consumption, ideal for the replacement of conventional fluorescent tube watertight equipment with a saving in energy consumption of up to 50%. It integrates LED chip SANAN SMD2835 in neutral white 4000K. Made of PC and tri-proof (IP65 and IK04 against shocks and falls).

  • 1480x72x61mm
  • 55W
  • 230V
  • 7150Lm
  • IP65
Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Tri-proof LED linear light - 55W and 150cm

Tri proof LED luminaire created with the highest quality, obtaining a saving of almost 70% in energy consumption compared to conventional waterproof fluorescent tube luminaires.

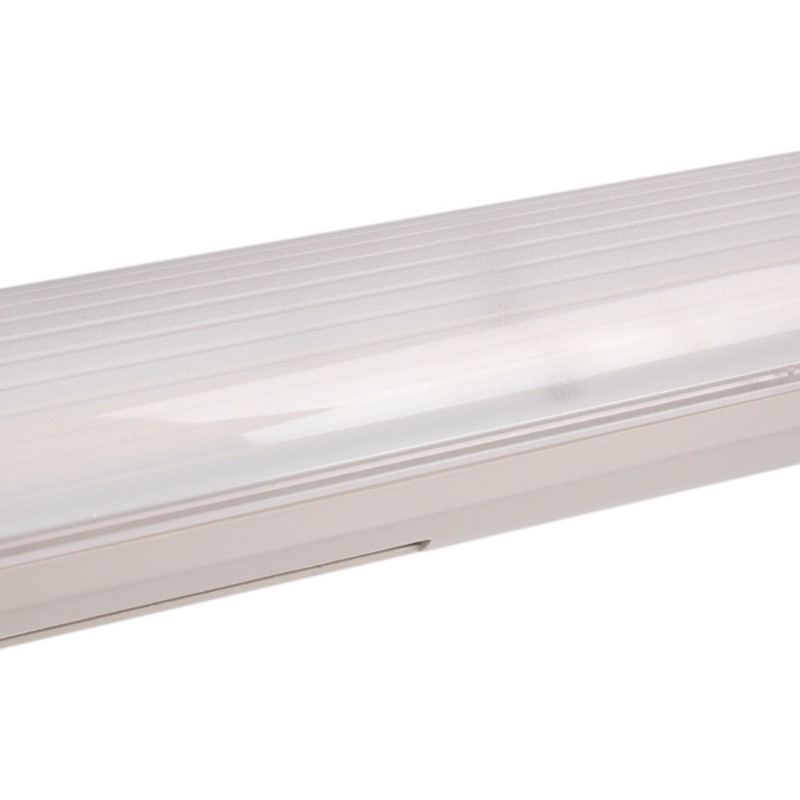

It's made of polycarbonate housing resistant to dust, corrosion and liquids, with IP65 rating, valid for outdoor use as well as in those indoor areas that are exposed to moisture, splashing liquids and vapors. The inner housing and PCB are made of aluminum, and the semi-transparent polycarbonate diffuser emits light correctly, without loss of luminous intensity.

The product has an integrated PCB with SAN'AN SMD2835 LED chips with a luminous efficacy of 130 lm/W, one of the highest on the market today, with a total luminous flux of 7150 lumens and a neutral white color temperature of 4000K. The driver is EMC filtered to avoid electromagnetic interference in wireless devices such as WiFi or radio, in addition to having a significant reduction of flicker compared to its predecessors.

Change now your conventional fluorescent tubes linear waterproof equipment and switch to our tri proof LED batten light. It's lightweight, easy to install and equivalent to 2 x 150cm tubes, so energy consumption will be reduced by up to 70% with higher intensity and brightness.

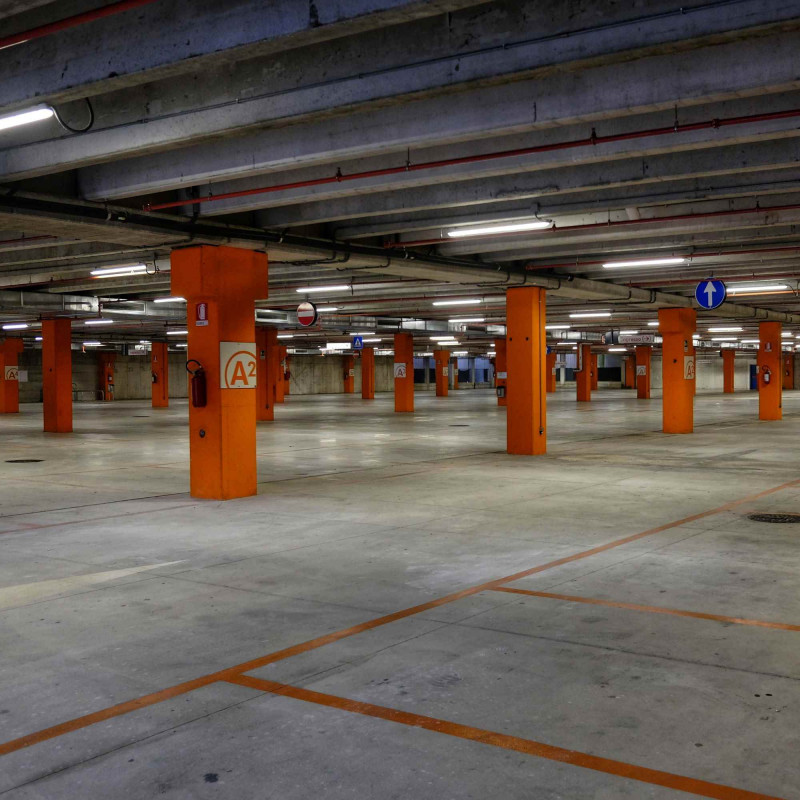

Use it in parking lots, industrial warehouses, passage and maintenance areas, sports centers, etc.

pantalla estanca led 150cm pantalla estanca led 150cm

Product features:

  • Power: 55W, replaces and is equivalent to the consumption of 2 conventional fluorescent tubes of 150cm.
  • Input voltage: 230V
  • Luminous efficacy: 130lm/W
  • Luminous flux: 7150Lm
  • San'an SMD2835 LED chip Neutral white 4000K
  • Shock and vibration protection IK04
  • Wide 120º beam angle
  • Instant on, no flicker, no noise.
  • Integrated EMC filtered driver against electromagnetic interference.
  • IP65 protection against humidity, splashes, dust and dirt.

Nominal Voltage (V)
230V-AC
Power (W)
55
Lumens (Lm)
7150
Kelvin (K)
4000
Beam angle (º)
120
Lifetime (h)
25000
IP
IP65
Dimensions (mm) Lxlxh
1480x72x61
Frequency (Hz)
50 - 60
Hue
Neutral white
Sensor
No
Efficiency (Lm/w)
130
CRI
80-85
UGR
No
LED Type
SMD 2835
Dimmable
No
Power factor (cosφ)
0.9
Material
Polycarbonate
Diffuser material
Polycarbonate
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Frequency of use
Intensive
Energy efficiency class
E
Certificates
CE
ROHS
Warranty
5 years
Barcelona LED

Questions

P: Question: Can this type of display be connected to another one or does it only have one input?

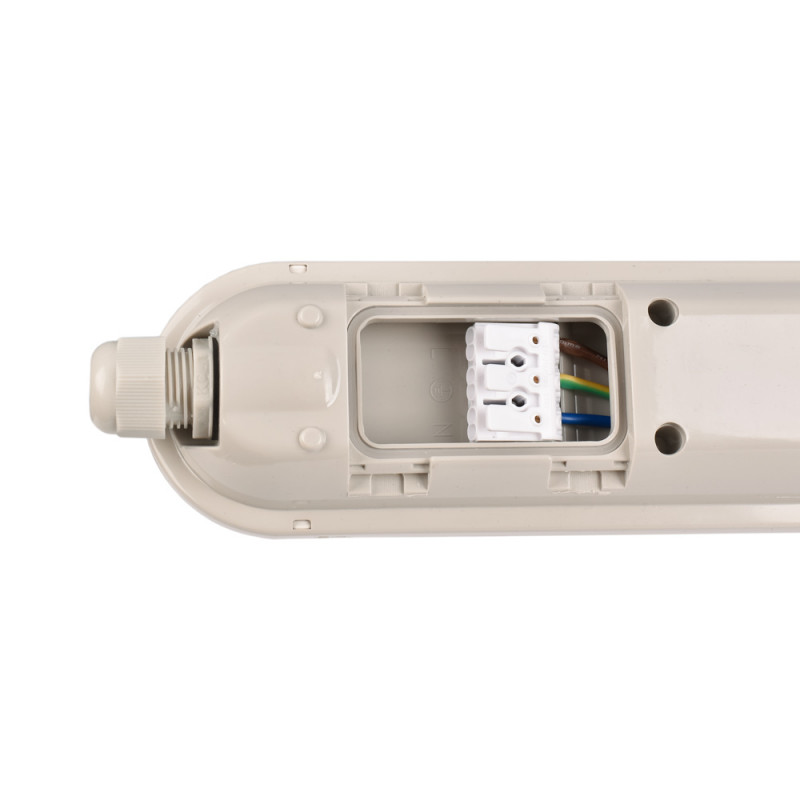

R: Answer: If more than one can be connected, it has an input on both sides.
P: Question: I would need to know if you have this screen with more kelvin and also if you have them with more lumens.

Thank you.
R: Answer: No, this model is the longer one of 150cm with more lumens, the other color temperature is this model ref. B8400-150BF or with the transparent diffuser that has a little less loss of lumens ref. B8400-150BF-T.
P: Question: Good morning,
I would need 10 of these led screens (Waterproof LED screen integrated 55W 150cm 7150Lm IP65
Reference:B8400-150BN), can you tell me when they would be available please?

Thank you very much

Stefano
R: Answer: The customer service department will contact you with any questions regarding the waterproof screens with integrated LED.

Barcelona LED: Marc| 14/01/2020
