Tri-proof batten for 150cm LED tube - IP65
Tri-proof batten for 150cm LED tube - IP65
Tri-proof batten for 150cm LED tube - IP65
Tri-proof batten for 150cm LED tube - IP65

Tri-proof batten for 150cm LED tube - IP65

SKU:B8470-2-150
Has superado el límite de unidades
In stock 1158 units
Data sheet

Tri-proof batten for 150cm LED tube, made of high strength polycarbonate.

It provides an effective protection against dust and humidity, allowing its installation in humid and outdoor environments.

** Does not include LED tube**

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

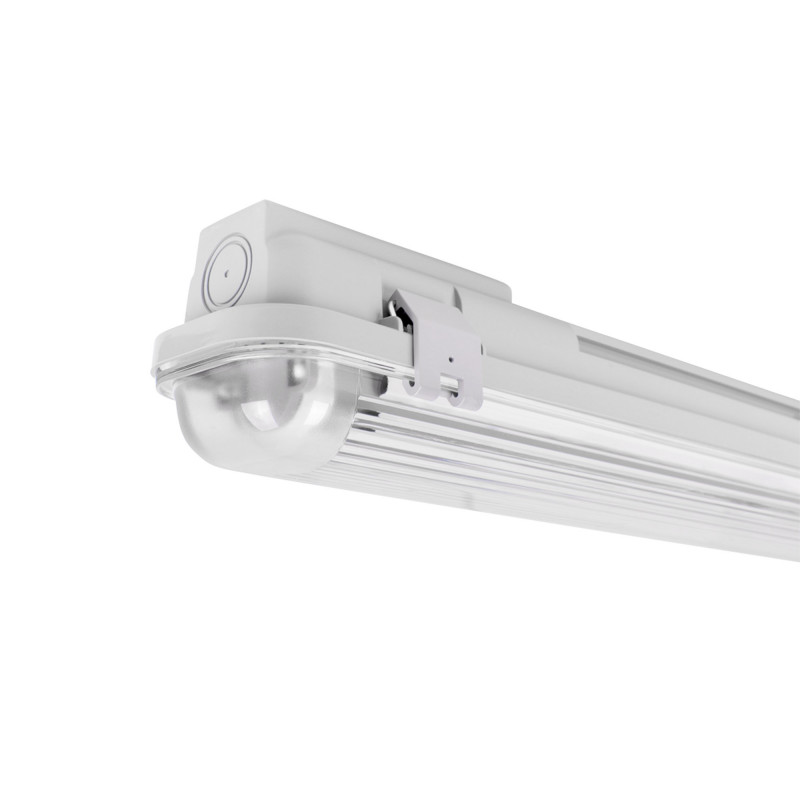

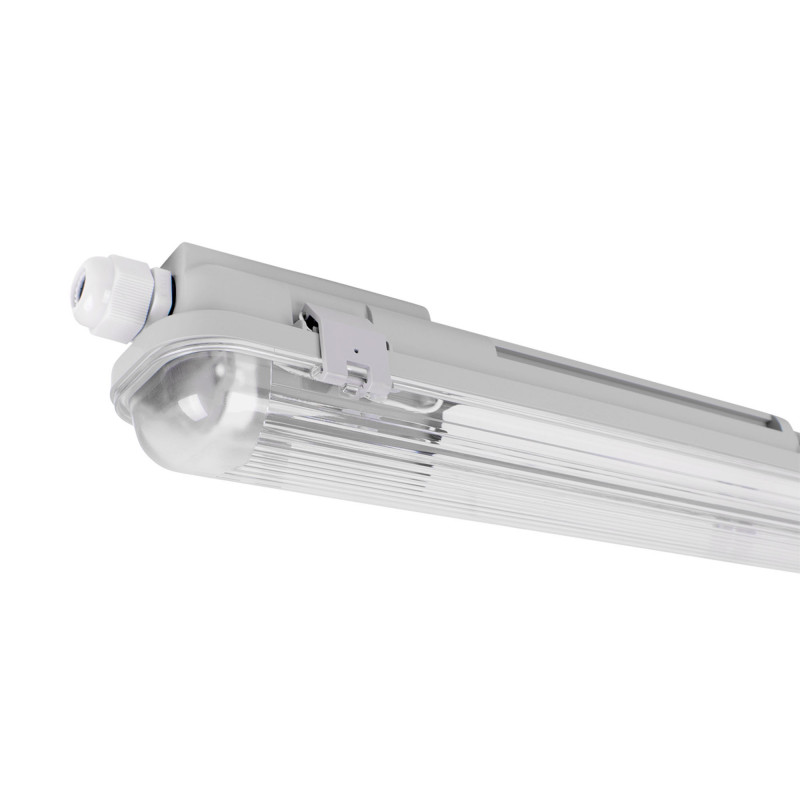

Empty tri-proof batten designed to accommodate a 150cm LED tube.

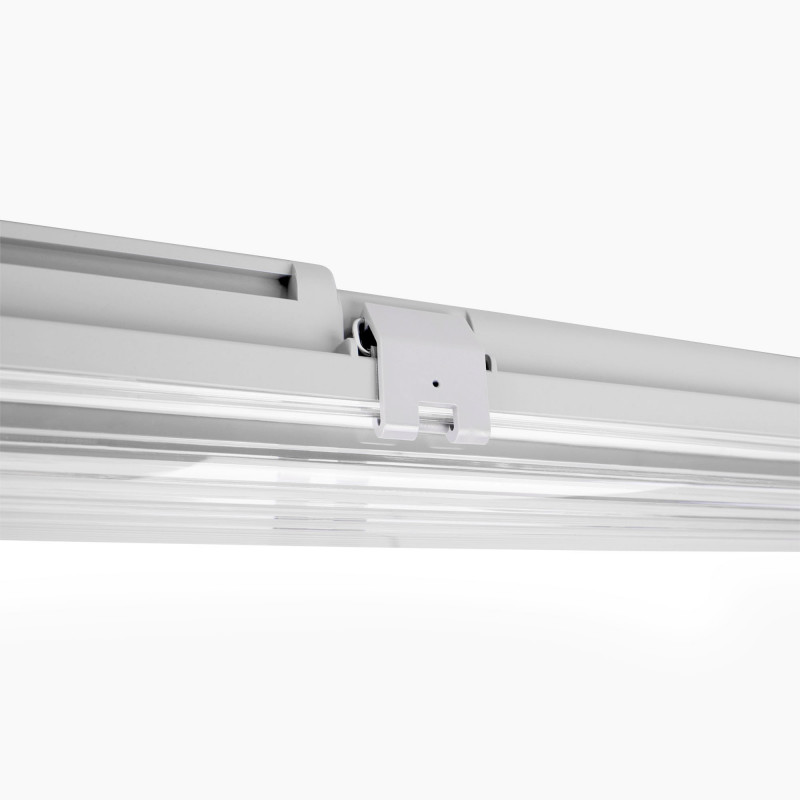

It's made of high-strength polycarbonate and its semi-transparent screen allows the light to pass through optimally.

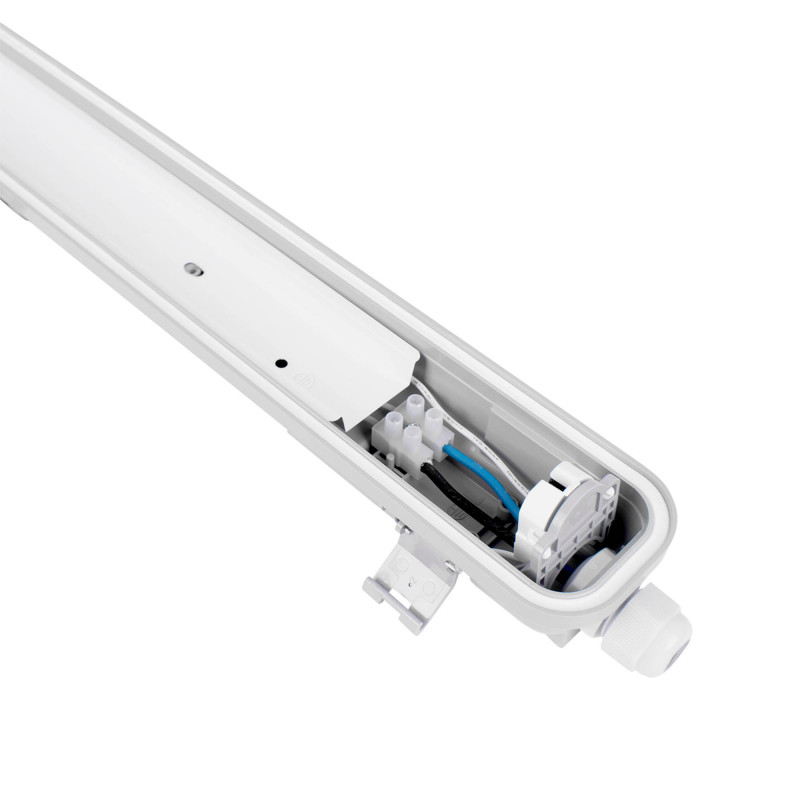

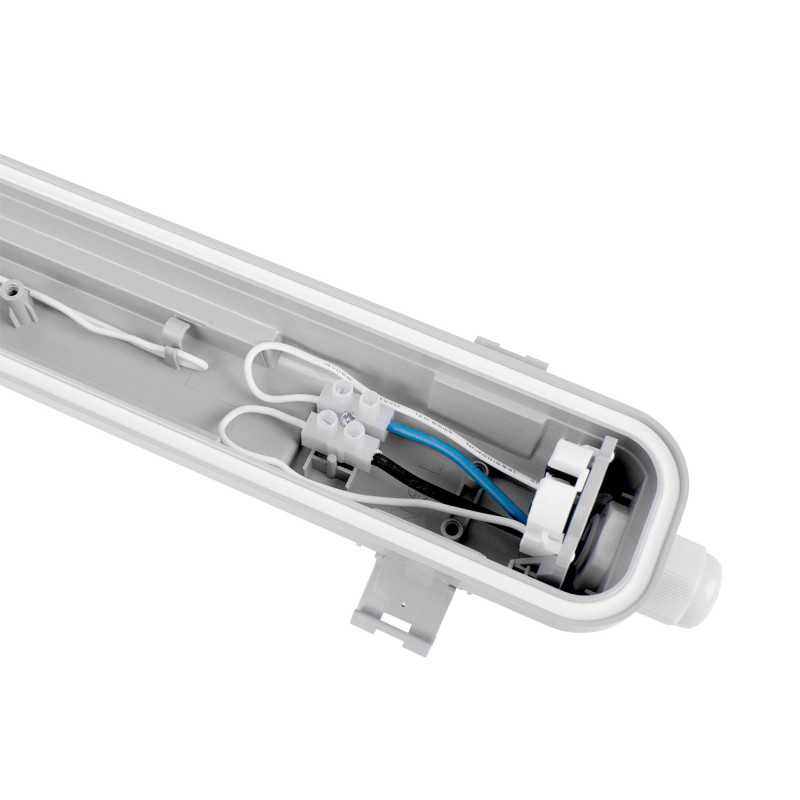

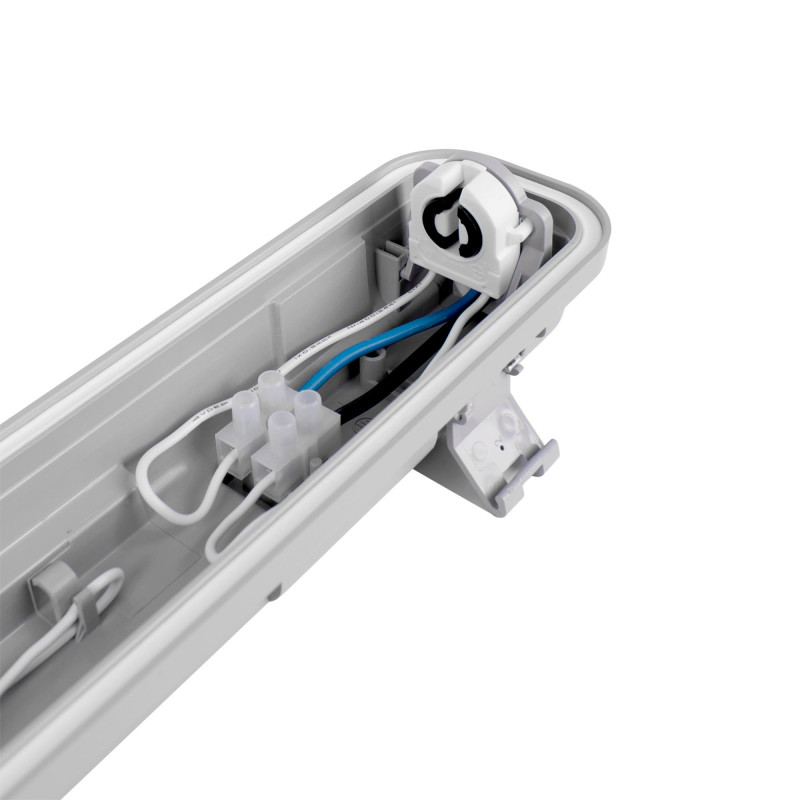

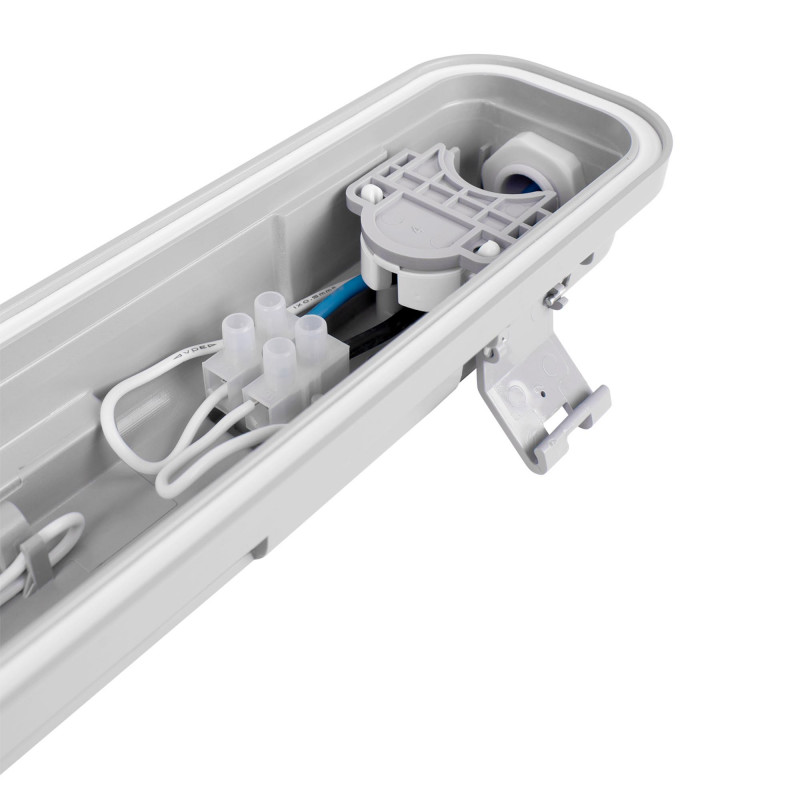

It incorporates two G13 sockets, one having the wiring ready to make the electrical connection and the other one having the cable ready and disconnected, in case it's necessary to install a tube with connections on both sides.

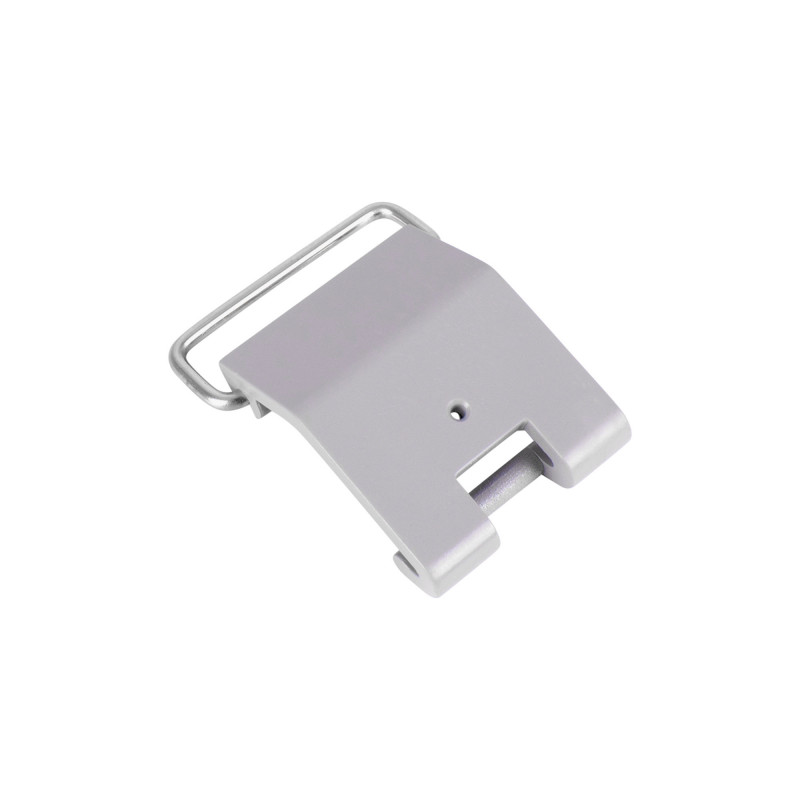

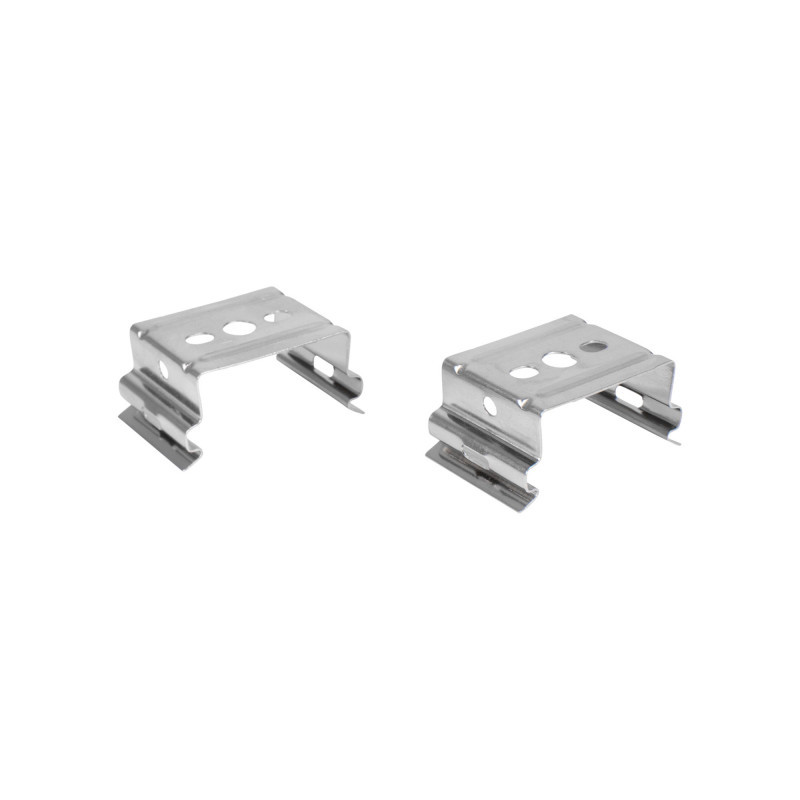

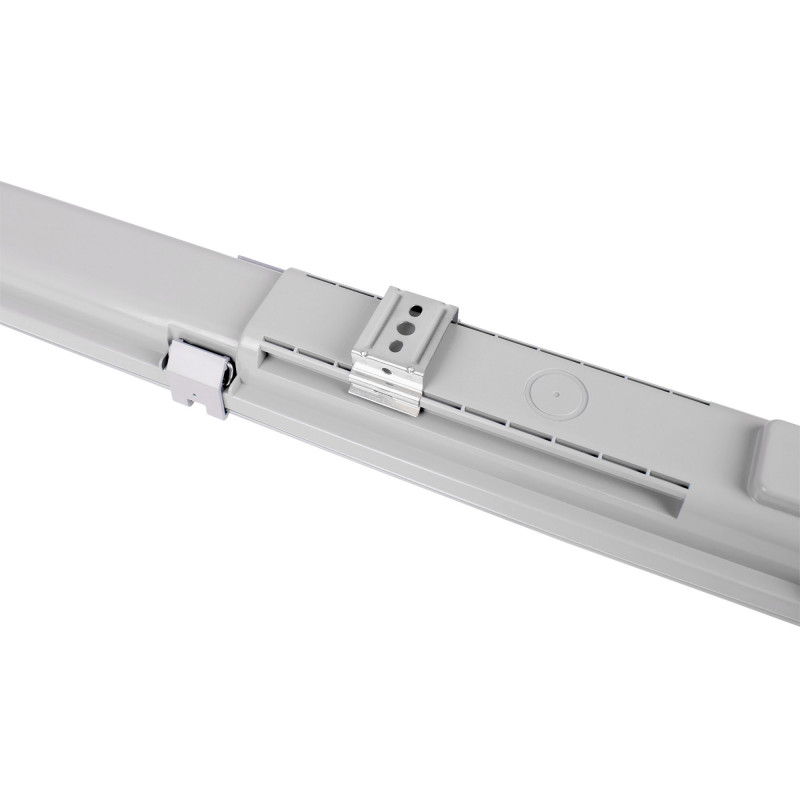

It includes all the necessary accessories for mounting and fixing, both outdoors and indoors. They're made of stainless steel, guaranteeing their durability outdoors.

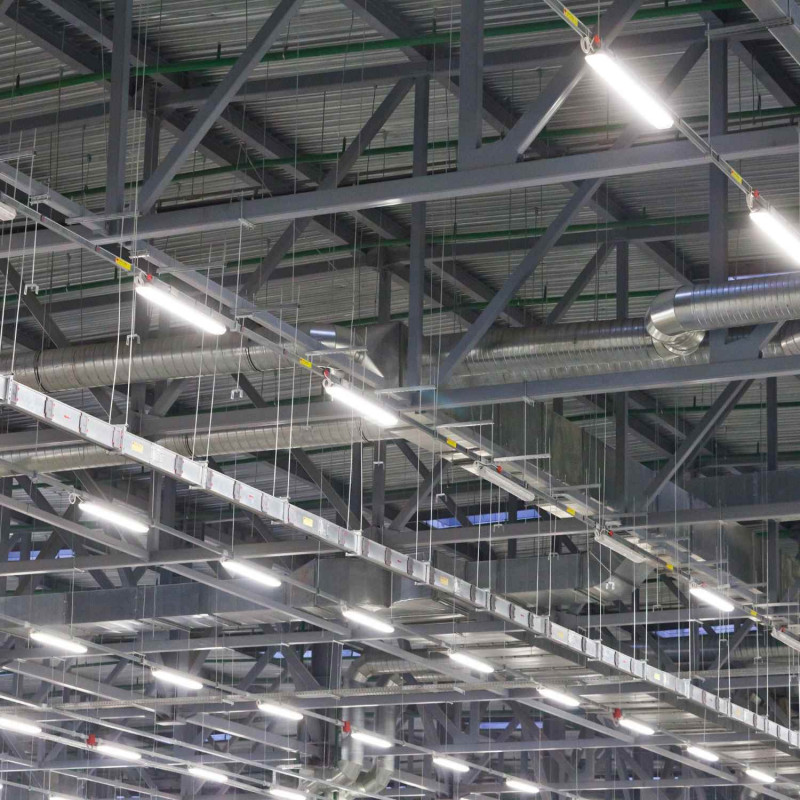

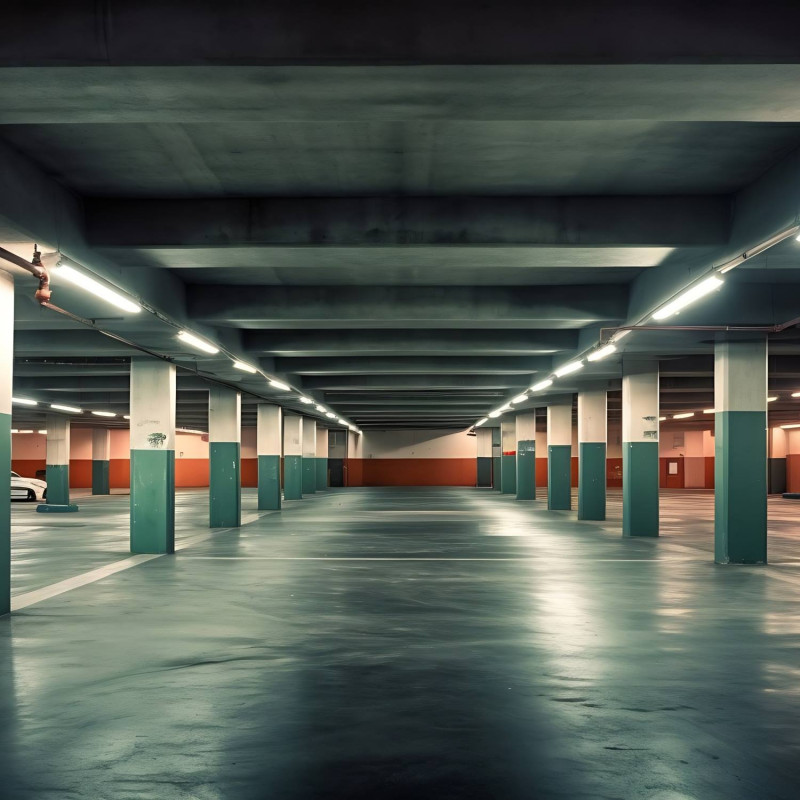

This product is extremely versatile and can be installed in environments as diverse as facades, residences, parking lots, warehouses, garages, corridors, commercial spaces, etc.

Nominal Voltage (V)
220 - 240 V/AC
Socket
G13
IP
IP65
Dimensions (mm) Lxlxh
1565 x 64.4 x 60
Tube type
T8
Material
Polycarbonate
Diffuser material
Polycarbonate
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: How many lumens can I get with this screen?
R: Answer: It is simply a tube holder screen, the amount of light depends on the 150cm tube that is installed.
