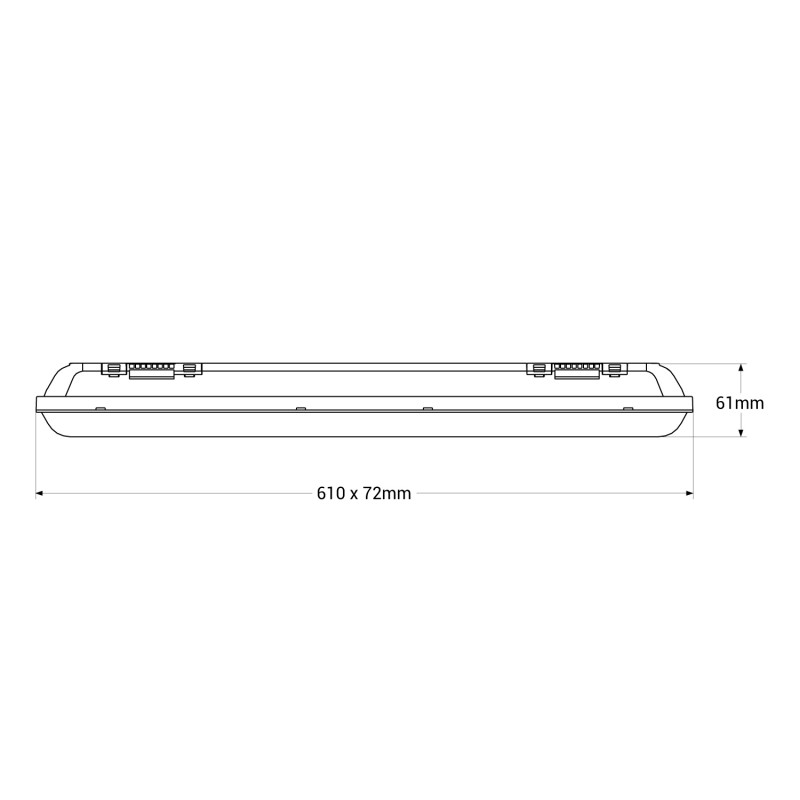

dimensions-b8400-60-cct

Linkable CCT LED Tri-proof Batten light - 60cm - 21W - IP65

SKU:B8400-60-CCT
Has superado el límite de unidades
In stock 31 units
Data sheet

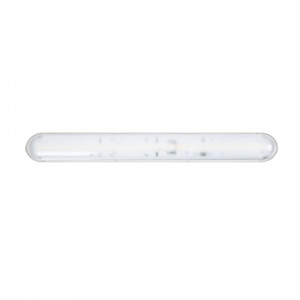

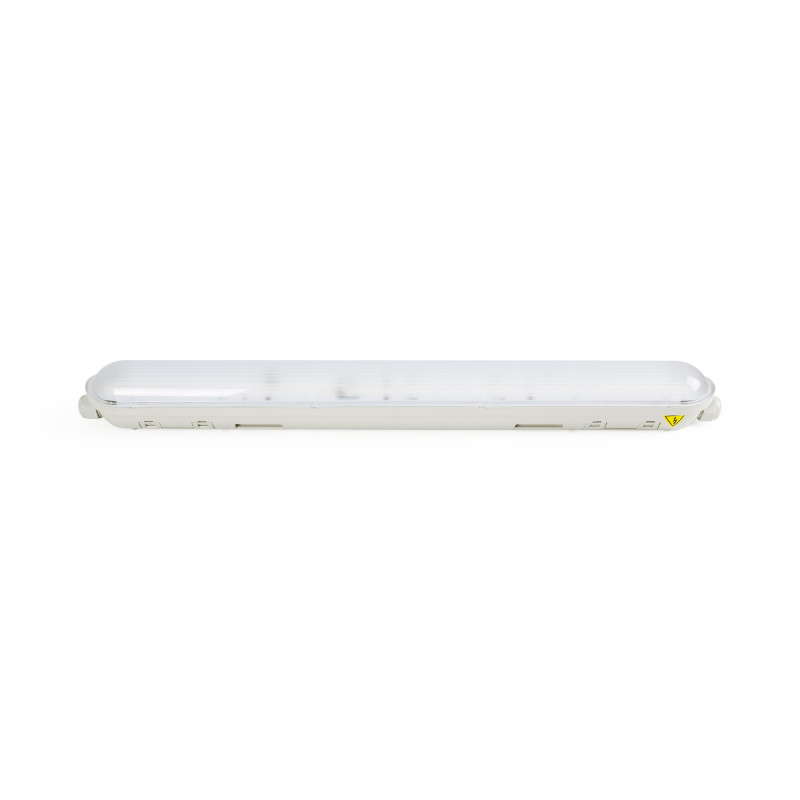

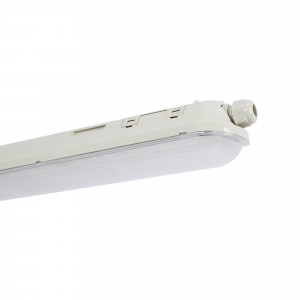

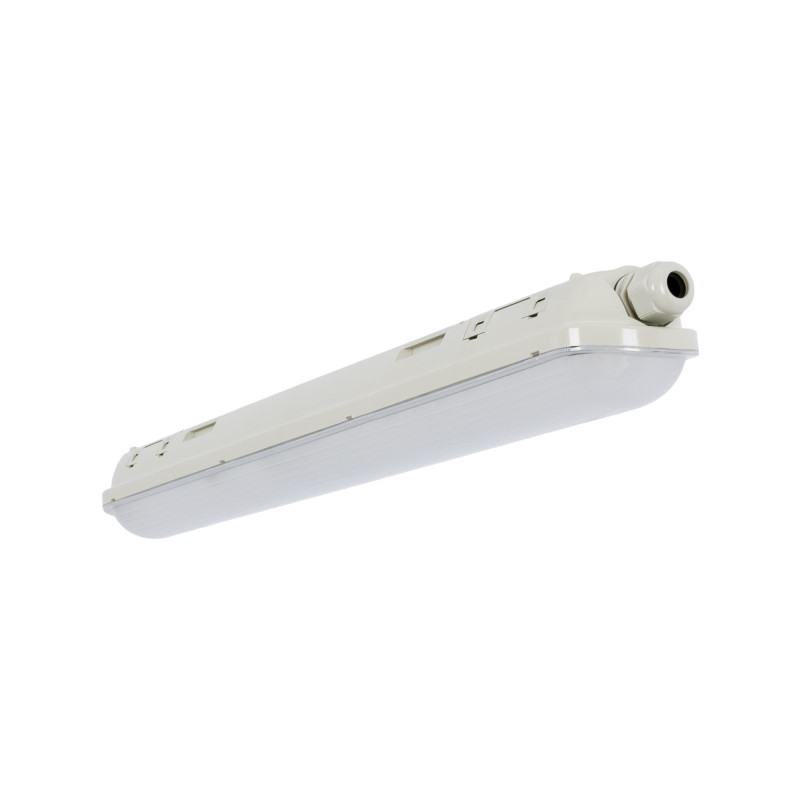

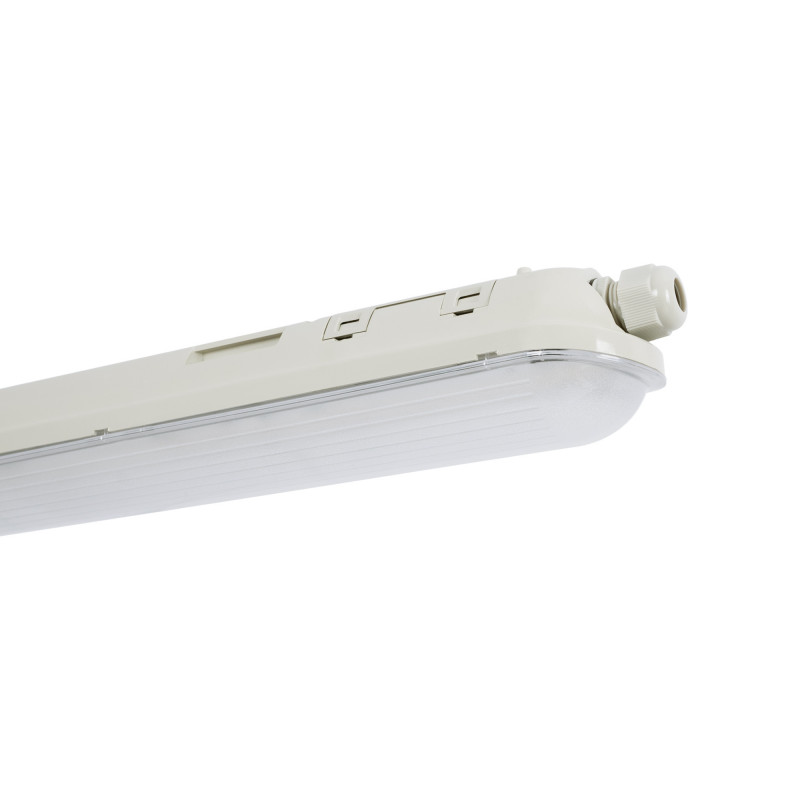

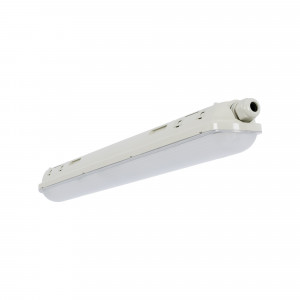

Light up your spaces with the linkable CCT tri-proof batten light. With a length of 60cm and a power of 21W, it offers a high light output (130lm/w).

Thanks to its materials and its IP65 protection rating design, this product is resistant to water, dust, and other external agents, making it ideal for installation in humid or outdoor environments.

Additionally, its CCT temperature selector allows you to adjust between warm white (3000K), neutral white (4000K) and cool white (6500K).

Enjoy versatile, long-lasting lighting with this LED tri-proof fixture!

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

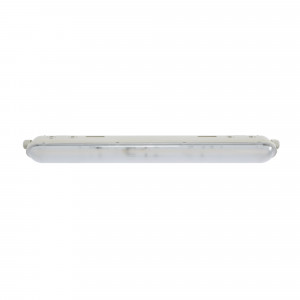

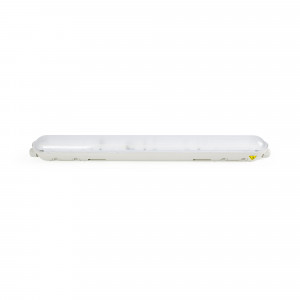

Linkable LED Tri-proof Batten light - 60cm

This batten light is an excellent option to replace traditional fluorescent tubes, as it combines quality with remarkable energy savings.

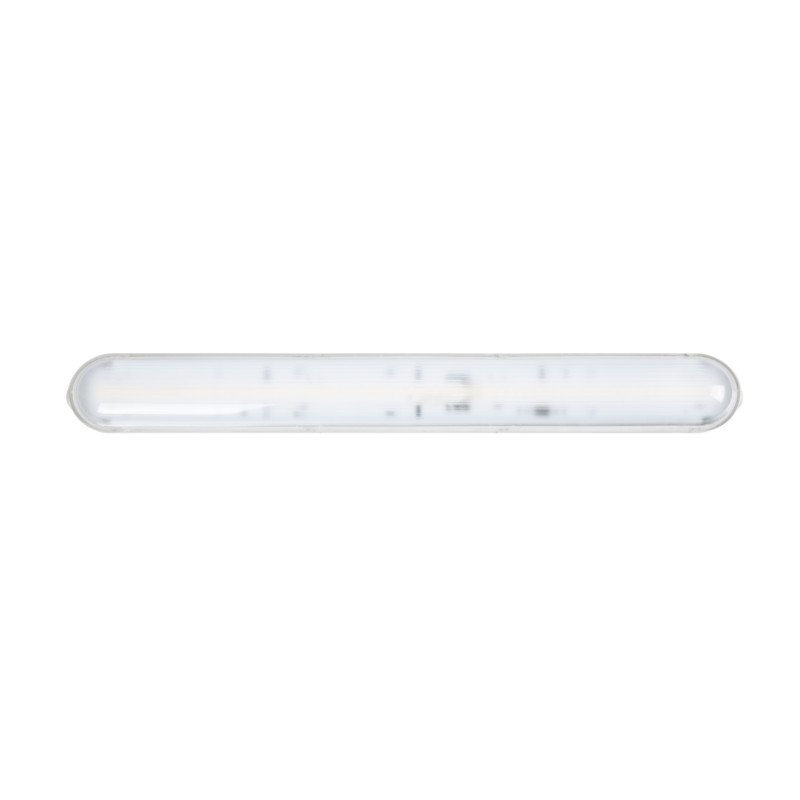

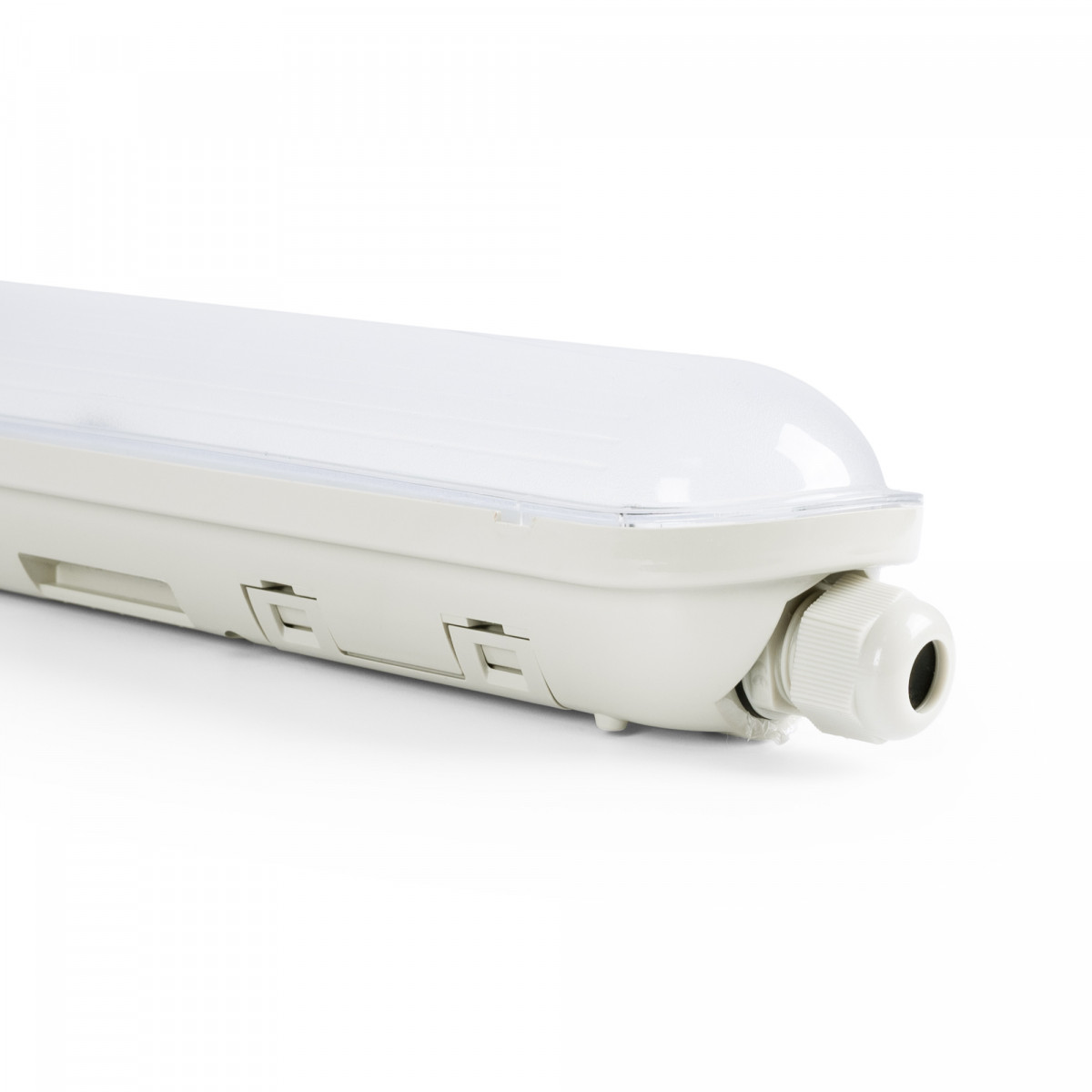

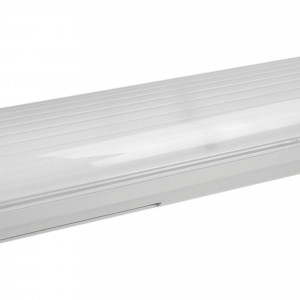

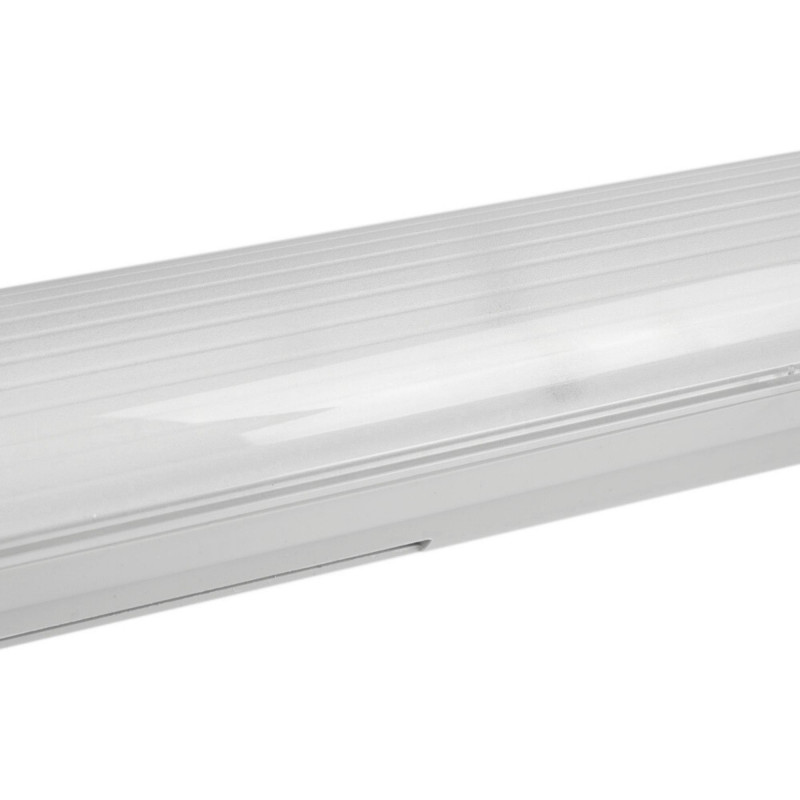

With a power of 21W and a luminous efficacy of 130lm/w, this screen emits a homogeneous and glare-free light thanks to its opal diffuser, with an angle of 120º.

It features an internal driver with EMC filter that prevents electromagnetic interference and minimizes flicker.

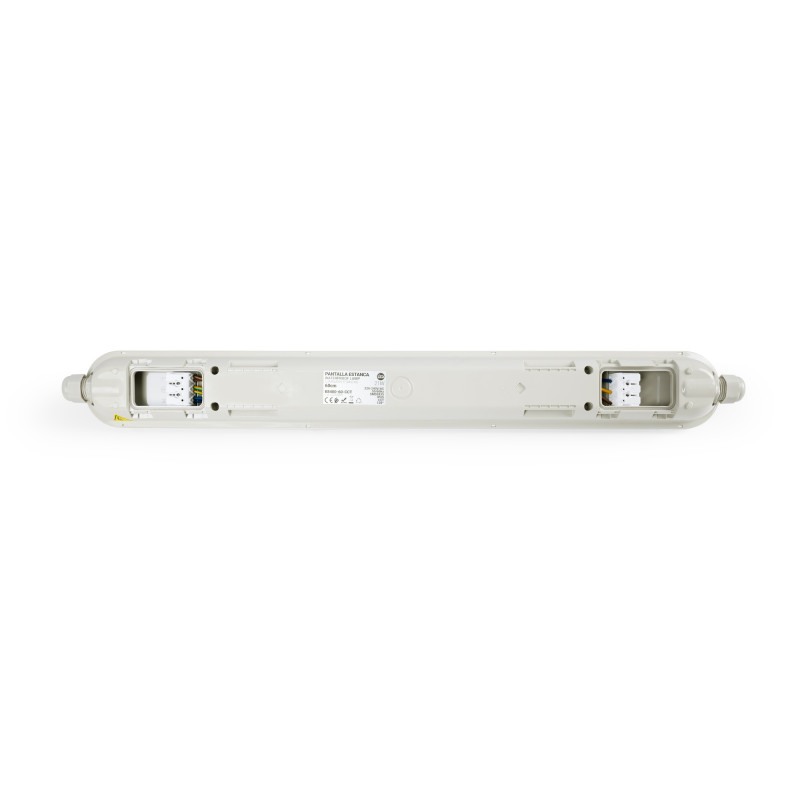

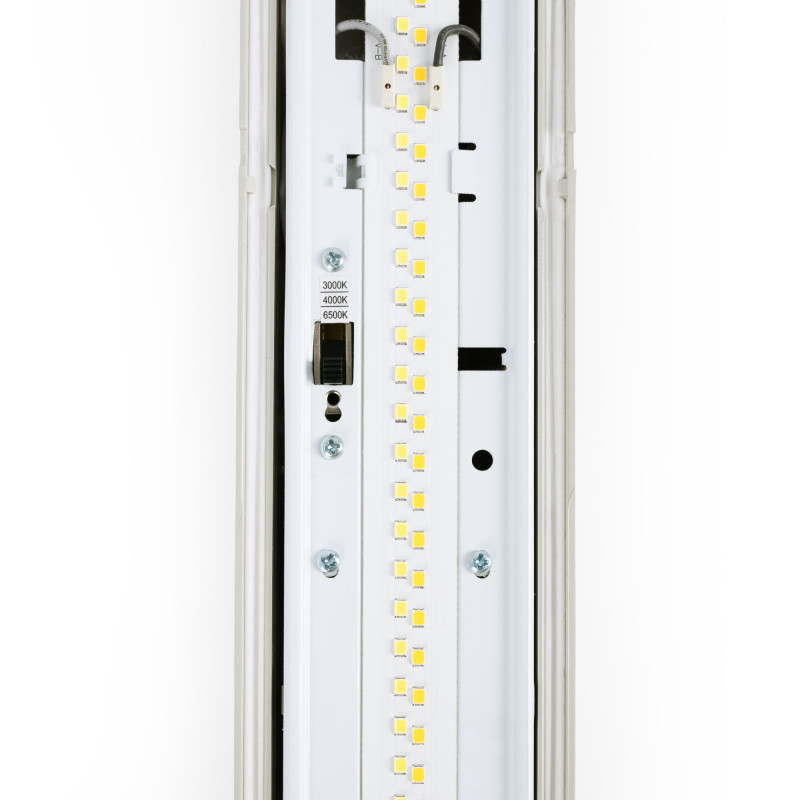

Its CCT system allows selecting the light temperature through an internal switch, offering three possible variants: warm light (3000K), neutral light (4000K), and cool light (6500K), thus adapting to the needs of each space.

Furthermore, its high color rendering index (CRI>80) ensures color reproduction very similar to natural light.

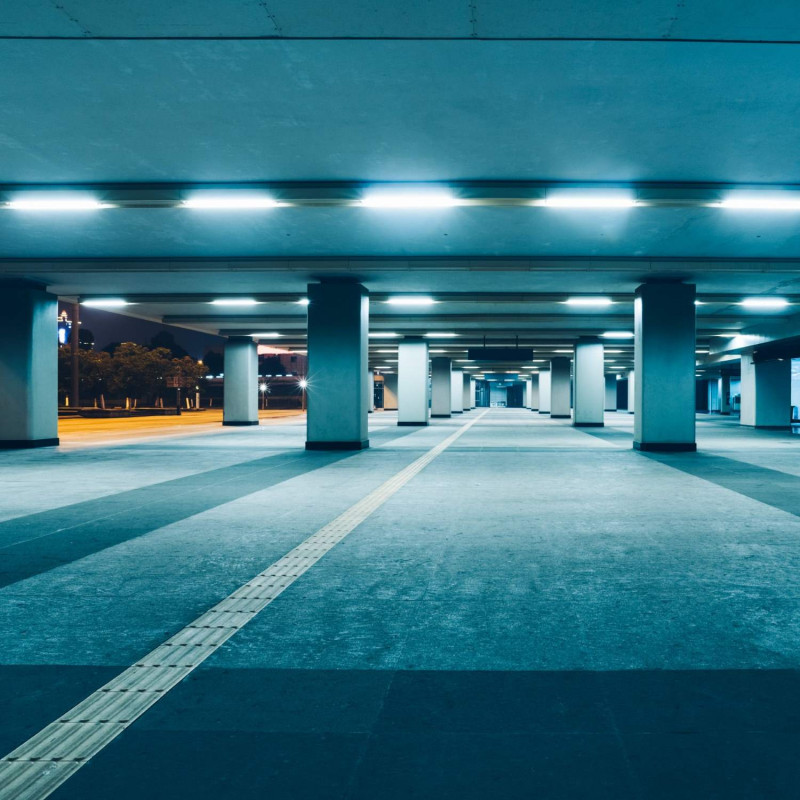

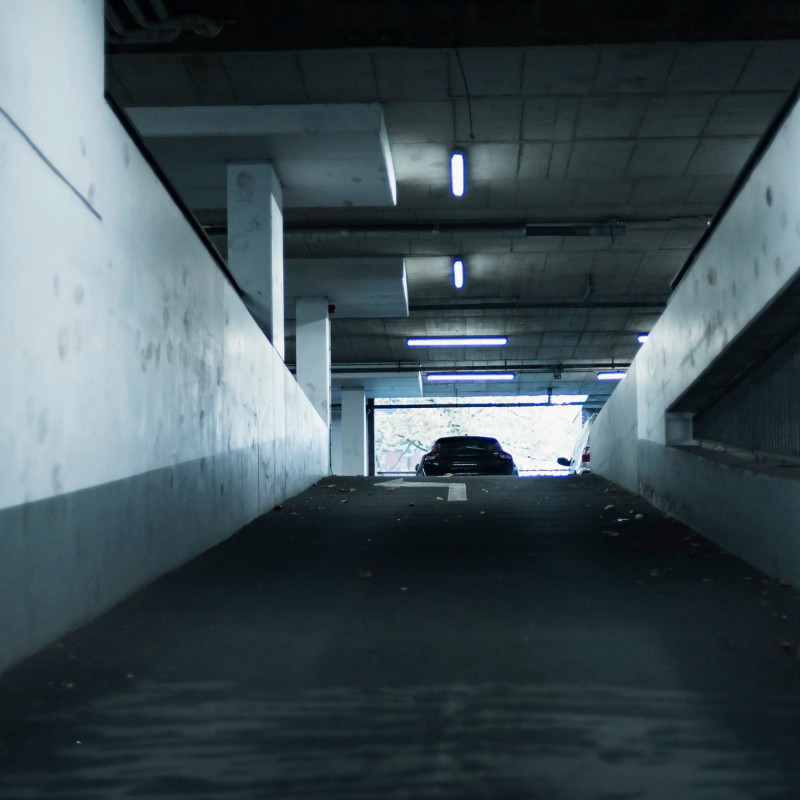

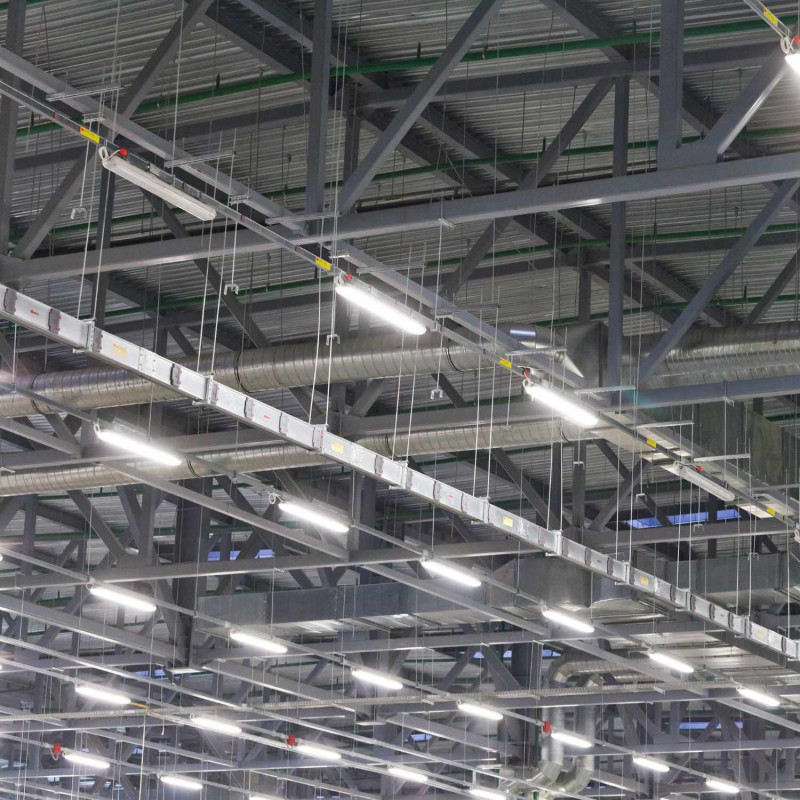

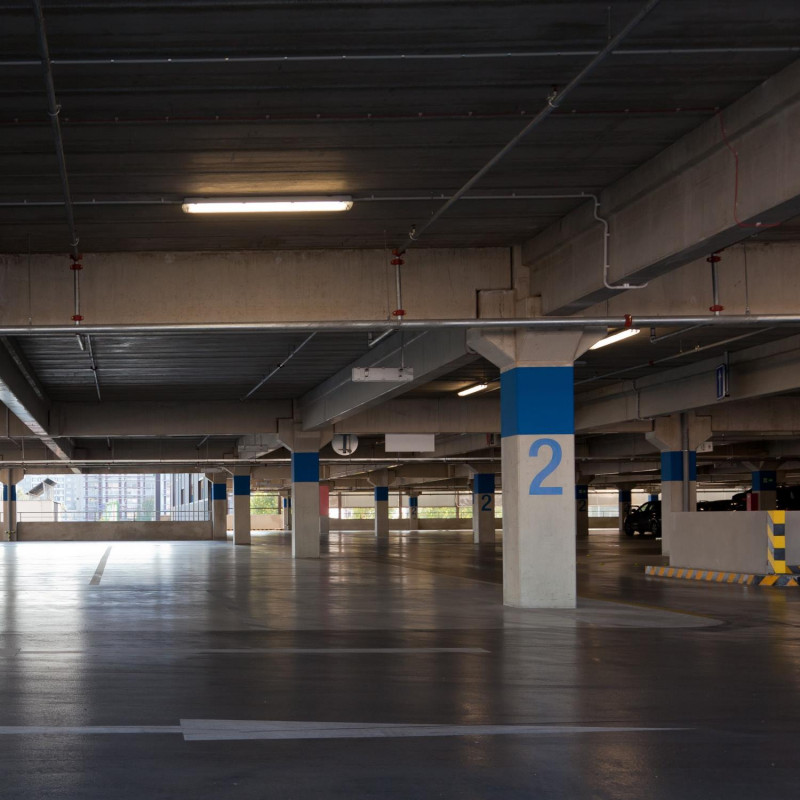

This fixture is ideal for installation in areas that require long periods of operation, such as parking lots, supermarkets, warehouses, garages, offices, among others, due to its efficiency and durability. Additionally, thanks to its high IP protection degree (IP65), it can be installed in humid or outdoor environments without any inconvenience.

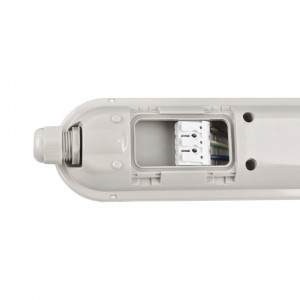

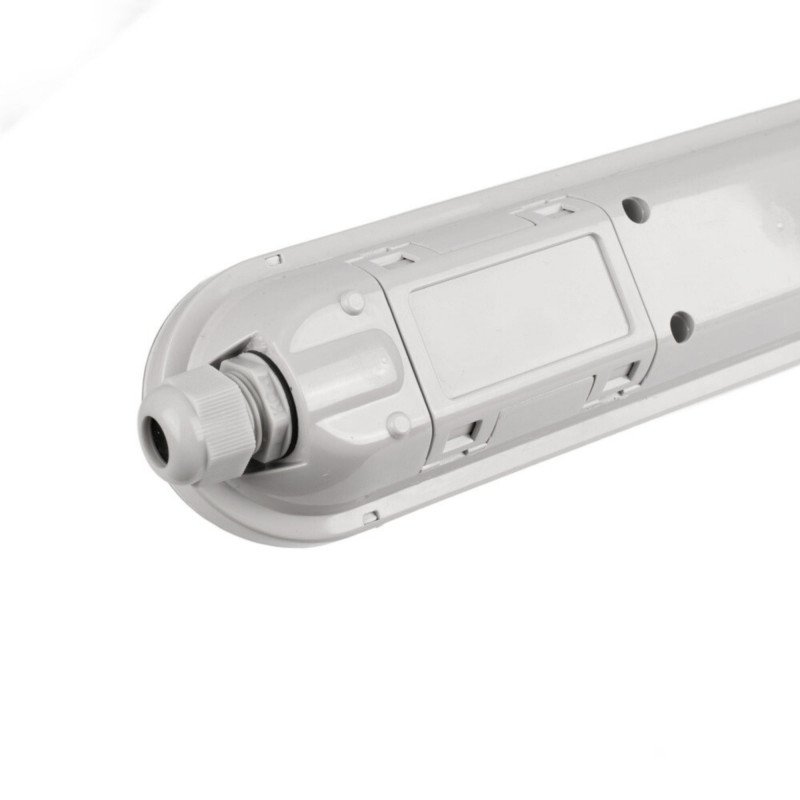

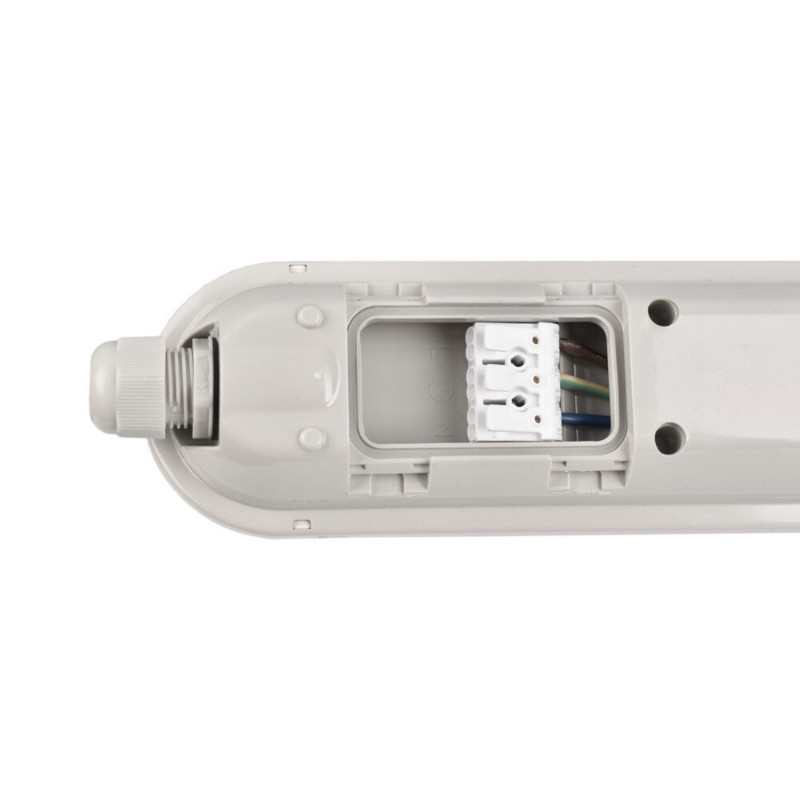

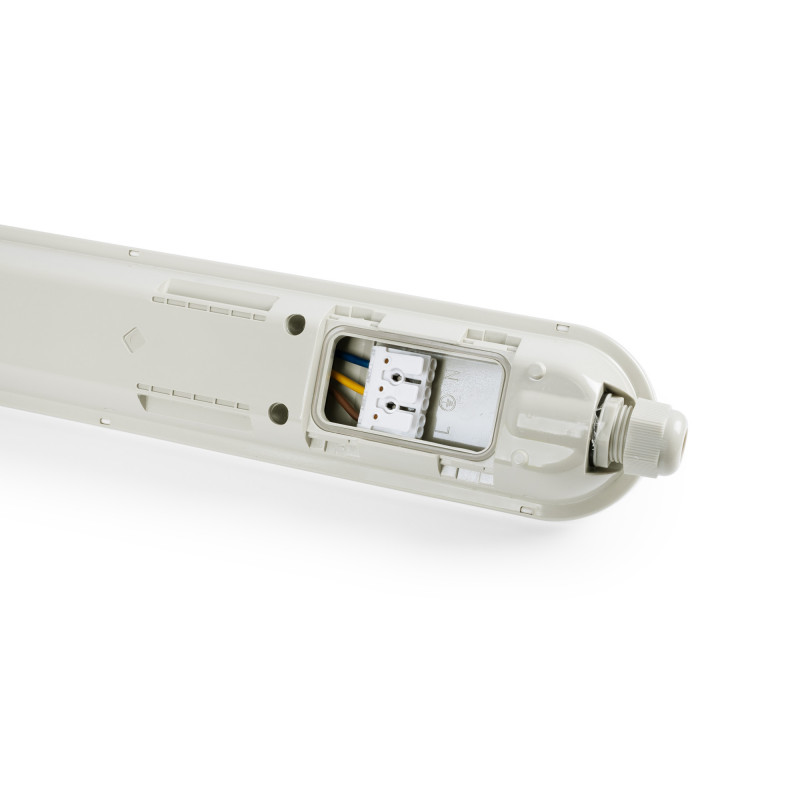

Being linkable, it allows creating customized and efficient lighting systems.

Product features:

  • Voltage: 220-240V AC
  • Power: 21W
  • Lumens: warm white (2514lm) - neutral white (2829lm) - cool white (2690lm)

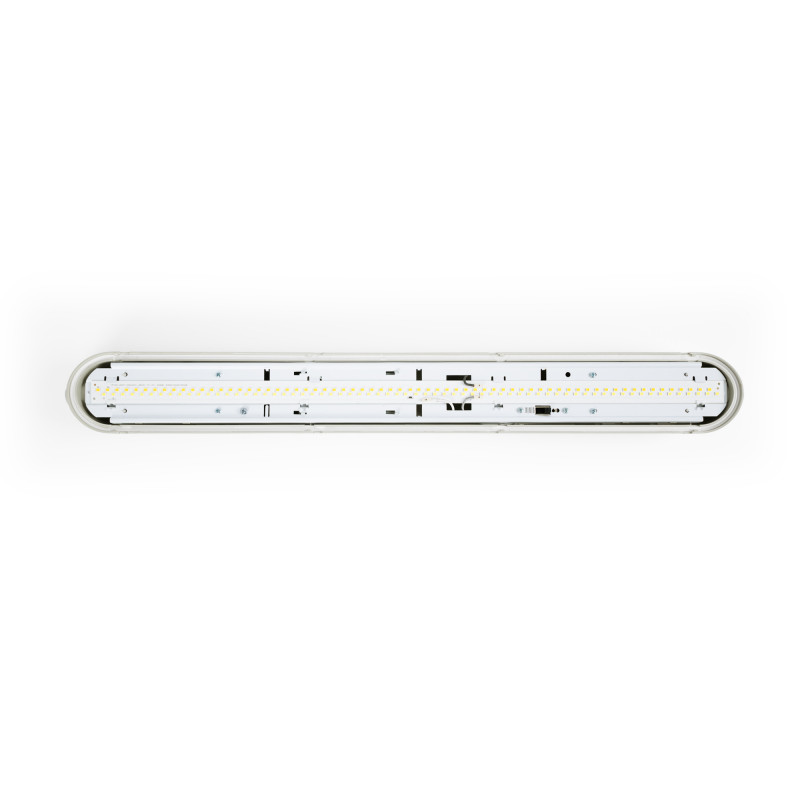

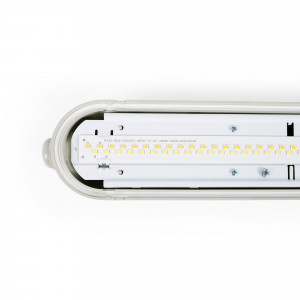

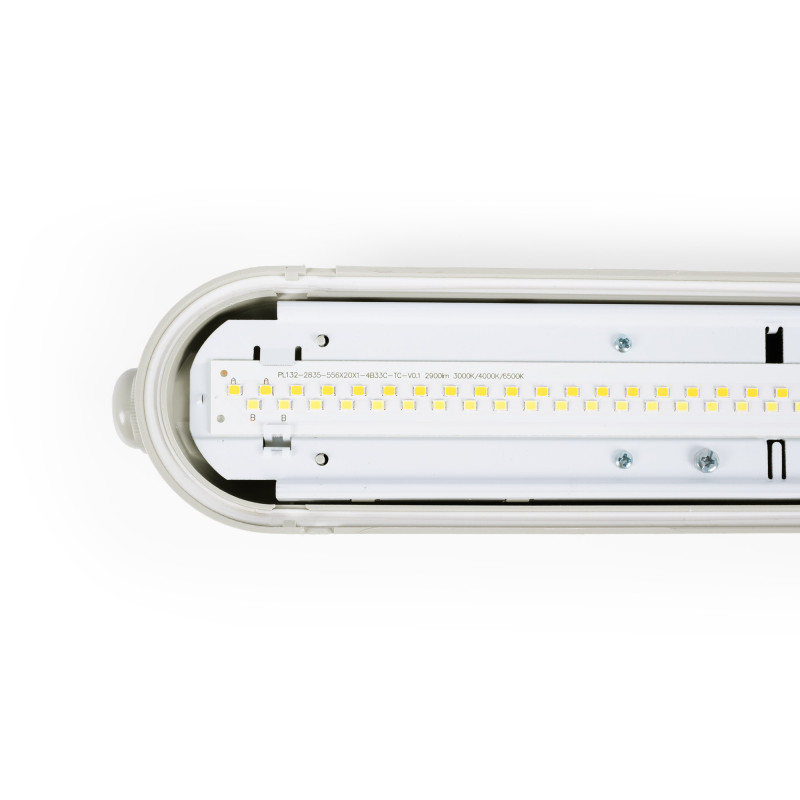

  • LED chips: SMD 2835
  • Outdoor use: IP65
  • Shade: CCT (3000K-4000K-6500K)
  • Non-dimmable
  • Easy installation

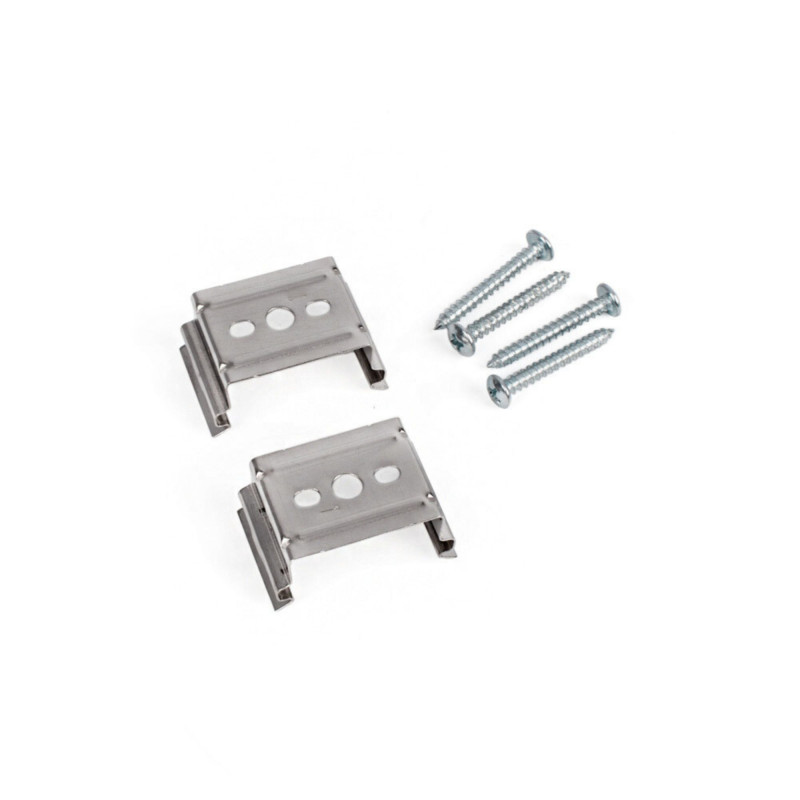

  • Mounting accessories included (fixing clips and screws)
  • CRI>80
  • Dimensions: 610x72x61 mm

Please note that some technical characteristics such as power or CRI may vary depending on the colour temperature of light. For further details, please refer to the attached "Test Reports" in the "Downloads" section or contact our sales advisors.

Nominal Voltage (V)
220 - 240 V/AC
Power (W)
21
Lumens (Lm)
warm white (2514lm) - neutral white (2829lm) - cool white (2690lm)
Kelvin (K)
3000
4000
6500
Beam angle (º)
120
Lifetime (h)
25000
IP
IP65
Dimensions (mm) Lxlxh
610 x 72 x 61
Frequency (Hz)
50 - 60
Hue
CCT
Efficiency (Lm/w)
130
CRI
80-85
LED Type
SMD 2835
Dimmable
No
Driver
Internal
Orientable
No
Material
Polycarbonate
Diffuser material
Polycarbonate
Use Outdoor
Yes
Energy efficiency class
E
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
