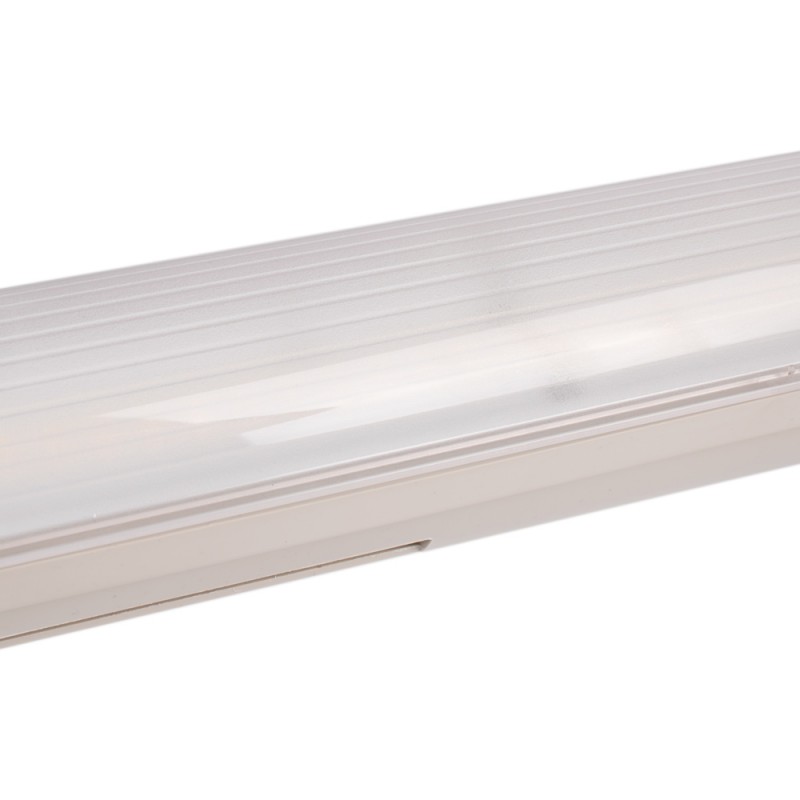

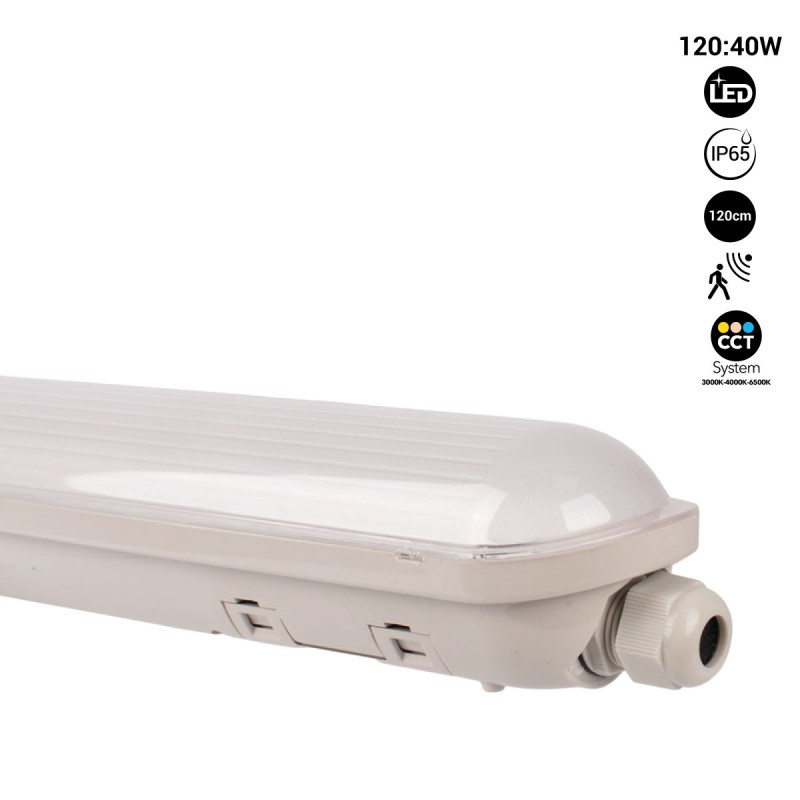

Linkable Tri-proof CCT LED batten light with motion sensor - 120cm - 40W - IP65
SKU:B8400-120-S-CCT
€44.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
The 120cm-long LED linear tri-proof batten is an excellent choice to replace traditional fluorescent tubes, as it combines quality with remarkable energy savings.
With a power of 40W and a luminous flux of 5400 lumens, this fixture emits a homogeneous and glare-free light thanks to its opal diffuser, with a beam angle of 120º.
It incorporates an occupancy sensor that enables configuration for both the detection area and the minimum light level required for activation, as well as the duration it remains illuminated.
It has an internal driver with EMC filter that prevents electromagnetic interference and minimizes flicker.

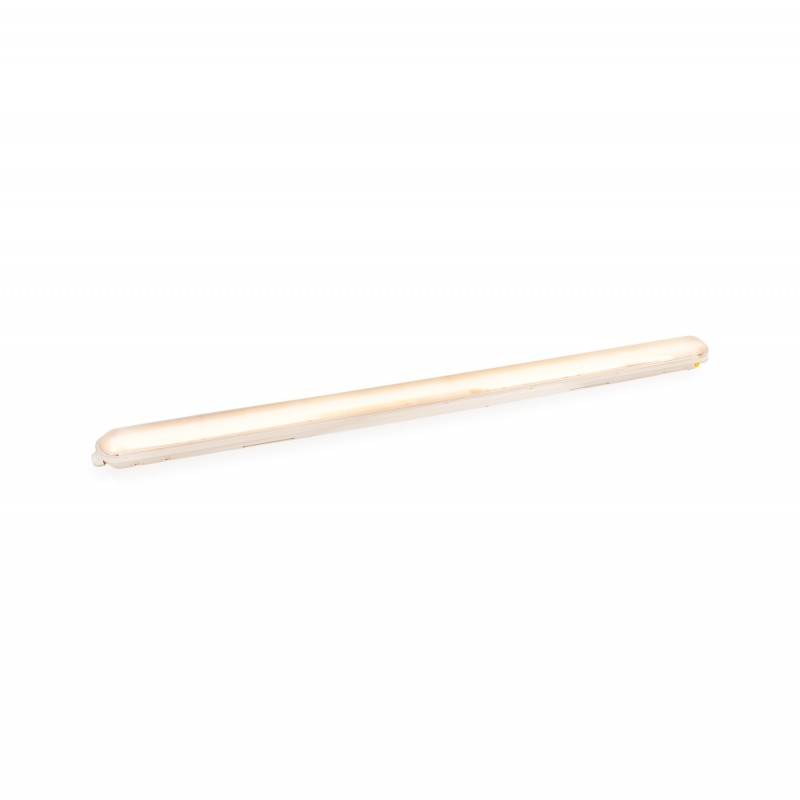

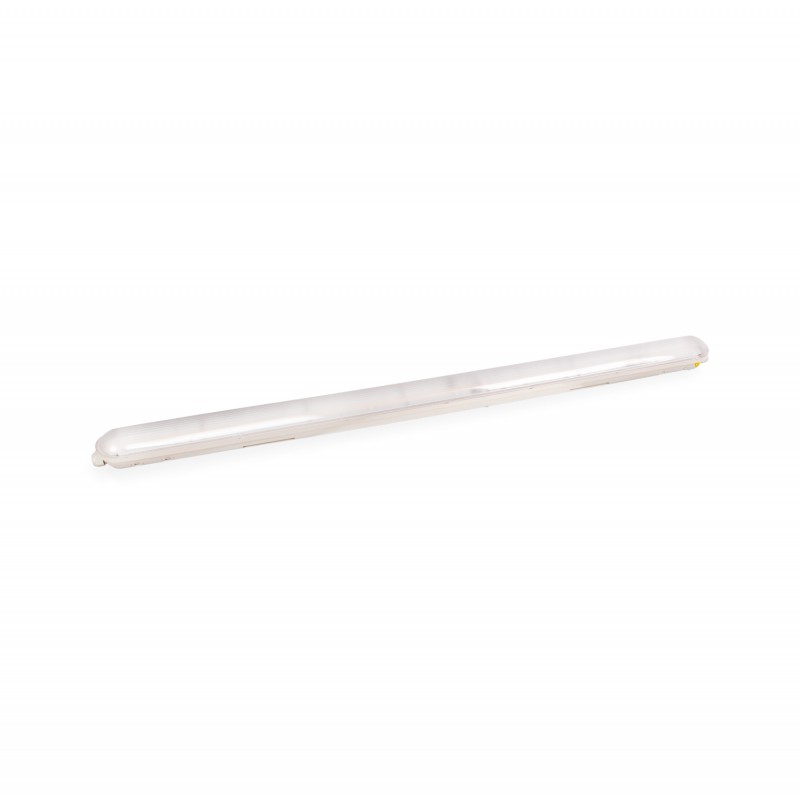

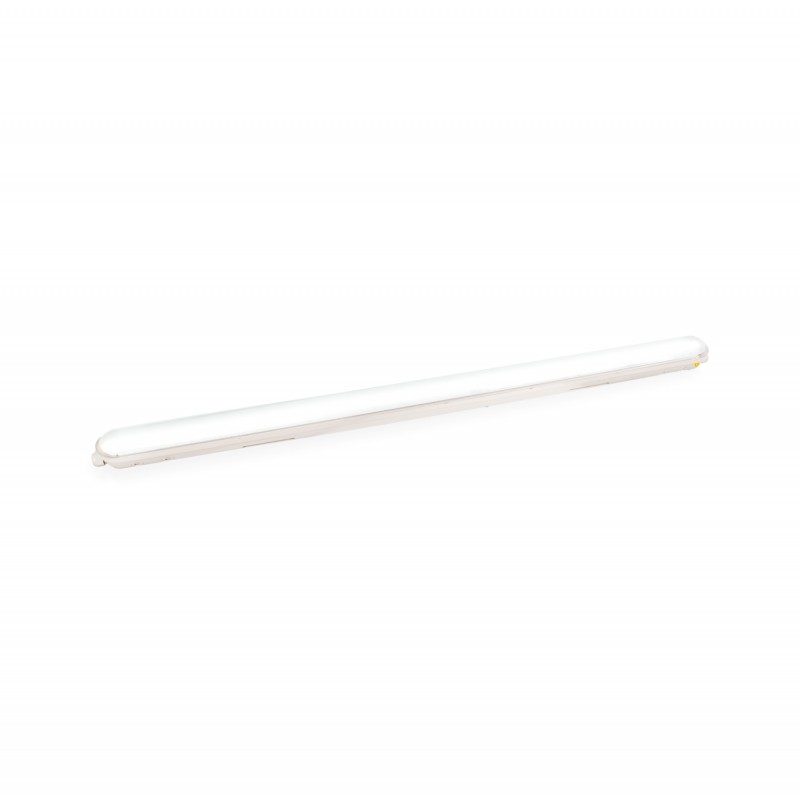

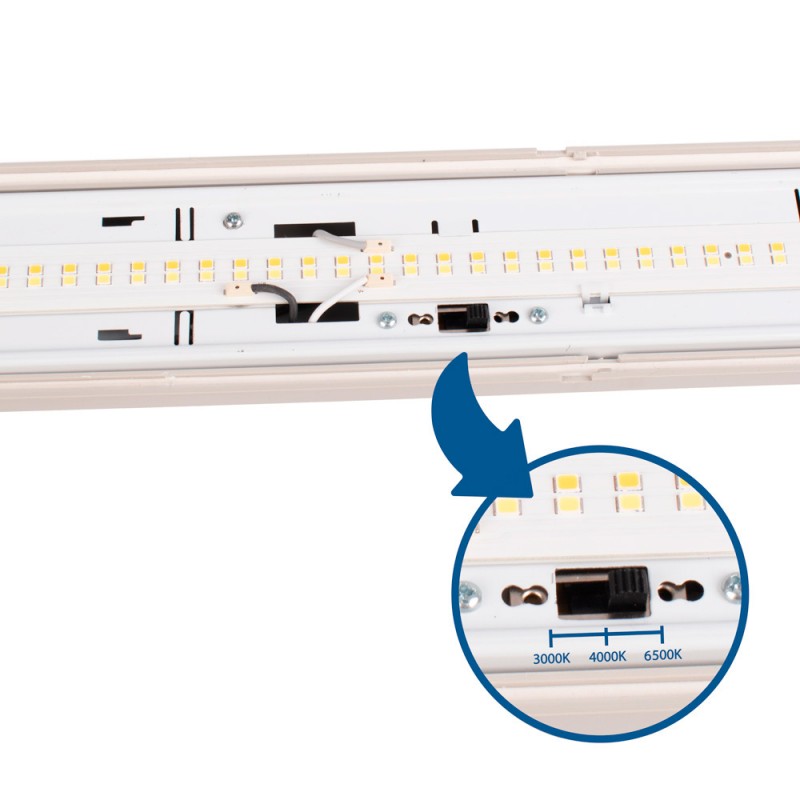

Its CCT system allows selecting the light temperature using an internal switch, offering three possible variants: warm light (3000K), neutral light (4000K), and cool light (6500K), thus adapting to the needs of each space.
In addition, its high color rendering index (CRI>80) guarantees color rendering very similar to natural light.

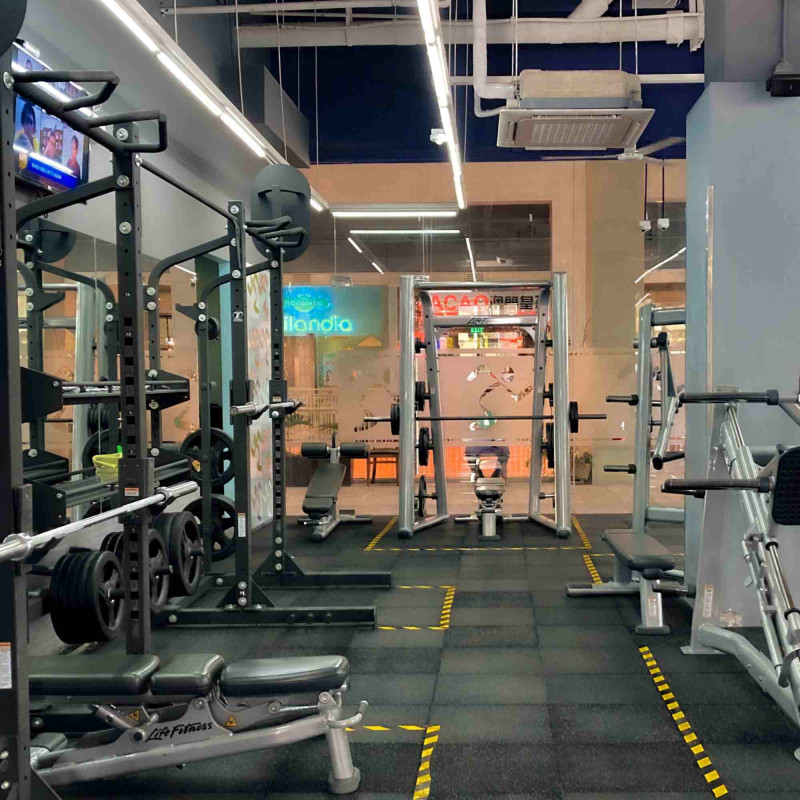

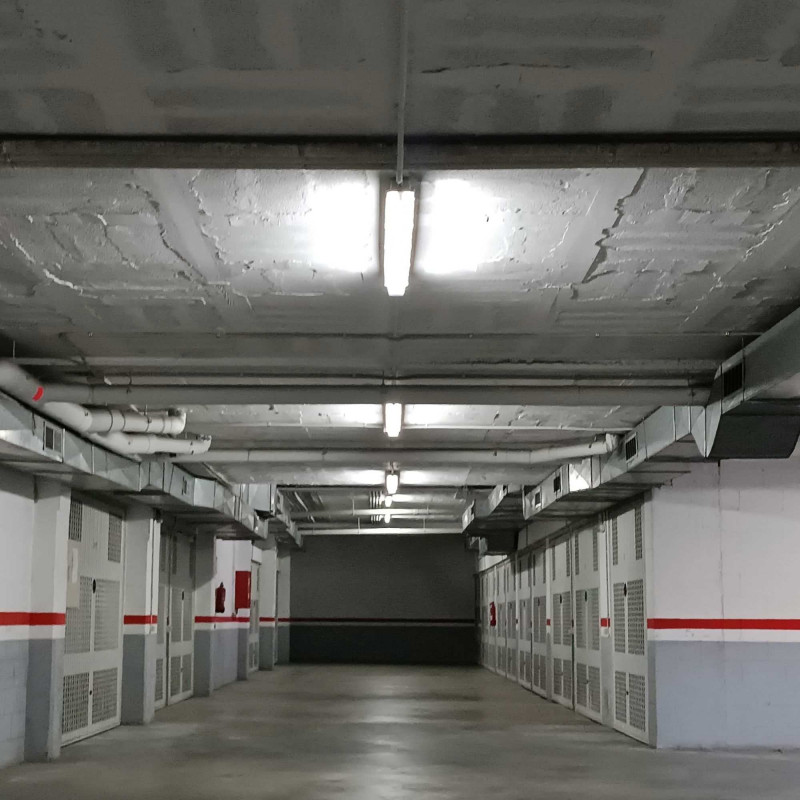

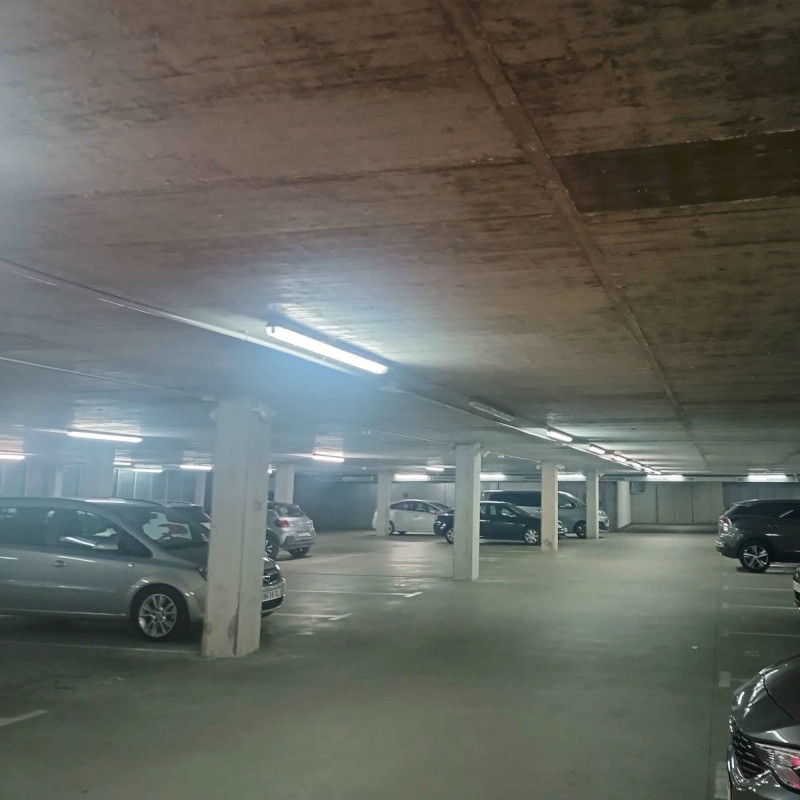

This product is ideal for installation in areas that require a long period of lighting, such as parking lots, supermarkets, warehouses, garages, offices, among others, due to its efficiency and durability. In addition, thanks to its high IP protection rating (IP65), this luminaire can be installed in humid or outdoor environments without any inconvenience.

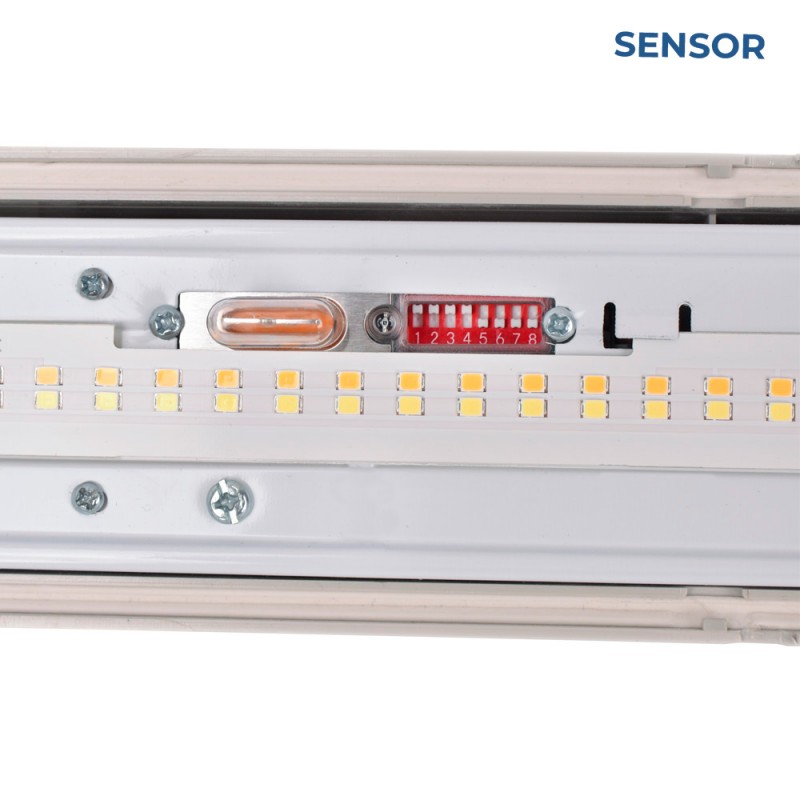

Sensor settings
Switches 1-2: Detection area (25%, 50%, 75%, 100%)
Switches 3-4-5: Hold time, on time (5s, 30s, 90s, 5min, 20min, 30min)
Switches 6-7-8: Ambient light sensitivity, 2lux, 10lux, 30lux, 30lux, 50lux, (night) / Disable (day).
|
Product features:
|
Please note that some technical characteristics such as power or CRI may vary depending on the colour temperature of light. For further details, please refer to the attached "Test Reports" in the "Downloads" section or contact our sales advisors.
Questions
| P: Question: | I bought the screen, but I can not find how to configure, I want to put a detection area 5m, it would be 25% or 50%? as I would have to put the switches, then I want a duration of 90 sec (as I put the switches, and if they are 5 min), and finally I want to only turn on at night (day or outside light does not turn on), as I put the switches, or if you send me a manual I try it myself, thank you. |
|---|
| R: Answer: | You can see the functions in the manual on the display: Switches: 1,2 sensitivity (adjust sensitivity as needed) 100% to 25%. 3,4,5 power on time (90sec switches 3 and 5 above), (5min switch 5 above) 6,7,8 ambient light detection (night switch 6,7,8 above) |
|---|
| P: Question: |
Hello. I have installed the screen model with sensor (B8400-120SBN) in a 2,40m high ceiling, but I can't manage to program the on time of the motion sensor so that it works correctly. For example, if I program the on time of 1 minute, reached that time the screen turns off but instantly turns on again without any movement. Thank you. |
|---|
| R: Answer: | The detection range must be taken into account. It is a microwave sensor system and can detect movement of plants or people outside the location, as it can pass through walls. |
|---|
| P: Question: |
Hello, Can you tell me how far away the presence sensor is located? That is, within the length of 120 cms, if it is in one of both corners or if for example it is in the center. On the other hand, if it is located inside, how can I access to configure it? I understand that it is programmable. If I am right, what is approx. the distance or range of detention in horizontal for a height of approx. 2.75 m, what is the minimum configurable time to keep it on? and the minimum luxes configurases for the LED display to enter on mode? |
|---|
| R: Answer: | The sensor is located on the side inside the luminaire and is accessed by removing the led plate. The range is configurable between 50% and 100%, with a range of 10mts max. The minimum time is 5s and max 10 min and the minimum light 30lux, but the twilight sensor can be deactivated. |
|---|
| P: Question: |
What is the detection distance of the presence sensor and how long does it last? Is it effective for a staircase? If you put equipment on each landing, won't it turn off in the middle of the staircase? |
|---|
| R: Answer: | The maximum detection range is 10 meters in diameter, adjustable between 5 seconds and 10 minutes, with the possibility of activating the twilight sensor at a minimum of 30 lx. |
|---|
| P: Question: | Hello, good afternoon, last week we purchased four waterproof displays model B4800-120SBN and we can't find how to program the shutdown time. Thank you!!! |
|---|

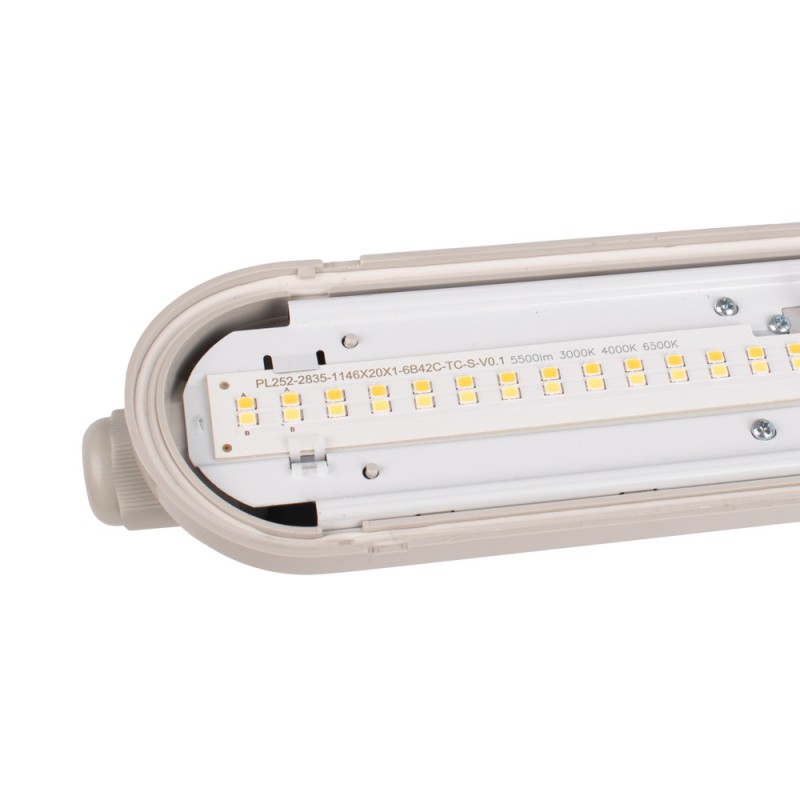

| R: Answer: | It is necessary to remove the metal base where the LEDs are located (it is screwed to the casing), inside is the programming system. |
|---|
| P: Question: |
Good morning. Can you tell me if they come. With the tubes? I guess so because they indicate that they have 4000 lm. If not, what tubes should be installed? I would need to make 3 garages in a community of neighbors in Toledo. I indicate my mail to tell me the prices. Thanks |
|---|
| R: Answer: | These watertight screens do not have T8 led tubes, they are screens with the set of leds integrated in the track and plate of the luminaire. The luminaire is placed directly to the 220V mains. This model is activated with the integrated motion sensor. You can see the prices on the web to buy online or contact comercial@barcelonaled.com |
|---|
